Duplex Socket Weld Fittings Manufacturer in India

Home|Duplex Socket Weld Fittings

Best Supplier Of Duplex 2205 Socket Weld Fittings in Mumbai At Discounted Price

Duplex Socket Weld Fittings Specification



List of 5 Important Documents for European Buyers to purchase Duplex Socket Weld Fittings from India
  • Commercial Invoice
  • Packing List
  • Certificate of Origin
  • Material Test Certificate
  • Inspection/Test Reports
Manisha Steel Centre

Table of Content

Duplex Socket Weld Fittings Specification
Duplex Socket Weld Pipe Fittings Sizes

Duplex Socket Weld Pipe Fittings Sizes

  • Size : 1/2" NB to 24" NB
  • Schedule : Sch 10s, 40s, 80s, 160s, XXS
  • End : Compound Bevel, Plain Bevel, Buttweld, Bevelled

Duplex Socket Weld Equal Tee Manufacturing Standards

Duplex Socket Weld Equal Tee Manufacturing Standards

  • MSS-SP-43
  • ANSI B16.9
  • ASME B16.28
  • 100% Tested With MTC EN 10204/3.1

Duplex Socket Weld Union Physical Properties

Duplex Socket Weld Union Physical Properties

  • Melting Point:1450°C (2642°F)
  • Density:7.8 g/cm³
  • Heat Treatment: 500 J/kg·°C at 25°C
Duplex Socket Weld Cross Process

Duplex Socket Weld Cross Process

  • Seamless
  • Fabricated
  • Welded

Duplex 2205 Socket Weld Fittings Types

Duplex 2205 Socket Weld Fittings Types

  • Elbow
  • Union
  • Coupling
  • Cross
Duplex Socket Weld Cap International Standards

Duplex Socket Weld Cap International Standards

  • UNS S31803
  • ASTM A182
  • WNR 1.4462
  • ASME SA 182
Duplex Socket Weld Elbow Bending Radius

Duplex Socket Weld Elbow Bending Radius

  • 3D
  • 2D
  • 1D
  • 5D
Duplex Socket Weld Tee Origin

Duplex Socket Weld Tee Origin

  • European
  • Janpanese
  • Russia
  • American

Duplex Steel Socketweld Fittings Services

Duplex Steel Socketweld Fittings Services

  • Shearing
  • Heat Treatment
  • Cutting
Duplex Socket Weld Union Packaging

Duplex Socket Weld Union Packaging

  • Bubble Wraps
  • Bundled
  • Wooden Box

Duplex Socket Weld Fittings Surface Finish

Duplex Socket Weld Fittings Surface Finish

  • Pickled
  • Polished
Duplex Socket Weld Cross Testing

Duplex Socket Weld Cross Testing

  • PMI, Hardness test
  • Ultrasonic, HIC test

Alloy 2205 Socketweld Fittings Size Chart

Are You Trying to Find the Best Deal on Duplex Socket Weld Fittings? To get an estimate right away, send an email to kalpesh@manishasteelcentre.com.

NPS OD of Band D Min WT Center to End A Minimum Length of Thread
B J
1/2 33 3.18 28 10.9 13.6
1 ¼ 56 3.89 44 17 18
1 ½ 62 4.01 51 17.8 18.4
2 75 4.27 60 19 19.2
3/4 38 3.18 33 12.7 13.9
1 46 3.68 38 14.7 17.3
2 ½ 92 5.61 76 23.6 28.9
3 109 5.99 86 25.9 30.5
4 146 6.55 106 27.7 33

Buy ASTM A182 UNS S31803 Socket Weld Elbow With Pressure Class 3000 to 9000 LBS

SAF® 2205 Socket Weld Elbow Pressure Rating
Pressure Class Size Range (Inches) Pressure Rating (psi) at 100°F
1500 LBS 1/2" to 4" 500 - 3000 psi
2000 LBS 1/2" to 4" 700 - 4000 psi
3000 LBS 1/2" to 4" 1000 - 6000 psi
6000 LBS 1/2" to 4" 1500 - 12000 psi
9000 LBS 1/2" to 4" 2500 - 18000 psi

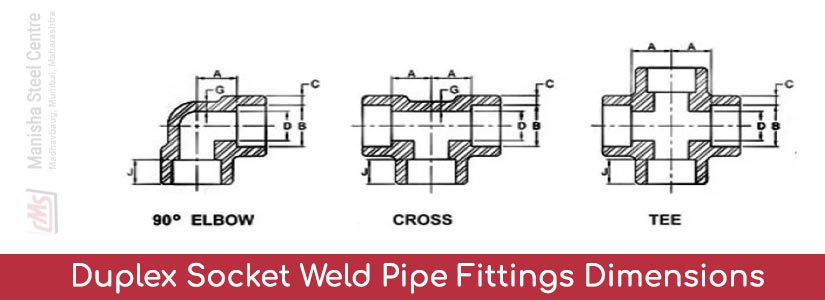

Duplex Socket Weld Pipe Fittings Dimensions

Genuine Duplex Socket Weld Fittings Manufacturer in India As Per Specification

Duplex Socket Weld Pipe Fittings Dimensions



NPS DN OD of Band H Minumum WT G Center to End 45° Elbow C Center to End Elbows.Tees.Cross A Length of  Thread. Min.(1)
2000 3000 6000 2000 3000 6000 2000 3000 6000 2000 3000 6000 B L2
1/4 8 22 25 33 3.18 3.30 6.60 17 19 22 21 25 28 8.1 10.2
3/8 10 25 33 38 3.18 3.51 6.98 19 22 25 25 28 33 9.1 10.4
1/2 15 33 38 46 3.18 4.09 8.15 22 25 28 28 33 38 10.9 13.6
3/4 20 38 46 56 3.18 4.32 8.53 25 28 33 33 38 44 12.7 13.9
1/8 6 22 22 25 3.18 3.18 6.35 17 17 19 21 21 25 6.4 6.7
1 25 46 56 62 3.68 4.98 9.93 28 33 35 38 44 51 14.7 17.3
1-1/4 32 56 62 75 3.89 5.28 10.59 33 35 43 44 51 60 17.0 18.0
1-1/2 40 62 75 84 4.01 5.56 11.07 35 43 44 51 60 64 17.8 18.4
2 50 75 86 102 4.27 7.14 12.09 43 44 52 60 64 83 19.0 19.2
2-1/2 65 92 102 121 5.61 7.65 15.29 52 52 64 76 83 95 23.6 28.9
3 85 109 121 146 5.99 8.84 16.64 64 64 79 86 95 106 25.9 30.5
4 100 146 152 152 6.55 11.18 18.67 79 79 79 106 114 114 27.7 33.0
DSS 2205 Socketweld Fittings Weight Chart
Size A B Weight QTY
½ 1.12 1.31 0.57 100
¾ 1.31 1.5 0.71 75
1 1.5 1.81 1.08 40
2 2.38 2.97 3.55 10
2 ½ 3.00 3.62 6.22 4
3 3.38 4.31 10.36 2
1 ¼ 1.75 2.19 1.68 25
¼ 0.81 0.88 0.20 160
1 ½ 2.00 2.44 2.38 18
4 4.19 5.75 23.91 1

Stock and Supply WNR 1.4462 Socket Weld Coupling and Tee Produced With Various Forging Method

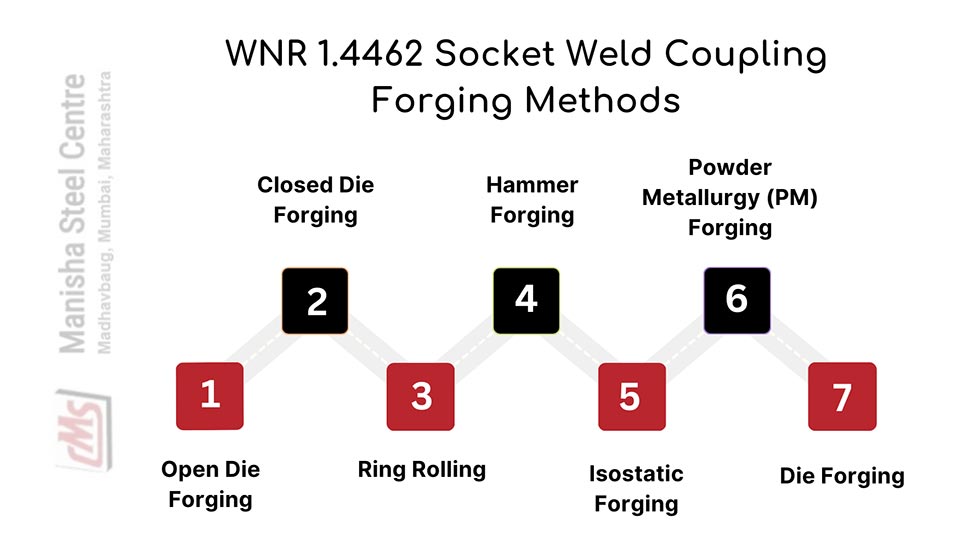

WNR 1.4462 Socket Weld Coupling Forging Methods
WNR 1.4462 Socket Weld Coupling Forging Methods
Most Common Types of Duplex Socket Weld Fittings

Trusted Duplex Socket Weld Fittings Supplier in India in Custom Shapes and Types

Duplex Socket Weld Elbow

Duplex Socket Weld Elbow

Duplex SS Socket Weld Tee

Duplex SS Socket Weld Tee

Alloy 2205 Socket Weld Half Couplings

Alloy 2205 Socket Weld Half Couplings

WNR 1.4462 Socket Weld Reducing Couplings

WNR 1.4462 Socket Weld Reducing Couplings

22 Chrome Socket Weld Cap

22 Chrome Socket Weld Cap

SM22CR® Socket Weld Cross

SM22CR® Socket Weld Cross

SAF® 2205 Socket Weld Union

SAF® 2205 Socket Weld Union

ASTM A182 UNS S32205 Socket Weld Plug

ASTM A182 UNS S32205 Socket Weld Plug

DSS 2205 Socket Weld Reducing Insert

DSS 2205 Socket Weld Reducing Insert

Get ASME SA 182 UNS S32205 SW Cross and Union Online With Thread BSPT, NPTF, BSP, NPT etc
ASME SA 182 UNS S32205 SW Cross Threads
  • BSPT: British Standard Pipe Tapered
  • NPTF: National Pipe Tapered Fuel
  • BSP: British Standard Pipe
  • NPT: National Pipe Thread
Open Die Forging vs Closed Die Forging
Properties Open Die Forging Closed Die Forging
Cost Low High
Precision Low High
Material Waste High Low
Flexibility High Low
Production Rate Low High
Applications Large/simple parts Small/complex parts
Setup Time Long Short
Offer Duplex Stainless Steel Forged Socket Weld Pipe Fittings With Various Value Added Services
Duplex SS Socket Weld Cap Value Added Services
  • Custom Machining and Fabrication
  • Surface Finishing
  • Heat Treatment
  • Inspection and Testing
  • Packaging and Shipping
  • Certification and Documentation

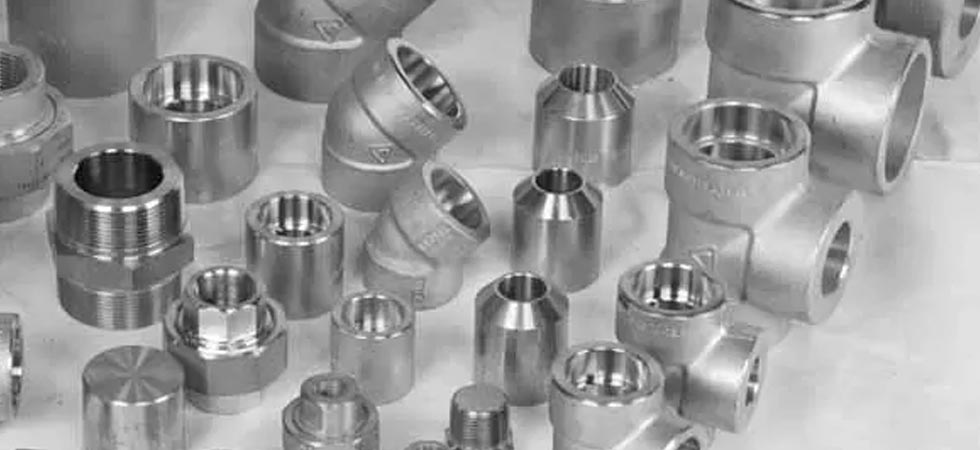

22 Chrome Socket Weld Union Material Testing
22 Chrome Socket Weld Union Material Testing
  • Hardness Test
  • Pitting Resistance Test
  • Mechanical Testing
  • Chemical Analysis
  • Intergranular Corrosion (IGC) Test
  • Micro and Macro Test
  • Flaring Test
  • PMI Testing
Duplex Socket Weld Fittings Equivalent Material
STANDARD UNS WERKSTOFF NR.
Duplex S31803/S32205 S31803/S32205 1.4462
WNR 1.4462 Socket Weld Fittings Chemical Composition
Grade Cr Mo Si Fe Ni P S N C Mn
Duplex S32205 21.0-23.0 2.50-3.50 1.00 max  63.54 min  4.50-6.50 0.030 max 0.020 max 0.08-0.20 0.030 max  2.00 max
Duplex S31803 22.0-23.0  3.0-3.5 1.00 max  63.72 min  4.50-6.50 0.030 max 0.020 max 0.14-0.20 0.030 max  2.00 max
Mechanical Properties of ASME SA 182 UNS S32205 SW Cross
Property Value
Tensile Strength (Ultimate) 620 MPa (90 ksi) (Minimum)
Yield Strength (0.2% Offset) 450 MPa (65 ksi) (Minimum)
Elongation (in 50mm gauge length) 25% (Minimum)
Hardness (Rockwell B) 95 HB
Hardness (Brinell) 290 HB
Impact Toughness (Charpy V-notch) 100 J at -40°C
Modulus of Elasticity 200 GPa (29 x 10⁶ psi) (Typical)
Poisson’s Ratio 0.3 (Typical)
Fatigue Strength 200 MPa at 10⁶ cycles (Typical)
Stress Corrosion Cracking Resistance High resistance in chloride environments
Creep Strength 250 MPa at 600°C (1112°F) (Typical)
Ductility Excellent
Tensile Modulus 200 GPa (29 x 10⁶ psi) (Typical)
DSS 2205 Socket Weld Coupling Physical Properties
Grades Density (lb/in 3) Density (g/cm 3) Melting Point (°F) Melting Point (°C)
S31803 / S32205 0.285 7.805 2588 – 2669 1420 – 1465
Duplex Steel Forged Socket Weld Pipe Fittings Test Certificates
  • Raw Materials Certificate
  • Third Party Inspection Report, etc.
  • EN 10204/3.1B
  • 100% Radiography Test Report
Duplex Socket Weld Plug Documentation
  • Quality Assurance Plan (QAP)
  • Guarantee Letter
  • Raw Material Test Reports
  • Heat Treatment Charts
  • Fumigation Certificates
  • Material Traceability Records
  • NABL approved Laboratory Test Reports
  • Material Test Certificates
Duplex Socket Weld Fittings Delivery Time As Per Location
Changes in Price
Extra 5 %
Export to Shipping Time in Days
Ireland 60
Malaysia  7
Finland 45-60
Hungary 45
Singapore  8
Vietnam  14
Indonesia  7
Slovenia 60
Malta  60
Albania  45
Croatia 60
Austria 60
Switzerland 45-60
Thailand  7
Slovakia 45-60
