Stainless Steel Needle Tube Manufacturer in India

Home|Stainless Steel Needle Tube

SS Hypodermic Tubing Supplier in Mumbai With Standard and Custom Size

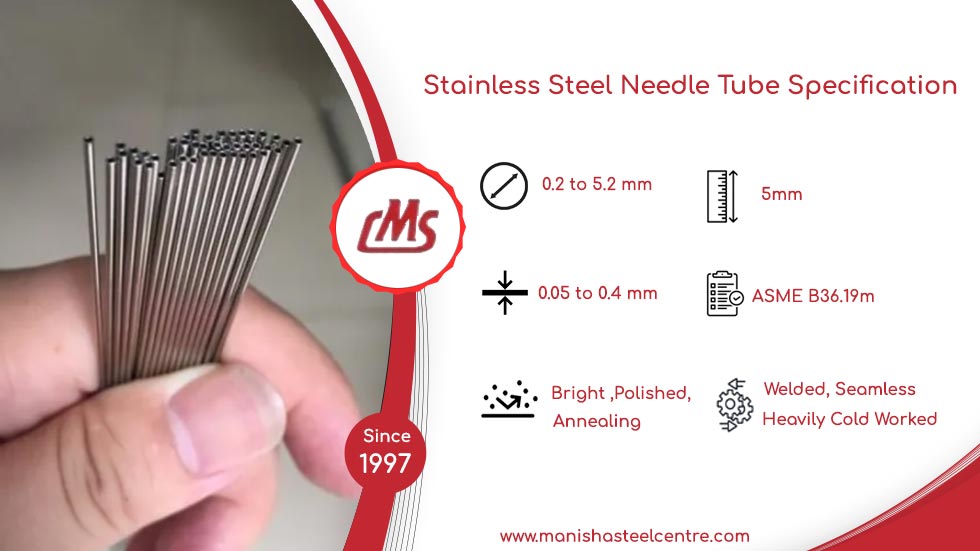

Stainless Steel Needle Tube Specification



6 Considerations Before Purchasing Stainless Steel Needle Tubes from India
  • Quality and Standards Compliance
  • Manufacturer Reputation and Certification
  • Price and Cost Efficiency
  • Lead Time and Delivery Reliability
  • Customization and Precision
  • After-Sales Support and Warranty
Manisha Steel Centre

Table of Content

Stainless Steel Needle Tube Specification
Medical Metal Tubing Sizes

Medical Metal Tubing Sizes

  • OD: 0.2 to 5.2 mm
  • Thickness: 0.05 to 0.4 mm
  • Length: 5mm
Stainless Steel Hypotube Grades

Stainless Steel Hypotube Grades

  • SS 304, 304L
  • SS 316, 316L
  • SS 310
Medical Stainless Steel Tubing Manufacturing Process

Medical Stainless Steel Tubing Manufacturing Process

  • Seamless, ERW
  • Welded, Redrawn
Hypodermic Tubing Technique

Hypodermic Tubing Technique

  • Hot Formed
  • Precision Rolled
  • Cold Formed
Benefits of Stainless Steel Hypodermic Tubing

Benefits of Stainless Steel Hypodermic Tubing

  • Easy to clean
  • Cost-effective
  • Durability
Medical Grade Stainless Steel Tubing Documentation

Medical Grade Stainless Steel Tubing Documentation

  • Visual Inspection
  • Mill Test Certificates
  • PMI Test Reports
Stainless Steel Needle Tubing Shapes

Stainless Steel Needle Tubing Shapes

  • Round/ Straight
  • Rectangle
  • Square/Coil
  • Hydraulic
Stainless Steel Hypodermic Tubing Origin

Stainless Steel Hypodermic Tubing Origin

  • European
  • Janpanese
  • American
Stainless Steel Medical Tubing Services

Stainless Steel Medical Tubing Services

  • Shearing
  • Heat Treatment
  • Cutting
Stainless Steel Syringe Tube Packaging

Stainless Steel Syringe Tube Packaging

  • Bubble Wraps
  • Wooden Box
  • Bundled
Corrugated Medical Gas Tubing Finish

Corrugated Medical Gas Tubing Finish

  • Annealing/Polished
  • Pickling, Bright
SS Medical Tubing End

SS Medical Tubing End

  • Threaded
  • Bevelled/Grooved
  • Plain
Stainless Steel Surgical Tubing Testing

Stainless Steel Surgical Tubing Testing

  • Ultrasonic, PMI
  • Chemical
  • Mechanical
Stainless Steel Needle Tube Marking

Stainless Steel Needle Tube Marking

  • Heat Number
  • Method of Manufacturing
  • Material Grade
  • Nominal Size
SS Needle Tubing Dimensions

Are You Looking for Stainless Steel Needle Tube at the Best Price? In order to obtain an estimate immediately, send an email to kalpesh@manishasteelcentre.com.

Gage No. OD, in. Nominal Wall, in. OD Tolerance, in (±) Wall Tolerance, in.. (±)
6 0.203 0.015 0.001 0.001
13 0.095 0.012
14 0.083 0.010
15 0.072 0.009 0.0005 0.0005
16 0.065 0.009
17 0.059 0.009
18 0.050 0.0085
19 0.0425 0.00775
22 0.028 0.00625 +0.0005/-0.000 +0.000/-0.0005
23 0.025 0.00625
24 0.022 0.00525
25 0.020 0.00525
26 0.018 0.00425
27 0.016 0.00425
28 0.014 0.0035 0.00025
7 0.180 0.015 0.001 0.001
8 0.165 0.015
9 0.148 0.015
10 0.134 0.014
11 0.120 0.013
12 0.109 0.012
20 0.0355 0.00625 +0.0005/-0.000 +0.000/-0.0005
21 0.032 0.00625 +0.000/-0.0005
29 0.013 0.003 0.00025
30 0.012 0.003
31 0.010 0.0025
32 0.009 0.0025
33 0.008 0.002

Get 304/ 316 Medical Stainless Steel Tubing As Per ASME B36.19m at Genuine Price

Stainless Steel Medical Tubes Price

Genuine Stainless Steel Needle Tube Manufacturer in India As Per Specification

Needle Tube Size (mm) Price per 100 Meters (USD)
0.2 x 0.3 $80
0.5 x 0.8 $100
1.0 x 1.5 $150
1.5 x 2.0 $200
2.0 x 3.0 $250
3.0 x 4.0 $300
SS Hypotube Sizes
Gauge Size Nominal Inches OD ID
OD ID Wall Max Min Max Min
12 X .1090 .097 .006 .1100 .1080 .0990 .0950
3 TW .259 .229 .015 .261 .257 .231 .227
10.5 .1260 .106 .010 .1270 .1250 .1080 .1040
12 TW .1090 .091 .009 .1100 .1080 .0930 .0890
4 TW .238 .208 .015 .24 .236 .21 .206
4 TW .238 .218 .01 .24 .236 .22 .216
5 RW .219 .189 .015 .221 .217 .192 .186
12 XX .1090 .100 .005 .1100 .1080 .1010 .0990
12.5 .1000 .082 .009 .1010 .0990 .0840 .0800
10 X .1340 .118 .008 .1350 .1330 .1200 .1165
10 XX .1340 .122 .006 .1350 .1330 .1240 .1200
8 TW .1650 .145 .010 .1660 .1640 .1470 .1430
8 XX .1650 .150 .007 .1660 .1640 .1530 .1475
8.5 .1560 .136 .010 .1570 .1550 .1390 .1330
9 RW .1480 .118 .015 .1490 .1470 .1210 .1150
5 X .219 .205 .007 .221 .217 .207 .203
11 RW .1200 .094 .013 .1210 .1190 .0960 .0920
7.5 .1720 .150 .011 .1730 .1710 .1530 .1470
8 RW .1650 .135 .015 .1660 .1640 .1380 .1320
3 X .259 .239 .01 .261 .257 .241 .237
4 RW .238 .198 .02 .24 .236 .201 .195
12 RW .1090 .085 .012 .1100 .1080 .0870 .0830
7 TW .1800 .160 .010 .1810 .1790 .1620 .1580
3 RW .259 .219 .02 .261 .257 .222 .216
7 X .1800 .166 .007 .1810 .1790 .1680 .1640
7 XX .1800 .173 .004 .1810 .1790 .1740 .1720
9 TW .1480 .128 .010 .1490 .1470 .1300 .1260
9 XX .1480 .135 .007 .1490 .1470 .1370 .1330
9 UX .1480 .138 .005 .1490 .1470 .1400 .1360
9.5 .1410 .119 .011 .1420 .1400 .1210 .1170
10 RW .1340 .106 .014 .1350 .1330 .1080 .1040
10 TW .1340 .114 .010 .1350 .1330 .1160 .1120
6 RW .2030 .173 .015 .2040 .2020 .1760 .1700
6 TW .2030 .183 .010 .2040 .2020 .1850 .1810
6 X .2030 .189 .007 .2040 .2020 .1910 .1870
6.5 .1880 .168 .010 .1890 .1870 .1710 .1650
7 RW .1800 .150 .015 .1810 .1790 .1530 .1470
11 TW .1200 .100 .010 .1210 .1190 .1020 .0980
11 X .1200 .106 .007 .1210 .1190 .1080 .1040
11 XX .1200 .112 .004 .1210 .1190 .1140 .1100
11.5 .1150 .095 .010 .1160 .1140 .0960 .0930
12 H .1090 .077 .016 .1100 .1080 .0790 .0750
13 RW .0950 .071 .012 .0960 .0940 .0730 .0690
13 TW .0950 .077 .009 .0960 .0940 .0790 .7500
Medical Grade Stainless Steel Tubing Wall Thickness
Gauge Thickness Range (INCHES) Typical Value (INCHES)
17 0.053 to 0.058 0.058
16 0.060 to 0.065 0.065
18 0.044 to 0.049 0.049
11 0.112 to 0.122 0.12
10 0.126 to 0.136 0.134
9 0.140 to 0.150 0.148
8 0.157 to 0.167 0.165
15 0.066 to 0.074 0.072
14 0.075 to 0.085 0.083
13 0.087 to 0.097 0.095
12 0.101 to 0.111 0.109
22 0.025 to 0.029 0.028
20 0.031 to 0.035 0.035
19 0.038 to 0.042 0.042
7 0.175 to 0.185 0.18

Buy Stainless Steel Syringe Tube and Hypotube For Medical and Surgical Use

Stainless Steel Syringe Tube Applications
  • Dental braces
  • Surgical equipment
  • Orthopedic implants
  • Fluid handling
  • Transportation
Keep Stock Of Corrugated Medical Gas Tubing For Medical Gas Distribution, Refer More Types
Most Common Types Of SS Needle Tubes

Trusted Stainless Steel Needle Tube Supplier in India in Custom Shapes and Types

Stainless Steel Hypotube

Stainless Steel Hypotube

Stainless Steel Hypodermic Tubing

Stainless Steel Hypodermic Tubing

SS Medical Tubing

SS Medical Tubing

Stainless Steel Syringe Tube

Stainless Steel Syringe Tube

Corrugated Medical Gas Tubing

Corrugated Medical Gas Tubing

Stainless Steel Surgical Tubing

Stainless Steel Surgical Tubing

SS Hypodermic Tubing Pressure Rating
AVE. WALL INCHES MIN TENSILE STRENGTH (PSI) MIN YIELD STRENGTH (PSI) THEORETICAL BURST PRESSURE * (PSI) WORKING PRESSURE (PSI) 25% OF BURST THEORETICAL YIELD POINT ** (PSI) COLLAPSE PRESSURE *** (PSI)
0.250 30,000 0.020 75,000 14,286 3,571 5,714 4,416
30,000 0.028 75,000 21,649 5,412 8,660 5,967
30,000 0.035 75,000 29,167 7,292 11,667 7,224
30,000 0.049 75,000 48,355 12,089 19,342 9,455
30,000 0.065 75,000 81,250 20,313 32,500 11,544
0.375 30,000 0.020 75,000 8,955 2,239 3,582 3,029
30,000 0.028 75,000 13,166 3,292 5,266 4,145
30,000 0.035 75,000 17,213 4,303 6,885 5,077
30,000 0.049 75,000 26,534 6,634 10,614 6,816
30,000 0.065 75,000 39,796 9,949 15,918 8,597
0.500 30,000 0.020 75,000 6,522 1,630 2,609 2,304
30,000 0.028 75,000 9,459 2,365 3,784 3,172
30,000 0.035 75,000 12,209 3,052 4,884 3,906
30,000 0.049 75,000 18,284 4,571 7,313 5,304
30,000 0.065 75,000 26,351 6,588 10,541 6,786
30,000 0.083 75,000 37,275 9,319 14,910 8,307
0.625 30,000 0.020 75,000 5,128 1,282 2,051 1,859
30,000 0.028 75,000 7,381 1,845 2,953 2,568
30,000 0.035 75,000 9,459 2,365 3,784 3,172
30,000 0.049 75,000 13,947 3,487 5,579 4,335
30,000 0.065 75,000 19,697 4,924 7,879 5,591
30,000 0.083 75,000 27,124 6,781 10,850 6,910
30,000 0.095 75,000 32,759 8,190 13,103 7,734
30,000 0.109 75,000 40,172 10,043 16,069 8,639
What are the steps involved in the extrusion process for SS Needle Tubes?

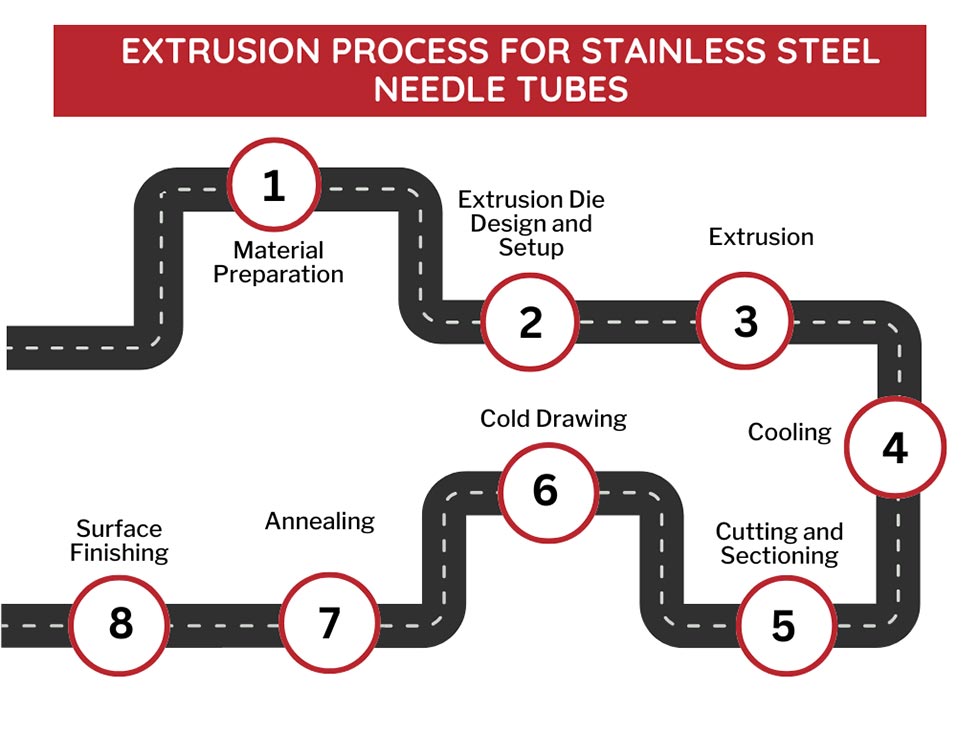

Extrusion Process for Stainless Steel Needle Tubes
Worldwide Exporter Of Thin Wall Stainless Steel Surgical Tubing in Seamless or Welded Redrawn Condition
What are the advantages of using SS Needle Tubes over copper or other metals in high-pressure environments?
  • Superior Strength and Durability
  • Corrosion Resistance
  • High-Temperature Performance
  • Chemical Resistance
  • Fatigue and Stress Resistance
  • Better Weight-to-Strength Ratio
Cold Finished SS Needle Tubing Permissible Variations
Specified Dimension, OD Ratio of Wall Thickness to OD Outside Diameter Over 0.203 Over 0.172 to 0.203 0.109 to 0.172 Up To 0.109 Permissible Variations In Cut Length
Over Under Over Under Over Under Over Under Over Under Over Under
up to 3″ All Thickness 0.023 0.023 12.5 12.5 14 14 15 15 16.5 16.5 3/16 0
3″ to > 5.5″ 0.031 0.031 12.5 12.5 14 14 15 15 16.5 16.5 3/16 0
5.5″ to > 8″ 0.047 0.047 12.5 12.5 14 14 - - - - 3/16 0
8″ to > 10.75″ 5% and Over 0.047 0.047 12.5 12.5 - - - - - - 3/16 0
10.75″ to > 12.75″ Under 5% 0.063 0.063 12.5 12.5 - - - - - - 3/16 0
Stainless Steel Hypotubing Tolerances
OD, In. OD Tolerance, In. Over and Under Ovality Double OD Tolerance when wall is: Wall Thickness in % Permissible Variations in Cut Length, in.
Over Under Over Under
3 1/2 to 5 1/2 Excl 0.015 Less than 0.150 In. 10 10 3/16 0
1/2 to 1-1/2 Excl. 0.005 Less than 0.065 In. 10 10 1/8 0
Under 1/2 0.005 Less than 0.015 In. 15 15 1/8 0
8 5/8 to 12 3/4 0.062 Less than 0.350 In. 10 10 3/16 0
1 1/2 to 3 1/2, Excl 0.010 Less Than 0.095 In. 10 10 3/16 0
5 1/2 to 8 Excl. 0.030 Less than 0.240 In. 10 10 3/16 0
8 to 8 5/8 Excl 0.045 Less than 0.300 In. 10 10 3/16 0
What is the best way to store SS Needle Tubes to avoid damage?
  • Store in a Dry, Clean Environment
  • Use Protective Packaging
  • Store Upright or Horizontally with Support
  • Keep Away from Direct Heat or Sunlight
  • Prevent Physical Damage
  • Use Proper Racks or Shelves
  • Periodic Inspection
Medical Grade Tubing Equivalent Standards
America Russia North America United Kingdom Europe Japan Russia France
ASTM WERKSTOFF NR. UNS BS EN JIS GOST AFNOR
SS 304 1.4301 S30400 304S31 X5CrNi18-10 SUS 304 08Х18Н10 Z7CN18‐09
SS 316 1.4401 / 1.4436 S31600 316S31 / 316S33 X5CrNiMo17-12-2 /
X3CrNiMo17-13-3		 SUS 316 - Z7CND17‐11‐02
SS 316H - S31609 316S51 - - - -
SS 316L 1.4404 / 1.4435 S31603 316S11 / 316S13 X2CrNiMo17-12-2 /
X2CrNiMo18-14-3		 SUS 316L 03Ch17N14M3 / 03Ch17N14M2 Z3CND17‐11‐02 / Z3CND18‐14‐03
SS 317 1.4449 S31700 - X5CrNiMo1713 SUS 317 - -
SS 310 1.4841 S31000 310S24 X15CrNi25-20 SUS 310 20Ch25N20S2 –
SS 304H 1.4301 S30409 – – – – –
SS 310S 1.4845 S31008 310S16 X8CrNi25-21 SUS 310S 20Ch23N18 –
SS 304L 1.4306 / 1.4307 S30403 3304S11 X2CrNi18-9 / X2CrNi19-11 SUS 304L 03Х18Н11 Z3CN18‐10
SS 321 1.4541 S32100 - X6CrNiTi18-10 SUS 321 - -
SS 347 1.4550 S34700 - X6CrNiNb18-10 SUS 347 - -
SS 904L 1.4539 N08904 904S13 X1NiCrMoCu25-20-5 SUS 904L STS 317J5L Z2 NCDU 25-20
SS 321H 1.4878 S32109 - X12CrNiTi18-9 SUS 321H - -
SS 347H 1.4961 S34709 - X6CrNiNb18-12 SUS 347H - -
SS 317L 1.4438 S31703 - X2CrNiMo18-15-4 SUS 317L - -
SS 410S 1.4516 S41008 - X6CrNiTi12 SUS410S - -
SS 409 1.4512 S40900 - X2CrTi12 SUS409 - -
Stainless Steel Hypotubing Chemical Composition
Grades Nickel Silicon Carbon Manganese Chromium Sulfur Phosphorus
SS 304 8.00 11.00 0.075 0.08 2 18.00 20.00 0.03 0.04
SS 304L 8.00 13.00 0.75 0.035 2 .00 18.00 20.00 0.03 0.04
SS 304H 8.00 11 0.75 0.04 0.1 2 18.00 20 0.03 0.04
SS 316 11.00 4.00 0.75 008 2.00 16.00 18.00 0.030 0.040
SS 310 19.00 22 0.75 0.15 2 24.00 26 0.03 0.04
SS 416 1.00 0.15 1.25 12.00 14.00 0.15 0.066
SS 316L 10.00 15 0.75 0.035 2 16.00 18 0.03 0.04
SS 317 11.00 14 0.75 0.08 2 18.00 20 0.03 0.04
SS 316H 11.00 14.00 0.75 0_04 0.10 I 2.00 16.00 18.00 0.030 0040
SS 321 9.00 13 0.75 0.48 203 17.00 20 0.03 0.04
SS 347 7.00 13 0.75 0.08 200 17.00 20 0.03 0.04
21-6-9 5.50 7.5 1 0.04 8.00 19.00 21.5 0.03 60
Mechanical Properties of Stainless Steel Surgical Tubing
Grades Tensile Strength (MPa) Yield Strength (MPa) Hardness (HRB) Elongation (%) Poisson’s Ratio Modulus of Elasticity (GPa)
SS 304 520 – 720 205 92 – 98 40% 0.27 – 0.30 193
SS 304L 520 – 720 205 85 – 95 40 – 50 0.29 193
SS 304H 520 – 720 205 85 – 95 40 – 50 0.29 193
SS 310 515 – 740 205 – 275 90 – 105 40 – 50 0.29 193
SS 310S 515 – 740 205 – 275 90 – 105 40 – 50 0.29 193
SS 316 520 – 720 205 85 – 95 40 – 50 0.29 193
SS 316L 520 – 720 205 85 – 95 40 – 50 0.29 193
SS 316Ti 520 – 720 205 85 – 95 40 – 50 0.29 193
SS 317 520 – 730 205 85 – 95 40 – 50 0.29 193
SS 317L 520 – 730 205 85 – 95 40 – 50 0.29 193
SS 321 520 – 720 205 85 – 95 40 – 50 0.29 193
SS 321H 520 – 720 205 85 – 95 40 – 50 0.29 193
SS 347 520 – 720 205 85 – 95 40 – 50 0.29 193
SS 410 520 – 720 205 85 – 95 35 – 45 0.28 190
SS 446 520 – 720 205 85 – 95 40 – 50 0.28 190
SS 904L 520 – 720 205 85 – 95 40 – 50 0.29 193
SS Needle Tube Physical Properties
Grades Density (g/cm³) Melting Point (°C) Coefficient of Thermal Expansion (μm/m·°C) Electrical Resistivity (µΩ·cm) Thermal Conductivity (W/m·K)
SS 304 7.93 1400 – 1450 17.2 0.072 16.2
SS 304L 7.93 1400 – 1450 16.0 72.3 16.2
SS 310 7.90 1400 – 1450 17.0 72.0 14.0
SS 304H 7.93 1400 – 1450 16.0 72.3 16.2
SS 316 7.98 1375 – 1400 16.5 74.0 16.3
SS 310S 7.90 1400 – 1450 17.0 72.0 14.0
SS 316Ti 7.98 1375 – 1400 16.5 74.0 16.3
SS 316L 7.98 1375 – 1400 16.5 74.0 16.3
SS 317L 7.95 1375 – 1400 16.5 74.5 16.3
SS 317 7.95 1375 – 1400 16.5 74.5 16.3
SS 321 7.93 1400 – 1450 16.0 74.0 16.2
SS 347 7.93 1400 – 1450 16.0 74.0 16.2
SS 321H 7.93 1400 – 1450 16.0 74.0 16.2
SS 446 7.80 1400 – 1450 11.5 76.0 30.0
SS 410 7.75 1480 – 1530 11.5 78.0 30.0
SS 904L 8.00 1350 – 1400 16.0 70.0 15.0
What is the difference between cold drawing and hot rolling in the production of needle tubes?
Property Cold Drawing Hot Rolling
Temperature Below 200°C 800°C - 1200°C
Tube Wall Thickness Thin, precise (0.1 mm - 2 mm) Thicker initial walls
Tube Diameter Precise (0.2 mm - 50 mm) Larger diameters, less precise
Surface Finish Smooth, polished Rough, requires further treatment
Strength Higher strength (due to cold work) Lower strength, more ductile
Tolerances Tight (±0.05 mm) Looser (±0.5 mm)
Speed Slower Faster
Cost Higher Lower
Use Precision tubes (e.g., medical) Bulk production
SS Needle Tube Delivery Time As Per Location
Cost Variations 5 % extra
Export to Delivery Time
Oman 5
Saudi Arabia 7
UAE 5 days
France 30
Uk 30
Netherlands 19-20
Philippines 14
Malaysia 10
Singapore 8
Germany 15-50
Belgium 6-9
Indonesia 9
South Africa 25-30
Bahrain 9
Qatar 7
Kuwait 10
Manisha Steel Centre



Why Us ?
  • Stockist and Exporter of Small Diameter Tubing in Grades of Austenitic and Ferritic Stainless Steel.
  • Supply as Per American and European Standards According to Dimensional Standard ASME B36.19M
  • Distributor and Trader in Mumbai of Renowned Mills Outokumpu, POSCO and Aperam
  • Associated With Dealers and Stockholders in Kuwait, Nigeria, Iraq, Egypt, Congo and Gabon
©2025 Manisha Steel Centre. All Rights Reserved
Website Designed And SEO by Mesotek
Manufacturer and Supplier of Seamless Steel Tubes in India as per ASME SA 269.
