Stainless Steel Corrugated Tube Manufacturer in India

Home|Stainless Steel Corrugated Tube

Stainless Steel Corrugated Flexible Pipe and Hose Supplier in Mumbai

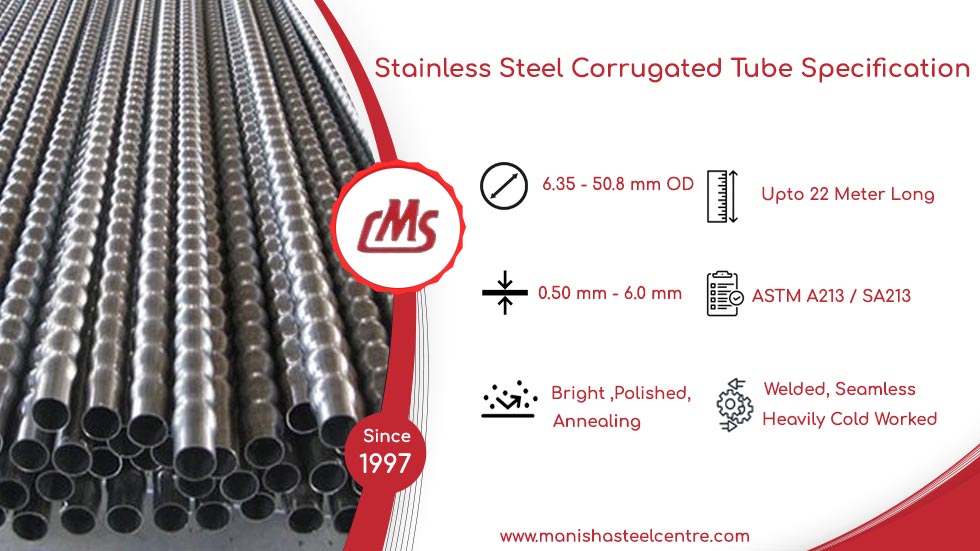

Stainless Steel Corrugated Tube Specification



5 Advantages and Disadvantages for Engineers in Italy to buy Stainless Steel Corrugated Tube from India
Advantages Disadvantages
Cost Savings Shipping Costs and Time
Wide Variety of Suppliers Quality Control
Competitive Pricing Compliance with European Standards
Strong Export Infrastructure Language and Communication Barriers
Availability of Custom Solutions Risk of Delayed Deliveries
Manisha Steel Centre

Table of Content

Stainless Steel Corrugated Tube Specification
Corrugated Stainless Steel Pipe Sizes

Corrugated Stainless Steel Pipe Sizes

  • OD: 6.35 - 50.8 mm OD
  • Thickness: 0.50 TO 6.0 mm
  • Length: Upto 22 Meter Long
Flexible Corrugated Stainless Steel Tubing Standards

Flexible Corrugated Stainless Steel Tubing Standards

  • ASTM A213
  • ASME SA213
Corrugated Metal Tubing Manufacturing Process

Corrugated Metal Tubing Manufacturing Process

  • Seamless, ERW
  • Welded
  • Redrawn
Corrugated Stainless Tubing Technique

Corrugated Stainless Tubing Technique

  • Hot Formed
  • Precision Rolled
  • Cold Formed
Benefits of CSST Flexible Gas Piping

Benefits of CSST Flexible Gas Piping

  • Flexibility
  • Cost-effective
  • Durability
Flexible Natural Gas Piping Documentation

Flexible Natural Gas Piping Documentation

  • Visual Inspection
  • Mill Test Certificates
SS Corrugated Hose Pipe Shape

SS Corrugated Hose Pipe Shape

  • Round/ Straight
  • Rectangle
  • Square/Coil
  • Hydraulic
1 2 CSST Tubing Origin

1 2 CSST Tubing Origin

  • European
  • Janpanese
  • American
  • Russia
Corrugated Gas Pipe Services

Corrugated Gas Pipe Services

  • Shearing
  • Heat Treatment
  • Cutting
Corrugated Metal Tubing Packaging

Corrugated Metal Tubing Packaging

  • Bubble Wraps
  • Wooden Box
  • Bundled
Corrugated Stainless Pipe Finish

Corrugated Stainless Pipe Finish

  • Annealing/Polished
  • Pickling
  • Bright
CSST Flexible Gas Piping End

CSST Flexible Gas Piping End

  • Threaded
  • Bevelled/Grooved
  • Plain
SS Corrugated Hose Pipe Testing

SS Corrugated Hose Pipe Testing

  • Ultrasonic
  • PMI
  • Chemical
  • Mechanical
CSST Gas Piping Marking

CSST Gas Piping Marking

  • Heat Number
  • Method of Manufacturing
  • Material Grade
  • Nominal Size
Corrugated Stainless Steel Pipe Price

Are You Trying to Find the Best Deal on Stainless Steel Corrugated Tube? To get an estimate right away, send an email to kalpesh@manishasteelcentre.com.

DN D1 [mm] D2 [mm] Max. pressure[bar] at 20 ° C Minimum bending radius [mm] Leng Price in USD
12 12.4 16.5 21 18 25 US $14990.01
16 16.3 21.4 16 25 50 US $31025.17
20 20.4 26.7 10 30 25 US $21613.71
25 25.4 31.9 10 35 25 US $27714.33
32 34.5 41.1 10 40 25 US $48803.94
40 40.5 49.6 4 50 25 US $50198.83
Stainless Steel Corrugated Pipe Sizes
NOMINAL DIAMETER (INCHES) NUMBER OF BRAIDS NOMINAL OD (INCHES) DYNAMIC  MINIMUM BEND RADIUS (INCHES) STATIC MINIMUM BEND RADIUS (INCHES) BURST PRESSURE @ 70 F (PSIG) MAXIMUM WORKING PRESSURE @ 70°F (PSIG) WEIGHT PER FOOT (POUNDS)
 1/2 0 0.764  5.51  1.77  4693 94 0.168
1 0.812 1176 0.308
 1/4 0 0.386  3.94  1.18  7821 188 0.05
1 0.434 1955 0.121
 3/4 0 1.106  6.3  2.17  3839 78 0.285
1 1.154 960 0.438
 3/8 0 0.634  3.94  1.57  6186 156 0.132
1 0.682 1546 0.225
1    0 1.445  7.09  2.56  3911 56 0.39
1 1.509 978 0.722
1 1/2 0 2.157  10.24  3.54  2275 31 0.644
1 2.237 569 1.227
1 1/4 0 1.787  8.66  3.15  2844 39 0.478
1 1.851 711 0.893
2    0 2.709  12.99  4.33  2204 23 0.84
1 2.789 551 1.613
5    0 5.945  27.95  13.98  896 21 2.755
1 6.035 224 4.872
2 1/2 0 3.189  14.96  6.5  1607 21 0.941
1 3.279 402 2.117
3    0 3.78  17.72  8.5  1351 17 1.169
1 3.87 338 2.58
6    0 7.047  33.86  15.98  597 21 3.32
1 7.137 149 5.941
4    0 4.764  22.05  11.02  953 14 1.626
1 4.854 238 3.272
8    0 9.094  41.73  18.98  768 17 3.998
1 9.184 192 9.307

Buy 1 2/1 / 3 4 CSST Tubing With Mechanical and Mirror Polished As Per ASTM A213

CSST Tubing Surface Finishes

Genuine Stainless Steel Corrugated Tube Manufacturer in India As Per Specification

  • Mill Finish
  • Bright Annealed (BA) Finish
  • Polished Finish
  • Passivated Finish
  • Brushed Finish
  • Electropolished Finish
SS Corrugated Tube Dimensional Tolerances
Size OD  OD Tolerance Nominal Wall Thickness Length Tolerance  Wall Thickness Tolerance
(in) (mm) (in) (mm) (in) (mm) (in) (mm) (%)
¾ 19.1 +/-0.005 +/-0.13 0.065 1.65 +⅛, -0 +3.18, -0 +/-10.0%
1 25.4 +/-0.005 +/-0.13 0.065 1.65 +⅛, -0 +3.18, -0 +/-10.0%
1½ 38.1 +/-0.008 +/-0.20 0.065 1.65 +⅛, -0 +3.18, -0 +/-10.0%
3 76.2 +/-0.010 +/-0.25 0.065 1.65 +⅛, -0 +3.18, -0 +/-10.0%
4 101.6 +/-0.015 +/-0.38 0.083 2.11 +⅛, -0 +3.18, -0 +/-10.0%
6 152.4 +/-0.030 +/-0.76 0.109 2.77 +1, -0 +25.4, -0 +/-10.0%
2 50.8 +/-0.008 +/-0.20 0.065 1.65 +⅛, -0 +3.18, -0 +/-10.0%
2½ 63.5 +/-0.010 +/-0.25 0.065 1.65 +⅛, -0 +3.18, -0 +/-10.0%
½ 12.7 +/-0.005 +/-0.13 0.065 1.65 +⅛, -0 +3.18, -0 +/-10.0%

Supply 304/316 Corrugated Stainless Steel Pipe in Various Shapes like Square, Round, Rectangular etc.

Most Common Types Of SS Corrugated Tubes

Trusted Stainless Steel Corrugated Tube Supplier in India in Custom Shapes and Types

Corrugated Flexible Hose Pipe

Corrugated Flexible Hose Pipe

Corrugated Flexible Stainless Steel Tube

Corrugated Flexible Stainless Steel Tube

Flexible Natural Gas Piping

Flexible Natural Gas Piping

Stainless Steel Flexible Gas Tube

Stainless Steel Flexible Gas Tube

CSST Piping

CSST Piping

Corrugated Metal Tubing

Corrugated Metal Tubing

Get Cold Drawn or Hot Rolled Corrugated Stainless Steel Tubing for Gas and Water

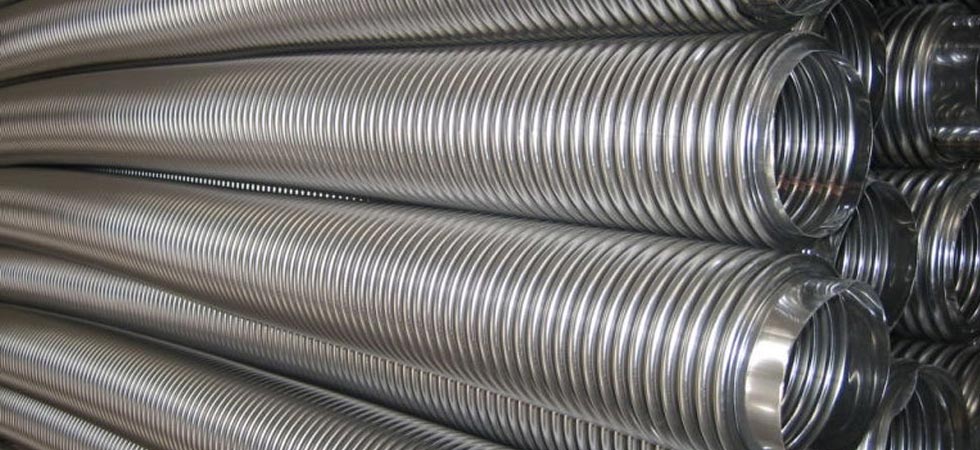

Corrugated SS Tubing Applications
Corrugated SS Tubing Applications
  • Chemical, Oil, and Gas
  • Food and Beverage
  • Medical and Pharmaceutical
  • Automotive
  • Electrical
  • Plumbing Systems
  • Heat Exchangers
  • Solar Systems
What are the benefits of using SS Corrugated Tubes in offshore and marine applications?
  • Corrosion resistance
  • Durability
  • Flexibility
  • Lightweight
  • Low maintenance
  • Hygiene
Obtain SS Corrugated Flexible Hose Pipe With Medium, Low or High Pressure, Refer Pressure Rating
Corrugated Stainless Steel Tubing Pressure Rating
SIZE SINGLE BRAID DOUBLE BRAID
Nominal Size Static  Dynamic bend radius Max. working Test pressure Burst  Static  Dynamic bend radius Max. working Test pressure Burst
bend radius pressure pressure bend radius pressure pressure
Inch mm mm mm bar bar bar mm mm bar bar bar
1 25 90 200 50 75 200 90 200 80 120 320
1¼ 32 110 250 42 63 168 110 250 67 100 268
1 ½ 40 130 250 32 48 128 130 250 51 76 204
2 ½ 65 200 410 26 39 104 200 410 41 61 164
3 80 205 450 18 27 72 205 450 28 42 112
1/4 6 25 100 154 230 616 25 100 246 369 984
3/8 10 40 150 105 157 420 40 150 168 252 672
8 200 435 1015 10 16 40 435 1015 16 24 64
1/2 12 50 200 88 132 352 50 200 140 210 560
5/8 16 50 200 73 109 292 50 200 116 174 464
3/4 20 70 200 64 96 256 70 200 102 153 408
4 100 230 560 16 24 64 230 560 26 39 104
5 125 280 660 16 24 64 280 660 25 37 100
6 150 320 815 12 18 48 320 815 20 30 80
2 50 175 350 31 46 124 175 350 49 73 196
10 250 560 1220 6.5 10 26 560 1220 10.5 16 42

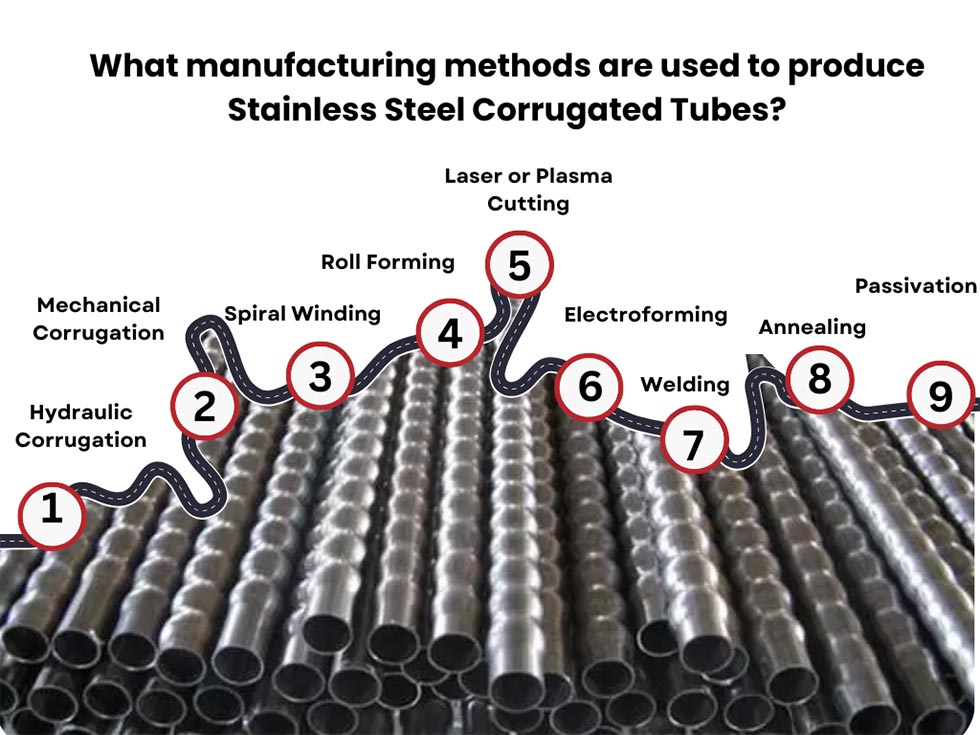

What manufacturing methods are used to produce Stainless Steel Corrugated Tubes?
Manufacturing Methods of Stainless Steel Corrugated Tubes
What is the carbon footprint associated with manufacturing SS Corrugated Tubes?
  • Raw Material Extraction
  • Steelmaking Process
  • Manufacturing and Processing
  • Transportation
  • Recycling Potential
  • End-of-Life
Corrugated Stainless Tubing Equivalent Standards
Grades UNS WERKSTOFF NR. JIS AFNOR GOST EN BS
SS 304 S30400 1.4301 SUS 304 Z7CN18‐09 08Х18Н10 X5CrNi18-10 304S31
SS 304H S30409 1.4301 – – – – –
SS 304L S30403 1.4306 / 1.4307 SUS 304L Z3CN18‐10 03Х18Н11 X2CrNi18-9 / X2CrNi19-11 3304S11
SS 310 S31000 1.4841 SUS 310 – 20Ch25N20S2 X15CrNi25-20 310S24
SS 310S S31008 1.4845 SUS 310S – 20Ch23N18 X8CrNi25-21 310S16
SS 310H S31009 – – – – – –
SS 316 S31600 1.4401 / 1.4436 SUS 316 Z7CND17‐11‐02 – X5CrNiMo17-12-2 / X3CrNiMo17-13-3 316S31 / 316S33
SS 316L S31603 1.4404 / 1.4435 SUS 316L Z3CND17‐11‐02 / Z3CND18‐14‐03 03Ch17N14M3 / 03Ch17N14M2 X2CrNiMo17-12-2 / X2CrNiMo18-14-3 316S11 / 316S13
SS 316H S31609 1.4401 – – – – –
SS 316Ti S31635 1.4571 SUS 316Ti Z6CNDT17‐123 08Ch17N13M2T X6CrNiMoTi17-12-2 320S31
SS 317 S31700 1.4449 SUS 317 – – – –
SS 317L S31703 1.4438 SUS 317L – – X2CrNiMo18-15-4 –
SS 321 S32100 1.4541 SUS 321 – – X6CrNiTi18-10 –
SS 321H S32109 1.4878 SUS 321H – – X12CrNiTi18-9 –
SS 347 S34700 1.4550 SUS 347 – 08Ch18N12B X6CrNiNb18-10 –
SS 347H S34709 1.4961 SUS 347H – – X6CrNiNb18-12 –
SS 904L N08904 1.4539 SUS 904L Z2 NCDU 25-20 STS 317J5L X1NiCrMoCu25-20-5 904S13
CSST Flexible Gas Tubing Chemical Composition
Grades Si (%) Mn (%) C (%) Ni (%) Cr (%) Mo (%) S (%) P (%)
SS 304 0.75 max 2.00 max 0.08 max 8.00 – 10.50 18.00 – 20.00 — 0.03 max 0.045 max
SS 304L 0.75 max 2.00 max 0.03 max 8.00 – 12.00 18.00 – 20.00 — 0.03 max 0.045 max
SS 304H 1.00 max 2.00 max 0.04 – 0.10 8.00 – 12.00 18.00 – 20.00 — 0.03 max 0.045 max
SS 310 1.50 max 2.00 max 0.25 max 19.00 – 22.00 24.00 – 26.00 — 0.03 max 0.045 max
SS 310S 1.50 max 2.00 max 0.08 max 19.00 – 22.00 24.00 – 26.00 — 0.03 max 0.045 max
SS 316 0.75 max 2.00 max 0.08 max 10.00 – 14.00 16.00 – 18.00 2.00 – 3.00 0.03 max 0.045 max
SS 316L 0.75 max 2.00 max 0.03 max 10.00 – 14.00 16.00 – 18.00 2.00 – 3.00 0.03 max 0.045 max
SS 316Ti 0.75 max 2.00 max 0.08 max 10.00 – 14.00 16.00 – 18.00 2.00 – 3.00 0.03 max 0.045 max
SS 317 1.00 max 2.00 max 0.10 max 11.00 – 15.00 18.00 – 20.00 3.00 – 4.00 0.03 max 0.045 max
SS 317L 1.00 max 2.00 max 0.03 max 11.00 – 15.00 18.00 – 20.00 3.00 – 4.00 0.03 max 0.045 max
SS 321 1.00 max 2.00 max 0.08 max 9.00 – 12.00 17.00 – 19.00 — 0.03 max 0.045 max
SS 321H 1.00 max 2.00 max 0.04 – 0.10 9.00 – 12.00 17.00 – 19.00 — 0.03 max 0.045 max
SS 347 1.00 max 2.00 max 0.08 max 9.00 – 13.00 17.00 – 19.00 — 0.03 max 0.045 max
SS 410 1.00 max 1.00 max 0.15 max — 11.50 – 13.50 — 0.03 max 0.04 max
SS 446 1.00 max 1.50 max 0.20 max — 23.00 – 28.00 — 0.03 max 0.04 max
SS 904L 1.00 max 2.00 max 0.02 max 24.00 – 26.00 19.00 – 23.00 4.00 – 5.00 0.03 max 0.045 max
Mechanical Properties of Flexible Natural Gas Piping
Grades Tensile Strength (MPa) Yield Strength (MPa) Hardness (HRB) Elongation (%) Poisson’s Ratio Modulus of Elasticity (GPa)
SS 304 520 – 720 205 92 – 98 40% 0.27 – 0.30 193
SS 304L 520 – 720 205 85 – 95 40 – 50 0.29 193
SS 304H 520 – 720 205 85 – 95 40 – 50 0.29 193
SS 310 515 – 740 205 – 275 90 – 105 40 – 50 0.29 193
SS 310S 515 – 740 205 – 275 90 – 105 40 – 50 0.29 193
SS 316 520 – 720 205 85 – 95 40 – 50 0.29 193
SS 316L 520 – 720 205 85 – 95 40 – 50 0.29 193
SS 316Ti 520 – 720 205 85 – 95 40 – 50 0.29 193
SS 317 520 – 730 205 85 – 95 40 – 50 0.29 193
SS 317L 520 – 730 205 85 – 95 40 – 50 0.29 193
SS 321 520 – 720 205 85 – 95 40 – 50 0.29 193
SS 321H 520 – 720 205 85 – 95 40 – 50 0.29 193
SS 347 520 – 720 205 85 – 95 40 – 50 0.29 193
SS 410 520 – 720 205 85 – 95 35 – 45 0.28 190
SS 446 520 – 720 205 85 – 95 40 – 50 0.28 190
SS 904L 520 – 720 205 85 – 95 40 – 50 0.29 193
SS Corrugated Hose Pipe Physical Properties
Grades Melting Point (°C) Density (g/cm³) Coefficient of Thermal Expansion (μm/m·°C) Electrical Resistivity (µΩ·cm) Thermal Conductivity (W/m·K)
SS 304 1,400–1,450 8.00 16.0 0.072 16.2
SS 304L 1400 – 1450 7.93 16.0 72.3 16.2
SS 304H 1400 – 1450 7.93 16.0 72.3 16.2
SS 310 1400 – 1450 7.90 17.0 72.0 14.0
SS 310S 1400 – 1450 7.90 17.0 72.0 14.0
SS 316 1375 – 1400 7.98 16.5 74.0 16.3
SS 316L 1375 – 1400 7.98 16.5 74.0 16.3
SS 316Ti 1375 – 1400 7.98 16.5 74.0 16.3
SS 317 1375 – 1400 7.95 16.5 74.5 16.3
SS 317L 1375 – 1400 7.95 16.5 74.5 16.3
SS 321 1400 – 1450 7.93 16.0 74.0 16.2
SS 321H 1400 – 1450 7.93 16.0 74.0 16.2
SS 347 1400 – 1450 7.93 16.0 74.0 16.2
SS 410 1480 – 1530 7.75 11.5 78.0 30.0
SS 446 1400 – 1450 7.80 11.5 76.0 30.0
SS 904L 1350 – 1400 8.00 16.0 70.0 15.0
Limits of application of the Corrugated Pipe Process
Pipe OD/ ID [mm] Minimum Manhole Diameter [mm] Nominal size of the sewer to be rehabilitated [DN] Minimum Bending Radius [mm]
117 ⁄ 102 500 120 − 150 300
175 ⁄ 153 600 200 500
200 ⁄ 175 600 225 600
235 ⁄ 205 800 250 700
270 ⁄ 240 800 300 800
SS Corrugated Tube Delivery Time As Per Location
Cost Variations 5 % extra
Export to Delivery Time
Oman 5
South Africa 25-30
Philippines 14
Malaysia 10
Saudi Arabia 7
UAE 5 days
Germany 15-50
Bahrain 9
Qatar 7
Kuwait 10
France 30
Uk 30
Netherlands 19-20
Belgium 6-9
Indonesia 9
Singapore 8
Manisha Steel Centre



Why Us ?
  • Stockist and Exporter of Small Diameter Tubing in Grades of Austenitic and Ferritic Stainless Steel.
  • Supply as Per American and European Standards According to Dimensional Standard ASME B36.19M
  • Distributor and Trader in Mumbai of Renowned Mills Outokumpu, POSCO and Aperam
  • Associated With Dealers and Stockholders in Kuwait, Nigeria, Iraq, Egypt, Congo and Gabon
©2025 Manisha Steel Centre. All Rights Reserved
Website Designed And SEO by Mesotek
Manufacturer and Supplier of Seamless Steel Tubes in India as per ASME SA 269.
