Stainless Steel Sanitary Tube Manufacturer in India

Home|Stainless Steel Sanitary Tube

ASME-BPE Certified SS Hygienic Tube Supplier in Mumbai As Per ASTM A270

Stainless Steel Sanitary Tube Specification



List of Pharmaceutical Industry in South Africa Supplied Stainless Steel Sanitary Tube
Location Product(s) Supplied
Johannesburg, SA Stainless Steel Sanitary Tubes, Valves
Cape Town, SA Stainless Steel Tubing, Piping
Durban, SA Tubing for Pharmaceutical Applications
Pretoria, SA Stainless Steel Tubes, Custom Fittings
Port Elizabeth, SA Sanitary Stainless Steel Tubes
Manisha Steel Centre

Table of Content

Stainless Steel Sanitary Tube Specification
Stainless Sanitary Tubing Sizes

Stainless Sanitary Tubing Sizes

  • OD: 1/2”
  • Thickness: 16 Gauge (0.065”)
  • Length: 20′
Metric Sanitary Tubing Standards

Metric Sanitary Tubing Standards

  • ASTM A270
  • ASME SA270
  • EN10204 3.1
Sanitary Tubing Manufacturing Process

Sanitary Tubing Manufacturing Process

  • Seamless, ERW
  • Welded, Redrawn
SS Sanitary Tube Technique

SS Sanitary Tube Technique

  • Hot Formed
  • Precision Rolled
  • Cold Formed
Benefits of 8 Sanitary Tubing

Benefits of 8 Sanitary Tubing

  • Large Flow Capacity
  • Easy to Clean
  • Corrosion Resistance
Jacketed Sanitary Tubing Documentation

Jacketed Sanitary Tubing Documentation

  • Mill Test Certificates
  • PMI Test Reports
Stainless Steel Hygienic Tube Grades

Stainless Steel Hygienic Tube Grades

  • SS 304
  • SS 304L
  • SS 316
  • SS 316L
Sanitary Stainless Pipe Origin

Sanitary Stainless Pipe Origin

  • European
  • Janpanese
  • American
  • Russia
Stainless Steel Hygienic Tube Services

Stainless Steel Hygienic Tube Services

  • Shearing, Cutting
  • Heat Treatment
Jacketed Sanitary Tubing Packaging

Jacketed Sanitary Tubing Packaging

  • Bubble Wraps
  • Wooden Box
  • Bundled
SS Sanitary Pipe Finish

SS Sanitary Pipe Finish

  • Annealing/Polished
  • Pickling
  • Bright
Sanitary SS Tubing End

Sanitary SS Tubing End

  • Threaded
  • Bevelled/Grooved
  • Plain
304 SS Sanitary Tubing Testing

304 SS Sanitary Tubing Testing

  • Ultrasonic
  • PMI
  • Chemical
  • Mechanical
Stainless Steel Hygienic Tube Marking

Stainless Steel Hygienic Tube Marking

  • Heat Number
  • Method of Manufacturing
  • Material Grade
Stainless Steel Sanitary Pipe Price

Are You Trying to Find the Best Deal on Stainless Steel Sanitary Tube? To get an estimate right away, send an email to kalpesh@manishasteelcentre.com.

Size (Tube OD) Price in USD
1/2" US $17.80
3/4"  US $21.65
1" US $10.78
1 1/2" US $13.06
2" US $18.36
2 1/2" US $23.14
3"  US $36.31
4" US $49.56
6"  US $126.56
8" US $103.42
SS Sanitary Tubing Thickness Chart
Tube OD Thikness Grade
1 0.065 304
1 0.065 316
1 1/2 0.065 304
1 1/2 0.065 316
2 0.065 304
2 0.065 316
1/2 0.065 316
3/4 0.065 304
6 0.109 316
8 0.109 304
3 0.065 304
3/4 0.065 316
3 0.065 316
4 0.083 304
4 0.083 316
6 0.109 304
1/2 0.065 304
2 1/2 0.065 304
2 1/2 0.065 316
8 0.109 316

Supply 304 and 316 SS Sanitary Tubing With ½ to 4" OD or Custom

316 SS Sanitary Tubing Dimensions

Genuine Stainless Steel Sanitary Tube Manufacturer in India As Per Specification

Ave. Wall inches OD inches ID inches D/t Ratio Internal Area (in2) Tube Cross Sectional Area (in2)
0.049 0.250 0.152 5.10 0.0181 0.0309
0.020 0.375 0.335 18.75 0.0881 0.0223
0.035 0.375 0.305 10.71 0.0731 0.0374
0.028 0.375 0.319 13.39 0.0799 0.0305
0.049 0.375 0.277 7.65 0.0603 0.0502
0.020 0.500 0.460 25.00 0.1662 0.0302
0.065 0.375 0.245 5.77 0.0471 0.0633
0.028 0.500 0.444 17.86 0.1548 0.0415
0.049 0.500 0.402 10.20 0.1213 0.0694
0.035 0.500 0.430 14.29 0.1452 0.0511
0.065 0.500 0.370 7.69 0.1075 0.0888
0.065 0.250 0.120 3.85 0.0113 0.0378
0.020 0.625 0.585 31.25 0.2688 0.0380
0.049 0.625 0.527 12.76 0.2181 0.0887
0.035 0.625 0.555 17.86 0.2419 0.0649
0.065 0.625 0.495 9.62 0.1924 0.1144
0.095 0.625 0.435 6.58 0.1486 0.1582
0.083 0.625 0.459 7.53 0.1655 0.1413
0.109 0.625 0.407 5.73 0.1301 0.1767
0.035 0.750 0.680 21.43 0.3632 0.0786
0.028 0.750 0.694 26.79 0.3783 0.0635
0.049 0.750 0.652 15.31 0.3339 0.1079
0.083 0.750 0.584 9.04 0.2679 0.1739
0.028 0.625 0.569 22.32 0.2543 0.0525
0.028 0.250 0.194 8.93 0.0296 0.0195
0.020 0.250 0.210 12.50 0.0346 0.0145
0.035 0.250 0.180 7.14 0.0254 0.0236
0.049 0.875 0.777 17.86 0.4742 0.1272
0.083 0.875 0.709 10.54 0.3948 0.2065
0.065 0.875 0.745 13.46 0.4359 0.1654
0.095 0.875 0.685 9.21 0.3685 0.2328
0.120 0.875 0.635 7.29 0.3167 0.2846
0.028 0.875 0.819 31.25 0.5268 0.0745
0.083 0.500 0.334 6.02 0.0876 0.1087
0.049 1.000 0.902 20.41 0.6390 0.1464
0.035 1.000 0.930 28.57 0.6793 0.1061
0.083 1.000 0.834 12.05 0.5463 0.2391
0.065 1.000 0.870 15.38 0.5945 0.1909
0.095 1.000 0.810 10.53 0.5153 0.2701
0.120 1.000 0.760 8.33 0.4536 0.3318
0.109 1.000 0.782 9.17 0.4803 0.3051
0.134 1.000 0.732 7.46 0.4208 0.3646
0.049 1.250 1.152 25.51 1.0423 0.1849
0.035 1.250 1.180 35.71 1.0936 0.1336
0.065 1.250 1.120 19.23 0.9852 0.2420
0.095 1.250 1.060 13.16 0.8825 0.3447
0.035 0.875 0.805 25.00 0.5090 0.0924
0.134 1.250 0.982 9.33 0.7574 0.4698
0.120 1.250 1.010 10.42 0.8012 0.4260
0.035 1.500 1.430 42.86 1.6061 0.1611
0.065 1.500 1.370 23.08 1.4741 0.2930
0.049 1.500 1.402 30.61 1.5438 0.2234
0.083 1.500 1.334 18.07 1.3977 0.3695
0.109 1.500 1.282 13.76 1.2908 0.4763
0.095 1.500 1.310 15.79 1.3478 0.4193
0.020 0.875 0.835 43.75 0.5476 0.0537
0.095 1.750 1.560 18.42 1.9113 0.4939
0.120 1.750 1.510 14.58 1.7908 0.6145
0.148 1.750 1.454 11.82 1.6604 0.7449
0.134 1.750 1.482 13.06 1.7250 0.6803
0.165 1.750 1.420 10.61 1.5837 0.8216
0.049 2.000 1.902 40.82 2.8413 0.3003
0.035 2.000 1.930 57.14 2.9255 0.2161
0.065 2.000 1.870 30.77 2.7465 0.3951
0.095 2.000 1.810 21.05 2.5730 0.5685
0.083 2.000 1.834 24.10 2.6417 0.4999
0.109 2.000 1.782 18.35 2.4941 0.6475
0.134 2.000 1.732 14.93 2.3561 0.7855
0.120 2.000 1.760 16.67 2.4328 0.7087
0.120 1.500 1.260 12.50 1.2469 0.5202
0.148 1.500 1.204 10.14 1.1385 0.6286
0.134 1.500 1.232 11.19 1.1921 0.5750
0.035 1.750 1.680 50.00 2.2167 0.1886
0.065 1.750 1.620 26.92 2.0612 0.3441
0.049 1.750 1.902 40.82 2.8413 0.3003
0.083 1.750 1.584 21.08 1.9706 0.4347
0.109 1.750 1.532 16.06 1.8433 0.5619
0.083 1.250 1.084 15.06 0.9229 0.304L3
0.109 1.250 1.032 11.47 0.8365 0.3907
0.109 0.875 0.657 8.03 0.3390 0.2623
0.028 1.000 0.944 35.71 0.6999 0.0855
0.065 0.750 0.620 11.54 0.3019 0.1399
0.095 0.750 0.560 7.89 0.2463 0.1955
0.120 0.750 0.510 6.25 0.2043 0.2375
0.109 0.750 0.532 6.88 0.2223 0.2195
0.148 2.000 1.704 13.51 2.2805 0.8611
0.165 2.000 1.670 12.12 2.1904 0.9512
A270 Sanitary SS Tubing Weight Chart
Size (Tube OD) Burst Pressure (PSI) Weight per Foot (lbs) Dimensions
Wall Thickness Gauge
2" 4,875 1.35 0.065 16
2 1/2" 3,900 1.70 0.065 16
3" 3,248 2.05 0.065 16
1" 9,750 0.66 0.065 16
1/2" 10,833 0.30 0.065 16
3/4" 8,666 0.48 0.065 16
1 1/2" 6,503 1.00 0.065 16
4" 2,730 3.50 0.083 14
6" 1,820 5.29 0.083 14

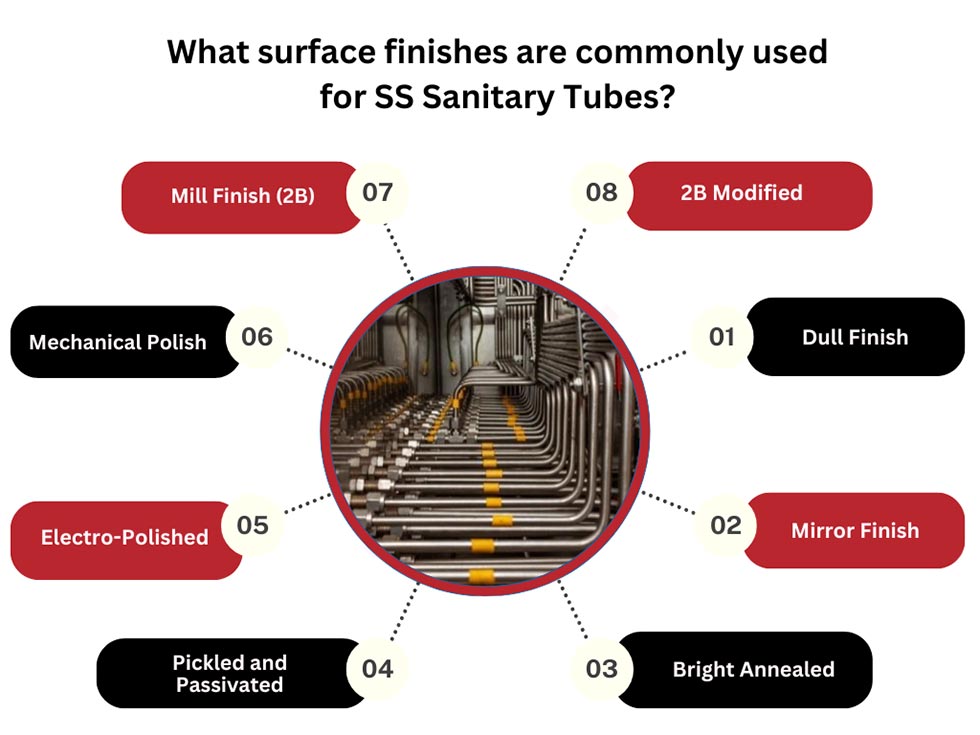

What surface finishes are commonly used for SS Sanitary Tubes?
Surface Finishes for Stainless Steel Sanitary Tubes
Stainless Sanitary Tubing Pressure Rating
AVE. WALL INCHES MIN TENSILE STRENGTH (PSI) MIN YIELD STRENGTH (PSI) WORKING PRESSURE (PSI) 25% OF BURST THEORETICAL BURST PRESSURE * (PSI) THEORETICAL YIELD POINT ** (PSI) COLLAPSE PRESSURE *** (PSI) -
0.250 30,000 0.020 14,286 75,000 3,571 5,714 4,416
0.250 30,000 0.028 21,649 75,000 5,412 8,660 5,967
0.250 30,000 0.035 29,167 75,000 7,292 11,667 7,224
0.250 30,000 0.049 48,355 75,000 12,089 19,342 9,455
0.250 30,000 0.065 81,250 75,000 20,313 32,500 11,544
0.375 30,000 0.020 8,955 75,000 2,239 3,582 3,029
0.375 30,000 0.028 13,166 75,000 3,292 5,266 4,145
0.375 30,000 0.035 17,213 75,000 4,303 6,885 5,077
0.375 30,000 0.049 26,534 75,000 6,634 10,614 6,816
0.375 30,000 0.065 39,796 75,000 9,949 15,918 8,597
0.500 30,000 0.020 6,522 75,000 1,630 2,609 2,304
0.500 30,000 0.028 9,459 75,000 2,365 3,784 3,172
0.500 30,000 0.035 12,209 75,000 3,052 4,884 3,906
0.500 30,000 0.049 18,284 75,000 4,571 7,313 5,304
0.500 30,000 0.065 26,351 75,000 6,588 10,541 6,786
0.500 30,000 0.083 37,275 75,000 9,319 14,910 8,307
0.625 30,000 0.020 5,128 75,000 1,282 2,051 1,859
0.625 30,000 0.028 7,381 75,000 1,845 2,953 2,568
0.625 30,000 0.035 9,459 75,000 2,365 3,784 3,172
0.625 30,000 0.049 13,947 75,000 3,487 5,579 4,335
0.625 30,000 0.065 19,697 75,000 4,924 7,879 5,591
0.625 30,000 0.083 27,124 75,000 6,781 10,850 6,910
0.625 30,000 0.095 32,759 75,000 8,190 13,103 7,734
0.625 30,000 0.109 40,172 75,000 10,043 16,069 8,639
0.750 30,000 0.028 6,052 75,000 1,513 2,421 2,156
0.750 30,000 0.035 7,721 75,000 1,930 3,088 2,669
0.750 30,000 0.049 11,273 75,000 2,818 4,509 3,664
0.750 30,000 0.065 15,726 75,000 3,931 6,290 4,749
0.750 30,000 0.083 21,318 75,000 5,330 8,527 5,905
0.750 30,000 0.095 25,446 75,000 6,362 10,179 6,637
0.750 30,000 0.109 30,733 75,000 7,683 12,293 7,453
0.750 30,000 0.120 35,294 75,000 8,824 14,118 8,064
0.875 30,000 0.020 3,593 75,000 898 1,437 1,340
0.875 30,000 0.028 5,128 75,000 1,282 2,051 1,859
0.875 30,000 0.035 6,522 75,000 1,630 2,609 2,304
0.049 75,000 30,000 2,365 9,459 3,784 3,172 -
0.875 30,000 0.065 13,087 75,000 3,272 5,235 4,126
0.875 30,000 0.083 17,560 75,000 4,390 7,024 5,152
0.875 30,000 0.095 20,803 75,000 5,201 8,321 5,807
0.875 30,000 0.109 24,886 75,000 6,221 9,954 6,543
0.875 30,000 0.120 28,346 75,000 7,087 11,339 7,100
1.000 30,000 0.028 4,449 75,000 1,112 1,780 1,633
1.000 30,000 0.035 5,645 75,000 1,411 2,258 2,027
1.000 30,000 0.049 8,149 75,000 2,037 3,259 2,796
1.000 30,000 0.065 11,207 75,000 2,802 4,483 3,647
1.000 30,000 0.083 14,928 75,000 3,732 5,971 4,567
1.000 30,000 0.095 17,593 75,000 4,398 7,037 5,159
1.000 30,000 0.109 20,908 75,000 5,227 8,363 5,827
1.000 30,000 0.120 23,684 75,000 5,921 9,474 6,336
1.000 30,000 0.134 27,459 75,000 6,865 10,984 6,963
1.250 30,000 0.035 4,449 75,000 1,112 1,780 1,633
1.250 30,000 0.049 6,380 75,000 1,595 2,552 2,260
Difference between Mechanical Polish & Electro Polish SS Sanitary Tubing
Properties Mechanical Polish Electro Polish
Surface Finish Smooth, but less uniform Highly smooth, uniform finish
Hygiene Good, but slightly porous Excellent, non-porous, better for sanitation
Durability Moderate wear resistance Higher resistance to corrosion and wear
Process Mechanical abrasion Electrochemical process
Applications General use in less critical systems Food, pharma, and biotech for sanitary applications
Cost Lower cost Higher cost
Maintenance Requires more cleaning and maintenance Lower maintenance, easier to clean

Buy Most Popular 8 or 4 inch BPE Stainless Steel Sanitary Pipe At Factory Price

Most Popular BPE Stainless Steel Sanitary Pipes
  • 4 Sanitary Tubing
  • 8 Sanitary Tubing

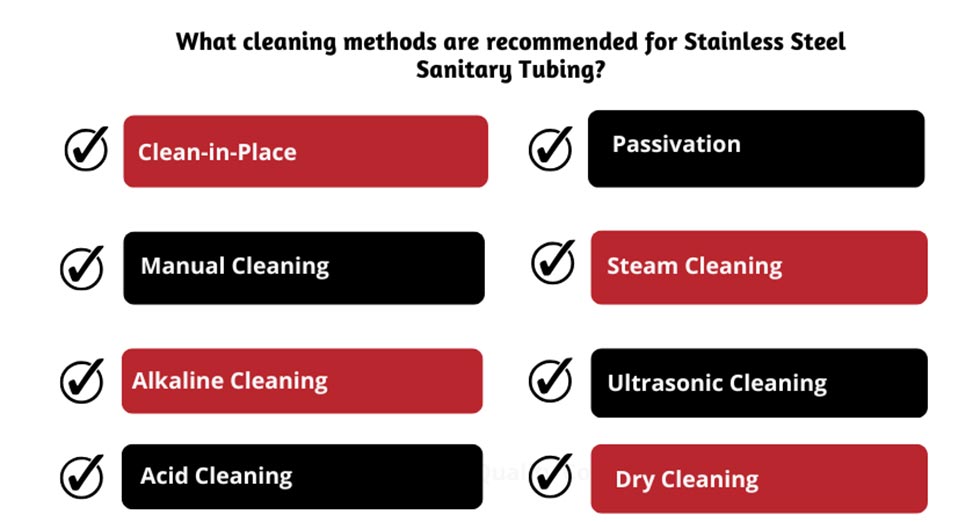

What cleaning methods are recommended for Stainless Sanitary Tubing?
Cleaning Methods for Stainless Sanitary Tubing



Get SS Jacketed and Metric Sanitary Tubing For Toxic and Corrosive Media, Refer Tolerances
Metric Sanitary Tubing Tolerances Chart
Size OD Nominal Wall Thickness Wall Thickness Tolerance Outside Diameter Tolerance Length Tolerance
(in) (mm) (in) (mm) (%) (mm) (in) (mm) (in)
½ 12.7 0.065 +3.18, -0 +/-10.0% 1.65 +/-0.005 +/-0.13 +⅛, -0
¾ 19.1 0.065 +3.18, -0 +/-10.0% 1.65 +/-0.005 +/-0.13 +⅛, -0
1 25.4 0.065 +3.18, -0 +/-10.0% 1.65 +/-0.005 +/-0.13 +⅛, -0
1½ 38.1 0.065 +3.18, -0 +/-10.0% 1.65 +/-0.008 +/-0.20 +⅛, -0
2 50.8 0.065 +3.18, -0 +/-10.0% 1.65 +/-0.008 +/-0.20 +⅛, -0
2½ 63.5 0.065 +3.18, -0 +/-10.0% 1.65 +/-0.010 +/-0.25 +⅛, -0
3 76.2 0.065 +3.18, -0 +/-10.0% 1.65 +/-0.010 +/-0.25 +⅛, -0
4 101.6 0.083 +3.18, -0 +/-10.0% 2.11 +/-0.015 +/-0.38 +⅛, -0
6 152.4 0.109 +25.4, -0 +/-10.0% 2.77 +/-0.030 +/-0.76 +1, -0
Sanitary Stainless Steel Tubing Sizes
Tube OD Tube ID Wall Thickness Weight Dry* Volume Weight with Water** Flow (gpm) at Mean Velocity
(in) (in) (in) (lbs/100 ft) (gal/100 ft) (lbs/100 ft) (5 fps) (7 fps) (10 fps)
1½ 1.370 0.065 100.9 7.66 164.8 23 32 46
⅜ 0.305 0.035 12.9 0.38 16.0 1.14 1.59 2.28
½ 0.370 0.065 30.6 0.56 35.3 1.7 2.3 3.4
¾ 0.620 0.065 48.2 1.57 61.3 4.7 6.6 9.4
1 0.870 0.065 65.8 3.09 91.5 9.3 13 19
8 7.782 0.109 930.6 247.07 2991.1 741 1038 1482
2 1.870 0.065 136.1 14.27 255.1 43 60 86
2½ 2.370 0.065 171.2 22.92 362.4 69 96 138
3 2.870 0.065 206.4 33.60 486.7 101 141 202
4 3.834 0.083 351.8 59.97 851.9 180 252 360
6 5.782 0.109 694.7 136.39 1832.2 409 573 818
¼ 0.180 0.035 8.1 0.13 9.2 0.40 0.56 0.79
10 9.782 0.109 1,166.5 390.38 4,422.2 1,171 1,640 2,342
12 11.782 0.109 1,402.4 566.33 6,125.5 1,699 2,379 3,398
Keep Ready to Ship Stock Of A270 Sanitary Stainless Steel Tubing in Various Grades and Types
Most Common Types Of SS Sanitary Tubes

Trusted Stainless Steel Sanitary Tube Supplier in India in Custom Shapes and Types

SS Tri Clamp Tube

SS Tri Clamp Tube

ASME SA270 BPE Pipe

ASME SA270 BPE Pipe

ASTM A270 Welded Tubes

ASTM A270 Welded Tubes

Sanitary Food Grade Tube

Sanitary Food Grade Tube

Sanitary Stainless Steel Polished Tubing

Sanitary Stainless Steel Polished Tubing

Hygienic Stainless Steel Tubing

Hygienic Stainless Steel Tubing

316 SS Sanitary Cold Rolled Tubing

316 SS Sanitary Cold Rolled Tubing

304 SS Sanitary Ferritic Tubing

304 SS Sanitary Ferritic Tubing

Stainless Steel Dairy Tubing

Stainless Steel Dairy Tubing

How does Metric Sanitary Tubing benefit the Brewing Industry?
  • Hygiene and Sanitation
  • Corrosion Resistance
  • Durability and Strength
  • Neutrality of Flavor
  • Temperature Control
  • Reduced Maintenance Costs
  • Customization and Flexibility

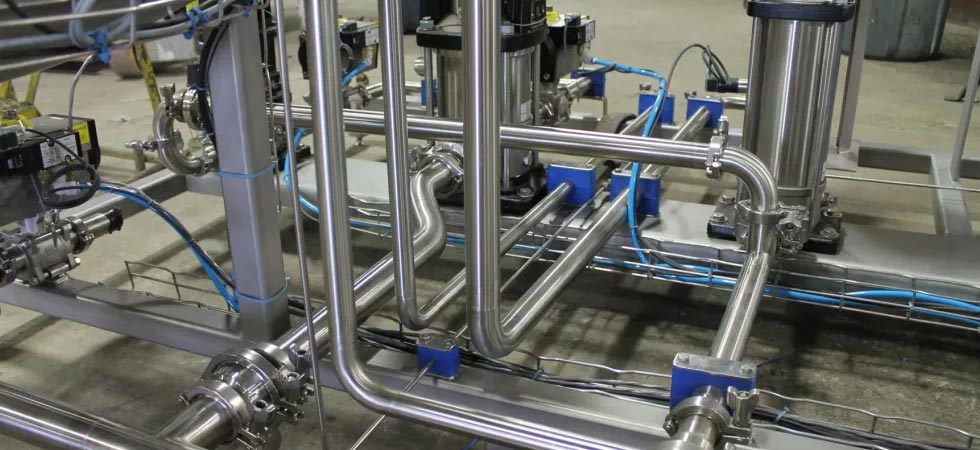

Sanitary Stainless Pipe Applications
Sanitary Stainless Pipe Applications
  • Food and Beverage
  • Pharmaceutical and Biotech
  • Cosmetics and Personal Care
  • Chemical and Petrochemical
  • Dairy Industry
  • Water Treatment Systems
  • Brewing and Distillation
SS Sanitary Tubing vs. PVC Tubing
Properties SS Tubing PVC Tubing
Material Stainless Steel Plastic (PVC)
Durability High (Years) Low (5-10 years)
Pressure Tolerance High (up to 10,000 psi) Low (up to 150 psi)
Temperature Resistance Up to 800°F (427°C) Up to 140°F (60°C)
Cost High ($3-$10 per meter) Low ($0.5-$3 per meter)
Hygiene Excellent (smooth, non-porous) Moderate (may harbor bacteria)
Flexibility Rigid Flexible
Common Uses Food, Pharma, Biotech Water, Irrigation, Plumbing
Life Span 25+ years 5-10 years
Stainless Sanitary Tube Certifications
  • 3A Certification
  • ISO 14001
  • UL Certification
  • ISO 9001
  • NSF Certification
  • NSI Certification
  • ASME Certification
Sanitary Tubing Equivalent Standards
America North America United Kingdom Russia Russia Japan Europe France
ASTM UNS BS WERKSTOFF NR. GOST JIS EN AFNOR
SS 304 S30400 304S31 1.4301 08Х18Н10 SUS 304 X5CrNi18-10 Z7CN18‐09
SS 316 S31600 316S31 / 316S33 1.4401 / 1.4436 - SUS 316 X5CrNiMo17-12-2 /
X3CrNiMo17-13-3		 Z7CND17‐11‐02
SS 316H S31609 316S51 - - - - -
SS 316L S31603 316S11 / 316S13 1.4404 / 1.4435 03Ch17N14M3 / 03Ch17N14M2 SUS 316L X2CrNiMo17-12-2 /
X2CrNiMo18-14-3		 Z3CND17‐11‐02 / Z3CND18‐14‐03
SS 317 S31700 - 1.4449 - SUS 317 X5CrNiMo1713 -
SS 310 S31000 310S24 1.4841 20Ch25N20S2 SUS 310 X15CrNi25-20 –
SS 304H S30409 – 1.4301 – – – –
SS 310S S31008 310S16 1.4845 20Ch23N18 SUS 310S X8CrNi25-21 –
SS 304L S30403 3304S11 1.4306 / 1.4307 03Х18Н11 SUS 304L X2CrNi18-9 / X2CrNi19-11 Z3CN18‐10
SS 321 S32100 - 1.4541 - SUS 321 X6CrNiTi18-10 -
SS 347 S34700 - 1.4550 - SUS 347 X6CrNiNb18-10 -
SS 904L N08904 904S13 1.4539 STS 317J5L SUS 904L X1NiCrMoCu25-20-5 Z2 NCDU 25-20
SS 321H S32109 - 1.4878 - SUS 321H X12CrNiTi18-9 -
SS 347H S34709 - 1.4961 - SUS 347H X6CrNiNb18-12 -
SS 317L S31703 - 1.4438 - SUS 317L X2CrNiMo18-15-4 -
SS 410S S41008 - 1.4516 - SUS410S X6CrNiTi12 -
SS 409 S40900 - 1.4512 - SUS409 X2CrTi12 -
SS Hygienic Tube Chemical Composition
Grades Chromium Phosphorus Nickel Manganese Carbon Silicon Sulfur
SS 304 18.00 20.00 0.04 8.00 11.00 2 0.08 0.075 0.03
SS 304L 18.00 20.00 0.04 8.00 13.00 2 .00 0.035 0.75 0.03
SS 304H 18.00 20 0.04 8.00 11 2 0.04 0.1 0.75 0.03
SS 316 16.00 18.00 0.040 11.00 4.00 2.00 008 0.75 0.030
SS 310 24.00 26 0.04 19.00 22 2 0.15 0.75 0.03
SS 416 12.00 14.00 0.066 1.25 0.15 1.00 0.15
SS 316L 16.00 18 0.04 10.00 15 2 0.035 0.75 0.03
SS 317 18.00 20 0.04 11.00 14 2 0.08 0.75 0.03
SS 316H 16.00 18.00 0040 11.00 14.00 I 2.00 0_04 0.10 0.75 0.030
SS 321 17.00 20 0.04 9.00 13 203 0.48 0.75 0.03
SS 347 17.00 20 0.04 7.00 13 200 0.08 0.75 0.03
21-6-9 19.00 21.5 60 5.50 7.5 8.00 0.04 1 0.03
Mechanical Properties of Metric Sanitary Tubing
Grades Tensile Strength (MPa) Yield Strength (MPa) Modulus of Elasticity (GPa) Elongation (%) Poisson’s Ratio Hardness (HRB)
SS 304 520 – 720 205 193 40% 0.27 – 0.30 92 – 98
SS 304L 520 – 720 205 193 40 – 50 0.29 85 – 95
SS 304H 520 – 720 205 193 40 – 50 0.29 85 – 95
SS 310 515 – 740 205 – 275 193 40 – 50 0.29 90 – 105
SS 310S 515 – 740 205 – 275 193 40 – 50 0.29 90 – 105
SS 316 520 – 720 205 193 40 – 50 0.29 85 – 95
SS 316L 520 – 720 205 193 40 – 50 0.29 85 – 95
SS 316Ti 520 – 720 205 193 40 – 50 0.29 85 – 95
SS 317 520 – 730 205 193 40 – 50 0.29 85 – 95
SS 317L 520 – 730 205 193 40 – 50 0.29 85 – 95
SS 321 520 – 720 205 193 40 – 50 0.29 85 – 95
SS 321H 520 – 720 205 193 40 – 50 0.29 85 – 95
SS 347 520 – 720 205 193 40 – 50 0.29 85 – 95
SS 410 520 – 720 205 190 35 – 45 0.28 85 – 95
SS 446 520 – 720 205 190 40 – 50 0.28 85 – 95
SS 904L 520 – 720 205 193 40 – 50 0.29 85 – 95
Jacketed Sanitary Tubing Physical Properties
Grades Density (g/cm³) Melting Point (°C) Thermal Conductivity (W/m·K) Electrical Resistivity (µΩ·cm) Coefficient of Thermal Expansion (μm/m·°C)
SS 304 7.93 1400 – 1450 16.2 0.072 17.2
SS 304L 7.93 1400 – 1450 16.2 72.3 16.0
SS 310 7.90 1400 – 1450 14.0 72.0 17.0
SS 304H 7.93 1400 – 1450 16.2 72.3 16.0
SS 316 7.98 1375 – 1400 16.3 74.0 16.5
SS 310S 7.90 1400 – 1450 14.0 72.0 17.0
SS 316Ti 7.98 1375 – 1400 16.3 74.0 16.5
SS 316L 7.98 1375 – 1400 16.3 74.0 16.5
SS 317L 7.95 1375 – 1400 16.3 74.5 16.5
SS 317 7.95 1375 – 1400 16.3 74.5 16.5
SS 321 7.93 1400 – 1450 16.2 74.0 16.0
SS 347 7.93 1400 – 1450 16.2 74.0 16.0
SS 321H 7.93 1400 – 1450 16.2 74.0 16.0
SS 446 7.80 1400 – 1450 30.0 76.0 11.5
SS 410 7.75 1480 – 1530 30.0 78.0 11.5
SS 904L 8.00 1350 – 1400 15.0 70.0 16.0
Check Available Stock
Stainless Steel Polished Sanitary Tube

Stainless Steel Polished Sanitary Tube

Stainless Steel Sanitary Seamless Round Tubing

Stainless Steel Sanitary Seamless Round Tubing

304 5mm Thickness Mirror Polished Stainless Steel Sanitary Piping

304 5mm Thickness Mirror Polished Stainless Steel Sanitary Piping

304l Sanitary Seamless Stainless Steel Tube

304l Sanitary Seamless Stainless Steel Tube

ASTM A270 Sanitary Stainless Steel Tubing

ASTM A270 Sanitary Stainless Steel Tubing

316 Stainless Steel Sanitary Tubing

316 Stainless Steel Sanitary Tubing

SS Sanitary Tube Delivery Time As Per Location
Cost Variations 5 % extra
Export to Delivery Time
Belgium 6-9
UAE 5 days
Philippines 14
South Africa 25-30
Singapore 8
Netherlands 19-20
Germany 15-50
Oman 5
Malaysia 10
Saudi Arabia 7
Qatar 7
Kuwait 10
France 30
Uk 30
Indonesia 9
Bahrain 9
Manisha Steel Centre



Why Us ?
  • Stockist and Exporter of Small Diameter Tubing in Grades of Austenitic and Ferritic Stainless Steel.
  • Supply as Per American and European Standards According to Dimensional Standard ASME B36.19M
  • Distributor and Trader in Mumbai of Renowned Mills Outokumpu, POSCO and Aperam
  • Associated With Dealers and Stockholders in Kuwait, Nigeria, Iraq, Egypt, Congo and Gabon
©2025 Manisha Steel Centre. All Rights Reserved
Website Designed And SEO by Mesotek
Manufacturer and Supplier of Seamless Steel Tubes in India as per ASME SA 269.
