Stainless Steel Condenser Tube Manufacturer in India

Home|Stainless Steel Condenser Tube

SS Shell and Tube Condenser Supplier in Mumbai At Pocket Friendly Price

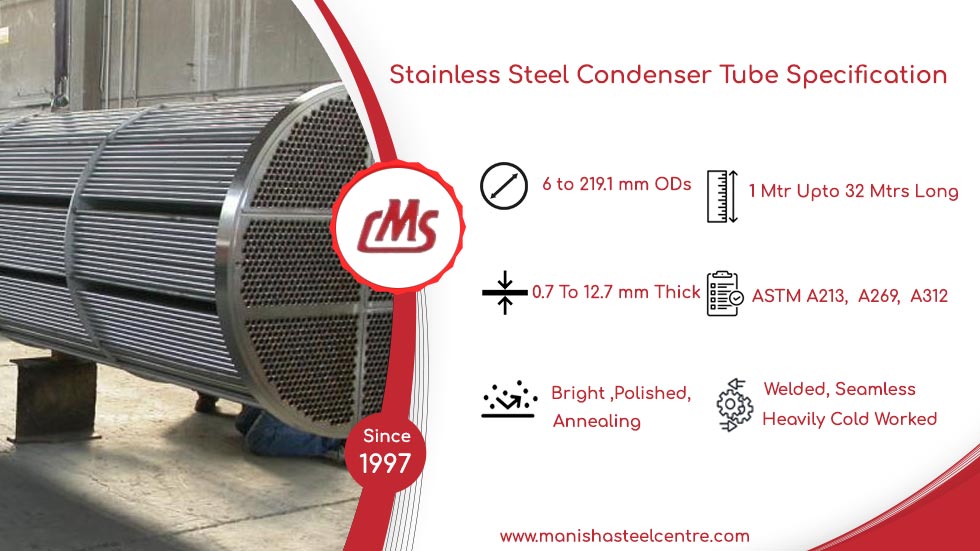

Stainless Steel Condenser Tube Specification



List of 5 Important Documents for European Buyers to purchase Stainless Steel Condenser Tube from India
  • Proforma Invoice
  • Commercial Invoice cum Packing List
  • Certificate of Origin (CoO)
  • Bill of Lading
  • Shipping Bill or Bill of Export
Manisha Steel Centre

Table of Content

Stainless Steel Condenser Tube Specification
SS Condenser Tube Sizes

SS Condenser Tube Sizes

  • OD: 6mm~2500mm
  • Thickness: 0.7 To 12.7 mm Thick
  • Length: 1 Mtr Upto 32 Mtrs Long
SS Condensing Tube Standards

SS Condensing Tube Standards

  • ASTM A213
  • ASTM A249
  • ASTM A269
SS Condenser Tubing Manufacturing Process

SS Condenser Tubing Manufacturing Process

  • Seamless, ERW
  • Welded
  • Redrawn
Stainless Steel Steam Condenser Tube Technique

Stainless Steel Steam Condenser Tube Technique

  • Hot Formed
  • Precision Rolled
  • Cold Formed
Benefits of SS Condenser Tubing

Benefits of SS Condenser Tubing

  • Corrosion resistance
  • Durability
  • Low maintenance
SS 304 Condenser Coil Documentation

SS 304 Condenser Coil Documentation

  • Visual Inspection
  • Mill Test Certificates
SS 304 Condenser Coil Tubing Shape

SS 304 Condenser Coil Tubing Shape

  • Round/ Straight
  • Rectangle
  • Square/Coil
  • Hydraulic
SS Condensing Tube Origin

SS Condensing Tube Origin

  • European
  • Janpanese
  • American
  • Russia
SS Condenser Tubing Services

SS Condenser Tubing Services

  • Shearing
  • Heat Treatment
  • Cutting
Stainless Steel Condenser Tube Packaging

Stainless Steel Condenser Tube Packaging

  • Bubble Wraps
  • Wooden Box,Bundled
304 Stainless Steel Condenser Coil Tubing Finish

304 Stainless Steel Condenser Coil Tubing Finish

  • Annealing/Polished
  • Pickling, Bright
SS 304 Condenser Coil End

SS 304 Condenser Coil End

  • Threaded
  • Bevelled/Grooved
  • Plain
SS Condenser Tubing Testing

SS Condenser Tubing Testing

  • Ultrasonic
  • PMI
  • Chemical
  • Mechanical
Stainless Steel Shell and Tube Condenser Marking

Stainless Steel Shell and Tube Condenser Marking

  • Heat Number
  • Method of Manufacturing
  • Material Grade
SS Condenser Pipe Price

Are You Looking for Stainless Steel Condenser Tube at the Best Price? In order to obtain an estimate immediately, send an email to kalpesh@manishasteelcentre.com.

OD (Inches) Wall Thickness (mm) Price Range (USD per meter)
1/2" 1.0 US $7
1" 1.0 US $9
1 1/2" 1.0 US $12
2" 1.0 US $15
2" 2.0 US $18
3" 2.0 US $22
4" 2.0 US $28
6" 3.0 US $40
Stainless Condensing Tube Sizes
Sizes in mm Sizes in Inches Sizes in Decimal
1.59 1/16" .0625
3.18 1/8" .1250
4.76 3/16" .1875
6.35 1/4" .2500
7.94 5/16" .3125
9.53 3/8" .3750
11.11 7/16" .4375
12.70  1/2" .5000
14.29  9/16" .5625
15.88 5/8" .6250
17.46  11/16" .6875
19.05  3/4" .7500
20.64 13/16" .8125
22.23 7/8" .8750
23.81 15/16" .9375
25.40 1" 1.00
31.75 1 1/4" 1.25
38.10 1 1/2" 1.50
50.80 2" 2.00

Buy 304 Stainless Steel Condenser Coil Tubing With Thickness 0.8 – 12.7 mm or Custom

SS Condenser Tube Wall Thickness

Genuine Stainless Steel Condenser Tube Manufacturer in India As Per Specification

Gauge Thickness Range in Inch Typical Value in Inch
9 0.140 to 0.150 0.148
16 0.060 to 0.065 0.065
8 0.157 to 0.167 0.165
7 0.175 to 0.185 0.18
19 0.038 to 0.042 0.042
11 0.112 to 0.122 0.12
13 0.087 to 0.097 0.095
14 0.075 to 0.085 0.083
17 0.053 to 0.058 0.058
15 0.066 to 0.074 0.072
20 0.031 to 0.035 0.035
22 0.025 to 0.029 0.028
10 0.126 to 0.136 0.134
18 0.044 to 0.049 0.049
12 0.101 to 0.111 0.109
Stainless Steel Condensing Tube Pressure Rating
Pipe Size in Inches Pipe Schedule 100 200 300 400 500 600 700 650 750
1 40 3048 2629 2362 2171 2019 1924 1824 1867 1810
80 4213 3634 3265 3002 2791 2659 2528 2580 2501
160 6140 5296 4759 4375 4068 3876 3684 3761 3646
1 1/2 40 2257 1947 1750 1608 1496 1425 1354 1383 1340
80 3182 2744 2466 2267 2108 2009 1909 1949 1889
160 4619 3984 3580 3291 3060 2916 2772 2829 2743
2 40 1902 1640 1474 1355 1260 1201 1141 1165 1129
80 2747 2369 2129 1957 1820 1734 1648 1682 1631
160 4499 3880 3486 3205 2980 2840 2699 2755 2671
3 40 1806 1558 1400 1287 1196 1140 1084 1106 1072
80 2553 2202 1979 1819 1691 1612 1532 1564 1516
160 3840 3312 2976 2736 2544 2424 2304 2352 2280
4 40 1531 1321 1187 1091 1014 967 919 938 909
80 2213 1909 1715 1577 1466 1397 1328 1355 1314
160 3601 3106 2791 2566 2386 2273 2161 2206 2138
5 40 1342 1158 1040 956 889 847 805 822 797
80 1981 1709 1535 1411 1312 1250 1189 1213 1176
160 3414 2945 2646 2433 2262 2155 2049 2091 2027
6 40 1219 1052 945 869 808 770 732 747 724
80 1913 1650 1483 1363 1267 1208 1148 1172 1136
160 3289 2836 2549 2343 2179 2076 1973 2014 1953
8 40 1073 926 832 765 711 678 644 657 637
80 1692 1459 1311 1205 1121 1068 1015 1036 1005
160 3175 2738 2460 2262 2103 2004 1905 1944 1885
10 40 974 840 755 694 645 615 584 596 578
80 1609 1388 1247 1147 1066 1016 966 986 956
160 3147 2714 2439 2242 2085 1986 1880 1927 1868

Deliver 316 Stainless Steel Steam Condenser Tube With Polished and Bright Annealed Condition As Per ASTM A213

316 SS Steam Condenser Tube Surface Finishes
  • Mill Finish
  • Pickled & Passivated
  • Polished (Mirror Finish)
  • Electro-Polished
  • Bright
Stainless Condenser Tubing Heat Treatment
Heat Treatment Process Temperature Range
Annealing 850°C - 1050°C (1562°F - 1922°F)
Solution Annealing 1000°C - 1100°C (1832°F - 2012°F)
Stress Relieving 300°C - 650°C (572°F - 1202°F)
Hardening 1050°C - 1150°C (1922°F - 2102°F)
Tempering 150°C - 650°C (302°F - 1202°F)
Most Common Types of SS Condenser Tubes

Trusted Stainless Steel Condenser Tube Supplier in India in Custom Shapes and Types

Stainless Steel Condenser Pipe

Stainless Steel Condenser Pipe

Stainless Steel Condenser Coil

Stainless Steel Condenser Coil

Stainless Steel Steam Condenser Tube

Stainless Steel Steam Condenser Tube

SS 304 Condenser Coil Tubing

SS 304 Condenser Coil Tubing

Stainless Steel 316L Seamless Condenser Tubes

Stainless Steel 316L Seamless Condenser Tubes

316 Stainless Steel Shell And Tube Condenser

316 Stainless Steel Shell And Tube Condenser

Get Stainless Steel Seamless Condenser Tubes For Heating and Cooling Systems Tested With Hardness and Tensile Test
SS Seamless Condenser Tubes Testings
Testing Type Destructive or Non-Destructive
Visual Inspection Non-Destructive
Ultrasonic Testing (UT)
X-Ray (Radiographic) Testing
Magnetic Particle Testing (MPT)
Dye Penetrant Testing (DPT)
Tensile Testing Destructive
Hardness Testing
Impact Testing
Fatigue Testing
Stainless Steel Condenser Tube Benefits
Stainless Steel Condenser Tube Benefits
Compare Copper vs Stainless Steel Condenser Tube, Know Which is Better
Copper vs Stainless Steel Condenser Tube
Properties Copper Condenser Tube Stainless Steel Condenser Tube
Corrosion Resistance Good, but can pit in chlorinated water Excellent, highly resistant
Thermal Conductivity High, better heat transfer Lower than copper
Strength Softer, more prone to damage Stronger, more durable
Cost More expensive More affordable
Lifespan Shorter in harsh conditions Longer, more durable
Weight Lighter Heavier
Maintenance Higher in corrosive conditions Lower in harsh conditions
Applications AC, low-corrosion environments Industrial, marine, power plants
SS Condenser Tubing Equivalent Standards
STANDARD WERKSTOFF NR. UNS JIS AFNOR GOST EN BS
SS 304 1.4301 S30400 SUS 304 Z7CN18‐09 08Х18Н10 X5CrNi18-10 304S31
SS 304L 1.4306 / 1.4307 S30403 SUS 304L Z3CN18‐10 03Х18Н11 X2CrNi18-9 / X2CrNi19-11 3304S11
SS 304H 1.4301 S30409 – – – – –
SS 310 1.4841 S31000 SUS 310 – 20Ch25N20S2 X15CrNi25-20 310S24
SS 310S 1.4845 S31008 SUS 310S – 20Ch23N18 X8CrNi25-21 310S16
SS 310H – S31009 – – – – –
SS 316 1.4401 / 1.4436 S31600 SUS 316 Z7CND17‐11‐02 – X5CrNiMo17-12-2 / X3CrNiMo17-13-3 316S31 / 316S33
SS 316L 1.4404 / 1.4435 S31603 SUS 316L Z3CND17‐11‐02 / Z3CND18‐14‐03 03Ch17N14M3 / 03Ch17N14M2 X2CrNiMo17-12-2 / X2CrNiMo18-14-3 316S11 / 316S13
SS 316H 1.4401 S31609 – – – – –
SS 316Ti 1.4571 S31635 SUS 316Ti Z6CNDT17‐123 08Ch17N13M2T X6CrNiMoTi17-12-2 320S31
SS 317 1.4449 S31700 SUS 317 – – – –
SS 317L 1.4438 S31703 SUS 317L – – X2CrNiMo18-15-4 –
SS 321 1.4541 S32100 SUS 321 – – X6CrNiTi18-10 –
SS 321H 1.4878 S32109 SUS 321H – – X12CrNiTi18-9 –
SS 347 1.4550 S34700 SUS 347 – 08Ch18N12B X6CrNiNb18-10 –
SS 347H 1.4961 S34709 SUS 347H – – X6CrNiNb18-12 –
SS 904L 1.4539 N08904 SUS 904L Z2 NCDU 25-20 STS 317J5L X1NiCrMoCu25-20-5 904S13
Stainless Steel Condenser Pipe Chemical Composition
Grades Cr C S P Mo Mn Si Ni N
304 min. 18.0 - - - - - - 8.0 -
max. 20.0 0.08 0.030 0.045 2.0 0.75 10.5 0.10
304L min. 18.0 - - - - - - 8.0 -
max. 20.0 0.030 0.030 0.045 2.0 0.75 12.0 0.10
304H min. 18.0 0.04 - - - - - 8.0 -
max. 20.0 0.010 0.030 0.045 2.0 0.75 10.5 -
SS 310 - 24.00 26.00 0.015 max 0.015 max 0.020 max 0.10 max 2 max 0.015 max 19.00 21.00 54.7 min
SS 310S - 24.00 26.00 0.08 max 0.030 max 0.045 max 0.75 max 2 max 1.00 max 19.00 21.00 53.095 min
SS 310H - 24.00 26.00 0.04 0.10 0.030 max 0.045 max - 2 max 1.00 max 19.00 21.00 53.885 min
316 min. 16.0 - - - 2.03.0 - - 10.0 -
max. 18.0 0.035 0.030 0.045 2.0 0.75 14.0 -
316L min. 16.0 - - - 2.03.0 - - 10.0 -
max. 18.0 0.035 0.030 0.045 2.0 0.75 14.0 -
316TI - 16.00 18.00 0.08 max 0.030 max 0.045 max 0.75 max 10.00 14.00 2.0 max 2.00 3.00 -
317 - 18.00 20.00 0.08 max 0.030 max 0.045 max 3.00 4.00 2 max 1 max - -
SS 317L - 18.00 20.00 0.035 max 0.030 max 0.045 max 3.00 4.00 2.0 max 1.0 max 11.00 15.00 -
SS 321 - 17.00 19.00 0.08 max 0.030 max 0.045 max - 2.0 max 1.0 max 9.00 12.00 0.10 max
SS 321H - 17.00 19.00 0.04 0.10 0.030 max 0.045 max - 2.0 max 1.0 max 9.00 12.00 0.10 max
347/ 347H - 17.00 20.00 0.08 max 0.030 max 0.045 max - 2.0 max 1.0 max 9.0013.00 -
410 min. 11.5 - - - - - - - -
max. 13.5 0.15 0.030 0.040 - 1.0 1.00 0.75 -
446 min. 23.0 - - - - - - - 0.10
max. 30.0 0.2 0.030 0.040 - 1.5 0.75 0.50 0.25
904L min. 19.0 - - - 4.00 - - 23.00 0.10
max. 23.0 0.20 0.035 0.045 5.00 2.00 1.00 28.00 0.25
Mechanical Properties of SS Condenser Coil Tubing
Grades Tensile Strength Yield Strength (0.2%Offset) Elongation
304/ 304L Psi 75000 , MPa 515 Psi 30000 , MPa 205 35 %
304H Psi 75000 , MPa 515 Psi 30000 , MPa 205 40 %
310 / 310S / 310H Psi 75000 , MPa 515 Psi 30000 , MPa 205 40 %
306/ 316H Psi 75000 , MPa 515 Psi 30000 , MPa 205 35 %
316L Psi 75000 , MPa 515 Psi 30000 , MPa 205 35 %
317 Psi 75000 , MPa 515 Psi 30000 , MPa 205 35 %
321 Psi 75000 , MPa 515 Psi 30000 , MPa 205 35 %
347 Psi 75000 , MPa 515 Psi 30000 , MPa 205 35 %
904L Psi 71000 , MPa 490 Psi 32000 , MPa 220 35 %
SS Shell And Tube Condenser Physical Properties
Grades Density (g/cm³) Melting Point (°C) Coefficient of Thermal Expansion (μm/m·°C) Electrical Resistivity (µΩ·cm) Thermal Conductivity (W/m·K)
SS 304 8.00 1,400–1,450 16.0 0.072 16.2
SS 304L 7.93 1400 – 1450 16.0 72.3 16.2
SS 304H 7.93 1400 – 1450 16.0 72.3 16.2
SS 310 7.90 1400 – 1450 17.0 72.0 14.0
SS 310S 7.90 1400 – 1450 17.0 72.0 14.0
SS 316 7.98 1375 – 1400 16.5 74.0 16.3
SS 316L 7.98 1375 – 1400 16.5 74.0 16.3
SS 316Ti 7.98 1375 – 1400 16.5 74.0 16.3
SS 317 7.95 1375 – 1400 16.5 74.5 16.3
SS 317L 7.95 1375 – 1400 16.5 74.5 16.3
SS 321 7.93 1400 – 1450 16.0 74.0 16.2
SS 321H 7.93 1400 – 1450 16.0 74.0 16.2
SS 347 7.93 1400 – 1450 16.0 74.0 16.2
SS 410 7.75 1480 – 1530 11.5 78.0 30.0
SS 446 7.80 1400 – 1450 11.5 76.0 30.0
SS 904L 8.00 1350 – 1400 16.0 70.0 15.0
SS Condenser Tube Delivery Time As Per Location
Cost Variations 5 % extra
Export to Delivery Time
South Africa 25-30
Singapore 8
UAE 5 days
Saudi Arabia 7
Qatar 7
Kuwait 10
France 30
Uk 30
Netherlands 19-20
Belgium 6-9
Indonesia 9
Philippines 14
Germany 15-50
Oman 5
Bahrain 9
Malaysia 10
Manisha Steel Centre



Why Us ?
  • Stockist and Exporter of Small Diameter Tubing in Grades of Austenitic and Ferritic Stainless Steel.
  • Supply as Per American and European Standards According to Dimensional Standard ASME B36.19M
  • Distributor and Trader in Mumbai of Renowned Mills Outokumpu, POSCO and Aperam
  • Associated With Dealers and Stockholders in Kuwait, Nigeria, Iraq, Egypt, Congo and Gabon
©2025 Manisha Steel Centre. All Rights Reserved
Website Designed And SEO by Mesotek
Manufacturer and Supplier of Seamless Steel Tubes in India as per ASME SA 269.
