Stainless Steel Boiler Tube Manufacturer in India

Home|Stainless Steel Boiler Tube

SS Boiler Pipe Supplier in Mumbai As Per ASTM A213

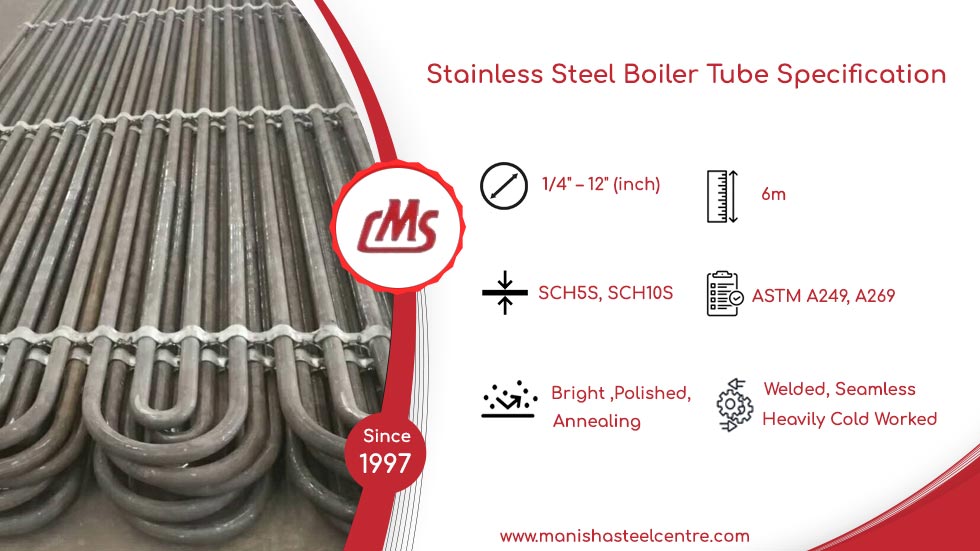

Stainless Steel Boiler Tube Specification



How to get High Quality Stainless Steel Boiler Tube in Saudi Arabia at lowest Price
  • Identify Reliable Suppliers and Manufacturers
  • Request for Multiple Quotes
  • Consider Importing from Nearby Markets
  • Check Online Marketplaces
  • Negotiate for Bulk Discounts
  • Look for Sales
  • Consult Industry Experts
Manisha Steel Centre

Table of Content

Stainless Steel Boiler Tube Specification
SS Boiler Tubes Sizes

SS Boiler Tubes Sizes

  • OD: 1/4" – 12"
  • Thickness: SCH5S, SCH10S
  • Length: 6m
Stainless Steel Boiler Pipe Standards

Stainless Steel Boiler Pipe Standards

  • ASTM A249
  • ASTM A269
  • ASTM A270
304 Seamless Boiler Tubing Manufacturing Process

304 Seamless Boiler Tubing Manufacturing Process

  • Seamless, ERW
  • Welded, Redrawn
Stainless Boiler Tube Technique

Stainless Boiler Tube Technique

  • Hot Formed
  • Precision Rolled
  • Cold Formed
Benefits of SS Seamless Boiler Tubes

Benefits of SS Seamless Boiler Tubes

  • Durability
  • Maintenance
  • Flexibility
Stainless Steel Water Tube Boiler Documentation

Stainless Steel Water Tube Boiler Documentation

  • Visual Inspection
  • Mill Test Certificates
Stainless Steel Boiler Vent Pipe Shape

Stainless Steel Boiler Vent Pipe Shape

  • Round/ Straight
  • Rectangle
  • Square/Coil
  • Hydraulic
Stainless Steel Boiler Fire Tube Origin

Stainless Steel Boiler Fire Tube Origin

  • European
  • Janpanese
  • American
  • Russia
Stainless Steel Boiler Water Tube Services

Stainless Steel Boiler Water Tube Services

  • Shearing, Cutting
  • Heat Treatment
Stainless Boiler Tube Packaging

Stainless Boiler Tube Packaging

  • Bubble Wraps
  • Wooden Box
  • Bundled
SS Boiler Tubes Finish

SS Boiler Tubes Finish

  • Annealing/Polished
  • Pickling
  • Bright
Stainless Steel Superheater Tubes End

Stainless Steel Superheater Tubes End

  • Threaded, Plain
  • Bevelled/Grooved
Stainless Steel Boiler Pipe Testing

Stainless Steel Boiler Pipe Testing

  • Ultrasonic
  • PMI
  • Chemical
  • Mechanical
304 Seamless Boiler Tubing Marking

304 Seamless Boiler Tubing Marking

  • Heat Number
  • Method of Manufacturing
  • Material Grade
  • Nominal Size
Stainless Steel Seamless Boiler Tubes Price

Are You Trying to Find the Best Deal on Stainless Steel Boiler Tube? To get an estimate right away, send an email to kalpesh@manishasteelcentre.com.

Size Range Price Per Unit (INR) Price in USD
54mm Od X 9.65mm Wt Mw X 10000mm (9bdles-76 Pcs) 880 US $11.87
63.5mm Od X 13.72 Mm Wt Mw X 5000mm (6bdles-100 Pcs) 871 US $11.75
88.90x3.20 mm (Cold Roll) 166 US $2.24
168.30x4.50 mm (Cold Roll) 145 US $1.96
42.40x2.60 mm (Cold Roll) 119 US $1.61
SS Boiler Tubes Gauge Chart
Gauge Thickness Range (INCHES) Typical Value (INCHES)
17 0.053 through 0.058 0.058
12 0.101 through 0.111 0.109
11 0.112 through 0.122 0.12
14 0.075 through 0.085 0.083
13 0.087 through 0.097 0.095
20 0.031 through 0.035 0.035
19 0.038 through 0.042 0.042
18 0.044 through 0.049 0.049
9 0.140 through 0.150 0.148
10 0.126 through 0.136 0.134
22 0.025 through 0.029 0.028
16 0.060 through 0.065 0.065
15 0.066 through 0.074 0.072
8 0.157 through 0.167 0.165
7 0.175 through 0.185 0.18

Buy 304 Seamless Boiler Tubing With OD Range From 6 ~2500mm or Custom

304 Seamless Boiler Tubing Outside Diameter

Genuine Stainless Steel Boiler Tube Manufacturer in India As Per Specification

OD BWG WG
25 22 20 18 16 14 12 10
WT mm
0.508 0.71 0.89 1.24 1.65 2.11 2.77 3.40
inch mm 　kg/m
 1/2 12.7 - 0.214 0.263 0.356 0.457 0.612 0.754 -
 5/8 15.88 - 0.271 0.334 0.455 0.588 0.796 0.995 -
2 1/2 63.5 - - - 1.949 2.554 3.244 4.214 5.13
3    76.2 - - - 2.345 3.084 3.914 5.094 6.19
1/4 6.35 0.081 0.109 0.133 0.174 0.212 - - -
 3/8 9.53 0.126 0.157 0.193 0.257 0.356 0.429 - -
1    25.4 - 0.44 0.546 0.75 0.981 1.234 1.574 2.05
 3/4 19.05 - 0.327 0.405 0.553 0.729 0.895 1.236 -
3 1/2 88.9 - - - 2.729 3.609 4.584 5.974 7.27
4    101.6 - - - - 4.134 5.254 6.854 8.35
1 1/4 31.75 - 0.554 0.688 0.947 1.244 1.574 2.014 2.641
4 1/2 114.3 - - - - 4.654 5.924 7.734 9.43
1 1/2 38.1 - 0.667 0.832 1.144 1.514 1.904 2.454 3.233
1 3/4 44.5 - - - 1.342 1.774 2.244 2.894 3.5
2    50.8 - - - 1.549 2.034 2.574 3.334 4.03
Stainless 316 Boiler Tubes Schedule Chart
NB SIZES SCH 5 SCH 10 SCH 40 SCH 80 SCH 160
1 1/2″ √ √ √ √ √
2″ √ √ √ √ √
3/8″ √ √ √ √ -
1/2″ √ √ √ √ √
3/4″ √ √ √ √ √
5″ √ √ √ √ -
2 1/2″ √ √ √ √ √
3″ √ √ √ √ √
4″ √ √ √ √ √
1/8″ √ √ √ √ -
1/4″ √ √ √ √ -
1″ √ √ √ √ √
1 1/4″ √ √ √ √ √
6″ √ √ √ √ -
What are the advantages of using Stainless Steel for Boiler Tubes?
Advantages
Pressure Rating of SS Boiler Pipe
Pipe Size in inches OD in Inch WT in Inch Schedule Temperature
100 200 300 400 500 600 650 700 750
Allowable Stress
16700 16700 16700 15500 14400 13500 13200 12900 12600
1 1/2" 1.900 0.145 40 1629 1629 1629 1512 1404 1317 1287 1258 1229
1.900 0.200 80 2303 2303 2303 2138 1986 1862 1821 1779 1738
1.900 0.281 160 3362 3362 3362 3120 2899 2717 2657 2597 2536
2" 2.375 0.154 40 1371 1371 1371 1272 1182 1108 1083 1059 1034
2.375 0.218 80 1985 1985 1985 1843 1712 1605 1569 1534 1498
2.375 0.344 160 3283 3283 3283 3047 2831 2654 2595 2536 2477
4" 4.500 0.237 40 1102 1102 1102 1023 950 891 871 851 831
4.500 0.337 80 1596 1596 1596 1482 1377 1291 1262 1233 1204
4.500 0.531 160 2611 2611 2611 2424 2552 2111 2064 2017 1970
8" 8.625 0.322 40 771 771 771 716 665 623 610 596 582
8.625 0.500 80 1218 1218 1218 1131 1050 985 963 941 919
8.625 0.906 160 2298 2298 2298 2133 1982 1858 1817 1775 1734
10" 10.750 0.365 40 699 699 699 649 603 565 553 540 528
10.750 0.594 80 1159 1159 1159 1075 999 937 916 895 874
10.750 1.125 160 2289 2289 2289 2124 1974 1850 1809 1768 1727
1" 1.315 0.133 40 2205 2205 2205 2047 1902 1783 1743 1703 1664
1.315 0.179 80 3061 3061 3061 2841 2640 2475 2420 2365 2310
1.315 0.250 160 4493 4493 4493 4170 3874 3632 3552 3471 3390
5" 5.563 0.258 40 965 965 965 896 832 780 763 746 728
5.563 0.375 80 1428 1428 1428 1325 1231 1154 1129 1103 1077
5.563 0.625 160 2474 2474 2474 2296 2133 2000 1955 1911 1866
6" 6.625 0.280 40 877 877 877 814 756 709 693 677 661
6.625 0.432 80 1379 1379 1379 1280 1189 1115 1090 1065 1040
6.625 0.719 160 2382 2382 2382 2211 2054 1925 1883 1840 1797
3" 3.500 0.216 40 1301 1301 1301 1208 1122 1052 1028 1005 982
3.500 0.300 80 1844 1844 1844 1712 1590 1491 1458 1425 1391
3.500 0.438 160 2787 2787 2787 2587 2403 2253 2203 2153 2103

Stock and Supply 316 Stainless Steel Welded Boiler Tube For High Temperature Application

316 Stainless Steel Welded Boiler Tube Applications
316 Stainless Steel Welded Boiler Tube Applications
Most Common Types of SS Boiler Tubes

Trusted Stainless Steel Boiler Tube Supplier in India in Custom Shapes and Types

304 Seamless Boiler Tubing

304 Seamless Boiler Tubing

Stainless Steel Water Tube Boiler

Stainless Steel Water Tube Boiler

SS Boiler Vent Pipe

SS Boiler Vent Pipe

Stainless Steel Welded Boiler Tube

Stainless Steel Welded Boiler Tube

SS Boiler Fire Tube

SS Boiler Fire Tube

Stainless Steel Superheater Tubes

Stainless Steel Superheater Tubes

Offer 3 inch or Custom Stainless Steel Boiler Vent Pipe to Ventilate the Hot Environment in Boiler Applications
Stainless Steel Boiler Vent Pipe Dimension Chart
Nominal Size in inches OD in inches OD in mm WT in inches WT in mm Weight [kg/meter] Weight [lbs/feet]
3/4 20 1.05 26.7 0.113 2.87 1.69 1.13
1 25 1.32 33.4 0.133 3.38 2.5 1.68
1 1/4 32 1.66 42.2 0.14 3.56 3.39 2.27
3/8 10 0.68 17.1 0.091 2.31 0.84 0.57
1/2 15 0.84 21.3 0.109 2.77 1.27 0.85
6 150 6.625 168.3 0.28 7.11 28.26 18.97
8 200 8.625 219.1 0.322 8.18 42.55 28.55
3 1/2 90 4 101.6 0.226 5.74 13.57 9.11
4 100 4.5 114.3 0.237 6.02 16.07 10.79
5 125 5.563 141.3 0.258 6.55 21.77 14.62
1/8 6 0.41 10.3 0.068 1.73 0.37 0.24
1/4 8 0.54 13.7 0.088 2.24 0.63 0.42
18 450 18 457 0.562 14.27 155.8 104.67
20 500 20 508 0.594 15.09 183.42 123.11
10 250 10.75 273 0.365 9.27 60.31 40.48
12 300 12.75 323.8 0.406 10.31 79.73 53.52
14 350 14 355.6 0.437 11.13 94.55 54.57
16 400 16 406.4 0.5 12.7 123.3 82.77
1 1/2 40 1.9 48.3 0.145 3.68 4.05 2.72
2 50 2.375 60.3 0.154 3.91 5.44 3.65
2 1/2 65 2.875 73 0.203 5.16 8.63 5.79
3 80 3.5 88.9 0.216 5.49 11.29 7.58
24 600 24 610 0.688 17.48 255.41 171.29
32 800 32 813 0.688 17.48 342.91 230.08
What is the typical operating temperature range for SS Boiler Tubes?
Grades of SS Typical Operating Temperature Range (°C / °F)
304 Stainless Steel 600°C to 870°C 1112°F to 1598°F
316 Stainless Steel 600°C to 870°C 1112°F to 1598°F
321 Stainless Steel 600°C to 870°C 1112°F to 1598°F
310 Stainless Steel 800°C to 1150°C 1472°F to 2102°F
Understand Difference Between Stainless Steel Fire and Water Tube Boiler Here
Stainless Steel Fire vs Water Tube Boiler
Fire Tube Boiler Water Tube Boiler
Low or medium pressure boiler up to 25 Bar. High pressure boiler ranging up to 70-100 Bar.
Lower rate of steam Production. Faster rate of steam Production.
Less efficient More efficient
Suitable for small scale power plants. Suitable for large scale power plants.
Occupies large floor space. Occupies less floor space.
Less complex, less skill required. Because of complexity, skilled person is required to operate.
Difficult to clean as internally fired. Easy to clean as it is externally fired
The diameter of shell is more. The shell diameter is less.
Difficult to carry out maintenance Easy to carry out maintenance.
Less environment friendly More environment friendly
Operating Cost is less. Operating cost is high
What factors contribute to the corrosion resistance of SS Boiler Tubes?

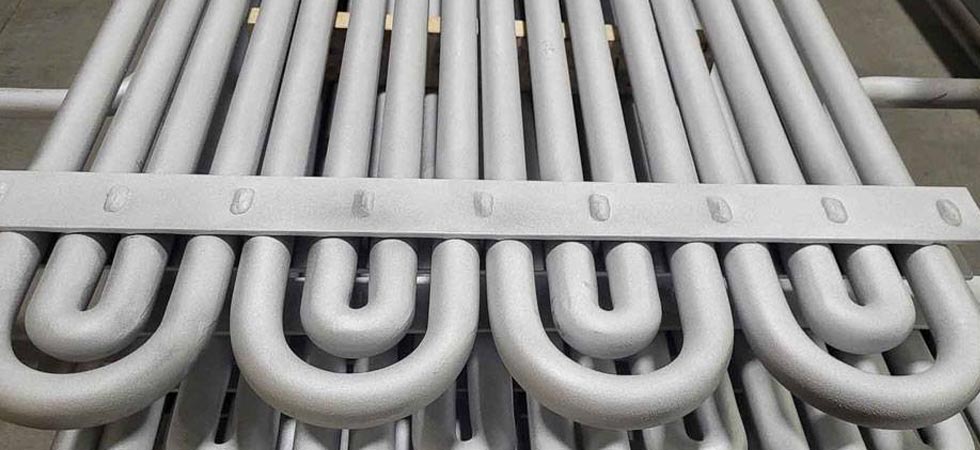

Corrosion Resistance of SS Boiler Tubes
  • Alloy Composition
  • Passivation
  • Surface Finish
  • Heat Treatment
  • Temperature and Environment
  • Mechanical Properties
  • Weld Quality
  • Chromium to Carbon Ratio
  • Preventive Maintenance
ASTM A213 SS Boiler Tubing Equivalent Material
STANDARD UNS WERKSTOFF NR. JIS EN GOST BS AFNOR
SS 304 S30400 1.4301 SUS 304 X5CrNi18-10 08Х18Н10 304S31 Z7CN18‐09
SS 304L S30403 1.4306 / 1.4307 SUS 304L X2CrNi18-9 / X2CrNi19-11 03Х18Н11 3304S11 Z3CN18‐10
SS 304H S30409 1.4301 – – – – –
SS 310 S31000 1.4841 SUS 310 X15CrNi25-20 20Ch25N20S2 310S24 –
SS 310S S31008 1.4845 SUS 310S X8CrNi25-21 20Ch23N18 310S16 –
SS 310H S31009 – – – – – –
SS 316 S31600 1.4401 / 1.4436 SUS 316 X5CrNiMo17-12-2 / X3CrNiMo17-13-3 – 316S31 / 316S33 Z7CND17‐11‐02
SS 316L S31603 1.4404 / 1.4435 SUS 316L X2CrNiMo17-12-2 / X2CrNiMo18-14-3 03Ch17N14M3 / 03Ch17N14M2 316S11 / 316S13 Z3CND17‐11‐02 / Z3CND18‐14‐03
SS 316H S31609 1.4401 – – – – –
SS 316Ti S31635 1.4571 SUS 316Ti X6CrNiMoTi17-12-2 08Ch17N13M2T 320S31 Z6CNDT17‐123
SS 317 S31700 1.4449 SUS 317 – – – –
SS 317L S31703 1.4438 SUS 317L X2CrNiMo18-15-4 – – –
SS 321 S32100 1.4541 SUS 321 X6CrNiTi18-10 – – –
SS 321H S32109 1.4878 SUS 321H X12CrNiTi18-9 – – –
SS 347 S34700 1.4550 SUS 347 X6CrNiNb18-10 08Ch18N12B – –
SS 347H S34709 1.4961 SUS 347H X6CrNiNb18-12 – – –
SS 904L N08904 1.4539 SUS 904L X1NiCrMoCu25-20-5 STS 317J5L 904S13 Z2 NCDU 25-20
SS Seamless Boiler Tube Chemical Properties
Grades Mn C S Si P Cr Mo Ni N
304 min. - - - - - 18.0 8.0 -
max. 2.0 0.08 0.030 0.75 0.045 20.0 10.5 0.10
304L min. - - - - - 18.0 8.0 -
max. 2.0 0.030 0.030 0.75 0.045 20.0 12.0 0.10
304H min. - 0.04 - - - 18.0 8.0 -
max. 2.0 0.010 0.030 0.75 0.045 20.0 10.5 -
SS 310 - 2 max 0.015 max 0.015 max 0.015 max 0.020 max 24.00 26.00 0.10 max 19.00 21.00 54.7 min
SS 310S - 2 max 0.08 max 0.030 max 1.00 max 0.045 max 24.00 26.00 0.75 max 19.00 21.00 53.095 min
SS 310H - 2 max 0.04 0.10 0.030 max 1.00 max 0.045 max 24.00 26.00 - 19.00 21.00 53.885 min
316 min. - - - - - 16.0 2.03.0 10.0 -
max. 2.0 0.035 0.030 0.75 0.045 18.0 14.0 -
316L min. - - - - - 16.0 2.03.0 10.0 -
max. 2.0 0.035 0.030 0.75 0.045 18.0 14.0 -
316TI - 10.00 14.00 0.08 max 0.030 max 2.0 max 0.045 max 16.00 18.00 0.75 max 2.00 3.00 -
317 - 2 max 0.08 max 0.030 max 1 max 0.045 max 18.00 20.00 3.00 4.00 - -
SS 317L - 2.0 max 0.035 max 0.030 max 1.0 max 0.045 max 18.00 20.00 3.00 4.00 11.00 15.00 -
SS 321 - 2.0 max 0.08 max 0.030 max 1.0 max 0.045 max 17.00 19.00 - 9.00 12.00 0.10 max
SS 321H - 2.0 max 0.04 0.10 0.030 max 1.0 max 0.045 max 17.00 19.00 - 9.00 12.00 0.10 max
347/ 347H - 2.0 max 0.08 max 0.030 max 1.0 max 0.045 max 17.00 20.00 - 9.0013.00 -
410 min. - - - - - 11.5 - - -
max. 1.0 0.15 0.030 1.00 0.040 13.5 - 0.75 -
446 min. - - - - - 23.0 - - 0.10
max. 1.5 0.2 0.030 0.75 0.040 30.0 - 0.50 0.25
904L min. - - - - - 19.0 4.00 23.00 0.10
max. 2.00 0.20 0.035 1.00 0.045 23.0 5.00 28.00 0.25
Mechanical Properties of ASME SA213 Superheater Tubes
Grades Yield Strength (0.2%Offset) Tensile Strength Elongation
304/ 304L Psi 30000 , MPa 205 Psi 75000 , MPa 515 35 %
304H Psi 30000 , MPa 205 Psi 75000 , MPa 515 40 %
310 / 310S / 310H Psi 30000 , MPa 205 Psi 75000 , MPa 515 40 %
306/ 316H Psi 30000 , MPa 205 Psi 75000 , MPa 515 35 %
316L Psi 30000 , MPa 205 Psi 75000 , MPa 515 35 %
317 Psi 30000 , MPa 205 Psi 75000 , MPa 515 35 %
321 Psi 30000 , MPa 205 Psi 75000 , MPa 515 35 %
347 Psi 30000 , MPa 205 Psi 75000 , MPa 515 35 %
904L Psi 32000 , MPa 220 Psi 71000 , MPa 490 35 %
Stainless Steel Welded Boiler Tube Physical Properties
Grades Melting Point (°C) Density (g/cm³) Electrical Resistivity (µΩ·cm) Thermal Conductivity (W/m·K) Coefficient of Thermal Expansion (μm/m·°C)
SS 304 1,400–1,450 8.00 0.072 16.2 16.0
SS 304L 1400 – 1450 7.93 72.3 16.2 16.0
SS 304H 1400 – 1450 7.93 72.3 16.2 16.0
SS 310 1400 – 1450 7.90 72.0 14.0 17.0
SS 310S 1400 – 1450 7.90 72.0 14.0 17.0
SS 316 1375 – 1400 7.98 74.0 16.3 16.5
SS 316L 1375 – 1400 7.98 74.0 16.3 16.5
SS 316Ti 1375 – 1400 7.98 74.0 16.3 16.5
SS 317 1375 – 1400 7.95 74.5 16.3 16.5
SS 317L 1375 – 1400 7.95 74.5 16.3 16.5
SS 321 1400 – 1450 7.93 74.0 16.2 16.0
SS 321H 1400 – 1450 7.93 74.0 16.2 16.0
SS 347 1400 – 1450 7.93 74.0 16.2 16.0
SS 410 1480 – 1530 7.75 78.0 30.0 11.5
SS 446 1400 – 1450 7.80 76.0 30.0 11.5
SS 904L 1350 – 1400 8.00 70.0 15.0 16.0
What are the challenges in producing Stainless Boiler Tubes?
  • Material Selection and Alloy Composition
  • High-Temperature Processing
  • Welding and Joining
  • Tolerances and Dimensional Control
  • Scaling and Surface Defects
  • Tube Integrity and Strength
  • Microstructural Control
Check Available Stock
58mm 304 Stainless Steel Boilers Tube

58mm 304 Stainless Steel Boilers Tube

SS 304L ASTM A249 Stainless Steel Boiler Tubes

SS 304L ASTM A249 Stainless Steel Boiler Tubes

316 Stainless Steel Boiler Fin Tube

316 Stainless Steel Boiler Fin Tube

ASTM A355 Seamless Stainless Steel Boiler Tubes

ASTM A355 Seamless Stainless Steel Boiler Tubes

100mm Diameter Stainless Steel Boiler Pipes

100mm Diameter Stainless Steel Boiler Pipes

High Standard ASTM High Pressure Steam Boiler Seamless Steel Pipe

High Standard ASTM High Pressure Steam Boiler Seamless Steel Pipe

Stainless Boiler Tube Delivery Time As Per Location
Cost Variations 5 % extra
Export to Delivery Time
Philippines 14
Malaysia 10
Saudi Arabia 7
UAE 5 days
Germany 15-50
Oman 5
Bahrain 9
Qatar 7
Kuwait 10
France 30
Uk 30
Netherlands 19-20
Belgium 6-9
Indonesia 9
South Africa 25-30
Singapore 8
Manisha Steel Centre



Why Us ?
  • Stockist and Exporter of Small Diameter Tubing in Grades of Austenitic and Ferritic Stainless Steel.
  • Supply as Per American and European Standards According to Dimensional Standard ASME B36.19M
  • Distributor and Trader in Mumbai of Renowned Mills Outokumpu, POSCO and Aperam
  • Associated With Dealers and Stockholders in Kuwait, Nigeria, Iraq, Egypt, Congo and Gabon
©2025 Manisha Steel Centre. All Rights Reserved
Website Designed And SEO by Mesotek
Manufacturer and Supplier of Seamless Steel Tubes in India as per ASME SA 269.
