ASTM A270 TP316L Tube | ASME SA270 Grade 316L Sanitary Tube

Best Manufacturer Of ASME SA270 Grade 316L Sanitary Tube in India

Table of Content

ASTM A270 TP316L Tube Specification
Dimensional Tolerance of A270 Type 316L Seamless Tube
ASTM A270 Type 316L Seamless Tube Size Chart
ASTM A270 TP 316L Welded Sanitary Tubing Pressure Rating
ASTM A270 GR TP316L Welded Sanitary Tubing Surface Finishes
Most Common Types of ASTM A270 TP316L Tubes
ASME SA 270 TP 316L Pharmaceutical Tubing Price
ASTM A270 TP 316L Hygienic Tubing Testings
Benefits of A270 Type 316L Pharmaceutical Tubing
SA 270 Grade TP316L Sanitary SS Tubing Applications
ASTM A270 TP316L Equivalent
SA 270 Gr 316L Sanitary Tube Chemical Composition
Mechanical Properties of ASME Sa270 Gr 316L Biopharm Tubing
ASTM A270 Grade 316L Welded Tube Physical Properties

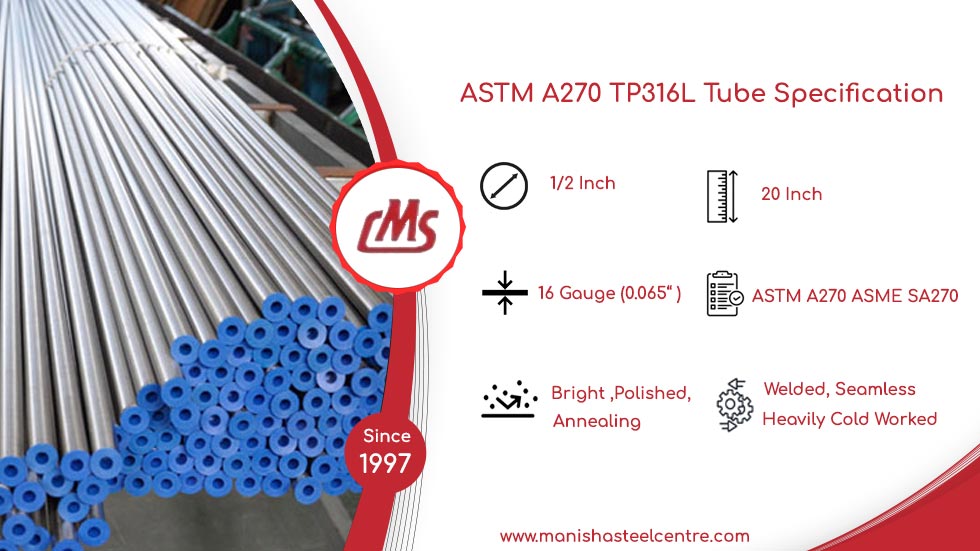

ASTM A270 TP316L Tube Specification

ASTM A270 TP316L Tube Sizes

OD: 1/2 Inch
Thickness: 16 Gauge (0.065" )
Length: 20 Inch

ASTM A270 Type 316L Seamless Tube Standards

ASTM A270
ASME SA 270

ASTM A270 Grade 316L Welded Tube Manufacturing Process

Seamless
ERW
Redrawn

SA 270 Gr 316L Sanitary Tube Technique

Hot Formed
Precision Rolled
Cold Formed

Benefits of A270 Type 316L Pharmaceutical Tubing

Excellent strength
High quality
Excellent toughness

ASME Sa270 Gr 316L Biopharm Tubing Documentation

Visual Inspection
Mill Test Certificates
PMI Test Reports

ASME SA270 Grade 316L Hygienic Tubing Shape

Round/ Straight
Rectangle
Square/Coil
Hydraulic

ASTM A270 Grade 316L Welded Tube Origin

European
Janpanese
American
Russia

ASME SA 270 TP 316L Seamless Sanitary Tubing Services

Shearing
Heat Treatment
Cutting

SA 270 Gr 316L Sanitary Tube Packaging

Bubble Wraps
Wooden Box
Bundled

ASTM A270 TP 316L Welded Sanitary Tubing Finish

Annealing/Polished
Pickling
Bright

ASME Sa270 Gr 316L Biopharm Tubing End

Threaded
Bevelled/Grooved
Plain

ASTM A270 Type 316L Seamless Tube Testing

Ultrasonic, PMI
Chemical
Mechanical

ASTM A270 TP316L Tube Marking

Heat Number
Method of Manufacturing
Material Grade
Nominal Size

Dimensional Tolerance of A270 Type 316L Seamless Tube

Are You Looking for ASTM A270 TP316L Tube at the Best Price? In order to obtain an estimate immediately, send an email to kalpesh@manishasteelcentre.com.

Nominal Wall	OD Size	Wall	Outside Dia	Length
0.065″ (1.65)	1/2″ (12.7)	+/-10%	+/-0.005 (0.13)	+1/8″ (3.18)/-0
0.065″ (1.65)	3/4″ (19.1)	+/-10%	+/-0.005 (0.13)	+1/8″ (3.18)/-0
0.065″ (1.65)	1″ (25.4)	+/-10%	+/-0.005 (0.13)	+1/8″ (3.18)/-0
0.065″ (1.65)	1-1/2″ (38.1)	+/-10%	+/-0.008 (0.20)	+1/8″ (3.18)/-0
0.065″ (1.65)	2″ (50.8)	+/-10%	+/-0.008 (0.20)	+1/8″ (3.18)/-0
0.065″ (1.65)	2-1/2″ (63.5)	+/-10%	+/-0.010 (0.25)	+1/8″ (3.18)/-0
0.065″ (1.65)	3″ (76.2)	+/-10%	+/-0.010 (0.25)	+1/8″ (3.18)/-0
0.083″ (2.11)	4″ (101.6)	+/-10%	+/-0.015 (0.38)	+1/8″ (3.18)/-0
0.109″ (2.77)	6″ (152.4)	+/-10%	+/-0.030 (0.76)	+3/16″ (4.76)/-0
0.109″ (2.77)	8″ (203.2)	+/-10%	+/-0.030 (0.76)	+3/16″ (4.76)/-0

Offer Cut to Size ASTM A270 Type 316L Seamless Tube Supplier in Mumbai

ASTM A270 Type 316L Seamless Tube Size Chart

Genuine ASTM A270 TP316L Tube Manufacturer in India As Per Specification

Size OD	Size OD	Nominal Wall Thickness	Nominal Wall Thickness	OD Tolerance	OD Tolerance	Length Tolerance	Length Tolerance	Wall Thickness Tolerance
(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(%)
12.7	½	1.65	0.065	+/-0.13	+/-0.005	+3.18, -0	+⅛, -0	+/-10.0%
19.1	¾	1.65	0.065	+/-0.13	+/-0.005	+3.18, -0	+⅛, -0	+/-10.0%
25.4	1	1.65	0.065	+/-0.13	+/-0.005	+3.18, -0	+⅛, -0	+/-10.0%
38.1	1½	1.65	0.065	+/-0.20	+/-0.008	+3.18, -0	+⅛, -0	+/-10.0%
50.8	2	1.65	0.065	+/-0.20	+/-0.008	+3.18, -0	+⅛, -0	+/-10.0%
63.5	2½	1.65	0.065	+/-0.25	+/-0.010	+3.18, -0	+⅛, -0	+/-10.0%
76.2	3	1.65	0.065	+/-0.25	+/-0.010	+3.18, -0	+⅛, -0	+/-10.0%
101.6	4	2.11	0.083	+/-0.38	+/-0.015	+3.18, -0	+⅛, -0	+/-10.0%
152.4	6	2.77	0.109	+/-0.76	+/-0.030	+25.4, -0	+1, -0	+/-10.0%
203.2	8	2.77	0.109	+1.55 -0.79	+0.061 -0.031	+25.4, -0	+1, -0	+/-10.0%

ASTM A270 TP 316L Welded Sanitary Tubing Pressure Rating

OD in Inch	Wall Thickness in inches	Working Pressure	Theoretical Burst Pressure
0.250	0.028	5,412	21,649
0.250	0.020	3,571	14,286
0.375	0.020	2,239	8,955
0.375	0.065	9,949	39,796
0.500	0.020	1,630	6,522
0.500	0.083	9,319	37,275
0.625	0.020	1,282	5,128
0.625	0.109	10,043	40,172
0.750	0.028	1,513	6,052
0.750	0.120	8,824	35,294
0.875	0.020	898	3,593
0.875	0.120	7,087	28,346
1.000	0.028	1,112	4,449
1.000	0.134	6,865	27,459
1.250	0.035	1,112	4,449
1.250	0.134	5,117	20,468
1.500	0.035	918	3,671
1.500	0.148	4,610	18,439
1.750	0.035	781	3,125
1.750	0.165	4,357	17,430
2.000	0.035	680	2,720
2.000	0.165	3,705	14,820

Get Huge Stock Of ASTM A270 GR TP316L Welded Sanitary Tubing With Various Surface Finish

ASTM A270 GR TP316L Welded Sanitary Tubing Surface Finishes

Finish Type	Surface Roughness (Ra)
Passivated	Ra ≤ 0.5 µm (20 µin)
Pickled	Ra ≤ 0.5 µm (20 µin)
Mill Finish	Ra ≤ 0.8 µm (32 µin)
Mechanical Polish	Ra ≤ 0.5 µm (20 µin)
Electropolished	Ra ≤ 0.25 µm (10 µin)

Most Common Types of ASTM A270 TP316L Tubes

Trusted ASTM A270 TP316L Tube Supplier in India in Custom Shapes and Types

ASTM A270 TP 316L Welded Sanitary Tubing

ASME SA 270 TP 316L Seamless Sanitary Tubing

ASME SA270 Grade 316L Hygienic Tubing

A270 Type 316L Pharmaceutical Tubing

ASME Sa270 Gr 316L Biopharm Tubing

ASTM A270 TP316L Biopharmaceutical Tubing

Buy Most Versatile ASME SA 270 TP 316L Pharmaceutical Tubing At Factory Price

ASME SA 270 TP 316L Pharmaceutical Tubing Price

Size (mm)	Wall Thickness (mm)	Length (meters)	Unit Price in USD
6.35	0.50	6	US $3.50
8.00	0.60	6	US $4.00
10.00	0.80	6	US $5.00
12.70	1.00	6	US $6.00
15.00	1.20	6	US $7.00
20.00	1.50	6	US $9.00

Find here ASTM A270 TP 316L Hygienic Tubing Tested With Hydrostatic or Nondestructive Electric Test

ASTM A270 TP 316L Hygienic Tubing Testings

Testing Type	Non-Destructive / Destructive
Hardness Test	Destructive
Tensile Test
Impact Test
Corrosion Resistance Test
Visual Inspection	Non-Destructive
Dimensional Check
Ultrasonic Testing (UT)
X-Ray or Radiographic Testing (RT)
Magnetic Particle Testing (MPT)
Flaw Detection by Eddy Current

Benefits of A270 Type 316L Pharmaceutical Tubing

Corrosion resistance
Strength
Pitting and crevice corrosion resistance
Cleanliness
Durable
Precision manufacturing

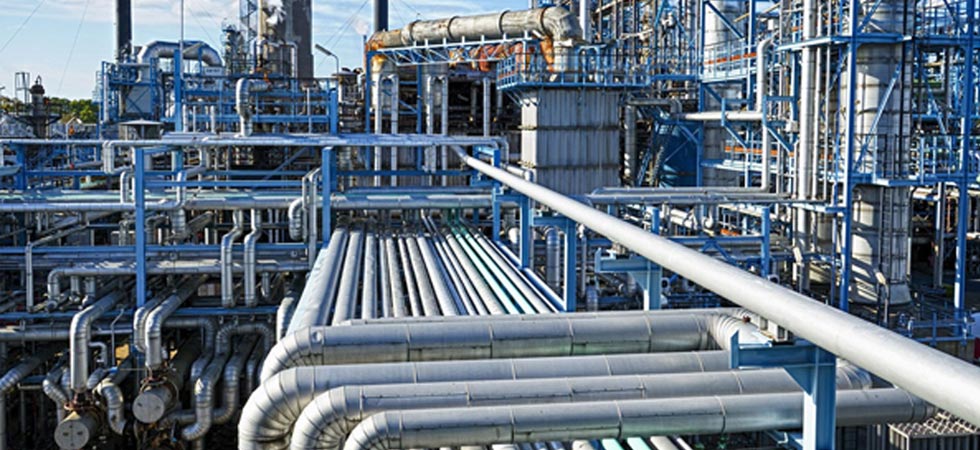

SA 270 Grade TP316L Sanitary SS Tubing Applications

Food and beverage
Pharmaceuticals
Dairy
Cosmetics
Bakery
Chemical & Electric Power
Refrigeration
Refining

ASTM A270 TP316L Equivalent

Standard	Unified Numbering System	Japanese Industrial Standards	WERKSTOFF NR.	European Standards	GOST	British Standards	AFNOR
TP316L	S31603	SUS 316L	1.4404 / 1.4435	X2CrNiMo17-12-2 / X2CrNiMo18-14-3	03Ch17N14M3 / 03Ch17N14M2	316LS11 / 316LS13	Z3CND17‐11‐02 / Z3CND18‐14‐03

SA 270 Gr 316L Sanitary Tube Chemical Composition

C 0.035%

Si 0.75%

S 0.030%

Mn 2.0%

Mo 2.0-3.0%

P 0.045%

Ni 14.0%

Cr 18.0%

Mechanical Properties of ASME Sa270 Gr 316L Biopharm Tubing

Material	Yield Strength	Tensile Strength	Heat Treatment	Temperure	Elongation
	Ksi (MPa)	Ksi (MPa)		Min.
	Ksi (MPa)	Ksi (MPa)		º F(º C)
TP316L	25(170)	70(485)	Solution	1900(1040)	35

ASTM A270 Grade 316L Welded Tube Physical Properties

Grade	Density (kg/m3)	Specific Heat 0-100°C (J/kg.K)	Electrical Resistivity (nΩ.m)	Elastic Modulus (GPa)	Thermal Conductivity (W/m.K)		Mean Coefficient of Thermal Expansion (μm/m/°C)
Grade	Density (kg/m3)	Specific Heat 0-100°C (J/kg.K)	Electrical Resistivity (nΩ.m)	Elastic Modulus (GPa)	at 100°C	at 500°C	0-100°C	0-315°C	0-538°C
TP316L	8000	500	720	193	16.2	21.5	17.2	17.8	18.4

ASTM A270 TP316L Tube Delivery Time As Per Location

Changes in Price Extra 5 %
Export to	Shipping Time in Days
Qatar	7
South Africa	25-30
Indonesia	9
UAE	5 days
Saudi Arabia	7
Italy	30
Singapore	8
USA	40-60
Oman	5
France	30
Philippines	14
Bahrain	9
Kuwait	10
Malaysia	10
Uk	30
