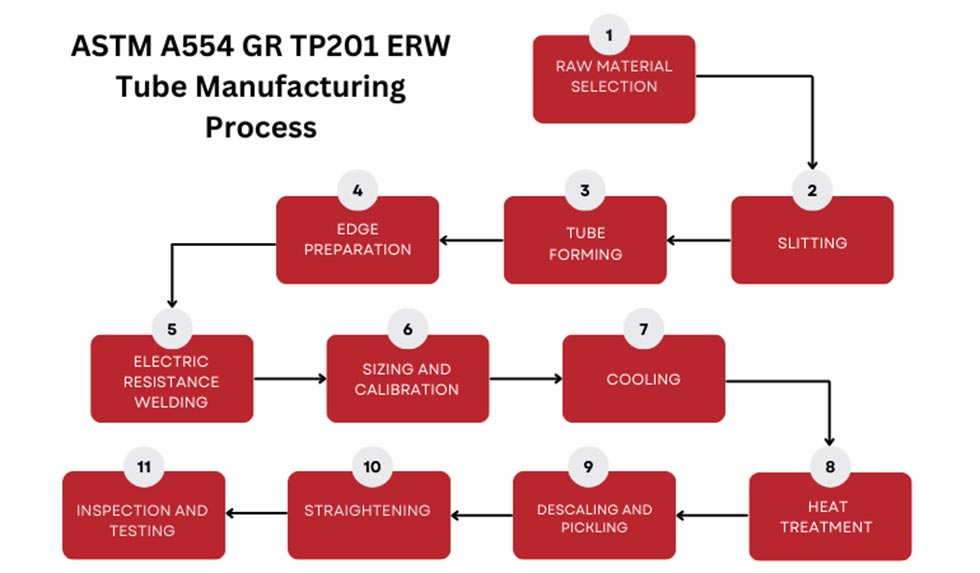

ASTM A554 Type 201 Square Tube Manufacturing Process
ASTM A554 GR .TP201 Tubing Technique
Benefits of ASTM A554 TP 201 Tube
SA 554 Grade TP201 Welded SS Tubing Documentation
ASTM A554 TP 201 Tube Shape
ASTM A554 Grade Mt201 Welded Tube Origin
ASTM A554 Grade 201 Rectangular Tube Services
ASTM A554 GR .TP201 Tubing Packaging
ASTM A554 GR TP201 Mechanical Tubing Finish
ASTM A554 GR .TP201 Tubing End
SA 554 Grade TP201 Welded SS Tubing Testing
ASTM A554 Grade 201 Rectangular Tube Marking
Are You Looking for ASTM A554 TP201 Tube at the Best Price? In order to obtain an estimate immediately, send an email to kalpesh@manishasteelcentre.com.
| Size (OD x Wall Thickness) | Price per Foot (USD) |
|---|---|
| 1/4 inch x 0.035 inch | US $0.91 |
| 1/2 inch x 0.040 inch | US $1.07 |
| 3/4 inch x 0.045 inch | US $1.22 |
| 1 inch x 0.050 inch | US $1.37 |
| 1-1/4 inch x 0.060 inch | US $1.68 |
| 1-1/2 inch x 0.065 inch | US $1.83 |
| 2 inch x 0.080 inch | US $2.13 |
Genuine ASTM A554 TP201 Tube Manufacturer in India As Per Specification
| Nominal Size (OD) inch | Wall Thickness ( inch) | OD Range (inch) | ID Range (inch) | Length |
|---|---|---|---|---|
| 1 | 0.050 - 0.120 | 1.000 - 1.125 | 0.880 - 1.010 | Up to 20 feet |
| 1-1/4 | 0.060 - 0.130 | 1.250 - 1.375 | 1.120 - 1.240 | Up to 20 feet |
| 1-1/2 | 0.065 - 0.150 | 1.500 - 1.625 | 1.360 - 1.490 | Up to 20 feet |
| 1/4 | 0.035 - 0.065 | 0.250 - 0.375 | 0.220 - 0.310 | Up to 20 feet |
| 1/2 | 0.040 - 0.120 | 0.500 - 0.625 | 0.460 - 0.560 | Up to 20 feet |
| 3/4 | 0.045 - 0.120 | 0.750 - 0.875 | 0.660 - 0.750 | Up to 20 feet |
| 2 | 0.080 - 0.180 | 2.000 - 2.250 | 1.840 - 2.020 | Up to 20 feet |
| NPS Designator | OD in. | Schedule 80S in. | Schedule 40S in. | Schedule 10S in. | Schedule 5S in. |
|---|---|---|---|---|---|
| 1/2 | 0.840 | 0.147 | 0.109 | 0.083 | 0.065 |
| 3/4 | 1.050 | 0.154 | 0.113 | 0.083 | 0.065 |
| 4 | 4.500 | 0.337 | 0.237 | 0.120 | 0.083 |
| 5 | 5.563 | 0.375 | 0.258 | 0.134 | 0.109 |
| 6 | 6.625 | 0.432 | 0.280 | 0.134 | 0.109 |
| 8 | 8.625 | 0.500 | 0.322 | 0.148 | 0.109 |
| 10 | 10.750 | 0.500 | 0.365 | 0.165 | 0.134 |
| 1 1/4 | 1.660 | 0.191 | 0.140 | 0.109 | 0.065 |
| 1 1/2 | 1.900 | 0.200 | 0.145 | 0.109 | 0.065 |
| 2 | 2.375 | 0.218 | 0.154 | 0.109 | 0.065 |
| 2 1/2 | 2.875 | 0.276 | 0.203 | 0.120 | 0.083 |
| 3 | 3.500 | 0.300 | 0.216 | 0.120 | 0.083 |
| 3 1/2 | 4.000 | 0.318 | 0.226 | 0.120 | 0.083 |
| 1/4 | 0.540 | 0.119 | 0.088 | 0.065 | - |
| 1.0 | 1.315 | 0.179 | 0.133 | 0.109 | 0.065 |
| 3/8 | 0.675 | 0.126 | 0.091 | 0.065 | - |
| 12 | 12.750 | 0.500 | 0.375 | 0.180 | 0.156 |
Trusted ASTM A554 TP201 Tube Supplier in India in Custom Shapes and Types
ASTM A554 TP201 Round Tube
ASTM A554 Type 201 Square Tube
ASTM A554 Grade 201 Rectangular Tube
ASTM A554 GR TP201 Mechanical Tubing
ASTM A554 Grade Mt201 Welded Tube
ASME SA 554 TP 201 Welded SS Mechanical Tubing
| Grade | UNS No | W. Nr. |
|---|---|---|
| 201 | S20100 | 1.4372 |
| Property | Value |
|---|---|
| Tensile Strength | 515 - 700 MPa (75,000 - 102,000 psi) |
| Yield Strength | 205 MPa (30,000 psi) |
| Elongation | 40% (min) in 50mm |
| Hardness (Brinell) | ≤ 187 HB |
| Modulus of Elasticity | 190 - 200 GPa |
| Poisson’s Ratio | 0.27 - 0.30 |
| Property | Value |
|---|---|
| Density | 7.85 g/cm³ |
| Melting Point | 1400 - 1450°C (2552 - 2642°F) |
| Thermal Conductivity | 16.2 W/m·K |
| Specific Heat Capacity | 500 J/kg·K |
| Electrical Resistivity | 0.72 µΩ·m |
| Coefficient of Thermal Expansion | 16.0 x 10⁻⁶ /°C |
| Magnetic Permeability | Non-magnetic (annealed condition) |
| Changes in Price Extra 5 % | |
|---|---|
| Export to | Shipping Time in Days |
| Bahrain | 9 |
| UAE | 5 days |
| Saudi Arabia | 7 |
| Italy | 30 |
| Singapore | 8 |
| USA | 40-60 |
| Kuwait | 10 |
| Oman | 5 |
| France | 30 |
| Philippines | 14 |
| Malaysia | 10 |
| Qatar | 7 |
| South Africa | 25-30 |
| Indonesia | 9 |
| Uk | 30 |
