ASTM A269 TP201 Tube

Home|ASTM A269 TP201 Tube

ASME SA 269 TP 201 Welded Austenitic Steel Tubing Manufacturer in India in a Wide Range Size

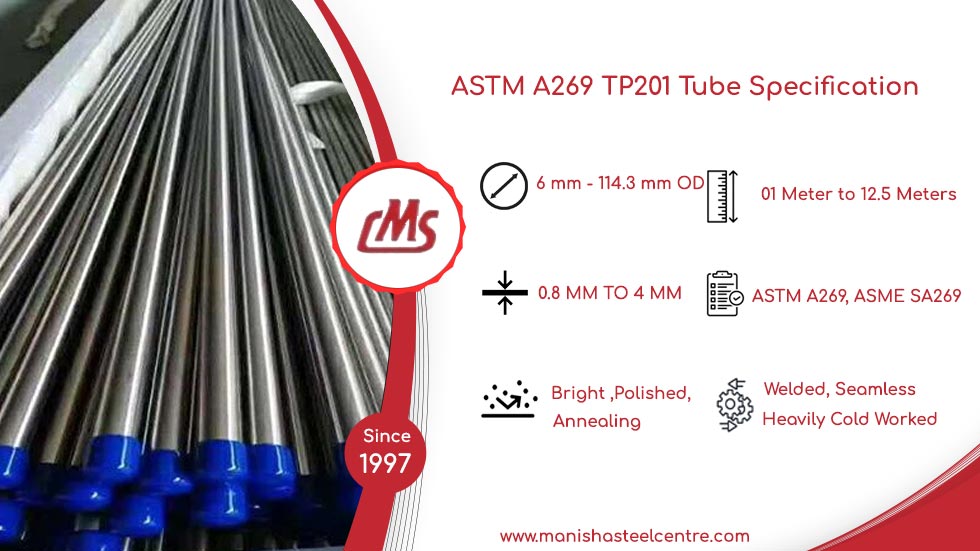

ASTM A269 TP201 Tube Specification



Manisha Steel Centre

Table of Content

ASTM A269 TP201 Tube Specification
ASTM A269 TP201 Tube Sizes

ASTM A269 TP201 Tube Sizes

  • OD: 6 MM TO 114.3 MM OD
  • Thickness: 0.8 MM TO 4 MM
  • Length: 01 to 12.5 Meters
ASTM A269 TP201 Seamless Tubing Standards

ASTM A269 TP201 Seamless Tubing Standards

  • ASTM A269
  • ASME SA 269
ASTM A269 Type 201 Welded Tube Manufacturing Process

ASTM A269 Type 201 Welded Tube Manufacturing Process

  • Seamless
  • ERW
  • Redrawn
ASTM A269 GR TP201 ERW Tube Technique

ASTM A269 GR TP201 ERW Tube Technique

  • Hot Formed
  • Precision Rolled
  • Cold Formed
Benefits of ASTM A269 GR .TP201 Hot Finished Tube

Benefits of ASTM A269 GR .TP201 Hot Finished Tube

  • Corrosion Resistance
  • Cost-Effectiveness
  • Versatility
ASTM A269 GR TP201 ERW Tube Documentation

ASTM A269 GR TP201 ERW Tube Documentation

  • Visual Inspection
  • Mill Test Certificates
  • PMI Test Reports
ASTM A269 TP 201 Heater Tubes Shape

ASTM A269 TP 201 Heater Tubes Shape

  • Round/ Straight
  • Rectangle
  • Square/Coil
  • Hydraulic
SA 269 Grade TP201 Condenser Tubes Origin

SA 269 Grade TP201 Condenser Tubes Origin

  • European
  • Janpanese
  • American
SA 269 Gr 201 Bright Annealed Tubes Services

SA 269 Gr 201 Bright Annealed Tubes Services

  • Shearing
  • Heat Treatment
  • Cutting
ASTM A269 TP 201 Cold Finished Tube Packaging

ASTM A269 TP 201 Cold Finished Tube Packaging

  • Bubble Wraps
  • Wooden Box
  • Bundled
SA 269 Gr 201 SS Tubing Finish

SA 269 Gr 201 SS Tubing Finish

  • Annealing/Polished
  • Pickling
  • Bright
ASTM A269 GR TP201 ERW Tube End

ASTM A269 GR TP201 ERW Tube End

  • Threaded
  • Bevelled/Grooved
  • Plain
SA 269 Gr 201 Bright Annealed Tubes Testing

SA 269 Gr 201 Bright Annealed Tubes Testing

  • Ultrasonic, PMI
  • Chemical
  • Mechanical
ASTM A269 GR .TP201 Hot Finished Tube Marking

ASTM A269 GR .TP201 Hot Finished Tube Marking

  • Heat Number
  • Method of Manufacturing
  • Material Grade
ASTM A269 TP 201 Cold Finished Tube Dimensions

Are You Looking for ASTM A269 TP201 Tube at the Best Price? In order to obtain an estimate immediately, send an email to kalpesh@manishasteelcentre.com.

OD inches ID inches Ave. Wall inches D/t Ratio Internal Area (in2) Tube Cross Sectional Area (in2)
0.250 0.180 0.035 7.14 0.0254 0.0236
0.250 0.152 0.049 5.10 0.0181 0.0309
0.250 0.120 0.065 3.85 0.0113 0.0378
0.250 0.210 0.020 12.50 0.0346 0.0145
0.250 0.194 0.028 8.93 0.0296 0.0195
0.375 0.305 0.035 10.71 0.0731 0.0374
0.375 0.277 0.049 7.65 0.0603 0.0502
0.375 0.245 0.065 5.77 0.0471 0.0633
0.375 0.335 0.020 18.75 0.0881 0.0223
0.375 0.319 0.028 13.39 0.0799 0.0305
0.500 0.444 0.028 17.86 0.1548 0.0415
0.500 0.430 0.035 14.29 0.1452 0.0511
0.500 0.460 0.020 25.00 0.1662 0.0302
0.500 0.334 0.083 6.02 0.0876 0.1087
0.500 0.402 0.049 10.20 0.1269 0.0694
0.500 0.370 0.065 7.69 0.1075 0.0888
0.625 0.527 0.049 12.76 0.2181 0.0887
0.625 0.495 0.065 9.62 0.1924 0.1144
0.625 0.585 0.020 31.25 0.2688 0.0380
0.625 0.435 0.095 6.58 0.1486 0.1582
0.625 0.569 0.028 22.32 0.2543 0.0525
0.625 0.555 0.035 17.86 0.2419 0.0649
0.625 0.459 0.083 7.53 0.1655 0.1413
0.625 0.407 0.109 5.73 0.1301 0.1767
0.750 0.620 0.065 11.54 0.3019 0.1399
0.750 0.584 0.083 9.04 0.2679 0.1739
0.750 0.560 0.095 7.89 0.2463 0.1955
0.750 0.532 0.109 6.88 0.2223 0.2195
0.750 0.510 0.120 6.25 0.2043 0.2375
0.750 0.694 0.028 26.79 0.3783 0.0635
0.750 0.680 0.035 21.43 0.3632 0.0786
0.750 0.652 0.049 15.31 0.3339 0.1079
0.875 0.777 0.049 17.86 0.4742 0.1272
0.875 0.805 0.035 25.00 0.5090 0.0924
0.875 0.657 0.109 8.03 0.3390 0.2623
0.875 0.635 0.120 7.29 0.3167 0.2846
0.875 0.745 0.065 13.46 0.4359 0.1654
0.875 0.709 0.083 10.54 0.3948 0.2065
0.875 0.685 0.095 9.21 0.3685 0.2328
0.875 0.835 0.020 43.75 0.5476 0.0537
0.875 0.819 0.028 31.25 0.5268 0.0745
1.000 0.870 0.065 15.38 0.5945 0.1909
1.000 0.944 0.028 35.71 0.6999 0.0855
1.000 0.810 0.095 10.53 0.5153 0.2701
1.000 0.782 0.109 9.17 0.4803 0.3051
1.000 0.930 0.035 28.57 0.6793 0.1061
1.000 0.902 0.049 20.41 0.6390 0.1464
1.000 0.834 0.083 12.05 0.5463 0.2391

Supplier Of ASTM A269 Grade 201 Stainless Steel Seamless Tubes in Mumbai At Pocket Friendly Price

ASTM A269 Grade 201 SS Seamless Tubes Price

Genuine ASTM A269 TP201 Tube Manufacturer in India As Per Specification

Tube Diameter (in mm) Wall Thickness (in mm) Price per Meter (USD)
6 0.5 US $3.50
10 0.8 US $4.20
15 1.0 US $5.50
20 1.5 US $7.00
25 2.0 US $8.80

Get Ready Stock of SA 269 Type 201 ERW Tube With Hardness and Reverse Flattening Test

SA 269 Type 201 ERW Tube Testings
Testing Method Type of Test
Visual Inspection Non-Destructive
Dimensional Testing Non-Destructive
Hydrostatic Test Non-Destructive
Ultrasonic Testing (UT) Non-Destructive
Eddy Current Testing Non-Destructive
Tensile Testing Destructive
Flattening Test Destructive
Bend Test Destructive
Hardness Testing Destructive
Buy ASTM A269 GR TP201 Stainless Steel Tubing in Various Shapes and Sizes For Low or High Temperature Service
ASTM A269 GR TP201 SS Tubing Temperature Range
Property Temperature Range
Annealing Temperature 1010°C to 1120°C (1850°F to 2050°F)
Service Temperature (Max) 600°C (1112°F)
Intermittent Service Temperature Up to 870°C (1600°F)
Continuous Service Temperature Up to 800°C (1470°F)
Cryogenic Temperature -196°C (-321°F)
Most Common Types of ASTM A269 TP201 Tube

Trusted ASTM A269 TP201 Tube Supplier in India in Custom Shapes and Types

ASTM A269 TP201 Seamless Tubing

ASTM A269 TP201 Seamless Tubing

ASTM A269 Type 201 Welded Tube

ASTM A269 Type 201 Welded Tube

ASTM A269 Grade 201 Cold Drawn Seamless Tube

ASTM A269 Grade 201 Cold Drawn Seamless Tube

ASTM A269 GR TP201 ERW Tube

ASTM A269 GR TP201 ERW Tube

ASTM A269 GR .TP201 Hot Finished Tube

ASTM A269 GR .TP201 Hot Finished Tube

ASTM A269 TP 201 Cold Finished Tube

ASTM A269 TP 201 Cold Finished Tube

ASME SA 269 TP 201 Heat Exchanger Tubes

ASME SA 269 TP 201 Heat Exchanger Tubes

SA 269 Grade TP201 Condenser Tubes

SA 269 Grade TP201 Condenser Tubes

SA 269 Gr 201 Bright Annealed Tubes

SA 269 Gr 201 Bright Annealed Tubes

Offer Cut to Size SA 269 Gr 201 Tubing With Complete Documentation and Value Added Services
SA 269 Gr 201 Tubing Documentations
  • Visual Inspection
  • DFARS compliant
  • Invoice
  • Mill Test Certificates
  • PMI Test Reports
  • Third Party Inspection Report
  • MTC EN 10204 3.1/ 3.2
  • Raw Materials Certificate
What is the difference between ASTM A269 and ASTM A312?
Property ASTM A269 ASTM A312
Wall Thickness Commonly 0.5mm to 5mm Commonly 1mm to 12mm or more
Pressure Rating Not designed for high-pressure environments Designed for high-pressure
Typical Applications Heat exchangers, condensers, and chemical processing Boilers, power plants, and petrochemical industries
Tube Diameter Range Up to 1 inch (25mm) or small diameter tubes 1 inch (25mm) to 72 inches (1800mm)
Forming Process Can be either welded or seamless Typically seamless, but can also be welded
Temperature Range up to 800°F or 427°C up to 1500°F or 815°C and beyond
What are the limitations of the corrosion resistance of ASTM A269 TP201?
  • Susceptibility to Pitting and Crevice Corrosion
  • Lower Resistance in Acidic and Alkaline Environments
  • Reduced Performance at High Temperatures
  • Chloride Stress Corrosion Cracking
  • Corrosion in Sulfurous and Acidic Gases
  • Not Suitable for Marine Environments
  • Inability to Handle Heavy Pollution
ASTM A269 TP201 Equivalent
Grade UNS No W. Nr.
201 S20100 1.4372
SA 269 Gr 201 SS Tubing Chemical Composition
C 0.15%
Mn 5.5 – 7.5%
P 0.06%
S 0.03%
Cr 16.00-18.00%
Ni 0.3 – 0.5%
Mechanical Properties of ASTM A269 Type 201 Welded Tube
Properties Metric Imperial
Yield strength (transverse at room temperature) 292 MPa 42400 psi
Yield strength (longitudinal at room temperature) 301 MPa 43700 psi
Tensile strength (transverse at room temperature) 685 MPa 99400 psi
Tensile strength (longitudinal at room temperature) 696 MPa 101000 psi
Compressive yield strength 365 MPa 52900 psi
Elastic modulus 197 GPa 28573 ksi
Poisson's ratio 0.27-0.30 0.27-0.30
Elongation at break (transverse at room temperature) 62.50% 62.50%
Elongation at break (longitudinal at room temperature) 56% 56%
Hardness, Rockwell B (longitudinal at room temperature) 85 85
Hardness, Rockwell B (transverse at room temperature) 85 85
ASTM A269 TP 201 Heater Tubes Physical Properties
Property Value
Density 7.85 g/cm³
Melting Point 1400 - 1450°C (2552 - 2642°F)
Thermal Conductivity 16.2 W/m·K at 100°C (9.4 BTU/h·ft·°F)
Specific Heat Capacity 500 J/kg·K at 25°C
Electrical Resistivity 0.72 μΩ·m
Coefficient of Thermal Expansion 16.0 µm/m·°C (8.9 µin/in·°F)
ASTM A269 TP201 Tube Delivery Time As Per Location
Cost Variations 5 % extra
Export to Delivery Time
Belgium 6-9
Saudi Arabia 7
Malaysia 10
South Africa 25-30
Bahrain 9
Singapore 8
UAE 5 days
Qatar 7
Netherlands 19-20
Uk 30
Kuwait 10
Germany 15-50
Oman 5
France 30
