ASTM A312 TP304L Pipe | ASME SA 312 Grade TP304L Seamless/ Welded

How Suppliers in Qatar can get ASTM A312 TP304L Pipe at Distributor Price?

Direct Purchase from Manufacturers
Check for Special Deals
Request for Quotes (RFQs)
Source from Regional Suppliers

Partner with Authorized Distributors
Group Purchasing Organizations
Establish Long-Term Contracts
Negotiate Bulk Discounts

Table of Content

ASTM A312 TP304L Pipe Specification
ASME SA 312 TP 304L Welded Pipe Schedule Chart
ASTM A312 Type 304L Straight Seam Welded Pipe Dimensions
ASTM A312 TP304L Pipe Sizes
SA 312 Grade TP304L ERW Pipe Applications
ASTM A312 TP304L Seamless Pipe Welding Methods
Types Of ASTM A312 GR .TP304L Pipe
What Are the Key Challenges When Working With ASTM A312 Tp304l Pipes During Installation?
A312 Tp304L Austenitic Stainless Steel Pipe HS Code
ASTM A312 TP304L Chemical Composition
ASME SA 312 TP 304L Round Pipe Equivalent Grades
ASTM A312 TP304L Mechanical Properties
ASTM A312 TP304L Pipe Price
Physical Properties of SA 312 Gr 304L Square Pipe

Manufacturer Of ASME SA 312 Grade TP304L Austenitic Stainless Steel Pipe in India, Refer Specification

ASTM A312 TP304L Pipe Specification

ASTM A312 TP304L Pipe Sizes

Size: : 24 inches
Thickness : 1mm - 3mm
OD : 6mm to 914.4 mm

SA 312 Gr 304L SS Pipe Shapes

Rectangular
Round
Square

ASME SA 312 Grade TP304L Austenitic Stainless Steel Pipe Manufacturing Process

Precision Rolled
Cold Formed
Hot Formed

A 312 Grade TP304L ERW Pipe

Wall Thickness: 12.7 - 0.8 mm
OD: 6.35 mm to 114.3 mm
Length : 26 m

ASTM A312 Type 304L Seamless Pipe Sizes

OD: 12" to 1/8 "
Wall Thk : 12.7 - 0.6 mm
Length: Cut Length , Double & Single Random

SA 312 Grade TP304L Welded Pipe

Wall Thickness: 20 to 1 mm
OD: 36 to 1/4 "
Length: Single Random, Double Random, Cut Length

ASTM A312 TP304L SMLS Pipe Testing

Mechanical
Ultrasonic
Chemical
PMI

ASME SA 312 Grade TP 304L ERW Pipe Origin

Russia
Janpanese
American
European

SA 312 TP 304L Rectangle Pipe Standards

ASME SA 312 | ASTM A312
GB, ASME, AISI, SUS
DIN, EN, API,UNS

ASME SA 312 TP 304L Square Pipe Documentation

PMI Test Reports
Mill Test Certificates
Visual Inspection

ASTM A312 Type 304L Straight Seam Welded Pipe Services

Cutting
Heat Treatment
Shearing

A312 Tp304l Austenitic Stainless Steel PipePackaging

Bundled
Wooden Box
Bubble Wraps

A312 GR .TP304L Round Pipe Finish

Bright
Polished
Annealing

ASTM A312 GR TP304L Welded Pipe End

Plain
Beveled

ASME SA 312 TP 304L Welded Pipe Schedule Chart

NOMINAL PIPE SIZE	OD	SCH 40	SCH 5	SCH 80	SCH 10
1/2"	0.84	0.109	0.065	0.147	0.083
4"	4.5	0.237	0.083	0.337	0.12
2-1/2"	2.875	0.203	0.083	0.276	0.12
3/4"	1.05	0.113	0.065	0.154	0.083
1"	1.315	0.133	0.065	0.179	0.109
2"	2.375	0.154	0.083	0.218	0.109
1-1/4"	1.66	0.14	0.065	0.191	0.109
3"	3.5	0.216	0.083	0.3	0.12
1-1/2"	1.9	0.145	0.065	0.2	0.109
3-1/2"	4	0.226	0.083	0.318	0.12

ASTM A312 Type 304L Straight Seam Welded Pipe Dimensions

PIPE SCHEDULES (Dimensions)
Nominal	O.D. Inches	10	80s & E.H.	40s & Std	10s	80	160	40
10	10.750	.165	.500	.365	.165	.593	1.125	.365
1/2	.840	.083	.147	.109	.083	.147	.187	.109
5	5.563	.134	.375	.258	.134	.375	.625	.258
4 1/2	5.000		.355	.247
3/8	.675	.065	.126	.091	.065	.126		.091
1/8	.405	.049	.095	.068	.049	.095		.068
11	11.750		.500	.375
1/4	.540	.065	.119	.088	.065	.119		.088
1	1.315	.109	.179	.133	.109	.179	.250	.133
3/4	1.050	.083	.154	.113	.083	.154	.218	.113
14	14.000	.250	.500	.375	.188	.750	1.406	.437
1 1/4	1.660	.109	.191	.140	.109	.191	.250	.140
12	12.750	.180	.500	.375	.180	.687	1.312	.406
1 1/2	1.900	.109	.200	.145	.109	.200	.281	.145
9	9.625		.500	.342
2 1/2	2.875	.120	.276	.203	.120	.276	.375	.203
2	2.375	.109	.218	.154	.109	.218	.343	.154
16	16.000	.250	.500	.375	.188	.843	1.593	.500
7	7.625		.500	.301
3 1/2	4.000	.120	.318	.226	.120	.318		.226
3	3.500	.120	.300	.216	.120	.300	.437	.216
18	18.000	.250	.500	.375	.188	.937	1.781	.562
8	8.625	.148	.500	.322	.148	.500	.906	.322
4	4.500	.120	.337	.237	.120	.337	.531	.237
6	6.625	.134	.432	.280	.134	.432	.718	.280

Committed A312 GR TP304L Seamless Pipe Supplier in Mumbai in Custom Range Of Sizes

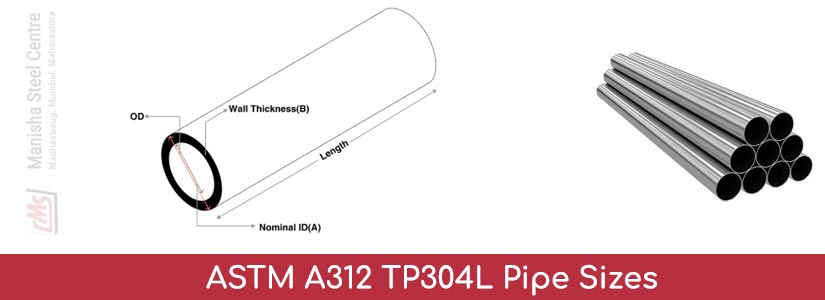

ASTM A312 TP304L Pipe Sizes

ASTM A312 TP304L Pipe Manufacturer in India that meets the needs of customers by providing a large range of diameters.

Nominal Pipe Size (NPS)		Outside Diameter (OD)
inch	mm	mm
1 Inch	25 mm	33.4 mm
3/8 Inch	10 mm	17.1 mm
12 Inch	300 mm	323.8 mm
1.1/4 Inch	32 mm	42.2 mm
1/8 Inch	3 mm	10.3 mm
2.1/2 Inch	65 mm	73.0 mm
3/4 Inch	20 mm	26.7 mm
24 Inch	600 mm	610.0 mm
1/4 Inch	6 mm	13.7 mm
4 Inch	100 mm	114.3 mm
18 Inch	450 mm	457.2 mm
2.1/2 Inch	65 mm	73.0 mm
1/2 Inch	15 mm	21.3 mm
6 Inch	150 mm	168.3 mm
1.1/2 Inch	40 mm	48.3 mm
8 Inch	200 mm	219.1 mm
2 Inch	50 mm	60.3 mm
14 Inch	350 mm	355.6 mm
3 Inch	80 mm	88.9 mm
20 Inch	500 mm	508.0 mm
5 Inch	125 mm	141.3 mm
16 Inch	400 mm	406.4 mm
10 Inch	250 mm	273.1 mm

Offer Top Quality ASTM A312 Type 304L Straight Seam Welded Pipe For High Temperature Services

SA 312 Grade TP304L ERW Pipe Applications

Construction
Cement Industry
Petrochemical Industries
Aerospace
Automotive Industry
Industry & Factory
Engineering Industries
Civil Engineering
Pulp and Paper Industry
Constructions
Power Generation Industries
Oil and Gas Industries

ASTM A312 TP304L Seamless Pipe Welding Methods

Stick Welding (Shielded Metal Arc Welding - SMAW)
Submerged Arc Welding (SAW)
MIG (Metal Inert Gas - GMAW)
Plasma Arc Welding (PAW)
TIG (Gas Tungsten Arc Welding - GTAW)

Keep Ready Stock Of ASME SA 312 TP 304L Square and Rectangular Pipe For Sale, Refer More Types

Types Of ASTM A312 GR .TP304L Pipe

Manisha Steel Centre Trusted ASTM A312 TP304L Pipe Supplier in India offers a large selection of forms at industry prices.

ASTM A312 Type 304L Pipe

SA 312 Gr 304L Austenitic Stainless Steel Pipe

ASME SA 312 TP 304L Seamless Pipe

ASTM A312 TP304L Welded Pipe

SA 312 Grade TP304L ERW Pipe

ASTM A312 GR .TP304L Straight Seam Welded Pipe

ASME SA 312 Gr TP304L Round Pipe

SA 312 Gr 304L Square Pipe

ASTM A312 Grade 304L Rectangular Pipe

What Are the Key Challenges When Working With ASTM A312 Tp304l Pipes During Installation?

Challenge	Explanation
Handling and Storage	Surface damage
Stress and Pressure Resistance	High-pressure issues
Welding Issues	Cracking, distortion
Cleaning Requirements	Contamination
Heat Control	Overheating
Expansion and Contraction	Thermal stress
Corrosion Protection	Exposure to harsh chemicals
Cost and Availability	High cost, availability
Compatibility with Fittings	Leaks, failures

A312 Tp304L Austenitic Stainless Steel Pipe HS Code

HS CODE
A312 Tp304l Pipe	73041110

Get Impact Tested ASTM A312 TP 304L ERW Pipe Online At Best Price, Check Mechanical Properties and Chemical Composition

ASTM A312 TP304L Chemical Composition

Cr 20.0 %

Mn 2%

C 0.030 %

Ni 12 %

Si 0.75 %

P 0.045 %

ASME SA 312 TP 304L Round Pipe Equivalent Grades

STANDARD	WERKSTOFF NR.	UNS	JIS	AFNOR	BS	GOST	EN
SS 304L	1.4306/1.4307	S30403	SUS 304L	Z3CN18‐10	304S11	03Х18Н11	X2CrNi18-9 / X2CrNi19-11

ASTM A312 TP304L Mechanical Properties

Grade	Tensile Strength (MPa) min	Elongation (% in 50mm) min	Yield Strength 0.2% Proof (MPa) min	Hardness
Grade	Tensile Strength (MPa) min	Elongation (% in 50mm) min	Yield Strength 0.2% Proof (MPa) min	Rockwell B (HR B) max	Brinell (HB) max
304L	485	40	170	92	201

ASTM A312 TP304L Pipe Price

Do You Want ASTM A312 TP304L Pipe at a Cheaper Cost? You can get an estimate immediately by sending an email. kalpesh@manishasteelcentre.com.

Price List	Price in USD Per/Kg	Price in UAE
A312 Grade Tp304L Pipe SIZE : 1.5	USD $ 1.94	UAE 7.13
ASTM A312 TP304L SEAMLESS PIPES GRADE Size: 25.4MM	USD $ 1.62	UAE 5.95

Physical Properties of SA 312 Gr 304L Square Pipe

Grade	Density (kg/m3)	Elastic Modulus (GPa)	Mean Coefficient of Thermal Expansion (m/m/0C)			Thermal Conductivity (W/m.K)		Specific Heat 0-1000C (J/kg.K)	Electrical Resistivity (n.m)
Grade	Density (kg/m3)	Elastic Modulus (GPa)	0-1000C	0-3150C	0-5380C	at 1000C	at 5000C	Specific Heat 0-1000C (J/kg.K)	Electrical Resistivity (n.m)
304L	8000	193	17.2	17.8	18.4	16.2	21.5	500	720

ASTM A312 TP304L Pipe Estimated Time as per Address

Changes in Price Extra 5 %
Export to	Shipping Time in Days
Belgium	60
Ireland	60
Croatia	60
Singapore	8
Germany	60
Thailand	7
Vietnam	14
Malaysia	7
Hungary	45
Indonesia	7
Netherland	45
Switzerland	45-60
Austria	60
Slovakia	45-60
Finland	45-60

Why Us ?

Stockist and Exporter of Small Diameter Tubing in Grades of Austenitic and Ferritic Stainless Steel.
Supply as Per American and European Standards According to Dimensional Standard ASME B36.19M
Distributor and Trader in Mumbai of Renowned Mills Outokumpu, POSCO and Aperam
Associated With Dealers and Stockholders in Kuwait, Nigeria, Iraq, Egypt, Congo and Gabon
