Table of Content
ASTM A358 TP347 EFW Pipe Sizes
ASME SA 358 Grade 347 Stainless Steel Pipe Shapes

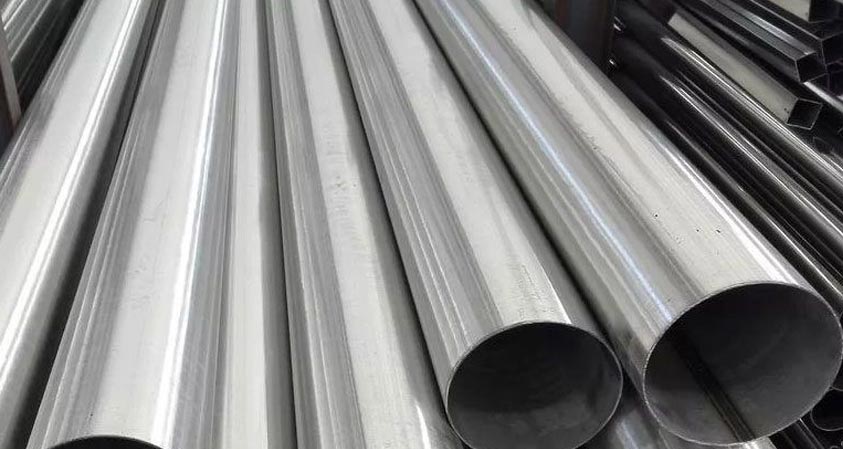

SA 358 Grade TP347 Electric Fusion Welded Pipe Testing
ASTM A358 GR .TP347 Pipe Origin
A358 GR TP347 EFW Austenitic Chromium Nickel Stainless Steel Pipe Manufacturing Process
ASME SA 358 TP 347 Electric Fusion Welded Pipe Schedule
ASTM A358 TP347 Material Standards
SA358 TP 347 Electric Fusion Straight Weld Pipe Documentation
ASTM A358 TP347 Class 4 EFW Electric Fusion Welded Pipe Finish
ASTM A358 TP 347 Stainless Steel Pipe End
SA 358 Gr 347 Electric Fusion Welded Steel Pipe Services
ASTM A358 Type 347 Electric Fusion Straight Weld Pipe Packaging
Did You Like to Buy ASTM A358 TP347H Pipe at a Competitive Price? You can get an estimate immediately by sending an email.
| NPS Designator |
Outside Diameter | Nominal Wall Thickness | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | Schedule 5SA | Schedule 10SA | Schedule 40SA | Schedule 80SA | |||||
| in. | mm | in. | mm | in. | mm | in. | mm | |||
| 24 | 609.60 | 24.000 | 0.218 | 5.54 | 0.250 | 6.35 | … | … | … | … |
| 12 | 323.85 | 12.750 | 0.156 | 3.96 | 0.180 | 4.57 | 0.375B | 9.52B | 0.500B | 12.70B |
| 18 | 457.20 | 18.000 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 10 | 273.05 | 10.750 | 0.134 | 3.40 | 0.165 | 4.19 | 0.365 | 9.27 | 0.500B | 12.70B |
| 22 | 558.80 | 22.000 | 0.188 | 4.78 | 0.218B | 5.54B | … | … | … | … |
| 8 | 219.08 | 8.625 | 0.109 | 2.77 | 0.148 | 3.76 | 0.322 | 8.18 | 0.500 | 12.70 |
| 14 | 355.60 | 14.000 | 0.156 | 3.96 | 0.188B | 4.78B | … | … | … | … |
| 16 | 406.40 | 16.000 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 30 | 762.00 | 30.000 | 0.250 | 6.35 | 0.312 | 7.92 | … | … | … | … |
| 20 | 508.00 | 20.000 | 0.188 | 4.78 | 0.188B | 4.78B | … | … | … | … |
Many sizes and forms are available at reasonable costs from Manisha Steel Centre, an ASTM A358 TP347 Pipe Supplier in India.
ASTM A358 TP347 Class 5 EFW Pipe
ASME SA 358 Grade 347 Electric Fusion Welded Pipe
SA358 TP 347 Electric Fusion Straight Weld Pipe
A358 GR TP347 Electric Fusion Welded Steel Pipe
ASTM A358 GR TP347 EFW Austenitic Chromium Nickel Stainless Steel Pipe
ASME SA 358 TP 347 EFW Stainless Steel Pipe
ASTM A358 Type 347 EFW Welding Pipe
SA 358 Grade TP347 EFW Electric Fusion Welded Pipe
Interested in Purchasing ASTM A358 TP347 Pipe at a Competitive Price? You can immediately get an estimate by sending an email. kalpesh@manishasteelcentre.com.
| Size inches | Wall Thickness mm | OD mm | Price per meter INR |
|---|---|---|---|
| 14″ | 4.8 | 355.6 | 4,500 |
| 6″ | 3.0 | 168.3 | 1,800 |
| 18″ | 5.6 | 457.0 | 6,000 |
| 48″ | 12.7 | 1219.2 | 22,000 |
| 8″ | 3.6 | 219.1 | 2,200 |
| 16″ | 5.2 | 406.4 | 5,200 |
| 10″ | 4.0 | 273.1 | 3,000 |
| 24″ | 7.1 | 610.0 | 8,500 |
| 12″ | 4.5 | 323.9 | 3,800 |
| 36″ | 10.0 | 914.4 | 15,000 |
| 20″ | 6.4 | 508.0 | 7,000 |
| 42″ | 11.1 | 1066.8 | 18,000 |
| 30″ | 8.8 | 762.0 | 12,000 |
| Heat Exchangers | Gas Processing |
| Pharmaceutical Equipment | Chemical Equipment |
| Condensers | Specialty Chemicals |
| Sea Water Equipment | Heat Exchangers |
| Pulp and Paper Industry | Pharmaceuticals |
| STANDARD | WNR. | UNS | GOST | EN | JIS |
|---|---|---|---|---|---|
| SS 347 | 1.4550 | S34700 | 08Ch18N12B | X6CrNiNb18-10 | SUS 347 |
| Grade | Elongation (% in 50mm) min | Tensile Strength ksi (MPa) min | Hardness (Rockwell B) MAX | Yield Strength 0.2% ksi offset ksi (MPa) min | Hardness (Brinell) MAX |
|---|---|---|---|---|---|
| 347 | 40 | 75 (515) |
95 | 30 (205) |
201 |
| Coefficient of Thermal Expansion °F |
Thermal Conductivity BTU | Density lbm/in3 |
Modules of Elasticity 2-psi | Specific Heat BTU | |
|---|---|---|---|---|---|
| at 68 to 212°F | at 68 to 1832°F | 68-932°F | at 68 °F | in tension (E) | at 32 to 212°F |
| 9.2 | 11.4 | 14.7 | 0.288 | 28 x 106 | 0.12 |
