ASTM A312 TP316L Pipe

Home|ASTM A312 TP316L Pipe
ASTM A312 TP316L Pipe Specification
Top 5 Reasons for Suppliers in Saudi Arabia to Procure ASTM A312 TP316L Pipe from Manisha Steel Centre
  • Flexible Order Quantities
  • Global Certifications
  • Quality Assurance
  • Focus on Customer Satisfaction
  • Advanced Manufacturing Technology
Manisha Steel Centre

Table of Content


Manufacturer Of ASME SA 312 Grade 316L Stainless Steel Seamless Pipe in India

ASTM A312 TP316L Pipe Specification
ASTM A312 TP316L Seamless Pipe Sizes

ASTM A312 TP316L Seamless Pipe Sizes

  • OD: 1/8" - 12" NPS
  • Wall Thk :0.6 to 12.7 mm
  • Length: Double Random, Cut Length & Single Random
ASME SA 312 TP 316L Welded Pipe

ASME SA 312 TP 316L Welded Pipe

  • OD: 6.35 mm to 114.3 mm
  • Wall Thickness: 0.8 mm to 12.7 mm
  • Length: 26 m

>SA 312 Gr 316L Thick-Walled Pipe

SA 312 Gr 316L Thick-Walled Pipe

  • OD : 10mm - 600 mm
  • Length : 0.5 to 12 meter
  • Thickness : 2.5mm to 100 mm
ASTM A312 Grade 316L SS Pipe Shape

ASTM A312 Grade 316L SS Pipe Shapes

  • Round
  • Square
  • Rectangular
ASTM A312 TP316L Material Manufacturing Process

ASTM A312 TP316L Material Manufacturing Process

  • Precision Rolled
  • Cold Formed
  • Hot Formed
A 312 Gr 316L ERW Pipe

A 312 Gr 316L ERW Pipe

  • Wall Thickness : 12.7mm - 0.8 mm
  • OD: 6.35 mm - 114.3 mm
  • Length : up to 26 m

A312 TP 316L Austenitic Stainless Steel Pipe Testing

A312 TP 316L Austenitic Stainless Steel Pipe Testing

  • Mechanical
  • Chemical
  • Ultrasonic
  • PMI
ASME SA 312 Grade 316L Pipe Origin

ASME SA 312 Grade 316L Pipe Origin

  • Russia
  • European
  • American
  • Janpanese

SA 312 Gr 316L Round Pipe Standards

SA 312 Gr 316L Round Pipe Standards

  • ASME SA312 | ASTM A312
  • GB, ASME, SUS, AISI
  • EN, UNS,DIN, API

ASME SA 312 Grade 316L Straight Seam Welded Pipe Documentation

ASME SA 312 Grade 316L Straight Seam Welded Pipe Documentation

  • PMI Test Reports
  • Visual Inspection
  • Mill Test Certificates
ASTM A312 GR .TP316L Square Pipe Services

ASTM A312 GR .TP316L Square Pipe Services

  • Cutting
  • Heat Treatment
  • Shearing
ASME SA 312 TP 316L Rectangle Pipe Packaging

ASME SA 312 TP 316L Rectangle Pipe Packaging

  • Bundled
  • Wooden Box
  • Bubble Wraps
ASTM A312 TP316L Material Finish

ASTM A312 TP316L Material Finish

  • Polished
  • Bright
  • Annealing
SA312 GR TP316L ERW Pipe End

SA312 GR TP316L ERW Pipe End

  • Plain
  • Beveled

What is the Maximum Hydrostatic Test Pressure for ASTM A312 SS Tp316l Pipe for Below 3.5" Od and Above 3. 5" OD?
OD (Outside Diameter) Maximum Hydrostatic Test Pressure
Below 3.5 inches ~4,000 psi
Above 3.5 inches ~2,500 to 3,000 psi

Fully Certified ASTM A312 Type 316L Straight Seam Welded Pipe Supplier in Mumbai in Odd Sizes

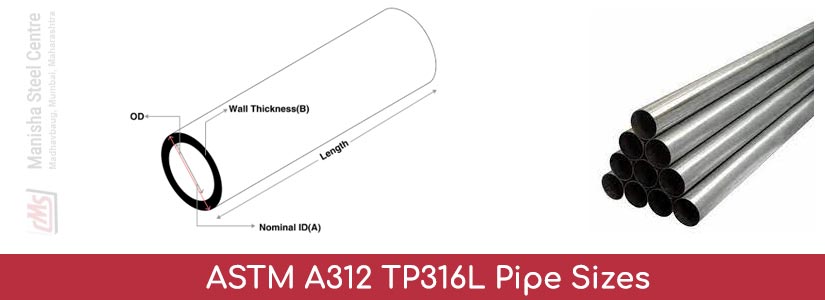

ASTM A312 TP316L Pipe Sizes

To meet the demands of customers, ASTM A312 TP316L Pipe Manufacturer in India provides a large range of diameters and sizes.

ASTM A312 TP316L Pipe Sizes
Nominal Pipe Size (NPS) Outside Diameter (OD)
mm inch mm
450 mm 18 Inch 457.2 mm
250 mm 10 Inch 273.1 mm
6 mm 1/4 Inch 13.7 mm
3 mm 1/8 Inch 10.3 mm
200 mm 8 Inch 219.1 mm
150 mm 6 Inch 168.3 mm
15 mm 1/2 Inch 21.3 mm
10 mm 3/8 Inch 17.1 mm
20 mm 3/4 Inch 26.7 mm
300 mm 12 Inch 323.8 mm
25 mm 1 Inch 33.4 mm
125 mm 5 Inch 141.3 mm
32 mm 1.1/4 Inch 42.2 mm
350 mm 14 Inch 355.6 mm
40 mm 1.1/2 Inch 48.3 mm
80 mm 3 Inch 88.9 mm
50 mm 2 Inch 60.3 mm
100 mm 4 Inch 114.3 mm
65 mm 2.1/2 Inch 73.0 mm
500 mm 20 Inch 508.0 mm
400 mm 16 Inch 406.4 mm
600 mm 24 Inch 610.0 mm
What Are the Features of Stainless Steel SA312 Tp 316l Seamless Pipes?
  • Excellent Fabricability
  • Non-reactivity
  • Resistance to Stress Corrosion
  • High Strength
  • Durable
  • Good oxidation resistance

Get Heavily Cold Worked SA312 GR TP316L ERW Pipe For General Corrosive Service, Refer Pressure Rating

ASTM A312 TP316L Pressure Rating
Pipe Size
(inches)		 Pipe Schedule Temperature (°F)
600 750 500 100 300 200 400 650 700
4" 40 967 909 1014 1531 1187 1321 1091 938 919
1" 80 2659 2501 2791 4213 3265 3634 3002 2580 2528
1.5" 80 2009 1889 2108 3182 2466 2744 2267 1949 1909
10" 40 615 578 945 974 755 840 694 596 584
8" 80 1068 1005 1121 1692 1311 1459 1205 1036 1015
1" 160 3876 3646 4068 6140 4759 5296 4375 3761 3684
1.5" 160 2916 2743 3060 4619 3580 3984 3291 2829 2772
10" 160 1986 1868 2085 3147 2439 2714 2242 1927 1880
2" 40 1201 1129 1260 1902 1474 1640 1355 1165 1141
8" 160 2004 1885 2103 3175 2460 2738 2262 1944 1905
2" 160 2840 2671 2980 4499 3486 3880 3205 2755 2699
5" 40 847 797 889 1342 1040 1158 956 822 805
4" 80 1397 1314 1466 2213 1715 1909 1577 1355 1328
5" 80 1250 1176 1312 1981 1535 1709 1411 1213 1189
6" 40 770 724 808 1219 945 1052 869 747 732
3" 40 1140 1072 1196 1806 1400 1558 1287 1106 1084
6" 160 2076 1953 2179 3289 2549 2836 2343 2014 1973
3" 80 1612 1516 1691 2553 1979 2202 1819 1564 1532

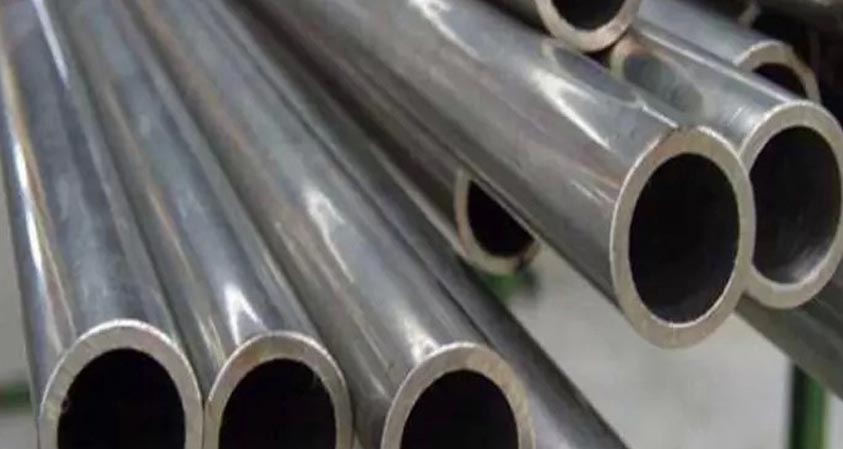

A312 Grade TP316L ERW Pipe Applications
A312 Grade TP316L ERW Pipe Applications
  • Kitchen benches, sinks
  • Food processing equipment
  • Trailers
  • welded screens for mining
  • Architectural applications
  • Heat Exchangers
  • Automotive trim
  • Railway cars
  • Chemical containers
  • construction materials
  • Threaded fasteners
ASTM A312 TP316L Pipe Dimensions
Outside
Diameter		 Qty/B 0.8 0.6 1.5 6.0 0.9 0.7 2.0 5.0 3.0 1.0 4.0 1.2
mm Inches Lgh Kgs Kgs Kgs Kgs Kgs Kgs Kgs Kgs Kgs Kgs Kgs Kgs
12.7 1/2" 100 1.45 1.10 2.55   1.61 1.28       1.78   2.10
152.4 6" 10
38.1 11/2" 50 4.53 3.42 8.34   5.09 3.98       5.64   6.73
9.5 3/8" 100 1.06 0.81 1.82   1.18 0.94       1.29   1.51
15.9 5/8" 100 1.84 1.39 3.28   2.05 1.62       2.26   2.68
22.2 7/8" 100 2.60 1.97 4.72   2.91 2.29       3.22   3.83
19.1 3/4" 100 2.22 1.69 4.01   2.49 1.96       2.75   3.26
31.8 11/4" 50 3.77 2.84 6.91   4.23 3.31       4.68   5.58
25.4 1" 100 2.99 2.26 5.45   3.35 2.63       3.71   4.41
63.5 21/2" 10 7.62   14.13   8.56   18.69   27.58 9.50   11.36
28.6 11/8" 50 3.38 2.55 6.18   3.79 2.97       4.19   5.00
50.8 2" 10 6.08   11.24   6.82   14.83   21.79 7.57   9.04
41.3 15/8" 50 4.92 3.71 9.07   5.52 4.32       6.12   7.31
88.9 31/2" 10 10.71   19.92   12.03   26.41   39.16 13.36 51.60 15.99
44.5 13/4" 50 5.31 4.00 9.80   5.96 4.66       6.61   7.90
76.2 3" 10 9.17   17.03   10.30   22.55   33.37 11.43 43.88 13.68
Offer ASME SA 312 TP 316L Pipe Ready Stock in Square, Round and Rectangular Form
Types Of ASME SA 312 TP 316L Pipe

A large variety of sizes and forms are available at cheap costs from an ASTM A312 TP316L Pipe Supplier in India.

ASTM A312 TP316L ERW Pipe

ASTM A312 TP316L ERW Pipe

ASME SA 312 TP 316L Square Pipe

ASME SA 312 TP 316L Square Pipe

ASTM A312 Type 316L Pipe

ASTM A312 Type 316L Pipe

A312 Gr TP316L Austenitic Stainless Steel Pipe

A312 Gr TP316L Austenitic Stainless Steel Pipe

SA 312 Gr 316L Welded Pipe

SA 312 Gr 316L Welded Pipe

ASTM A312 GR TP316LRectangular Pipe

ASTM A312 GR TP316LRectangular Pipe

SA 312 Grade TP316L Straight Seam Welded Pipe

SA 312 Grade TP316L Straight Seam Welded Pipe

ASME SA 312 Grade 316L Round Pipe

ASME SA 312 Grade 316L Round Pipe

ASTM A312 TP316L Seamless Pipe

ASTM A312 TP316L Seamless Pipe

Buy Fully Impact Tested ASTM A312 TP316L Material Online and Save Your Cost, Refer Equivalent
ASTM A312 TP316L Equivalent
STANDARD GOST UNS AFNOR WERKSTOFF NR. EN BS JIS
SS 316L 03Ch17N14M3 / 03Ch17N14M2 S31603 Z3CND17‐11‐02 / Z3CND18‐14‐03 1.4404 / 1.4435 X2CrNiMo17-12-2 / X2CrNiMo18-14-3 316S11 / 316S13 SUS 316L
ASME SA 312 TP 316L Pipe Chemical Composition
Cr 16 - 18%
Mo 2 - 3%
N 0.10 %
Ni 10 -14%
Mn 2 %
Si 0.75 %
ASTM A312 TP316L Pipe Price

Would You Like to Purchase ASTM A312 TP316L Pipe at a Competitive Price? You can get an estimate immediately by sending an email. kalpesh@manishasteelcentre.com.

Price List Price in USA Price in Malaysia Price in Europe Price in Singapore
ASTM A312 Tp316L SS Pipe, Size: 2 Meter US $7.40 29.98 Malaysian Euro 6.05 9.84 Singapore Dollar
A312 316L Seamles Pipe Price US $1.80-$2.50 7.29 -10.13 Malaysian Euro 1.47 -2.04 2.39 - 3.32 Singapore Dollar
ASTM A312 TP316L Material Mechanical Properties
Grade Tensile Strength (MPa) min Yield Strength (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) max Brinell (HB) max
316L 485 170 40% 95 217
Physical Properties of SA312 GR TP316L Welded Pipe
Grade Elastic Modulus (GPa) Specific Heat 0-1000C (J/kg.K) Electrical Resistivity (n.m) Density (kg/m3) Mean Coefficient of Thermal Expansion (m/m/0C) Thermal Conductivity (W/m.K)
0-100°C 0-315°C 0-538°C at 100°C at 500°C
316L 193 500 740 8000 15.9 16.2 17.5 16.3 21.5
ASTM A312 TP316L Pipe Delivery Time Estimate by Location
Changes in Price
Extra 5 %
Export to Shipping Time in Days
Russia 20
Czech Republic 45
Greece 45
Bahamas  60
Germany 21
Ukraine 60
France 28
Belgium 40
Norway 45
Italy 28
Uk 30
Spain  30
Denmark 35
Netherland 30
Portugal 45
