ASTM A358 TP316L Pipe | ASME SA 358 Type 316L EFW Pipe

Table of Content

ASTM A358 TP316L Pipe Specification
Types Of ASME SA 358 Type 316L EFW Pipe
ASTM A358 TP316L Pipe Sizes
SA 358 Grade TP316L EFW Austenitic Chromium Nickel Stainless Steel Pipe Classes
ASTM A358 GR .TP316L EFW Welding Pipe Testing
ASME SA 358 TP 316L Electric Fusion Straight Weld Pipe Applications
ASTM A358 TP316L Pipe Price
SA358 TP 316L EFW Stainless Steel Pipe Equivalent
ASME SA 358 TP 316L EFW Electric Fusion Welded Pipe Chemical Composition
ASTM A358 Grade 316L Electric Fusion Straight Weld Pipe Mechanical Properties
Physical Properties of f ASME SA 358 Type 316LElectric Fusion Welded Pipe

ASTM A358 TP316L Pipe Specification

ASTM A358 TP316 EFW Pipe Sizes

OD : 1200 to 6NB
Size: 110" to 8"
Thickness : 100 mm to 3 mm

ASME SA 358 TP 316L EFW Welding Pipe Shapes

Round
Rectangular
Square

ASTM A358 TP316L Class 1 Pipe Manufacturing Process

Hot Formed
Precision Rolled
Cold Formed

SA 358 Grade TP316L EFW Austenitic Chromium Nickel Stainless Steel Pipe Schedule

SCH XXS
SCH 40, 30, 10,20, 5
SCH 140, 80,100, 60, 120

ASTM A358 TP316L Material Testing

PMI
Mechanical
Chemical
Ultrasonic

ASME SA 358 Type 316L Stainless Steel Pipe Origin

Janpanese
Russia
American
European

ASTM A358 GR .TP316L Electric Fusion Welded Pipe Standards

ASME SA 358 | ASTM A358
DIN, API, EN, UNS
GB, AISI, ASME, SUS

SA 358 Gr 316L Electric Fusion Straight Weld Pipe Documentation

Visual Inspection
Mill Test Certificates
PMI Test Reports

ASTM A358 Grade 316L EFW Stainless Steel Pipe Services

Heat Treatment
Cutting
Shearing

SA 358 Grade TP316L EFW Welding Pipe Packaging

Wooden Box
Bundled
Bubble Wraps

ASTM A358 TP316L Class 3 EFW Electric Fusion Welded Pipe Finish

Polished
Bright
Annealing

ASME SA 358 TP 316L EFW Pipe End

Beveled
Plain

Types Of ASME SA 358 Type 316L EFW Pipe

Manisha Steel Centre ASTM A358 TP316L Pipe Supplier in India offers Numerous sizes and shapes at affordable prices.

ASTM A358 TP316L Class 5 EFW Pipe

ASME SA 358 Type 316L EFW Austenitic Chromium Nickel Stainless Steel Pipe

SA358 TP 316L Electric Fusion Welded Pipe

A358 Grade 316L EFW Stainless Steel Pipe

ASTM A358 Type 316L Electric Fusion Straight Weld Pipe

ASME SA 358 TP 316L EFW Welding Pipe

SA 358 Grade TP316L Electric Fusion Welded Steel Pipe

ASTM A358 TP316L EFW Electric Fusion Welded Pipe

Expert Manufacturer Of ASME SA 358 Type 316L EFW Pipe in India With Odd Sizes

ASTM A358 TP316L Pipe Sizes

A wide variety of diameters and sizes are offered by the ASTM A358 TP316L Pipe Manufacturer in India to satisfy client expectations.

Nominal	Outside	Nominal Wall Thickness (mm)
Diameter	Diameter	ASME B36.19M				ASME B36.10M
NPS	(mm)	SCH40S	SCH5S	SCH80S	SCH10S	SCH5	STD	SCH10	XS	SCH20
1/2	21.34	2.77	1.65	3.73	2.11	1.65	2.77	2.11	3.73	-
5	141.3	6.55	2.77	9.53	3.4	2.77	6.55	3.4	9.53	-
3/4	26.67	2.87	1.65	3.91	2.11	1.65	2.87	2.11	3.91	-
3	88.9	5.49	2.11	7.62	3.05	2.11	5.49	3.05	7.62	-
1	33.4	3.38	1.65	4.55	2.77	1.65	3.38	2.77	4.55	-
2	60.33	3.91	1.65	5.54	2.77	1.65	3.91	2.77	5.54	-
1 1/4	42.16	3.56	1.65	4.85	2.77	1.65	3.56	2.77	4.85	-
3 1/2	101.6	5.74	2.11	8.08	3.05	2.11	5.74	3.05	8.08	-
1 1/2	48.26	3.68	1.65	5.08	2.77	1.65	3.68	2.77	5.08	-
8	219.08	8.18	2.77	12.7	3.76	2.77	8.18	3.76	12.7	6.35
2 1/2	73.03	5.16	2.11	7.01	3.05	2.11	5.16	3.05	7.01	-
10	273.05	9.27	3.4	12.7	4.19	3.4	9.27	4.19	12.7	6.35
4	114.3	6.02	2.11	8.56	3.05	2.11	6.02	3.05	8.56	-
14	355.6	9.53	3.96	12.7	4.78	3.96	9.53	6.35	12.7	7.92
6	168.28	7.11	2.77	10.97	3.4	2.77	7.11	3.4	10.97	-
18	457.2	9.53	4.19	12.7	4.78	4.19	9.53	6.35	12.7	7.92
12	323.85	9.53	3.96	12.7	4.57	3.96	9.53	4.57	12.7	6.35
22	558.8	-	4.78	-	5.54	4.78	9.53	6.35	12.7	9.53
16	406.4	9.53	4.19	12.7	4.78	4.19	9.53	6.35	12.7	7.92
24	609.6	9.53	5.54	12.7	6.35	5.54	9.53	6.35	12.7	9.53
20	508	9.53	4.78	12.7	5.54	4.78	9.53	6.35	12.7	9.53

Genuine ASTM A358 Grade 316L Electric Fusion Welded Pipe Supplier in Mumbai With Class 1 to Class 5

SA 358 Grade TP316L EFW Austenitic Chromium Nickel Stainless Steel Pipe Classes

Class	Explanation
Cl1	Standard Welding
Cl2	Electric Fusion
Cl3	Solution Annealed
Cl4	Heat Treated
Cl5	Nondestructive Test

Buy SA358 TP 316L EFW Stainless Steel Pipe Tested With Transverse Tension and Transverse Guided Bend Weld Test

ASTM A358 GR .TP316L EFW Welding Pipe Testing

Hydrostatic Test	Positive Material Identification – PMI Testing
Impact Test	Intergranular Corrosion (IGC) Test
Hydrogen Test	Chemical Analysis
Ultra Sonic Test (UT)	Hardness Test
Transverse Guided Bend Weld Test	Transverse Tension
Radiography Test	Micro Test
Bend Test	Flaring Test
Eddy Current Testing	Pitting Resistance Test

Supply ASTM A358 GR .TP316L EFW Austenitic Chromium Nickel Stainless Steel Pipe For General Applications

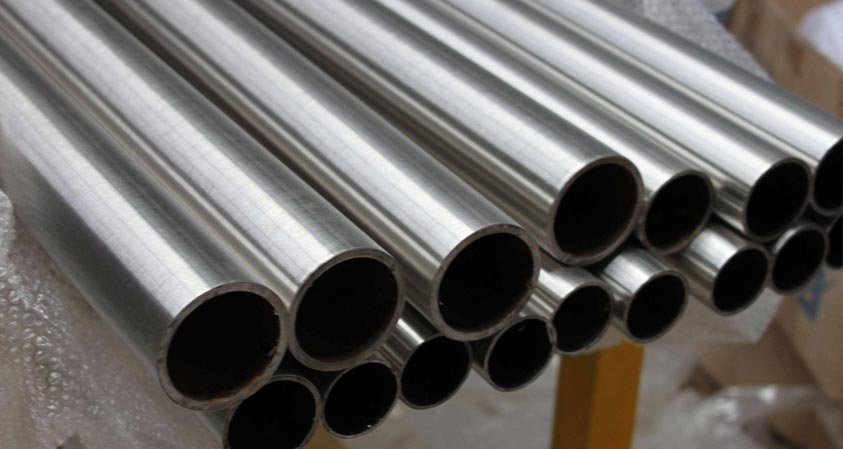

ASME SA 358 TP 316L Electric Fusion Straight Weld Pipe Applications

Chemical containers
Food processing equipment
Threaded fasteners
Railway cars
Architectural applications
construction materials
welded screens for mining
Kitchen benches, sinks
Trailers
Heat Exchangers
Automotive trim

Offer ASTM A358 TP 316L Electric Fusion Straight Weld Pipe At Pocket Friendly Price

ASTM A358 TP316L Pipe Price

Would You Like to Buy Competitively Priced ASTM A358 TP316L Pipe? By sending an email, you can receive an estimate right away. kalpesh@manishasteelcentre.com.

Price List	Price in USD $
astm a358 316l stainless steel pipe	$ 2400 to 4000
ASTM A358 Class 4 EFW SS Pipe	$ 40 to 120

SA358 TP 316L EFW Stainless Steel Pipe Equivalent

STANDARD	UNS	GOST	WERKSTOFF NR.	AFNOR	BS	EN	JIS
SS 316L	S31603	03Ch17N14M3 / 03Ch17N14M2	1.4404 / 1.4435	Z3CND17‐11‐02 / Z3CND18‐14‐03	316S11 / 316S13	X2CrNiMo17-12-2 / X2CrNiMo18-14-3	SUS 316L

ASME SA 358 TP 316L EFW Electric Fusion Welded Pipe Chemical Composition

Cr 16 - 18%

N 0.10 %

Mo 2 - 3%

Ni 10 -14%

Si 0.75 %

Mn 2 %

ASTM A358 Grade 316L Electric Fusion Straight Weld Pipe Mechanical Properties

Grade	Elongation (% in 50mm) min	Yield Strength (MPa) min	Tensile Strength (MPa) min	Hardness
Grade	Elongation (% in 50mm) min	Yield Strength (MPa) min	Tensile Strength (MPa) min	Rockwell B (HR B) max	Brinell (HB) max
316L	40%	170	485	95	217

Physical Properties of f ASME SA 358 Type 316LElectric Fusion Welded Pipe

Grade	Electrical Resistivity (n.m)	Elastic Modulus (GPa)	Density (kg/m3)	Specific Heat 0-1000C (J/kg.K)	Thermal Conductivity (W/m.K)		Mean Coefficient of Thermal Expansion (m/m/0C)
Grade	Electrical Resistivity (n.m)	Elastic Modulus (GPa)	Density (kg/m3)	Specific Heat 0-1000C (J/kg.K)	at 100°C	at 500°C	0-100°C	0-315°C	0-538°C
316L	740	193	8000	500	16.3	21.5	15.9	16.2	17.5

ASTM A358 TP316L Pipe Time of Shipping and Delivery Location

Changes in Price Extra 5 %
Export to	Shipping Time in Days
Norway	45
France	28
Bahamas	60
Netherland	30
Greece	45
Uk	30
Belgium	40
Czech Republic	45
Italy	28
Germany	21
Russia	20
Spain	30
Denmark	35
Ukraine	60
Portugal	45

Why Us ?

Stockist and Exporter of Small Diameter Tubing in Grades of Austenitic and Ferritic Stainless Steel.
Supply as Per American and European Standards According to Dimensional Standard ASME B36.19M
Distributor and Trader in Mumbai of Renowned Mills Outokumpu, POSCO and Aperam
Associated With Dealers and Stockholders in Kuwait, Nigeria, Iraq, Egypt, Congo and Gabon
