ASTM A358 TP304L Pipe | ASME SA 358 TP 304L EFW Pipe

Table of Content

ASTM A358 TP304L Pipe Specification
ASME SA 358 TP 304L Electric Fusion Straight Weld Pipe
ASTM A358 TP304L Pipe Price
ASME SA 358 TP 304L EFW Pipe Sizes
ASTM A358 TP304L Class 1 Stainless Steel Pipe Testing
SA358 Type 304L EFW Austenitic Chromium Nickel Stainless Steel Pipe Applications
ASTM A358 TP304L Class 2 Electric Fusion Straight Weld Pipe Welding Methods
ASME SA 358 TP 304L EFW Welding Pipe Available Classes
ASTM A312 TP304L EFW Austenitic Chromium Nickel Stainless Steel Pipe Chemical Composition
ASTM A358 GR .TP304L Electric Fusion Welded Steel Pipe Chemical Composition
ASME SA 358 TP 304L EFW Electric Fusion Welded Pipe Mechanical Properties
ASTM A358 TP304L Class 2 EFW Pipe Physical Properties

ASTM A358 TP304L Pipe Specification

ASTM A358 TP304L EFW Pipe Sizes

Lenght : 1 to 12.5 Meters
Thickness : 3 - 100 mm
OD : 8" - 110" NB

ASTM A358 Grade 304L Electric Fusion Welded Pipe Shapes

Square
Rectangular
Round

ASTM A358 TP304L Material Manufacturing Process

Cold Formed
Precision Rolled
Hot Formed

SA 358 Grade TP304L Stainless Steel Pipe Schedule

SCH XXS
SCH 80, 60, 140, 120, 100
SCH 10, 5, 30, 40, 20

ASME SA 358 TP 304L Electric Fusion Straight Weld Pipe Testing

PMI
Chemical
Ultrasonic
Mechanical

ASTM A358 Type 304L Pipe Origin

European
American
Janpanese
Russia

ASME SA 358 TP 304L Cl3 EFW Stainless Steel Pipe Standards

ASTM A358 | ASME SA 358
DIN,API, EN, UNS
GB, AISI, ASME, SUS

ASTM A358 TP304L Class 5 Electric Fusion Straight Weld Pipe Documentation

Mill Test Certificates
PMI Test Reports
Visual Inspection

SA 358 Grade TP304L Electric Fusion Welded Steel Pipe Services

Heat Treatment
Cutting
Shearing

ASTM A358 TP304L Class 2 EFW Welding Pipe Packaging

Wooden Box
Bundled
Bubble Wraps

A358 GR TP304L Electric Fusion Straight Weld Pipe Finish

Polished
Bright
Annealing

ASTM A358 GR .TP304L EFW Pipe End

Beveled
Plain

Types Of ASME SA 358 TP 304L Electric Fusion Straight Weld Pipe

A wide range of forms are available at industry pricing from Manisha Steel Centre, a reliable ASTM A358 TP304L Pipe Supplier in India.

ASTM A358 Type 304L EFW Pipe

ASME SA 358 TP 304L EFW Austenitic Chromium Nickel Stainless Steel Pipe

ASTM A358 TP304L Electric Fusion Welded Pipe

SA 358 Grade TP304L EFW Electric Fusion Welded Pipe

ASTM A358 TP304L Class 4 Electric Fusion Straight Weld Pipe

ASME SA 358 TP 304L Cl 3 EFW Welding Pipe

ASTM A358 TP304L Class 2 Electric Fusion Welded Steel Pipe

SA 358 Gr 304L EFW Stainless Steel Pipe

Manufacturer Of ASME SA 358 TP 304L EFW Pipe in India at Affordable Price

ASTM A358 TP304L Pipe Price

Are You Looking for ASTM A358 TP304L Pipe at a Lower Price? By sending an email, you can receive an estimate right away. kalpesh@manishasteelcentre.com.

Product	Price
ASTM A358 304l stainless steel pipe Size: 75mm 6mm	$ 1,720.00 to $ 3,150.00
A358 304l Stainless Steel Pipes	$ 1,680.00 to $ 2,000.00
ASTM A358 304l Polished Pipe	$ 590.00 to $ 788.00

ASTM A358 Grade 304L Electric Fusion Welded Pipe Supplier in Mumbai in Odd Sizes

ASME SA 358 TP 304L EFW Pipe Sizes

ASTM A358 TP304L Pipe Manufacturer in India that offers a wide variety of sizes to satisfy client needs.

NPS Designator	Outside Diameter		Nominal Wall Thickness
	inch	mm	Schedule 80SA		Schedule 10SA		Schedule 40SA		Schedule 5SA
	inch	mm	in.	mm	in.	mm	in.	mm	in.	mm
20	20.000	508.00	…	…	0.188B	4.78B	…	…	0.188	4.78
18	18.000	457.20	…	…	0.188B	4.78B	…	…	0.165	4.19
14	14.000	355.60	…	…	0.188B	4.78B	…	…	0.156	3.96
8	8.625	219.08	0.500	12.70	0.148	3.76	0.322	8.18	0.109	2.77
22	22.000	558.80	…	…	0.218B	5.54B	…	…	0.188	4.78
16	16.000	406.40	…	…	0.188B	4.78B	…	…	0.165	4.19
30	30.000	762.00	…	…	0.312	7.92	…	…	0.250	6.35
10	10.750	273.05	0.500B	12.70B	0.165	4.19	0.365	9.27	0.134	3.40
24	24.000	609.60	…	…	0.250	6.35	…	…	0.218	5.54
12	12.750	323.85	0.500B	12.70B	0.180	4.57	0.375B	9.52B	0.156	3.96

Buy SA358 Type 304L EFW Austenitic Chromium Nickel Stainless Steel Pipe Online Tested With Hydrostatic Test

ASTM A358 TP304L Class 1 Stainless Steel Pipe Testing

Impact Test	Intergranular Corrosion (IGC) Test
Ultra Sonic Test (UT)	Hardness Test
Hydrostatic Test	Positive Material Identification – PMI Testing
Hydrogen-Induced Cracking (HIC) Test	Chemical Analysis
Radiography Test	Micro Test
Dye Penetrant Test (DP Test)	Macro Test
Eddy Current Testing	Pitting Resistance Test
Bend Test	Flaring Test

Offer Cut To Size A358 GR TP304L Electric Fusion Straight Weld Pipe Suitable For High-Temperature Service

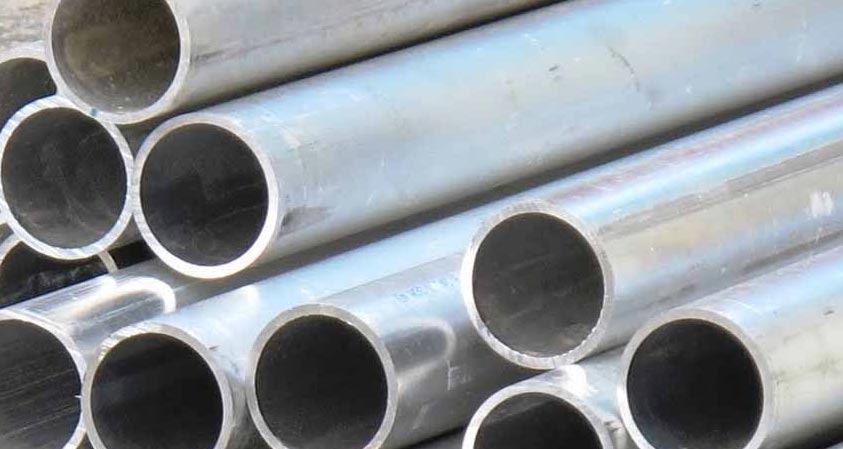

SA358 Type 304L EFW Austenitic Chromium Nickel Stainless Steel Pipe Applications

Cement Industry
High temperature
Oil and Gas Industries
Pulp and Paper Industry
Aerospace
Power Generation Industries
Automotive Industry
Industry & Factory
Civil Engineering
Constructions
Petrochemical Industries

ASTM A358 TP304L Class 2 Electric Fusion Straight Weld Pipe Welding Methods

TIG Welding
Stick Welding
Plasma Arc Welding
Submerged Arc Welding
MIG -Metal Inert Gas Welding

Get ASTM A358 TP 304L Stainless Steel Pipe With Five Different Classes Including Class 1 to Class 5

ASME SA 358 TP 304L EFW Welding Pipe Available Classes

Class	Application
Class 5	Corrosive Environments
Class 4	High Pressure
Class 3	Cryogenic Service
Class 2	High Temperature
Class 1	General Service

ASTM A312 TP304L EFW Austenitic Chromium Nickel Stainless Steel Pipe Chemical Composition

Cr 20.0 %

C 0.030 %

Mn 2%

Ni 12 %

P 0.045 %

Si 0.75 %

A358 GR TP304L Electric Fusion Straight Weld Pipe Equivalent Grades

STANDARD	UNS	WERKSTOFF NR.	AFNOR	JIS	GOST	BS	EN
SS 304L	S30403	1.4306/1.4307	Z3CN18‐10	SUS 304L	03Х18Н11	304S11	X2CrNi18-9 / X2CrNi19-11

ASME SA 358 TP 304L EFW Electric Fusion Welded Pipe Mechanical Properties

Grade	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Tensile Strength (MPa) min	Hardness
Grade	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Tensile Strength (MPa) min	Brinell (HB) max	Rockwell B (HR B) max
304L	170	40	485	201	92

ASTM A358 TP304L Class 2 EFW Pipe Physical Properties

Grade	Specific Heat 0 to 1000C (J/kg.K)	Density (kg/m3)	Electrical Resistivity (n.m)	Elastic Modulus (GPa)	Thermal Conductivity (W/m.K)		Mean Coefficient of Thermal Expansion (m/m/0C)
Grade	Specific Heat 0 to 1000C (J/kg.K)	Density (kg/m3)	Electrical Resistivity (n.m)	Elastic Modulus (GPa)	at 5000C	at 1000C	0 to 3150C	0 to 1000C	0 to 5380C
304L	500	8000	720	193	21.5	16.2	17.8	17.2	18.4

ASTM A358 TP304L Pipe Time of Shipment as per Location

Changes in Price Extra 5 %
Export to	Shipping Time in Days
Czech Republic	45
Norway	45
Germany	21
Russia	20
France	28
Ukraine	60
Belgium	40
Uk	30
Denmark	35
Italy	28
Portugal	45
Spain	30
Greece	45
Bahamas	60
Netherland	30

Why Us ?

Stockist and Exporter of Small Diameter Tubing in Grades of Austenitic and Ferritic Stainless Steel.
Supply as Per American and European Standards According to Dimensional Standard ASME B36.19M
Distributor and Trader in Mumbai of Renowned Mills Outokumpu, POSCO and Aperam
Associated With Dealers and Stockholders in Kuwait, Nigeria, Iraq, Egypt, Congo and Gabon
