Inconel Round Bar Manufacturer in India | Alloy 600/625/718 Rod Stock

Why Stockists in Thailand should buy Inconel Round Bar from Manisha Steel Centre?

Reason	Description
Flexible Payment Terms	Convenient Payments
Proven Track Record	Experience in Large Projects
Customer Satisfaction Focus	Client Oriented Service
Advanced Inspection & Testing	Rigorous Quality Control
Strong Industry Partnerships	Leading Supplier Collaborations

Table of Content

Inconel Round Bar Specification
Inconel 718 Flat Bar Condition
Inconel Round Bar Price List
Various Types Of Inconel Alloy Round Bar
Inconel 625 Bar Dimensions
Inconel Round Bar Sizes
Inconel 718 Hex Bar Sizes
Inconel 601 Flat Bar Sizes
Inconel Flat Bar Grades
ASTM B446 Rectangular Bar Finishes
Inconel X750 Square Bar Weight Chart
Inconel Alloy 600 Hex Bar Hardness
What are the Effects of the Parameters of Inconel 600 Square Bar?
Inconel 625 Round Bar Tolerances
What is the Difference Between Inconel and Monel Bar?
Inconel 625 Round Bar Welding Methods
Inconel Alloy 625 Bright Bar HSN Code
Inconel X750 Round Bar Testing Procedures
Inconel 718 Round Bar Edges
Chemical Composition of Inconel Flat Bar
Mechanical Properties of Inconel Rod
Inconel Bar Density
Temperature of Inconel Alloy Rod
Equivalent Grades of Inconel Polished Bar

Inconel Round Bar Specification

Inconel Round Bar Sizes

Length:0.5 to 6.0 meter
Diameter: 3 to 600 mm
Supply State: H&T ,ANN, PH

Inconel 625 Hex Bar Sizes

Length:0.5 to 6.0 meter
Diameter: 3 to 180 mm
Finish: NO.4, Polished, Rough Turned

Inconel 718 Square Bar Sizes

Size: 2 to 200 mm
Length:0.5 to 6.0 meter
Technique: Rolled, Forged

Inconel 600 Flat Bar Size

Thickness: 0.5 to 200 mm
Width:0.5 -to 200 mm
Length: 0.5 to 6.0 meter

Inconel Bar Standards

ASME SB 446 | ASTM B446
ASME, AISI,GB, SUS
UNS, API ,EN, DIN

Inconel X750 Round Bar Documentation

Mill Test Certificates
PMI Test Reports
Visual Inspection

718 Inconel Cold Drawn Bar Shapes

Square
Rectangle
Hex
Round

Inconel Rod Origin

European
Russia
Janpanese
American

ASTM B446 Inconel Polish Bar Services

Shearing
Heat Treatment
Cutting

Inconel X750 Bright Bar Packaging

Bubble Wraps
Bundled
Wooden Box

Inconel 600 Rectangular Bar Condition

A,B
S, H, T,

Inconel 625 Hollow Bar Tolerance

H8 to H13
K9 to K12

Inconel Bar Testing

Impact Test
Bending Test
Tensile Tests
Hardness test

Inconel Rod Application

Construction
Energy
Medical
Food and Beverage

Inconel Rod Supplier in Mumbai in Various Grades at Pocket Friendly Price

Inconel Round Bar Price List

Do You Want the Best Deal on Inconel Round Bar? Email kalpesh@manishasteelcentre.comTo get a quote at this moment.

Price list	Price in USD	Price in UAE Dirham
INCONEL 718 ROUND BAR Size : DIA X 3450-3850MM	US $ 30.69	UAE 112.72
INCONEL 601 ROUND BAR Size: 32.00MM	US $ 611.99	UAE 2247.84
INCONEL ROUND BAR Size: DIA X 144	US $ 463.99	UAE 1704.24

Get Hot and Cold Rolled Inconel Bar Stock in Custom Shapes like Hex, Flat, Square etc.

Various Types Of Inconel Alloy Round Bar

Trusted Inconel Round Bar Supplier in India, are offered in unique sizes and shapes.

Inconel 600 Rod

Inconel X750 Round Bar

Inconel 625 Hex Bar

Inconel Alloy Cold Drawn Bar

Inconel 718 Flat Bar

Inconel 601 Polished Bar

Inconel 600 Square Bar

Inconel Alloy 718 Bright Bar

Inconel Rectangular Bar

Buy Inconel 600 Round Bar With OD Ranging From 3 - 600 mm and Length 0.5 - 6.0 meter

Inconel 625 Bar Dimensions

Size & Dimensions of inconel round bar
Metric		ASTM/ Canadian		US Bar		Japanese
Bar Size	Diam. (mm)	Bar Size	Diam. (mm2)	Bar Size	Diam. (Inch)	Bar Size	Diam. (mm)
6	6	20M	300	#4	0.500	13	13
5	5	10M	100	#2	0.250	6	6
16	16			#12	1.500	38	38
7	7	25M	500	#5	0.625	16	16
20	20			#14	1.750	44	44
8	8	30M	700	#6	0.750	19	19
18	18			#13	1.625	41	41
9	9	35M	1000	#7	0.875	22	22
25	25			#16	2.000	51	51
10	10	45M	1500	#8	1.000	25	25
14	14			#11	1.375	35	35
11	11	55M	2500	#9	1.125	29	29
22	22			#15	1.875	48	48
12	12			#10	1.250	32	32
28	28			#18	2.250	57	57

Inconel Round Bar Sizes

No. 1 Inconel Round Bar Sizes Manufacturer in India, more capable than any other at producing a wider variety of sizes

US Bar		Japanese		Metric		Canadian/ASTM
Diam. (Inch)	Bar Size	Diameter (mm)	Bar Size	Diam. (mm)	Bar Size	Diameter (mm2)	Bar Size
1.875	#15	48	48	22	22
0.250	#2	6	6	5	5	100	10M
2.000	#16	51	51	25	25
0.375	#3	10	10	5.5	5.5	200	15M
0.750	#6	19	19	8	8	700	30M
0.500	#4	13	13	6	6	300	20M
2.250	#18	57	57	28	28
0.625	#5	16	16	7	7	500	25M
1.625	#13	41	41	18	18
0.875	#7	22	22	9	9	1000	35M
1.500	#12	38	38	16	16
1.000	#8	25	25	10	10	1500	45M
1.375	#11	35	35	14	14
1.125	#9	29	29	11	11	2500	55M
1.750	#14	44	44	20	20
1.250	#10	32	32	12	12

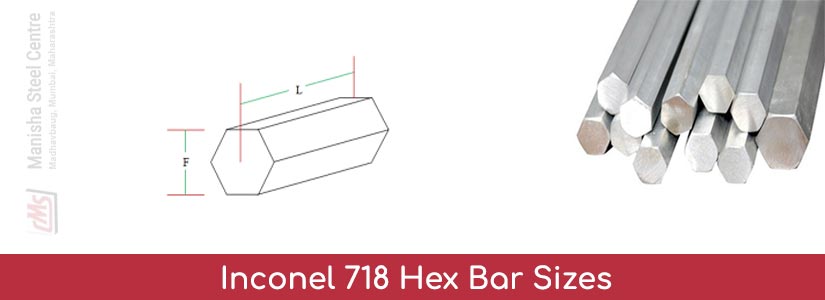

Inconel 718 Hex Bar Sizes

hex bar Size in Inches	hex bar Wt per 12′	hex bar Wt per Ft
5/16″	3.480	0.290
3/16″	1.248	0.104
5/8″	13.80	1.150
1/4″	2.160	0.180
3/4″	19.92	1.660
7/8″	27.60	2.300
3/8″	4.920	0.625
1-1/16″	39.60	3.30
1″	34.80	2.90
15/16″	31.20	2.625
1-5/8″	93.60	7.800
7/16″	6.72	0.560
1-3/4″	108.36	9.030
1/2″	8.880	0.740
1-7/16″	73.20	6.100
9/16″	11.16	0.930
1-7/8″	124.80	10.400
11/16″	16.68	1.390
2″	141.60	11.80
13/16″	23.40	1.950
1-1/2″	79.20	6.625
2-1/4″	179.04	14.920
1-1/8″	44.40	3.700
2-3/8″	203.04	16.920
1-1/4″	55.20	4.625
2-1/2″	221.04	18.42
1-5/16″	61.20	5.100
3″	318.36	26.53
1-3/8″	67.20	5.625

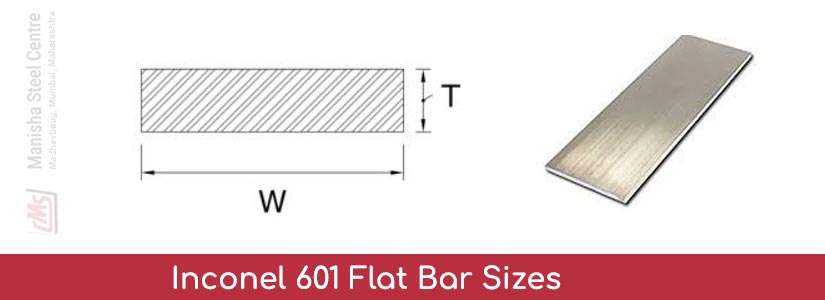

Inconel 601 Flat Bar Sizes

Inconel Flat bar – metric sizes and weights
Flat Size	KG’s per Metre	Standard Length (metres)	Colour Code
10 x 3	0.24	6.0	Blue
20 x 10	1.61	6.0	Yellow
100 x 25	20.1	6.0	Purple
200 x 16	25.7	6.0	Grey
300 x 8	19.3	6.0	Red
13 x 3	0.31	6.0	Blue
130 x 20	20.9	6.0	Green
16 x 8	1.03	6.0	Red
65 x 25	13.1	6.0	Purple
25 x 12	2.41	6.0	Pink
150 x 16	19.3	6.0	Grey
250 x 12	24.1	6.0	Pink
32 x 12	3.09	6.0	Pink
180 x 5	7.24	6.0	Orange
40 x 20	6.14	6.0	Green
50 x 25	10.1	6.0	Purple
75 x 40	24.1	6.0	Yellow
110 x 12	10.6	6.0	Pink
90 x 12	8.69	6.0	Pink

Inconel Flat Bar Grades

ASTM B446 Rectangular Bar Finishes

P&T	Peeled and turned	RT	Rough turned/peeled
BD	Bright drawn	SRE	Slit rolled edge
CG	Centreless ground	HF	Hot finished
CD	Cold drawn	P	Polished
ST	Smooth turned	PR	Peeled and reeled
CF	Cold finished	HRAP	Hot rolled annealed and pickled

Inconel X750 Square Bar Weight Chart

Size	kilogram / Meter	kilogram / Foot	Size	kilogram / Meter	kilogram / Foot	Size	kilogram / Meter	kilogram / Foot
10mm	0.620	0.189	36mm	7.999	2.438	8"	254.55	77.586
1/8"	0.062	0.019	22mm	2.979	0.908	3-1/4"	41.996	12.800
16mm	1.578	0.481	2"	15.906	4.848
5/32"	0.095	0.029	7/8"	3.038	0.926	3-1/2"	48.772	14.850
15mm	1.391	0.424	48mm	14.205	4.330
5mm	0.154	0.047	1"	3.970	1.210	4-1/4"	72.249	21.908
3/16"	0.141	0.043	25mm	3.871	1.180	4"	63.340	19.306
17mm	1.791	0.543	2-1/8"	17.963	5.475
6mm	0.223	0.068	27mm	4.490	1.368	4-3/4"	90.249	27.366
7/32"	0.190	0.058	26mm	4.170	1.271	4-1/2"	80.340	24.4487
14mm	1.207	0.368	45mm	12.555	3.807
7mm	0.298	0.091	30mm	5.548	1.691	5-1/2"	121.000	36.690
1/2"	0.994	0.303	1-5/8"	10.449	3.200
1/4"	0.249	0.076	1-1/8"	5.033	1.534	5"	99.940	30.461
5/8"	1.551	0.473	50mm	15.414	4.698
8mm	0.398	0.120	32mm	6.314	1.894	6-1/2"	167.630	51.093
11/16"	1.880	0.573	2-1/4"	20.128	6.135
18mm	2.001	0.610	60mm	22.205	6.768
5/16"	0.387	0.118	1-1/4"	6.349	1.924	6"	143.900	43.860
13mm	1.043	0.318	1-3/4"	12.179	3.712
3/8"	0.557	0.170	35mm	7.553	2.390	7-1/2"	225.000	68.226
12mm	0.889	0.271	40mm	9.872	3.009
9mm	0.498	0.152	1-3/8"	7.550	2.303	7"	196.000	59.432
9/16"	1.256	0.383	1-7/8"	13.977	4.260
11mm	0.748	0.228	38mm	8.903	2.792	10"	397.140	121.048
3/4"	2.237	0.682	2-3/8"	22.435	6.838
			2-1/2"	24.856	7.576
			2-5/8"	27.409	8.354
			2-3/4"	30.083	9.169

Inconel Alloy 600 Hex Bar Hardness

Inconel Grade	Hardness (Brinell)	Hardness (Rockwell B)
Inconel 600	170 to 210	90 to 95
Inconel 625	170 to 200	85 to 90
Inconel 718	250 to 300	35 to 45
Inconel 601	180 to 220	90 to 95

What are the Effects of the Parameters of Inconel 600 Square Bar?

Offer Inconel 625 Bar Stock As Per ASTM B446 With Tolernace K9 to K12 or H8 to H13

Inconel 625 Round Bar Tolerances

Type	SIZES (Inches)	SIZES (mm)	ISO Tolerance
Cold Drawn and Polish	1/8” to 3.00”	3.00 to 75.00	h10-h8-h11-h9
Peeled and Polished	1.50” to 6.00”	40.00 to 150.00	h11
Cold Drawn and Ground	5/6” to 2.50”	10.00 to 75.00	h9-h8-h11-h10
Peeled and Ground	3/4″ to 2.00”	20.00 to 50.00	h11-h9-h10

What is the Difference Between Inconel and Monel Bar?

Property	Inconel Bar	Monel Bar
Material	Inconel	Monel
Temperature Resistance	2000°F (1093°C)	Up to 1000°F (538°C)
Yield Strength	30 to 60 ksi	30 to 50 ksi
Tensile Strength	75 to 100 ksi	70 to 95 ksi
Hardness	85 to 100 Rockwell B	75 to 95 Rockwell B
Elongation	35 to 55%	35 to 45%
Applications	Aerospace ,nuclear reactors, chemical processing,	Marine, seawater systems, chemical processing

Inconel 718 Flat Bar Condition

H&T	Hardened and tempered.
PH	Precipitation hardened.
ANN	Annealed

Inconel 625 Round Bar Welding Methods

Inconel Alloy 625 Bright Bar HSN Code

Grade	HS Code
Inconel Alloy Round Bar	75051220

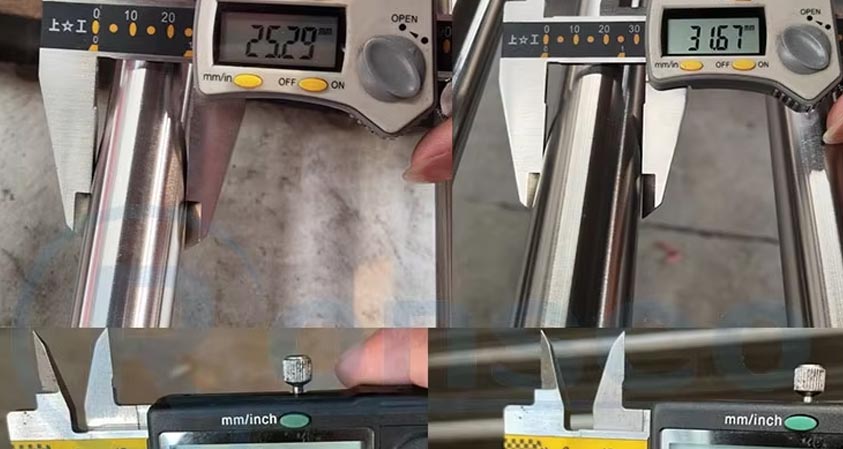

Inconel X750 Round Bar Testing Procedures

Radiographic Test
Chemical examination
Destructive Testing
Crushing test & Buckling
Positive material recognition
Pitting Corrosion Test
Non Destructive Testing
Eddy Current test

As Inconel 718 Bar Suppliers, Keep Stock Of Alloy 718 Round With V, Round, Slit, Square Edge

Inconel 718 Round Bar Edges

Round Edge
Slit Edge
V-Edge
Square Edge

Chemical Composition of Inconel Flat Bar

Grade	Mn	Ni	Si	Fe	Cr	C	Mo	Cu	Co	S	Ti	Al	Nb
600	1.0 max	72.0 min	0.5 max	6.0 - 10.0	14.0 - 17.0	0.15 max	-	0.5 max	-	0.015 max	-	-	-
625	.50 max	58.0 max	.50 max	5.0 max	20.0 - 23.0	.10 max	8.0 - 10.0	-	1.0 max	.015 max	.40 max	.40 max	3.15 - 4.15
601	1.0 max	58.0 – 63.0	0.50 max	Balance	21.0 – 25.0	0.10 max	8.0-10.0	1.0 max	-	0.015 max	-	1.0 – 1.7	-
718	0.35 max	50 - 55	0.35 max	-	17 - 21	0.08 max	2.8 - 3.3	0.3 max	1.0 max	.015 max	-	-	-

Mechanical Properties of Inconel Rod

Grade	Tensile (psi)	.2% Yield (psi)	Elongation (%)
600	95,000	45,000	40
718	135,000	70,000	45
625	135,000	75,000	42.5
601	80,000	30,000	35

Inconel Bar Density

Inconel Grade	Density (lb/in³)	Density (g/cm³)
Inconel 600	0.306	8.47
Inconel 601	0.293	8.11
Inconel 625	0.305	8.44
Inconel 718	0.296	8.19

Temperature of Inconel Alloy Rod

Inconel Grade	Temperature Range (°F)	Temperature Range (°C)
Inconel 600	-328 to 1796	-200 to 980
Inconel 601	-328 to 2282	-200 to 1250
Inconel 625	-328 to 1500	-200 to 815
Inconel 718	-418 to 1292	-250 to 700

Equivalent Grades of Inconel Polished Bar

STANDARD	WERKSTOFF NR.	UNS	GOST	OR	BS	JIS	EN	AFNOR
Inconel 600	2.4816	N06600	МНЖМц 28-2,5-1,5	ЭИ868	NA 13	NCF 600	NiCr15Fe	NC15FE11M
Inconel 718	2.4668	N07718	-	-	-	-	-	-
Inconel 625	2.4856	N06625	ХН75МБТЮ	ЭИ602	NA 21	NCF 625	NiCr22Mo9Nb	NC22DNB4M
Incoloy 825	2.4858	N08825	ЭП703	XH38BT	NA 16	NCF 825	NiCr21Mo	NFE30C20DUM
Incoloy 800	1.4876	N08800	ЭИ670	XH32T	NA 15	NCF 800	X10NiCrAlTi32-20	Z8NC32-21

Stock on Hand of Inconel Round Bar

Round Inconel Bars are readily available from Inconel 718 Round Bar Suppliers, but other non-round shapes are also offered to meet various industrial requirements.

80mm 90mm 75mm 120mm Inconel Alloy Round Bar

High Temperature Inconel Rod

ASTM B446 Inconel 625 Alloy Round Bar

High Quality Inconel 718 Polished Round Bar

5mm 10mm Inconel 625 Round SS Bars

Cold Rolled Inconel X750 Hex Bar

Shipping Time Of Inconel Round Bar and Delivery Location

Changes in Price Extra 5 %
Export to	Shipping Time in Days
Bahamas	60
France	28
Czech Republic	45
Italy	28
Netherland	30
Ukraine	60
Germany	21
Russia	20
Greece	45
Portugal	45
Uk	30
Belgium	40
Netherlands	35
Norway	45
Spain	30

Why Us ?

Stockist and Exporter of Small Diameter Tubing in Grades of Austenitic and Ferritic Stainless Steel.
Supply as Per American and European Standards According to Dimensional Standard ASME B36.19M
Distributor and Trader in Mumbai of Renowned Mills Outokumpu, POSCO and Aperam
Associated With Dealers and Stockholders in Kuwait, Nigeria, Iraq, Egypt, Congo and Gabon
