Monel Round Bar Manufacturer in India

How Traders in Argentina can make good Profits from Monel Round Bar?

Strategy	Explanation
Strategic Sourcing	Lower costs
Import/Export Opportunities	Regional expansion
Targeting High-Demand Sectors	Premium pricing
Distribution Network	Steady sales
Value-Added Services	Custom products
Price Volatility & Stockpiling	Buy low, sell high

Table of Content

Monel Round Bar Specification
Monel Rod HSN Code
Monel Round Bar Price List
Alloy K500 Rectangular Bar Weight Chart
Monel Round Bar Sizes
Monel K500 Hex Bar Sizes
Monel 400 Flat Bar Sizes
ASTM B865 UNS N05500 Square Bar Finishes
Various Types Of Monel Alloy Round Bar
Monel 405 Round Bar Dimensions
ASTM B865 N05500 Bright Bar Manufacturing Process
Monel 400 Bright Bar Tolerance ISO “H” Series in MM
Can Monel Bar be Welded ?
WNR 2.4360 Polish Bar Tolerances
B865 UNS N05500 Hex Bar Condition
K500 Monel Bar Applications
Chemical Composition of Monel Hollow Bar
Mechanical Properties of Monel Flat Bar
Physical Properties of Monel Bar
What is the Annealing Temperature of Monel 400 Rod ?
Can We Use Carburizing Methods To Increase the Hardness of Monel 400 Hex Bar?
What is the Difference Between Monel and CuproNickel Rod?
Equivalent Grades of Monel Bright Bar

Monel Round Bar Specification

Monel Round Bar Sizes

Dia: 3 to 600 mm
Length:0.5 to 6 m
Supply State: ANN, H&T , PH

Monel 400 Hex Bar Sizes

Dia: 3 to 180 mm
Length:0.5 to 6 m
Finish:Rough Turned, Polished, NO.4

K500 Square Bar Sizes

Size: 2 to 200 mm
Length:0.5 to 6 meter
Technique: Forged, Rolled

ASTM B865 UNS N05500 Flat Bar Size

Thickness: 0.5 to 200 mm
Width:1.5 to 250 mm
Length: 0.5 to 6 meter

Monel Rod Standards

ASME SB 164 | ASTM B164
AISI,ASME, SUS, GB
EN, DIN,UNS, API

ASTM B865 N05500 Hex Bar Documentation

PMI Test Reports
Mill Test Certificates
Visual Inspection

WNR 2.4360 Bright Bar Shapes

Rectangle
Square
Round
Hex

Monel Bar Origin

Russia
European
American
Janpanese

Alloy K500 Flat Bar Services

Heat Treatment
Cutting
Shearing

Monel 405 Round Bar Packaging

Bundled
Bubble Wraps
Wooden Box

B865 UNS N05500 Square Bar Condition

A,B
H, S, T

ASTM B164 Alloy 400 Rectangular Bar Tolerance

K9 to K12
H8 to H13

Monel 400 Hollow Bar Testing

Tensile Tests
Impact Test
Hardness test
Bending Test

Monel Alloy K500 Bright Bar Application

Medical
Construction
Food and Beverage
Energy

Monel Rod HSN Code

Grade	HS Code
Monel K500	75052200
Monel 400	75051220

Alloy 400 Rod ad Hex Bar Supplier in Mumbai At Competitive Price As Per ASTM B164

Monel Round Bar Price List

Are You Looking for the Best Monel Round Bar Deal? Email kalpesh@manishasteelcentre.comTo obtain a quote right now.

Price list	Price in USD	Price in UAE Dirham
ASTM B-164 MONEL 400 Round Bar Size: DIAM 12.2X3500MM	US $ 17.95	UAE 65.93
MONEL K500 BAR SIZE: 356 X 333 MM	US $ 20.53	UAE 75.41

Alloy K500 Rectangular Bar Weight Chart

Size	kilogram / Foot	kilogram / Meter	Size	kilogram / Foot	kilogram / Meter	Size	kilogram / Foot	kilogram / Meter
1-7/8"	4.260	13.977	9/16"	0.383	1.256
36mm	2.438	7.999	10mm	0.189	0.620	8"	77.586	254.55
1"	1.210	3.970	5mm	0.047	0.154	4-1/4"	21.908	72.249
38mm	2.792	8.903	11mm	0.228	0.748	10"	121.048	397.140
22mm	0.908	2.979	1/8"	0.019	0.062	3-1/4"	12.800	41.996
1-1/4"	1.924	6.349	5/16"	0.118	0.387	6"	43.860	143.900
25mm	1.180	3.871	3/16"	0.043	0.141	4"	19.306	63.340
2"	4.848	15.906	16mm	0.481	1.578
27mm	1.368	4.490	6mm	0.068	0.223	4-3/4"	27.366	90.249
7/8"	0.926	3.038	5/32"	0.029	0.095	3-1/2"	14.850	48.772
26mm	1.271	4.170	7/32"	0.058	0.190	4-1/2"	24.4487	80.340
2-1/8"	5.475	17.963	17mm	0.543	1.791
45mm	3.807	12.555	14mm	0.368	1.207
1-5/8"	3.200	10.449	1/2"	0.303	0.994
30mm	1.691	5.548	7mm	0.091	0.298	5-1/2"	36.690	121.000
1-1/8"	1.534	5.033	1/4"	0.076	0.249	5"	30.461	99.940
50mm	4.698	15.414	5/8"	0.473	1.551
2-1/4"	6.135	20.128	11/16"	0.573	1.880
32mm	1.894	6.314	8mm	0.120	0.398	6-1/2"	51.093	167.630
40mm	3.009	9.872	12mm	0.271	0.889
60mm	6.768	22.205	18mm	0.610	2.001
1-3/4"	3.712	12.179	13mm	0.318	1.043
1-3/8"	2.303	7.550	9mm	0.152	0.498	7"	59.432	196.000
35mm	2.390	7.553	3/8"	0.170	0.557	7-1/2"	68.226	225.000
2-3/8"	6.838	22.435	3/4"	0.682	2.237

Get ASTM B865 UNS N05500 Square and Flat Bar With Width 1.5 to 250 mm Or Custom

Monel Round Bar Sizes

Manisha Steel Centre Top Rated Monel Round Bar Sizes Manufacturer in India, more capable than any other at producing a wider variety of sizes

US Bar		Canadian/ASTM		Japanese		Metric
Diameter(Inch)	Bar Size	Diameter (millimeter2)	Bar Size	Diameter (millimeter)	Bar Size	Diameter (millimeter)	Bar Size
1.625	#13			41	41	18	18
2.000	#16			51	51	25	25
0.500	#4	300	20M	13	13	6	6
0.250	#2	100	10M	6	6	5	5
1.875	#15			48	48	22	22
1.375	#11			35	35	14	14
0.375	#3	200	15M	10	10	5.5	5.5
1.750	#14			44	44	20	20
1.500	#12			38	38	16	16
1.250	#10			32	32	12	12
0.625	#5	500	25M	16	16	7	7
0.750	#6	700	30M	19	19	8	8
0.875	#7	1000	35M	22	22	9	9
1.125	#9	2500	55M	29	29	11	11
1.000	#8	1500	45M	25	25	10	10

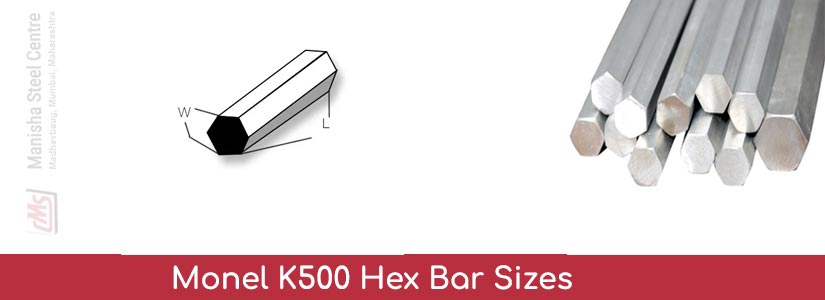

Monel K500 Hex Bar Sizes

hex bar Wt per 12′	hex bar Wt per Ft	hex bar Size in Inches
221.04	18.42	2-1/2″
3.480	0.290	5/16″
2.160	0.180	1/4″
1.248	0.104	3/16″
108.36	9.030	1-3/4″
318.36	26.53	3″
13.80	1.150	5/8″
8.880	0.740	1/2″
19.92	1.660	3/4″
73.20	6.100	1-7/16″
27.60	2.300	7/8″
16.68	1.390	11/16″
4.920	0.625	3/8″
141.60	11.80	2″
39.60	3.30	1-1/16″
79.20	6.625	1-1/2″
34.80	2.90	1″
23.40	1.950	13/16″
31.20	2.625	15/16″
179.04	14.920	2-1/4″
93.60	7.800	1-5/8″
203.04	16.920	2-3/8″
55.20	4.625	1-1/4″
6.72	0.560	7/16″
44.40	3.700	1-1/8″
11.16	0.930	9/16″
61.20	5.100	1-5/16″
124.80	10.400	1-7/8″
67.20	5.625	1-3/8″

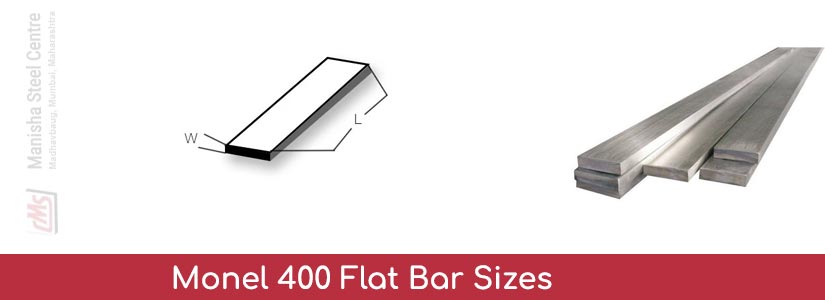

Monel 400 Flat Bar Sizes

Monel Flat bar – metric sizes and weights
Flat Size	KG’s per Metre	Standard Length (metres)	Colour Code
50 x 25	10.1	6.0	Purple
10 x 3	0.24	6.0	Blue
25 x 12	2.41	6.0	Pink
20 x 10	1.61	6.0	Yellow
150 x 16	19.3	6.0	Grey
250 x 12	24.1	6.0	Pink
100 x 25	20.1	6.0	Purple
32 x 12	3.09	6.0	Pink
200 x 16	25.7	6.0	Grey
65 x 25	13.1	6.0	Purple
300 x 8	19.3	6.0	Red
180 x 5	7.24	6.0	Orange
13 x 3	0.31	6.0	Blue
75 x 40	24.1	6.0	Yellow
130 x 20	20.9	6.0	Green
110 x 12	10.6	6.0	Pink
16 x 8	1.03	6.0	Red
90 x 12	8.69	6.0	Pink
40 x 20	6.14	6.0	Green

Find here EFAB Approved Monel Bar Stock in All Shapes and Surface Finish

ASTM B865 UNS N05500 Square Bar Finishes

BD	Bright drawn	SRE	Slit rolled edge
P&T	Peeled and turned	RT	Rough turned/peeled
ST	Smooth turned	PR	Peeled and reeled
CG	Centreless ground	HF	Hot finished
CF	Cold finished	HRAP	Hot rolled annealed and pickled
CD	Cold drawn	P	Polished

Keep Stock of VDM Metals and Valbruna Make WNR 2.4360 Bright and Rectangular Bar For Sale

Various Types Of Monel Alloy Round Bar

Trusted Monel Round Bar Supplier in India, are available in distinctive forms and sizes.

Monel K500 Round Bar

Monel Rod

ASTM B865 UNS N05500 Cold Drawn Bar

Monel 400 Hex Bar

Monel K500 Polished Bar

Monel K500 Flat Bar

Monel 400 Bright Bar

WNR 2.4360 Square Bar

Alloy K500 Rectangular Bar

Monel 405 Round Bar Dimensions

Size & Dimensions of Monel 400 round bar
Metric		US Bar		ASTM/ Canadian		Japanese
Monel Bar Size	Diam. (mm)	Monel Bar Size	Diam. (Inch)	Monel Bar Size	Diam. (mm2)	Monel Bar Size	Diam. (mm)
28	28	#18	2.250			57	57
5	5	#2	0.250	10M	100	6	6
25	25	#16	2.000			51	51
11	11	#9	1.125	55M	2500	29	29
5.5	5.5	#3	0.375	15M	200	10	10
22	22	#15	1.875			48	48
6	6	#4	0.500	20M	300	13	13
18	18	#13	1.625			41	41
7	7	#5	0.625	25M	500	16	16
20	20	#14	1.750			44	44
8	8	#6	0.750	30M	700	19	19
16	16	#12	1.500			38	38
9	9	#7	0.875	35M	1000	22	22
14	14	#11	1.375			35	35
10	10	#8	1.000	45M	1500	25	25
12	12	#10	1.250			32	32

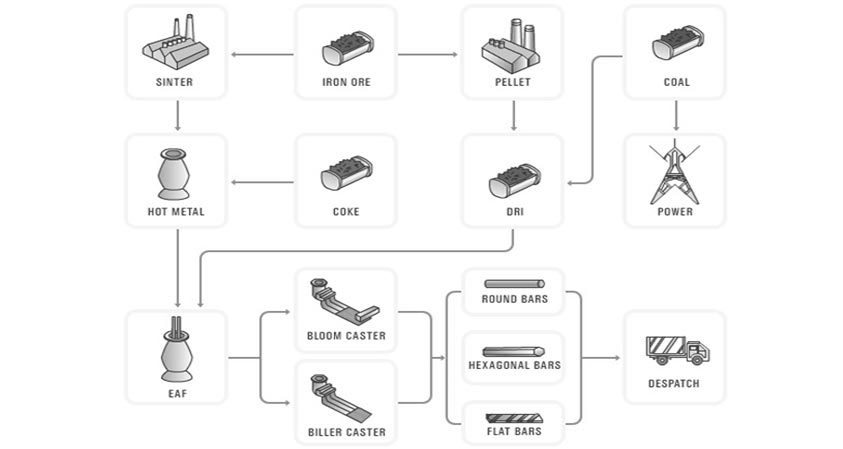

ASTM B865 N05500 Bright Bar Manufacturing Process

Monel 400 Bright Bar Tolerance ISO “H” Series in MM

Monel round bar Tolerance ISO “H” Series in MM
NOMINAL SIZE	H10	h5	h8	h6	h9	H11	h7	h12
~ to 3	+0.04/0	+0.004/0	+0.014/0	+0.006/0	+0.025/0	+0.06/0	+0.01/0	+0.1/0
over 180 to 250	+0.185/0	+0.02/0	+0.072/0	+0.029/0	+0.115/0	+0.29/0	+0.046/0	+0.46/0
over 10 to 18	+0.07/0	+0.008/0	+0.027/0	+0.011/0	+0.043/0	+0.11/0	+0.018/0	+0.18/0
over 120 to 180	+0.16/0	+0.018/0	+0.063/0	+0.025/0	+0.1/0	+0.25/0	+0.04/0	+0.4/0
over 18 to 30	+0.084/0	+0.009/0	+0.033/0	+0.013/0	+0.052/0	+0.13/0	+0.021/0	+0.21/0
over 3 to 6	+0.048/0	+0.005/0	+0.018/0	+0.008/0	+0.03/0	+0.075/0	+0.012/0	+0.12/0
over 6 to 10	+0.058/0	+0.006/0	+0.022/0	+0.009/0	+0.036/0	+0.09/0	+0.015/0	+0.15/0
over 30 to 50	+0.1/0	+0.011/0	+0.039/0	+0.016/0	+0.062/0	+0.16/0	+0.025/0	+0.25/0
over 50 to 80	+0.12/0	+0.013/0	+0.046/0	+0.019/0	+0.074/0	+0.19/0	+0.03/0	+0.3/0
over 80 to 120	+0.14/0	+0.015/0	+0.054/0	+0.022/0	+0.087/0	+0.22/0	+0.035/0	+0.35/0

Can Monel Bar be Welded ?

Yes, Monel can be welded; however welding of Monel requires certain special techniques to achieve quality weld.

WNR 2.4360 Polish Bar Tolerances

Tolerances for Cold Drawn Monel 400 Round Bar
Shape / Section	Size, diameter or width across flats	Permitted variation
Shape / Section	mm	mm
Flat (width)	> 100 ≦ 130 > 18 ≦ 30 > 50 ≦ 80 < 18 > 80 ≦ 100 > 130 ≦ 160 > 30 ≦ 50 > 160 ≦ 320	+ 0 to - 0.220 + 1.00 to - 1.00 + 0 to - 1.00 + 0 to - 0.190 + 0 to - 0.130 + 0 to - 0.160 + 0 to - 0.110 + 0 to - 0.350
Round	> 30 ≦ 50 > 80 ≦ 100 ≥6 ≦ 18 > 18 ≦ 30 > 50 ≦ 80	+ 0 to - 0.085 + 0 to - 0.140 + 0 to - 0.100 + 0 to - 0.070 + 0 to - 0.120
Square and hexagon	> 30 ≦ 50 ≥ 6 ≦ 18 > 80 ≦ 105 > 18 ≦ 30 > 50 ≦ 80	+ 0 to - 0.160 + 0 to - 0.090 + 0 to - 0.250 + 0 to - 0.130 + 0 to - 0.110
Flat (thickness)	> 50 ≦ 80 < 18 > 18 ≦ 30 > 30 ≦ 50	+ 0 to - 0.250 + 0 to - 0.350 + 0 to - 0.110 + 0 to - 0.130

Get Cut to Length Monel 405 Round Bar With Annealed, PH, H&T Condition For Marine Applications

B865 UNS N05500 Hex Bar Condition

PH	Precipitation hardened.
H&T	Hardened and tempered.
ANN	Annealed

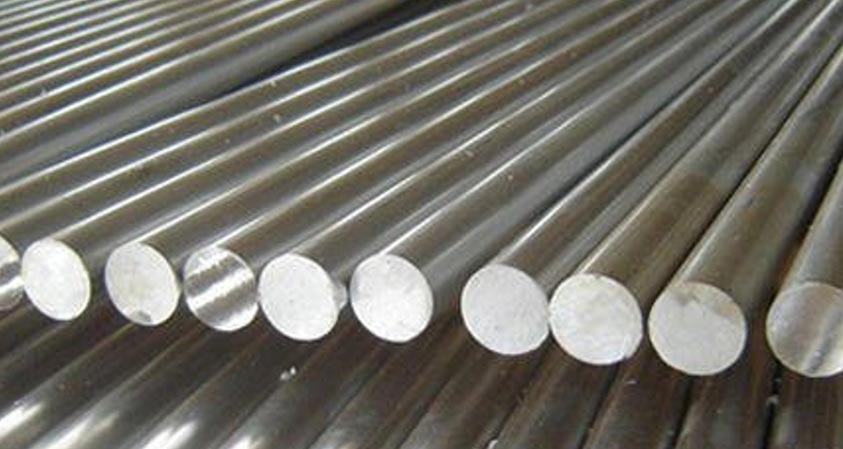

K500 Monel Bar Applications

Paper Industry
Sea Water Equipment
Off-Shore Oil Drilling Companies
Pharmaceutical Equipment
Heat Exchangers
Specialty Chemicals
Pulp Industry
Gas Processing

Chemical Composition of Monel Hollow Bar

Grade	Carbon	Nickel	Silicon	Iron	Copper	Manganese	Sulfur	Aluminum	Titanium
Monel K500	0.25	63.0	0.5	0.5 – 2	27.0 – 33.0	1.5	0.010	2.3 – 3.15	0.35 – 0.85
Monel 400	0.3	63.0	0.5	1.0–2.5	28.0–34.0	2.0	0.02	0.50	–

Mechanical Properties of Monel Flat Bar

Grade	Yield Strength	Tensile Strength	Melting Point	Density	Elongation
Monel 400	Psi 35,000, MPa 240	Psi 80,000, MPa 550	1350 °C (2460 °F)	8,8 g/cm3	40 %
Monel K500	Psi 115000, MPa 790	Psi 160000, MPa 1100	1350 °C (2460 °F)	8.44 g/cm3	20 %

Physical Properties of Monel Bar

Specific Heat	0.102 Btu/lb/°F
Electrical Resistivity	0.511 μ Ω • m
Elastic Modulus	26.0 x 106psi
Thermal Conductivity	151 Btu • in/h/ft 2 /°F

What is the Annealing Temperature of Monel 400 Rod ?

Material	Annealing Temperature Range
Monel 400	1,000°F - 2,100°F / 537°C - 1,149°C

Can We Use Carburizing Methods To Increase the Hardness of Monel 400 Hex Bar?

No,The reasons were that Monel 400 is a nickel-copper alloy with low content of carbon and carburizing is not suitable for Monel 400 Hex Bar to get the higher hardness.

Method	Carburizing for Monel 400 Hex Bar
Effectiveness	Ineffective
Reason	Due to its low carbon concentration, Monel 400 does not form hard phases when carburized.
Alternative Methods for Hardening	solution annealing, Cold working, and age hardening
Hardness (Monel 400)	70-80 Rockwell B or 120-170 Brinell

What is the Difference Between Monel and CuproNickel Rod?

Property	Monel	CuproNickel
Density (g/cm³)	8.80 to 8.90	8.90 to 9.00
Yield Strength (MPa)	275 to 550	250 to 350
Tensile Strength (MPa)	550 to 900	400 to 600
Hardness (HB)	150 to 200	150 to 250
Corrosion Resistance	Excellent in seawater, alkalis and, acids	Excellent in good resistance ,seawater
Applications	chemical processing,Marine environments, aerospace	heat exchangers, Marine environments

Equivalent Grades of Monel Bright Bar

STANDARD	UNS	WERKSTOFF NR.	BS	JIS	AFNOR	GOST	EN
Monel 400	N04400	2.4360	NA 13	NW 4400	NU-30M	МНЖМц 28-2,5-1,5	NiCu30Fe
Monel K500	N05500	2.4375	–	–	–	–	–

Ready Stock of Monel Round Bar

Monel 400 Round Bar Suppliers are easily accessible, however different shapes are also provided to satisfy different industrial needs.

DIN 2.4360 Alloy 400 Round Bar

High Strength Monel 400 Bar

Monel Alloy K500 Hex Bar

650-2000mm ASTM B164 Alloy Steel Round Bar

ASTM B164 UNS N0550 Rod

Monel 400 Alloy Hollow Bar

Monel Round Bar Shipment Time as per Address

Changes in Price Extra 5 %
Export to	Shipping Time in Days
UAE	5 days
Belgium	14
Oman	5
South Africa	25-30
Malaysia	10
Germany	9
Saudi Arabia	7
Singapore	8
Qatar	7
Bahrain	9
USA	40-60
Italy	30
Uk	30
Amsterdam	10
France	30

Why Us ?

Stockist and Exporter of Small Diameter Tubing in Grades of Austenitic and Ferritic Stainless Steel.
Supply as Per American and European Standards According to Dimensional Standard ASME B36.19M
Distributor and Trader in Mumbai of Renowned Mills Outokumpu, POSCO and Aperam
Associated With Dealers and Stockholders in Kuwait, Nigeria, Iraq, Egypt, Congo and Gabon
