Stainless Steel 316L Flanges

Home|Stainless Steel 316L Flanges
Stainless Steel 316L Flanges Specification
How Buyers of Stainless Steel 316L Flanges getting Benefits to buy material from Manisha Steel Centre?
  • High-quality products
  • Technical expertise
  • Bulk purchasing discounts
  • Cost competitiveness
  • Export infrastructure
  • Established trade relations
Manisha Steel Centre

Table of Content


PED Approved Manufacturer Of ASTM A182 F316L Slip On Flange in India As Per ANSI B16.5

Stainless Steel 316L Flanges Specification
ASTM A182 F316L Flange Sizes

ASTM A182 F316L Flange Sizes

  • Size: 1/2 to 60″
  • SCH: SCH 5 to SCH XXS
  • Class : 150 to 2500

SA 182 316l Slip On Flange Manufacturing Process

SA 182 316l Slip On Flange Manufacturing Process

  • Forging
  • Cutting
  • Rolling/ Casting
SS 316L Blind Flanges Face

SS 316L Blind Flanges Face

  • RF
  • LJF
  • RTJ
  • T&G
  • FF

SUS 316L Socket Weld Flanges Threads

SUS 316L Socket Weld Flanges Threads

  • BSPP
  • NPT
  • MNPT
  • FNPT
  • BSPT
Stainless Steel 316L Threaded Flanges Standards

Stainless Steel 316L Threaded Flanges Standards

  • ASME SA182 | ASTM A182
  • ASME B16.47 Series A & B
  • MSS SP44
  • ASME B16.5
316l Flange Types

316l Flange Types

  • Slip On
  • Lap Joint
  • Weld Neck
  • Socket Weld
  • Blind
ASME SA 182 F316L Weld Neck Flanges Meet Requirement

ASME SA 182 F316L Weld Neck Flanges Meet Requirement

  • Sour Service
  • NACE MR0103/MR0175
  • ISO 15156

UNS S31603 Exhaust Flanges Application

UNS S31603 Exhaust Flanges Application

  • Chemical Processing
  • Food and Beverage Industry
  • Aerospace
  • Pressure Vessels
AISI 316L Slip On Flange Finish

AISI 316L Slip On Flange Finish

  • Mirror
  • Serrated/Spiral
  • Concentric
  • Smooth
ASTM A182 F316L Puddle Flange Testing

ASTM A182 F316L Puddle Flange Testing

  • Hardness
  • Pressure
  • Tensile
  • PMI
WNR 1.4404 Header Flanges Supporting Material

WNR 1.4404 Header Flanges Supporting Material

  • Flange Bolts
  • Ring Joint
  • Gaskets
316L Stainless Steel Lap Joint Flange Features

316L Stainless Steel Lap Joint Flange Features

  • corrosion-resistant
  • excellent strength
  • Toughness
INOX 316L WNRF Flange Connection Type

INOX 316L WNRF Flange Connection Type

  • Bolted
  • Welded
  • Threaded
A182 316l SORF Flange Origin

A182 316l SORF Flange Origin

  • European, Korean
  • Japan
  • Indian


Connection Types of SS 316l Flanges

Manisha Steel Centre PED Approved Stainless Steel 316L Flanges Supplier in India provides a range of pressure ratings, kinds, and coatings.

SS 316L Blind Flanges

SS 316L Blind Flanges

SUS 316L Socket Weld Flanges

SUS 316L Socket Weld Flanges

WNR 1.4404 Header Flanges

WNR 1.4404 Header Flanges

316L Stainless Steel Lap Joint Flange

316L Stainless Steel Lap Joint Flange

ASME SA 182 F316L Weld Neck Flanges

ASME SA 182 F316L Weld Neck Flanges

ASTM A182 F316L Puddle Flange

ASTM A182 F316L Puddle Flange

AISI 316L Slip On Flange

AISI 316L Slip On Flange

Stainless Steel 316L Threaded Flanges

Stainless Steel 316L Threaded Flanges

UNS S31603 Exhaust Flanges

UNS S31603 Exhaust Flanges

Excellent Quality SS 316l Weld Neck and Blind Flange Supplier in Mumbai With Size 1/2 to 60″

Stainless Steel 316L Flanges Sizes

Stainless Steel 316L Flanges Manufacturer in India provides a variety of diameters of unique threads and surface finishes.

Nominal Pipe Size Diameter of Raised Face Outside Diameter of Flange Diameter of Hub at Base Thickness of Flange Diameter or Bore Length Thru Hub Radius of Fillet Diameter of Hub at Bevel Depth of Socket
Slip-on Socket Lap Joint Welding Neck Slip-On Threaded Socket Lap Joint
R O X Q W B Y Y Y r H Z
1-1/4 2-1/2 4-5/8 2-5/16 5/8 1.70 1.72 2-1/4 13/16 13/16 3/16 1.66 9/16
1/2 1-3/8 3-1/2 1-3/16 7/16 .88 .90 1-7/8 5/8 5/8 1/8 .84 3/8
3-1/2 5-1/2 8-1/2 4-13/16 15/16 4.07 4.10 2-13/16 1-1/4 1-1/4 3/8 4.00 7/8
3/4 1-11/16 3-7/8 1-1/2 1/2 1.09 1.11 2-1/16 5/8 5/8 1/8 1.05 7/16
24 27-1/4 32 26-1/8 1-7/8 24.25 24.25 6 3-1/4 4-3/8 1/2 24.00 2-1/2
2-1/2 4-1/8 7 3-9/16 7/8 2.94 2.97 2-3/4 1-1/8 1-1/8 5/16 2.88 3/4
1 2 4-1/4 1-15/16 9/16 1.36 1.38 2-3/16 11/16 11/16 1/8 1.32 1/2
3 5 7-1/2 4-1/4 15/16 3.57 3.60 2-3/4 1-3/16 1-3/16 3/8 3.50 13/16
5 7.5/16 10 6-7/16 15/16 5.66 5.69 3-1/2 1-7/16 1-7/16 7/16 5.56 15/16
1-1/2 2-7/8 5 2-9/16 11/16 1.95 1.97 2-7/16 7/8 7/8 1/4 1.90 5/8
6 8-1/2 11 7-9/16 1 6.72 6.75 3-1/2 1-9/16 1-9/16 1/2 6.63 1-1/16
2 3-5/8 6 3-1/16 3/4 2.44 2.46 2-1/2 1 1 5/16 2.38 11/16
8 10-5/8 13-1/2 9-11/16 1-1/8 8.72 8.75 4 1-3/4 1-3/4 1/2 8.63 1-1/4
4 6-3/16 9 5-5/16 15/16 4.57 4.60 3 1-5/16 1-5/16 7/16 4.50 15/16
14 16-1/4 21 15-3/4 1-3/8 14.14 14.18 5 2-1/4 3-1/8 1/2 14.00 1-5/8
10 12-3/4 16 12 1-3/16 10.88 10.92 4 1-15/16 1-15/16 1/2 10.75 1-5/16
18 21 25 19-7/8 1-9/16 18.18 18.20 5-1/2 2-11/16 3-13/16 1/2 18.00 1-15/16
12 15 19 14-3/8 1-1/4 12.88 12.92 4-1/2 2-3/16 2-3/16 1/2 12.75 1-9/16
20 23 27-1/2 22 1-11/16 20.20 20.25 5-11/16 2-7/8 4-1/16 1/2 20.00 2-1/8
16 18-1/2 23-1/2 18 1-7/16 16.16 16.19 5 2-1/2 3-7/16 1/2 16.00 1-3/4

Shop Great Prices UNS S31603 Threaded Flanges With Pressure Class 50 to 2500 LBS As Per ANSI B16.5

ASTM A182 F304L Weld Neck Flange Pressure Rating
ANSI/ASME B16.34 PRESSURE RATING CHART
Temperature °F 900# 400# 1500# 2500# 150# 600# 300#
700 1275 565 2125 3540 110 850 425
500 1395 620 2330 3880 170 930 465
650 1290 575 2150 3580 125 860 430
-20 to 100 2160 960 3600 6000 275 1440 720
600 1310 580 2185 3640 140 875 435
200 1800 800 3000 5000 230 1200 600
800 1210 540 2015 3360 80 805 405
1250 340 150 565 945 20 225 115
650 1290 575 2150 3580 125 860 430
1050 925 410 1545 2570 20 615 310
300 1620 720 2700 4500 205 1080 540
1100 770 345 1285 2145 20 515 255
400 1490 660 2485 4140 190 995 495
1200 465 205 770 1285 20 310 155
850 1190 530 1980 3300 65 790 395
1000 965 430 1605 2675 20 640 320
900 1165 520 1945 3240 50 780 390
1400 145 65 240 400 20 95 50
750 1245 555 2075 3460 95 830 415
1150 595 265 995 1655 20 400 200
950 1145 510 1910 3180 35 765 380
1450 105 45 170 285 15 70 35
1350 185 80 310 515 20 125 60
1500 80 35 135 230 10 55 25
1300 255 115 430 715 20 170 85
Get Comprehensive Range of WNR 1.4404 Socket Weld Flanges With Forged Black and Proof Machined Finish
SA 182 F 316l Exhaust Flanges Surface Finish
  • Bead Blasted Finish
  • Polished Finish
  • Mirror Finish
  • Shot Blasted Finish
  • Galvanized Finish
  • Satin Finish
  • Electro-polished Finish
  • Brushed Finish
  • Machined Finish
  • Pickled and Passivated Finish
  • Rough Machined Finish
Stainless Steel 316L Flanges Price List

Are You Interested in Viewing the Latest Price List for 316L Stainless Steel Flanges? For a quote, send an email right now. kalpesh@manishasteelcentre.com.

Sizes Price in USD $
1/2" to 8" $ 13.94
1/2" to 6"
$ 14.51
1/2" to 4" $ 18.13
1/2" to 10" $ 9.41
1/2" to 3" $ 10.80
1/2" - 12"  $ 18.35
Difference Between 316l and 304 Stainless Steel Flanges
Property 316L Stainless Steel 304 Stainless Steel
Chemical Composition Chromium: 16-18% Chromium: 18-20%
Yield Strength 205 - 290 MPa 215 - 310 MPa
Tensile Strength 505 - 620 MPa 515 - 740 MPa
Hardness 150 - 210 HB 160 - 220 HB
Elongation 40% - 50% 40% - 50%
Temperature 870°C, 925°C 870°C , 925°C

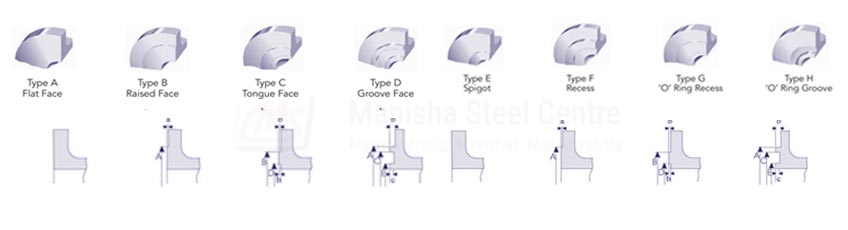

SS 316l Weld Neck Flanges Face Types
SS 316l Weld Neck Flanges Face Types
Offer 316l Stainless Steel Forged Flanges With Capability Of Sawing, Forging, Machine and Heat Treatment
WNR 1.4404 Socket Weld Flanges Value Added Services
  • Heat Treatment
  • Bending
  • Surface Grinding
  • Cutting
  • Surface Coating
  • Sawing
  • Welding
  • Machine
  • Passivation
  • Forging
SS 316l Flanges Weight Chart
Standard Of Flanges Class Of Flanges Diameter Of Flanges Diameter Of Bolt Circle Bolt Hole Diameter Bolts Number Size Of Bolt
AS4087 Flanges PN14 Flanges 95 67 14 4 M12
ISO 7005 (DIN) Flange PN40 Flanges 95 65 14 4 M12
PN6 Flanges 80 55 11 4 M10
PN16 Flanges 95 65 14 4 M12
PN20 Flanges 90 60.5 16 4 M14
PN25 Flanges 95 65 14 4 M12
PN10 Flanges 95 65 14 4 M12
AS 2129 Flange Table D Flanges 95 67 14 4 13
Table C Flanges 95 67 14 4 13
Table H Flanges 114 83 17 4 16
Table J Flanges 114 83 17 4 16
Table E Flanges 95 67 14 4 13
Table F Flanges 95 67 14 4 13
ANSI B16.5 Flanges ANSI 600 Flanges 95 67 16 4 13
ANSI 150 Flanges 89 60 16 4 13
ANSI 1500 Flanges 121 83 22 4 19
ANSI 300 Flanges 95 67 16 4 13
ANSI 900 Flanges 121 83 22 4 19
AISI 316L Slip On Flange Testings
AISI 316L Slip On Flange Testings
  • Ultra Sonic Test (UT)
  • Eddy Current Testing
  • Macro Test
  • Intergranular Corrosion (IGC) Test
  • Hydrostatic Test
  • Flaring Test
  • Flattening Test
  • Bend Test
  • Impact Test
  • Radiography Test

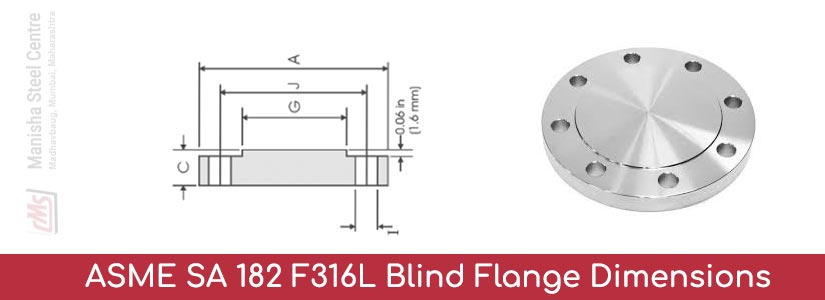

ASME SA 182 F316L Blind Flange Dimensions
ASME SA 182 F316L Blind Flange Dimensions
Nominal Pipe Size (in) Overall Diameter (in) Outside Diameter (in) Face Diameter (in) Flange Thickness min (in) C (in) H (in) G (in) J (in) Number of Holes Drilling Data (in) Weight (kg/piece)
1 1/4 4.880 1.315 2.000 0.690 0.750 4 3.500 33.40 4 1.39 1.39
1/2 3.750 0.840 1.380 0.560 0.620 1/2 2.620 21.30 4 0.64 0.64
2 6.120 1.900 2.880 0.810 0.880 I 1/2 4.500 48.30 4 2.66 2.66
3/4 4.620 1.050 1.690 0.620 0.750 3/4 3.250 26.70 4 1.11 1.11
3 1/2 8.250 3.500 5.000 1.120 0.880 3 6.620 88.90 8 6.81 6.81
1 1/2 5.250 1.660 2.500 0.750 0.750 I 1/4 3.880 42.20 4 1.79 1.79
4 9.000 4.000 5.500 1.190 0.880 3 1/2 7.250 101.6 8 8.71 8.71
2 1/2 6.500 2.375 3.620 0.880 0.750 2 5.000 60.30 8 3.18 3.18
8 12.50 6.625 8.500 1.440 0.880 6 10.62 168.3 12 20.9 20.9
5 10.00 4.500 6.190 1.250 0.880 4 7.800 114.3 8 11.5 11.5
10 15.00 8.625 10.62 1.620 1.000 8 13.00 219.1 12 34.3 34.3
6 11.00 5.563 7.310 1.380 0.880 5 9.250 141.3 8 15.6 15.6
12 17.50 10.75 12.75 1.880 1.120 10 15.25 273.0 16 53.3 53.3
UNS S31603 Threaded Flanges Applications
UNS S31603 Threaded Flanges Applications
Which Type of Welding is Best for 316l Stainless Steel Flanges?
  • TIG welding
  • Gas Metal Arc Welding
  • MIG welding
  • Gas Tungsten Arc Welding
  • Plasma arc welding
  • Submerged arc welding
Physical Properties of A182 316l Lap Joint Flange
Physical Properties
Electrical Resistivity 7.4 μohm/cm
Specific Heat (0-100°C) 500 J.kg-1.°K-1
Modulus Elasticity 193 GPa
Thermal Conductivity 16.3 W.m -1.°K-1
Density 7.99 g/cm3
Thermal Expansion 15.9 mm/m/°C
Chemical Composition of ASTM A182 F316L WNRF Flange
Cr 16 - 18%
Mn 2%
N 0.10%
Ni 10 - 14%
Mo 3%
Si 0.75%
Equivalent Grades of 316l Stainless Steel Forged Flanges
STANDARD WERKSTOFF NR. UNS GOST AFNOR EN JIS BS
SS 316L 1.4404 / 1.4435 S31603 03Ch17N14M3 / 03Ch17N14M2 Z3CND17‐11‐02 / Z3CND18‐14‐03 X2CrNiMo17-12-2 / X2CrNiMo18-14-3 SUS 316L 316S11 / 316S13
Mechanical Properties of 316l Flange
Grade Yield Strength Tensile Strength Hardness (Brinell) MAX Elongation % Hardness
0.2% ksi (min) ksi (min) (Rockwell B) MAX
316L 25 70 217 40 95
Delivery Time as per Address of Stainless Steel 316L Flanges
Changes in Cost

Extra 5 %
Delivery Location Shiping Time in Days
Belgium 28
Mexico 45
Puerto Rica 45
Germany 21
Uk 30
Canada 45
Jamaica 50
Costa Rica 45
Trinidad And Tobago 60
Panama 45
Bahamas  60
Netherland 30
Russia 20
Spain  30
Ukraine 60
Denmark 35
Italy 28
Norway 45
