ASTM A182 F11 Flanges

Home|ASTM A182 F11 Flanges

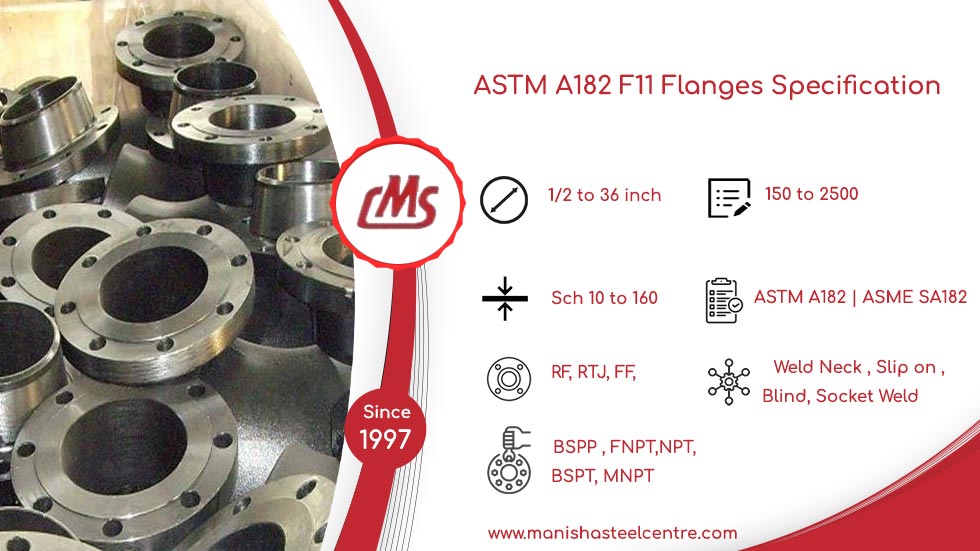

ASTM A182 F11 Flanges Specification
Manisha Steel Centre

Table of Content

Best ASME SA 182 Grade F11 Class 2 Pipe Flange Manufacturer in India At Discounted Price

ASTM A182 F11 Material Specification
ASTM A182 Grade F11 Pipe Flanges Sizes

ASTM A182 Grade F11 Pipe Flanges Sizes

  • NPS: 1/2 to 36 inch
  • SCH: 10 to XXS
  • Class: 150 - 2500
ASTM A182 Gr F11 Blind Flanges Manufacturing Process

ASTM A182 Gr F11 Blind Flanges Manufacturing Process

  • Casting
  • Forging
  • Rolling/Cutting
ASTM A182 F11 Alloy Steel Slip On Flange Face

ASTM A182 F11 Alloy Steel Slip On Flange Face

  • RF
  • LJF
  • RTJ
  • FF
  • T & G
SA 182 F11 Weld Neck Flanges Threads

SA 182 F11 Weld Neck Flanges Threads

  • FNPT
  • NPT
  • BSPP
  • BSPT
  • MNPT
UNS K11572 Socket Weld Flanges Standards

UNS K11572 Socket Weld Flanges Standards

  • ASME SA 182 | ASTM A182
  • MSS SP44
  • ASME B16.5
  • ASME B16.47 Series A & B

F11 Alloy Steel Threaded Flanges Types

F11 Alloy Steel Threaded Flanges Types

  • Blind
  • Weld Neck
  • Slip On
  • Socket Weld
  • Lap Joint
SA 182 Gr F11 Lap Joint Flange Finish

SA 182 Gr F11 Lap Joint Flange Finish

  • Smooth
  • Concentric/Spiral
  • Serrated
  • Mirror

ASTM A182 F11 Class 2 Exhaust Flanges Testing

ASTM A182 F11 Class 2 Exhaust Flanges Testing

  • Pressure
  • Hardness
  • PMI
  • Tensile
ASTM A182 F11 CL2 Header Flanges Supporting Material

ASTM A182 F11 CL2 Header Flanges Supporting Material

  • Gaskets
  • Flange Bolts
  • Ring Joint
SA 182 Gr F11 CL 2 Puddle Flange Grades

SA 182 Gr F11 CL 2 Puddle Flange Grades

  • F1 , F5
  • F9 , F11
  • F22 , F91

ASTM A182 F11 Flanges Connection Type

ASTM A182 F11 Flanges Connection Type

  • Welded
  • Threaded
  • Bolted
ASTM A182 Grade F11 Pipe Flanges Origin

ASTM A182 Grade F11 Pipe Flanges Origin

  • Japan, Korean
  • Indian
  • European
ASTM A182 Gr F11 Blind Flanges Meet Requirement

ASTM A182 Gr F11 Blind Flanges Meet Requirement

  • ISO 15156
  • NACE MR0103/MR0175
  • Sour Service

ASTM A182 F11 Alloy Steel Slip On Flange Application

ASTM A182 F11 Alloy Steel Slip On Flange Application

  • Power Plants
  • Oil And Chemical Processing
  • Boiler Systems
  • High-temperature Fluids
  • Pipelines

Supplier Of Forged and Rolled Method UNS K11572 Blind and Weld Neck Flange As Per Custom Drawing in Mumbai

Size Chart of ASTM A182 F11 Flanges

ASTM A182 F11 Flanges Manufacturer in India in various Sizes with Different Surface Finishes and Threads

Size WT OD Dia. of Raised Face Hub at Bevel Dia. Hub at Base Dia. Radius of Fillet Length Socket Deptd Bore And Dia.
Weld Neck (WN) Threaded Socket Loose (Lap Joint) Slip-on Socket Loose (Lap Joint)
Q O R H X r Y Y Y Z W B
10 1-3/16 16 12-3/4 10.75 12 1/2 4 1-15/16 1-15/16 1-5/16 10.88 10.92
8 1-1/8 13-1/2 10-5/8 8.63 9-11/16 1/2 4 1-3/4 1-3/4 1-1/4 8.72 8.75
6 1 11 8-1/2 6.63 7-9/16 1/2 3-1/2 1-9/16 1-9/16 1-1/16 6.72 6.75
5 15/16 10 7.5/16 5.56 6-7/16 7/16 3-1/2 1-7/16 1-7/16 15/16 5.66 5.69
4 15/16 9 6-3/16 4.50 5-5/16 7/16 3 1-5/16 1-5/16 15/16 4.57 4.60
3-1/2 15/16 8-1/2 5-1/2 4.00 4-13/16 3/8 2-13/16 1-1/4 1-1/4 7/8 4.07 4.10
3 15/16 7-1/2 5 3.50 4-1/4 3/8 2-3/4 1-3/16 1-3/16 13/16 3.57 3.60
2-1/2 7/8 7 4-1/8 2.88 3-9/16 5/16 2-3/4 1-1/8 1-1/8 3/4 2.94 2.97
2 3/4 6 3-5/8 2.38 3-1/16 5/16 2-1/2 1 1 11/16 2.44 2.46
1-1/2 11/16 5 2-7/8 1.90 2-9/16 1/4 2-7/16 7/8 7/8 5/8 1.95 1.97
1-1/4 5/8 4-5/8 2-1/2 1.66 2-5/16 3/16 2-1/4 13/16 13/16 9/16 1.70 1.72
1 9/16 4-1/4 2 1.32 1-15/16 1/8 2-3/16 11/16 11/16 1/2 1.36 1.38
3/4 1/2 3-7/8 1-11/16 1.05 1-1/2 1/8 2-1/16 5/8 5/8 7/16 1.09 1.11
1/2 7/16 3-1/2 1-3/8 .84 1-3/16 1/8 1-7/8 5/8 5/8 3/8 .88 .90
ASTM A182 Grade F11 Pipe Flanges Dimensions
Size O.D Dia. of Raised Face WT Of Flange Min Dia. of Hub Length Hub Dia. of Bolt Holes Thread Length Bolt Circle Dia. Dia. of Bolts (in.) No. of Bolts LB KG
in. dn O G C X Y BH T BC BD BN - -
24" 600 813.00 692.20 47.80 663.40 82.60 35.10 82.60 749.30 1 1/4" 20 214 97
20" 500 698.51 584.20 42.90 558.80 73.20 31.80 73.20 635.00 1 1/8" 20 167 76
16" 400 597.00 469.90 36.60 457.20 63.50 28.50 63.50 539.80 1" 16 103 47
12" 300 482.50 381.00 31.80 365.30 55.60 25.40 55.60 431.80 7/8" 12 64 29
10" 250 406.50 323.90 30.20 304.80 49.30 25.40 49.30 362.00 7/8" 12 39.5 18
8" 200 343.00 269.70 28.40 246.10 44.50 22.40 44.50 298.50 3/4" 8 28.6 13
5" 125 254.00 185.70 23.90 163.60 36.60 22.40 36.60 215.90 3/4" 8 15.4 7
4" 100 228.50 157.20 23.90 134.90 33.30 19.10 33.30 190.50 5/8" 8 13 5.9
3 1/2" 91 216 139.70 23.91 122.21 31.81 19.10 31.80 177.81 5/8" 8 11.2 5.1
3" 80 190.50 127.00 23.90 108.00 30.20 19.10 30.20 152.40 5/8" 4 9 4.1
2-1/2" 65 178.00 104.60 22.40 90.40 28.40 19.10 28.40 139.70 5/8" 4 8.1 3.7
2" 50 152.50 91.90 19.10 77.70 25.40 19.10 25.40 120.70 5/8" 4 5.1 2.3
1-1/2" 40 127.00 73.20 17.50 65.00 22.40 15.80 22.40 98.60 1/2" 4 3.3 1.5
1-1/4" 32 117.50 63.50 15.70 58.70 20.60 15.80 20.60 88.90 1/2" 4 2.6 1.2
1" 25 108.00 50.80 14.20 49.30 17.50 15.80 17.50 79.30 1/2" 4 1.8 0.8
3/4" 20 98.50 42.91 12.70 38.10 15.70 15.80 15.70 69.90 1/2" 4 1.5 0.7
1/2" 15 89.00 35.10 11.20 30.20 15.70 15.80 15.70 60.50 1/2" 4 0.9 0.4
Gasket Chart ofASTM A182 Gr F11 Blind Flanges
Size Gasket I.D
 Gasket O.D
900 LB 600 LB 400 LB 300 LB 150 LB
10 10.75 17.125 15.75 14.125 14.25 13.375
8 8.62 14.125 12.625 12.00 12.125 11
6 6.62 11.375 10.50 9.75 9.875 8.75
5 5.56 9.75 9.50 8.375 8.50 7.75
4 4.50 8.125 7.625 7.00 7.125 6.875
3 3.50 6.625 5.875 5.875 5.875 5.375
2-1/2 2.88 6.50 5.125 5.125 5.125 4.875
2 2.38 5.625 4.375 4.375 4.375 4.125
1 1/2 1.91 3.875 3.75 3.75 3.75 3.375
1 1/4 1.66 3.50 3.25 3.25 3.25 3
1 1.31 3.125 2.875 2.875 2.875 2.625
3/4 1.06 2.75 2.625 2.625 2.625 2.25
1/2 0.84 2.50 2.125 2.125 2.125 1.875

Buy ASTM A182 Gr F11 CL2 Slip On Flange Which Manufactured As Per Pressure Ranges 150 to 2500 LBS

ASTM A182 Gr F11 CL2 Slip On Flange Pressure Rating

Would You Like to View the Most Recent ASTM A182 F11 Flange Price List? A quote can be obtained right away by sending an email to kalpesh@manishasteelcentre.com.

Temperature 2500# 1500# 900# 600# 400# 300# 150#
450 195.1 117.1 70.2 46.8 31.2 23.4 4.6
425 198.8 119.3 71.6 47.7 31.8 23.9 5.5
400 202.5 121.5 72.9 48.6 32.4 24.3 6.5
375 206.3 123.8 74.3 49.5 33 24.8 7.4
350 208.9 125.4 75.2 50.1 33.4 25.1 8.4
325 212.3 127.4 76.4 51 34 25.5 9.3
300 217.2 130.3 78.2 52.1 34.8 26.1 10
250 228.9 137.3 82.4 54.9 36.6 27.5 10.5
200 243 145.8 87.5 58.3 38.9 29.2 11.2
150 261.6 157 94.2 62.8 41.9 31.4 12
100 289.9 173.9 104.4 69.6 46.4 34.8 13.3
50 333.5 200.1 120.1 80 53.4 40 15.3
-29 to 38 344.7 206.8 124.1 82.7 55.2 41.4 15.9
Pressure Chart of SA 182 F11 Weld Neck Flanges

Manisha Steel Centre ISO Certified ASTM A182 F11 Flanges Supplier in India Keep featuring Different Finishes and Pressure Ratings

Pipe Size - Pipe Flange Connection Type Max. Pressure
4" Slip On 720 psi
3" Slip On 720 psi
2-1/2" Slip On 720 psi
2" Slip On 720 psi
1-1/2" Slip On 720 psi
1-1/4" Slip On 720 psi
1-1/4" FNPT 720 psi
1" Slip On 720 psi
4" Socket Weld 275 psi
4" FNPT 150 psi
3" Socket Weld 275 psi
2-1/2" Socket Weld 275 psi
2" Socket Weld 275 psi
2" FNPT 150 psi
1-1/2" Socket Weld 275 psi
1-1/4" Socket Weld 275 psi
3/4" Socket Weld 275 psi
3/4" FNPT 150 psi
1/2" Welded 150 psi
1/2" Socket Weld 275 psi
1/2" FNPT 150 psi
1/2" Slip On 720 psi
Offer Full Range of F11 Alloy Steel Forged Flanges With Various Face and Finish Built to Fight Against Acid Attack

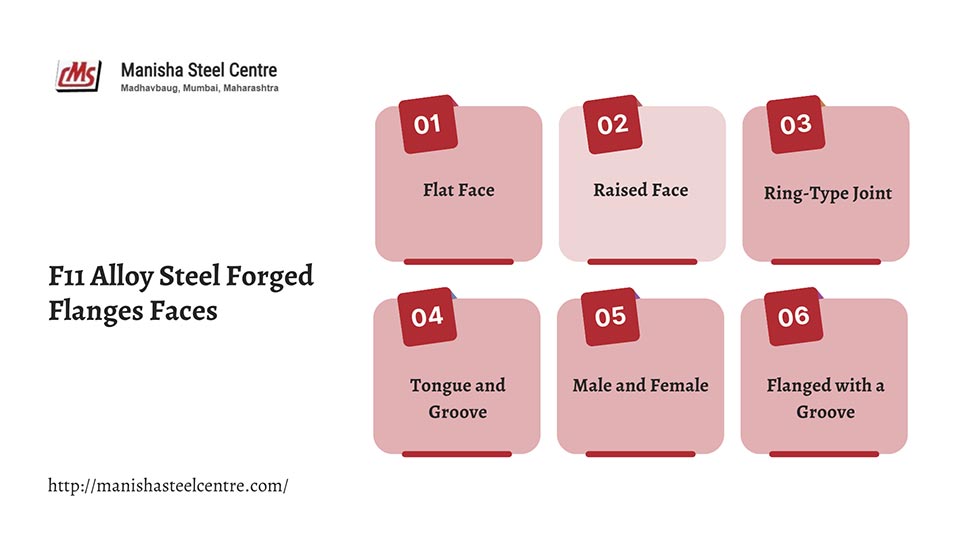

F11 Alloy Steel Forged Flanges Faces
F11 Alloy Steel Forged Flanges Faces
Finishes of ASTM A182 F11 Alloy Steel Slip On Flange
  • Machine Finish
  • Shot-Blasted Finish
  • Passivated Finish
  • Polished Finish
  • Galvanized Finish
  • Hot-Dip Galvanized
  • Coated Finish
  • Black Oxide Finish
Types of ASTM A182 F11 Flanges
ASTM A182 F11 Blind Flanges

ASTM A182 F11 Blind Flanges

ASTM A182 Gr F11 Slip On Flange

ASTM A182 Gr F11 Slip On Flange

ASTM A182 Grade F11 Header Flanges

ASTM A182 Grade F11 Header Flanges

ASTM A182 F11 steel Puddle Flange

ASTM A182 F11 steel Puddle Flange

A182 F11 Weld Neck Flanges

A182 F11 Weld Neck Flanges

SA 182 F11 Socket Weld Flanges

SA 182 F11 Socket Weld Flanges

A182 Gr F11 Threaded Flanges

A182 Gr F11 Threaded Flanges

SA 182 Gr F11 Exhaust Flanges

SA 182 Gr F11 Exhaust Flanges

SA182 F11 Lap Joint Flange

SA182 F11 Lap Joint Flange

Get Ready Stock Of SA 182 Gr F11 Socket Weld Flanges Utilize For High-Temperature Service, See Composition/ Equivalent
ASTM A182 F11 Chemical Composition
Grade Manganese Carbon Sulfur Silicon Phosphorus Molybdenum Chromium
F11 0.3 - 0.6 0.05 - 0.15 0.03 0.5 - 1 0.03 0.044 - 0.65 1 - 1.5
A182 F11 Material Equivalent
Name Type Specification UNS No. Casting Specification Application DIN
1.1/4Cr-1/2Mo K11572 A217-WC6 A182-F11 cl2 13CRM044 Up to 593ºC 1.7335
Mechanical Properties of SA 182 Gr F11 Lap Joint Flange
Grade Tensile Strength Elongation % Yield Strength
F11 205 Mpa 20 415 Mpa
ASTM A182 F11 Flanges Country Wise Shipping Time
Country Approx. Delivery Time in Days
Belgium 40
Netherland 30
France 28
Spain 30
Denmark 35
Czech Republic 45
Italy 28
Russia 20
