Stainless Steel 304L Flanges

Home|Stainless Steel 304L Flanges

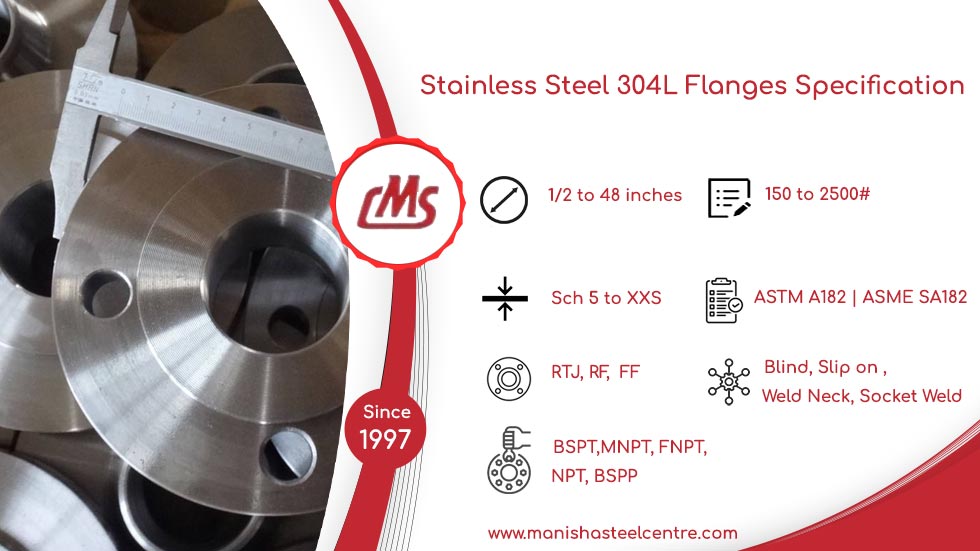

Stainless Steel 304L Flanges Specification
Why Suppliers in Mexico of Stainless Steel 304L Flanges Buying Material from India?
  • Cost-efficiency
  • Standards of Quality
  • Manufacturing Proficiency
  • Dependable Supply Chain
  • Variety of Options
Manisha Steel Centre

Table of Content


Custom Drawing SS 304l Flange Manufacturer in India Mainly Used to Connect Pipes

Stainless Steel 304L Flanges Specification
SS 304L Flange Sizes

SS 304L Flange Sizes

  • NPS: 1/2 to 48 inches
  • Class / Pressure: 150 - 2500 #
  • SCH: Sch 5 - XXS

ASTM A182 F304L Pipe Flange Manufacturing Process

ASTM A182 F304L Pipe Flange Manufacturing Process

  • Cutting/ Casting
  • Forging
  • Rolling
Stainless Steel 304l Flanges Standards

Stainless Steel 304l Flanges Standards

  • ASTM A182 | ASME SA182
  • MSS SP44
  • ASME B16.47 Series A & B
  • ASME B16.5
304L Stainless Steel Flanges Types

304L Stainless Steel Flanges Types

  • Lap Joint
  • Socket Weld
  • Slip On
  • Weld Neck
  • Blind
AISI 304L Socket Weld Flanges Face

AISI 304L Socket Weld Flanges Face

  • LJF
  • T&G
  • RF
  • FF
  • RTJ
SUS 304L Threaded Flange Threads

SUS 304L Threaded Flange Threads

  • MNPT
  • BSPT
  • NPT
  • BSPP
  • FNPT
Stainless Steel 304L Blind Flanges Supporting Material

Stainless Steel 304L Blind Flanges Supporting Material

  • Ring Joint
  • Flange Bolts
  • Gaskets
ASME SA 182 F304L Puddle Flange Features

ASME SA 182 F304L Puddle Flange Features

  • excellent strength
  • corrosion-resistant
  • toughness
WNR 1.4307 Header Flanges Connection Type

WNR 1.4307 Header Flanges Connection Type

  • Welded
  • Bolted
  • Threaded
304L Stainless Steel Weld Neck Flanges Origin

304L Stainless Steel Weld Neck Flanges Origin

  • Japan
  • Indian, Korean
  • European
UNS S30403 Exhaust Flanges Meet Requirement

UNS S30403 Exhaust Flanges Meet Requirement

  • NACE MR0103/MR0175
  • Sour Service
  • ISO 15156

INOX 304L Lap Joint Flange Application

INOX 304L Lap Joint Flange Application

  • Food and Beverage Industry
  • Pressure Vessels
  • Chemical Processing
  • Aerospace
SUS 304L Threaded Flanges Finish

SUS 304L Threaded Flanges Finish

  • Serrated/Spiral
  • Smooth
  • Mirror
  • Concentric
A182 304l Blind Flanges Testing

A182 304l Blind Flanges Testing

  • Pressure
  • PMI
  • Hardness
  • Tensile

WNR 1.4307 Blind Flange Testings
  • Hydrostatic Test
  • Pitting Resistance Test
  • Ultra Sonic Test (UT)
  • Macro Test
  • Chemical Analysis - Spectro Analysis
  • Radiography Test
  • Dye Penetrant Test (DP Test)
  • Impact Test
  • Bend Test
  • Flattening Test
  • Flaring Test
  • Micro Test
  • Intergranular Corrosion (IGC) Test
  • Eddy Current Testing

Prominent Supplier Of ASTM A182 F304L Weld Neck Flange in Mumbai With MTC At Wholesale Prices

Stainless Steel 304L Flanges Price List

Do You Want to See the Most Recent Stainless Steel 304L Flange Price List? Right now, send an email to get a quote. kalpesh@manishasteelcentre.com.

SIZE Price in INR Price in USD $
15 NB 205.00 2.34
32 NB 485.00 5.52
20 NB 270.00 3.08
40 NB 535.00 6.09
25 NB 345.00 3.93
65 NB 1375.00 15.66
50 NB 840.00 9.57
100 NB 2315.00 26.37
80 NB 1550.00 17.66
150 NB 3680.00 41.92
125 NB 2990.00 34.06
250 NB 9800.00 111.63
200 NB 6300.00 71.76
Difference Between 304l and 304h Stainless Steel Flanges
Property 304L Stainless Steel 304H Stainless Steel
Carbon Content 0.03% carbon 0.04% and 0.1% carbon
Temperature 425°C 500°C–800°C
Corrosion Resistance Excellent Excellent
Intergranular Corrosion Less Corrosion resistant More Corrosion resistant
Application Examples food industry and architectural applications Heat exchangers, high-strength applications, dairy industry

Keep Bulk Stock of WNR 1.4307 Blind and Slip On Flange As Per ANSI B16.5 With Pressure PN6 to PN64

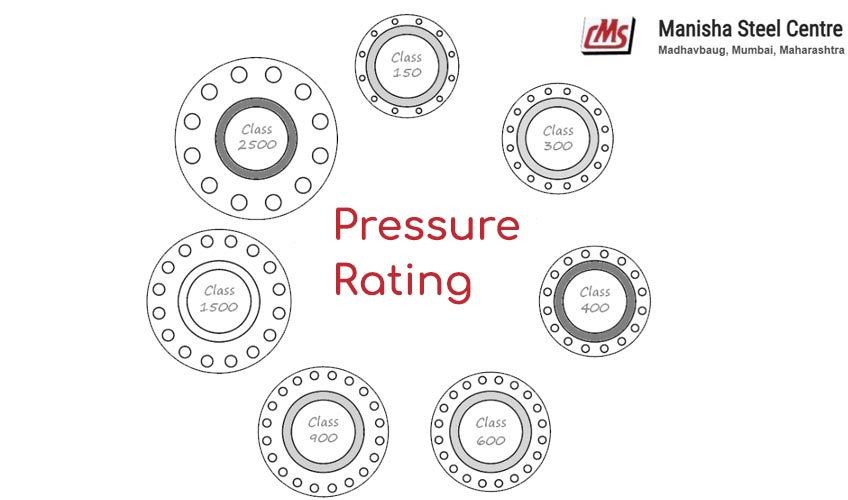

ASTM A182 F304L Weld Neck Flange Pressure Rating
ASTM A182 F304L Weld Neck Flange Pressure Rating

ANSI/ASME B16.34 PRESSURE RATING CHART
Temperature °F 400# 150# 900# 300# 1500# 600# 2500#
500 620 170 1395 465 2330 930 3880
-20 to 100 960 275 2160 720 3600 1440 6000
700 565 110 1275 425 2125 850 3540
200 800 230 1800 600 3000 1200 5000
650 575 125 1290 430 2150 860 3580
300 720 205 1620 540 2700 1080 4500
650 575 125 1290 430 2150 860 3580
400 660 190 1490 495 2485 995 4140
850 530 65 1190 395 1980 790 3300
600 580 140 1310 435 2185 875 3640
900 520 50 1165 390 1945 780 3240
750 555 95 1245 415 2075 830 3460
1100 345 20 770 255 1285 515 2145
800 540 80 1210 405 2015 805 3360
1050 410 20 925 310 1545 615 2570
1250 150 20 340 115 565 225 945
950 510 35 1145 380 1910 765 3180
1200 205 20 465 155 770 310 1285
1000 430 20 965 320 1605 640 2675
1350 80 20 185 60 310 125 515
1400 65 20 145 50 240 95 400
1150 265 20 595 200 995 400 1655
1450 45 15 105 35 170 70 285
1300 115 20 255 85 430 170 715
1500 35 10 80 25 135 55 230
Find High Quality RF, FF, RTJ Face UNS S30403 Socket Weld and Threaded Flange to Suit Your Application
304L Stainless Steel Flanges Face Types
Face Type Applications
Full Face Full face gaskets
Convex Specialized applications
Flat Face Low-pressure
Raised Face General pressure
Concave High-pressure
RTJ High-pressure

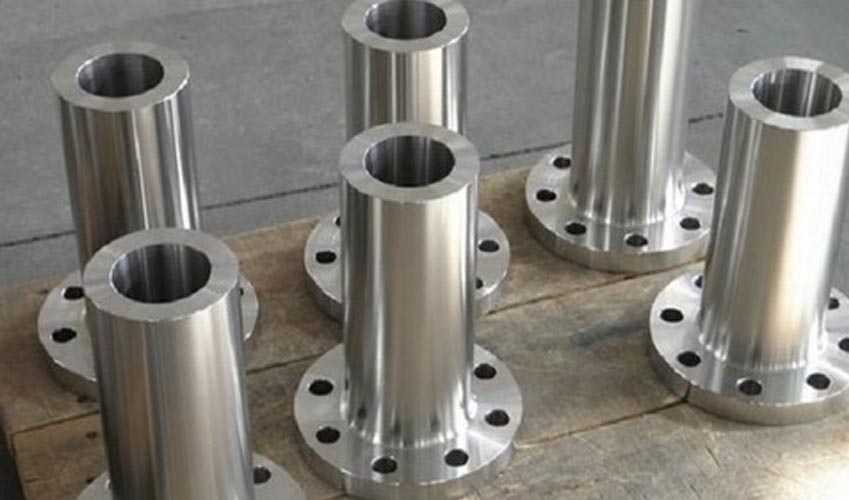

AISI 304L Stainless Steel Pipe Flange Applications
AISI 304L Stainless Steel Pipe Flange Applications
  • Waterworks Systems
  • Sugar Industries
  • Petrochemical Industries
  • Food Processing And Manufacturing
  • Nuclear Power Application
  • Oil And Gas Industry
  • Municipal Pipe Systems
  • Fossil Fuel Power Plants
  • Power Plants Industry
UNS S30403 Socket Weld Flange Weight Chart
Standard Of Flanges Class Of Flanges Diameter Of Bolt Circle Size Of Bolt Diameter Of Flanges Bolt Hole Diameter Bolts Number
AS4087 Flanges PN14 Flanges 67 M12 95 14 4
ANSI B16.5 Flanges ANSI 150 Flanges 60 13 89 16 4
ANSI 600 Flanges 67 13 95 16 4
ANSI 300 Flanges 67 13 95 16 4
ANSI 1500 Flanges 83 19 121 22 4
ANSI 900 Flanges 83 19 121 22 4
AS 2129 Flange Table C Flanges 67 13 95 14 4
Table J Flanges 83 16 114 17 4
Table F Flanges 67 13 95 14 4
Table D Flanges 67 13 95 14 4
Table H Flanges 83 16 114 17 4
Table E Flanges 67 13 95 14 4
ISO 7005 (DIN) Flange PN6 Flanges 55 M10 80 11 4
PN20 Flanges 60.5 M14 90 16 4
PN10 Flanges 65 M12 95 14 4
PN25 Flanges 65 M12 95 14 4
PN16 Flanges 65 M12 95 14 4
PN40 Flanges 65 M12 95 14 4
How Do I Select the Right Stainless Steel 304l Flanges for My Application?
  • Connection Type
  • Size and Dimensions
  • Corrosion Resistance
  • Standards Compliance
  • Cost and Availability
  • Surface Finish
  • Temperature Range
  • Pressure Rating
  • Load and Stress Assessment
  • Material Compatibility
Stainless Steel 304L Flanges Sizes

Stainless Steel 304L Flanges Manufacturer in India supplies distinctive threads and surface treatments in a range of diameters

Nom. Pipe Size x o R T1 Bolt Circle Dia. No.2/Dia. of Holes L21 L H B B23 L34 r D B3
1/2 1.19 3.50 1.38 0.44 2.38 4-0.62 1.88 0.62 0.84 0.88 0.62 0.62 0.12 0.38 0.90
1-1/2 2.56 5.00 2.88 0.68 3.88 4-0.62 2.44 0.88 1.90 1.95 1.61 0.88 0.25 0.62 1.97
3/4 1.50 3.88 1.69 0.50 2.75 4-0.62 2.06 0.62 1.05 1.09 0.82 0.62 0.12 0.44 1.11
3 4.25 7.50 5.00 0.94 6.00 4-0.75 2.75 1.19 3.50 3.57 3.07 1.19 0.38 0.81 3.60
1 1.94 4.25 2.00 0.56 3.12 4-0.62 2.19 0.69 1.32 1.36 1.05 0.69 0.12 0.50 1.38
2-1/2 3.56 7.00 4.12 0.88 5.50 4-0.75 2.75 1.12 2.88 2.94 2.47 1.12 0.31 0.75 2.97
4 5.31 9.00 6.19 0.94 7.50 8-0.75 3.00 1.31 4.50 4.57 4.03 1.31 0.44 0.94 4.60
1-1/4 2.31 4.62 2.50 0.62 3.50 4-0.62 2.25 0.81 1.66 1.70 1.38 0.81 0.19 0.56 1.72
5 6.44 10.00 7.31 0.94 8.50 8-0.88 3.50 1.44 5.56 5.66 5.05 1.44 0.44 0.94 5.69
2 3.06 6.00 3.62 0.75 4.75 4-0.75 2.50 1.00 2.38 2.44 2.07 1.00 0.31 0.69 2.46
8 9.69 13.50 10.62 1.12 11.75 8-0.88 4.00 1.75 8.63 8.72 7.98 1.75 0.50 1.25 8.75
3-1/2 4.81 8.50 5.50 0.94 7.00 8-0.75 2.81 1.25 4.00 4.07 3.55 1.25 0.38 0.88 4.10
12 14.38 19.00 15.00 1.25 17.00 12-1.00 4.50 2.19 12.75 12.88 12.00 2.19 0.50 1.56 12.92
6 7.56 11.00 8.50 1.00 9.50 8-0.88 3.50 1.56 6.63 6.72 6.07 1.56 0.50 1.06 6.75
14 15.75 21.00 16.25 1.38 18.75 12-1.12 5.00 2.25 14.00 14.14 13.25 3.12 0.50 1.63 14.18
10 12.00 16.00 12.75 1.19 14.25 12-1.00 4.00 1.94 10.75 10.88 10.02 1.94 0.50 1.31 10.92
18 19.88 25.00 21.00 1.56 22.75 16-1.25 5.50 2.69 18.00 18.18 17.25 3.81 0.50 1.94 18.20
16 18.00 23.50 18.50 1.44 21.25 16-1.12 5.00 2.50 16.00 16.16 15.25 3.44 0.50 1.75 16.19
20 22.00 27.50 23.00 1.69 25.00 20-1.25 5.69 2.88 20.00 20.20 19.25 4.06 0.50 2.13 20.25
Get Large Selection of Different Types AISI 304L Stainless Steel Pipe Flange in Both Hot and Cold Rolled Form
Connection Types of SS 304L Flanges

Manisha Steel Centre Most Reliable Stainless Steel 304 Flanges Supplier in India offers a variety of types, coatings, and pressure ratings.

Stainless Steel 304L Blind Flanges

Stainless Steel 304L Blind Flanges

SS 304L Slip On Flange

SS 304L Slip On Flange

304L Stainless Steel Weld Neck Flanges

304L Stainless Steel Weld Neck Flanges

AISI 304L Socket Weld Flanges

AISI 304L Socket Weld Flanges

SUS 304L Threaded Flanges

SUS 304L Threaded Flanges

INOX 304L Lap Joint Flange

INOX 304L Lap Joint Flange

UNS S30403 Exhaust Flanges

UNS S30403 Exhaust Flanges

WNR 1.4307 Header Flanges

WNR 1.4307 Header Flanges

ASME SA 182 F304L Puddle Flange

ASME SA 182 F304L Puddle Flange

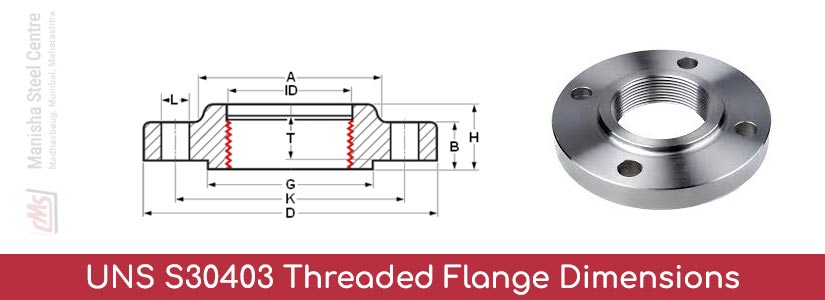

UNS S30403 Threaded Flange Dimensions
UNS S30403 Threaded Flange Dimensions
CLass 600 150 1500 300 2500 900
THK B 20.7 11.2 28.7 14.3 36.6 28.7
DIA A 38 30 38 38 43 38
DIA G 35.1 35.1 35.1 35.1 35.1 35.1
DIA D 95 90 120 95 135 120
H 28.4 15.6 38.4 22.6 46.4 38.4
DIA K 66.7 60.3 82.6 66.7 88.9 82.6
DIA L 15.9 15.9 22.2 15.9 22.2 22.2
NO. L 4 4 4 4 4 4

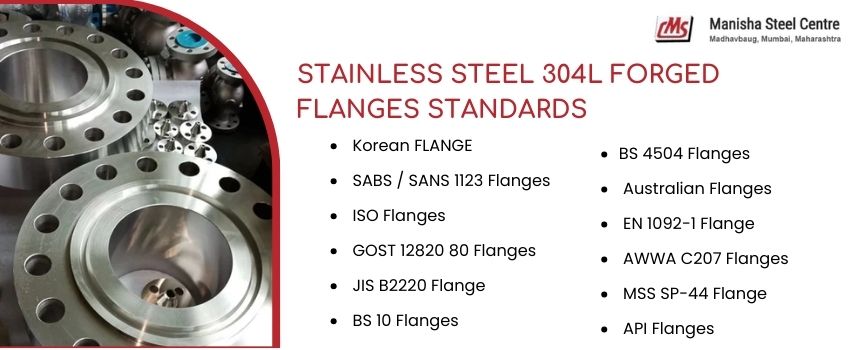

Stainless Steel 304L Forged Flanges Standards
Stainless Steel 304L Forged Flanges Standards
Thickness Chart of ASME SA 182 F304L Blind Flanges
Wall Thickness Of Stainless Steel 304L Flanges
Normal Pipe Size (NPS) O.D. (Outside Daimeter) STD Wall Outside Daimeter Sch 10 Sch 60 Sch 20 Sch 40 Sch 30 EXT Hvy Outside Daimeter Schedule 140 Schedule 80 Schedule 160 Schedule 100 XX Hvy Schedule 120
1 1.315 0.133 0.109 ... ... 0.133 ... 0.179 ... 0.179 0.25 ... 0.358 ...
40 40 0.375 .... .... .... .... .... 0.5 .... .... .... .... .... ....
2 2.375 0.154 0.109 ... ... 0.154 ... 0.218 ... 0.218 0.344 ... 0.436 ...
26 26 0.375 .... .... .... .... .... 0.5 .... .... .... .... .... ....
3 3.5 0.216 0.12 ... ... 0.216 ... 0.3 ... 0.3 0.438 ... 0.6 ...
18 18 0.375 0.25 0.75 0.312 0.562 0.438 0.5 1.562 0.938 1.781 1.156 ... 1.375
4 4.5 0.237 0.12 ... ... 0.237 ... 0.337 ... 0.337 0.531 ... 0.674 0.438
10 10.75 0.365 0.165 0.5 0.25 0.365 0.307 0.5 1 0.594 1.125 0.719 1 0.844
5 5.563 0.258 0.134 ... ... 0.258 ... 0.375 ... 0.375 0.625 ... 0.75 0.5
14 14 0.375 0.25 0.594 0.312 0.438 0.375 0.5 1.25 0.75 1.406 0.938 ... 1.094
6 6.625 0.28 0.134 ... ... 0.28 ... 0.432 ... 0.432 0.719 ... 0.864 0.562
16 16 0.375 0.25 0.656 0.312 0.5 0.375 0.5 1.438 0.844 1.594 1.031 ... 1.219
8 8.625 0.322 0.148 0.406 0.25 0.322 0.277 0.5 0.812 0.5 0.906 0.594 0.875 0.719
22 22 0.375 0.25 ... ... ... ... 0.5 .... ... .... ... .... ....
12 12.75 0.375 0.18 0.562 0.25 0.406 0.33 0.5 1.125 0.688 1.312 0.844 1 1
30 30 0.375 0.312 .... 0.5 .... 0.625 0.5 .... .... .... .... .... ....
20 20 0.375 0.25 0.812 0.375 0.594 0.5 0.5 1.75 1.031 1.969 1.281 ... 1.5
36 36 0.375 0.312 .... 0.5 0.75 0.625 0.5 .... .... .... .... .... ....
24 24 0.375 0.25 0.969 0.375 0.688 0.562 0.5 2.062 1.219 2.344 1.531 .... 1.812
Physical Properties of SUS 304L Lap Joint Flange
Grade Specific Heat 0-1000C (J/kg.K) Elastic Modulus (GPa) Density (kg/m3) Electrical Resistivity (n.m) Mean Coefficient of Thermal Expansion (m/m/0C) Thermal Conductivity (W/m.K)
0-1000C 0-3150C 0-5380C at 1000C at 5000C
304L 500 193 8000 720 17.2 17.8 18.4 16.2 21.5
Chemical Composition of SS 304l Weld Neck Flange
Cr 18- 20%
N 1%
Si 0.75%
Ni 8-12%
Mn 2%
P 0.045%
Equivalent Grades of Stainless Steel 304l Flanges
STANDARD WERKSTOFF NR. UNS BS JIS EN AFNOR GOST
SS 304L 1.4306/1.4307 S30403 304S11 SUS 304L X2CrNi18-9 / X2CrNi19-11 Z3CN18‐10 03Х18Н11
Mechanical Properties of ASTM A182 F304L Exhaust Flanges
Grade Elongation (% in 50mm) min Yield Strength 0.2% Proof (MPa) min Tensile Strength (MPa) min Hardness
Rockwell B (HR B) max Brinell (HB) max
304L 40 170 485 92 201
Stock on Hand of 304L Stainless Steel Flanges
5 inch 304L Stainless Steel Plate Flange

5" 304L Stainless Steel Plate Flange

High Quality A182 class150 Stainless Steel 304L Flange

High Quality A182 class150 Stainless Steel 304L Flange

2 inch SS 304L Orifice Puddle Flange

2 inch SS 304L Orifice Puddle Flange

ANSI B16.5 304L Stainless Steel Forged Flange

ANSI B16.5 304L Stainless Steel Forged Flange

1/2 3/4 1 inch AMSE B16.5 304L SS Blind Flange

1/2" 3/4" 1" AMSE B16.5 304L SS Blind Flange

3/8 inch 304l Stainless Steel Socket Welding Flange

3/8" 304l Stainless Steel Socket Welding Flange

Delivery Time as per Address of Stainless Steel 304L Flanges
Variation in Price

Extra 5 %
Export Country Delivery Time in Days
Russia 20
Australia 21
Belgium 19
Japan 7
Yemen 21
Sri lanka 6
Cyprus 45
Angola 45
Sudan 30
Jordan 21
Netherland 45
Germany 45
Manisha Steel Centre



Why Us ?
  • Stockist and Exporter of Small Diameter Tubing in Grades of Austenitic and Ferritic Stainless Steel.
  • Supply as Per American and European Standards According to Dimensional Standard ASME B36.19M
  • Distributor and Trader in Mumbai of Renowned Mills Outokumpu, POSCO and Aperam
  • Associated With Dealers and Stockholders in Kuwait, Nigeria, Iraq, Egypt, Congo and Gabon
©2025 Manisha Steel Centre. All Rights Reserved
Website Designed And SEO by Mesotek
Manufacturer and Supplier of Seamless Steel Tubes in India as per ASME SA 269.
