Hastelloy C276 Flanges | ASTM B564 UNS N10276 SORF/Blind/WNRF

5 Advantages for Engineers in Egypt to Buy Hastelloy C276 Flanges from India?

Wide applications
High-temperature Strength
Corrosion Resistance
Good Machinability
Excellent Mechanical Properties

Table of Content

Hastelloy C276 Flanges Specification
ASME SB564 N10276 Flange HS Code
Hastelloy C276 Flanges Price List
Types Of Gaskets Used For B564 N10276 Exhaust Flanges
Hastelloy C276 Flanges Sizes Chart
Pressure Rating Chart Of ASTM B564 N10276 Pipe Flange
Dimensions Chart Of ASTM B564 N10276 Pipe Flange
WNR 2.4819 Threaded Flanges Applications
Hastelloy® Alloy C276 Value Added Services
Weight Chart Of Nickel Alloy C276 Threaded Flanges
Connection Types of Alloy C276 Flange
Physical Properties of UNS N10276 Weld Neck Flanges
Chemical Composition WNR 2.4819 Socket Weld Flanges
Equivalent Grades of Nicrofer 5716 Puddle Flange
Mechanical Properties of Nickel Alloy C276 Threaded Flanges
Factors Of Differentiation Between Hastelloy C22 And Hastelloy C276 Flanges
What Is Corrosion test of Alloy C276 Slip On Flange
How to Choose The Right Size of Hastelloy C276 Flange for Particular Application?

Hastelloy C276 Flanges Specification

Hastelloy C276 Slip On Flanges Sizes

NPS: 1/2 to 48"
Class : 150 to2500
SCH: Sch 5 - Sch XXS

Hastelloy C276 Blind Flanges Manufacturing Process

Rolling
Cutting/ Casting
Forging

Alloy C276 Slip On Flange Face

UNS N10276 Weld Neck Flanges Threads

BSPP
FNPT
NPT
MNPT
BSPT

Nickelvac HC-276 Lap Joint Flange Connection Type

Threaded
Bolted
Welded

ASME SB564 N10276 Flange Origin

European
Indian, Korean
Japan

WNR 2.4819 Socket Weld Flanges Standards

ASME B16.5
MSS SP44
ASME B16.47 Series A & B

Nickel Alloy C276 Threaded Flanges Types

Slip On
Lap Joint
Weld Neck
Blind
Socket Weld

UWNR 2.4819 Socket Weld Flanges Meet Requirement

ISO 15156
Sour Service
NACE MR0103/MR0175

Nickelvac HC-276 Lap Joint Flange Application

Chemical Processing
Aerospace
Pressure Vessels
Food and Beverage Industry

Nickel C276 Header Flanges Material

Gaskets
Flange Bolts
Ring Joint

Nicrofer 5716 Puddle Flange Features

corrosion-resistant
excellent strength
Toughness

Hastelloy C276 Slip On Flanges Finish

Smooth
Mirror
Concentric
Serrated/Spiral

UNS N10276 Weld Neck Flanges Testing

Pressure
Tensile
PMI
Hardness

ASME SB564 N10276 Flange HS Code

Product	HS Code
Hastelloy C276 Flanges	75071200

Versatile ASTM B564 UNS N10276 Pipe Flanges Manufacturer in India At Fair Price

Hastelloy C276 Flanges Price List

Get the Most Up-to-Date Hastelloy C276 Flanges Price List Here. An email will provide you with a quote right away.. kalpesh@manishasteelcentre.com.

Size (mm)	Price Malaysia (MYR )	Price UK (GBP)
2	RM 115.89	£22.98
5	RM 311.23	£62.17
8	RM 523.52	£104.79
12	RM 1165.61	£232.87
10	RM 813.32	£162.48
6	RM 323.26	£64.46
2-1/2	RM 150.61	£30.10
3	RM 191.31	£38.22
3-1/2	RM 218.71	£43.69
1	RM 63.87	£12.74
1-1/4	RM 80.91	£16.16
3/4	RM 60.96	£12.19
1-1/2	RM 93.56	£18.68
1/2	RM 49.20	£9.85
4	RM 259.34	£51.84

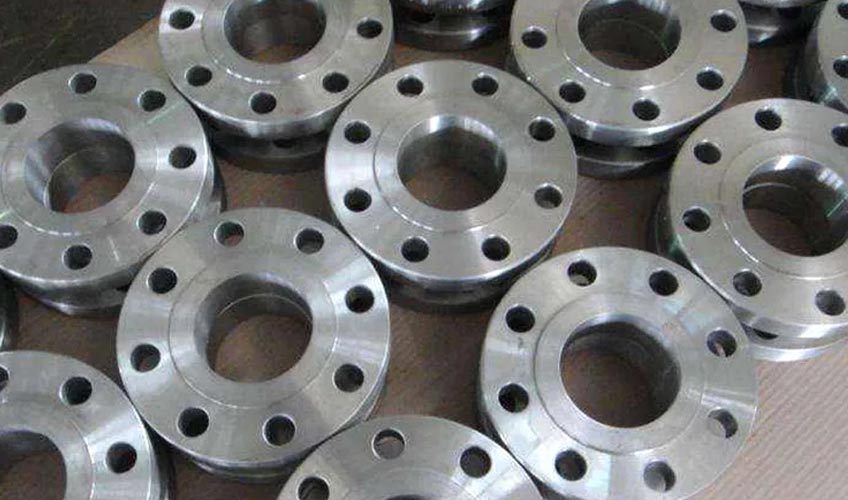

Types Of Gaskets Used For B564 N10276 Exhaust Flanges

RTJ Gasket
Metal Jacketed Gasket
FF Gasket
Oval Ring Gaskets
RF Gasket
Soft Gaskets
Camprofile Gasket
Spiral Wound Gasket

Full Range Supplier Of Nickel Alloy C276 Slip On Flanges in Mumbai With NPS 1/2 to 48" Or Custom

Hastelloy C276 Flanges Sizes Chart

Hastelloy C276 Flanges Manufacturer in India provides a variety of thread diameters and unique surface treatments.

NPS (Inch)	Thickness (Inch)	Bolt Holes No	Circle Dia (CD)	Hole Dia (Inches)	OD
10	0.625	8	11.500	0.875	12.000
3/4	0.375	4	3.375	0.500	4.000
8	0.500	8	10.000	0.750	10.500
2	0.375	4	5.000	0.625	5.500
1	0.375	4	4.000	0.500	4.500
14	0.625	8	14.500	0.875	15.000
20	0.750	12	19.500	1.000	20.000
1/2	0.375	4	2.875	0.500	3.500
5	0.500	8	8.000	0.750	8.500
16	0.625	8	15.500	0.875	16.000
4	0.500	8	7.000	0.750	7.500
1-1/2	0.375	4	4.500	0.625	5.000
18	0.750	12	17.500	1.000	18.000
6	0.500	8	8.500	0.750	9.000
12	0.625	8	13.000	0.875	13.500
2-1/2	0.375	4	5.500	0.625	6.000
3	0.375	6	6.000	0.625	6.500

Discover WNR 2.4819 Blind and Weld Neck Flanges With Pressure Classes Range From 150 to 2500 and From PN6 to PN64.

Pressure Rating Chart Of ASTM B564 N10276 Pipe Flange

C276 Flange	PRESSURE RATING
Temp °F	900	600	1500	150	400	2500
1250	340	225	565	20	150	945
400	1490	995	2485	190	660	4140
750	1245	830	2075	95	555	3460
1100	770	515	1285	20	345	2145
900	1165	780	1945	50	520	3240
1200	465	310	770	20	205	1285
800	1210	805	2015	80	540	3360
1150	595	400	995	20	265	1655
200	1800	1200	3000	230	800	5000
650	1290	860	2150	125	575	3580
1300	255	170	430	20	115	715
850	1190	790	1980	65	530	3300
1500	80	55	135	10	35	230
300	1620	1080	2700	205	720	4500
1000	965	640	1605	20	430	2675
700	1275	850	2125	110	565	3540
1450	105	70	170	15	45	285
600	1310	875	2185	140	580	3640
1050	925	615	1545	20	410	2570
1350	185	125	310	20	80	515
950	1145	765	1910	35	510	3180
500	1395	930	2330	170	620	3880
1400	145	95	240	20	65	400
-20 to 100	2160	1440	3600	275	960	6000

Dimensions Chart Of ASTM B564 N10276 Pipe Flange

NPS	OD	Minimum Thick (T)	Bolt Circle (BC)	Dia. Hub Base (HB)	Dia. of Hub Top (HT)	SO Bore ID (SB)	WN Bore ID (WB)	Dia of Holes	RF Dia. (R)
10	16.0	1.12	14.25	12.00	10.75	10.88	10.02	1.00	12.75
18	25.00	1.50	22.75	19.88	18.00	18.18	17.25	1.25	21.00
6	11.00	0.94	9.50	7.56	6.63	6.72	6.07	0.88	8.50
14	21.00	1.31	18.75	15.75	14.00	14.14	13.25	1.12	16.25
21⁄2	7.00	0.81	5.50	3.56	2.88	2.94	2.47	0.75	4.12
31⁄2	8.50	0.88	7.00	4.81	4.00	4.07	3.55	0.75	5.50
12	19.00	1.19	17.00	14.38	12.75	12.88	12.00	1.00	15.00
1⁄2	3.50	0.38	2.38	1.19	0.84	0.88	0.62	0.62	1.38
4	9.00	0.88	7.50	5.31	4.50	4.57	4.03	0.75	6.19
11⁄4	4.62	0.56	3.50	2.31	1.66	1.70	1.38	0.62	2.50
11⁄2	5.00	0.62	3.88	2.56	1.90	1.95	1.61	0.62	2.88
2	6.00	0.69	4.75	3.06	2.38	2.44	2.07	0.75	3.62
5	10.00	0.88	8.50	6.44	5.56	5.66	5.05	0.88	7.31
24	32.00	1.81	29.50	26.12	24.00	24.25	23.25	1.38	27.25
22	29.50	1.75	27.25	24.25	22.00	22.22	21.25	1.38	25.25
16	23.50	1.38	21.25	18.00	16.0	16.16	15.25	1.12	18.50
3	7.50	0.88	6.00	4.25	3.50	3.57	3.07	0.75	5.00
20	27.50	1.62	25.00	22.00	20.0	20.20	19.25	1.25	23.00
1	4.25	0.50	3.12	1.94	1.32	1.36	1.05	0.62	2.00
3⁄4	3.88	0.44	2.75	1.50	1.05	1.09	0.82	0.62	1.69
8	13.50	1.06	11.75	9.69	8.63	8.72	7.98	0.88	10.62

Offer Custom Drawing Inconel C-276 Threaded and Socket Weld Flanges Stock Use in Extreme Environments

WNR 2.4819 Threaded Flanges Applications

ASTM B564 UNS N06625 Blind Flange Applications

Get Most Popular Nicrofer 5716 Forged Flanges With Full Customer Service like Heat Treatment, Annealing, Hardening etc.

Hastelloy® Alloy C276 Value Added Services

Value Added Services
Rotary Straightening	Hardening
Chrome Plating	Centerless Grinding
End Conditioning	Press Straightening
CNC Machining	Press Straightening
Centerless Turning	Annealing
Custom Packaging	Pre-Straightening
Saw Cutting	Heat Treatment

Weight Chart Of Nickel Alloy C276 Threaded Flanges

NPS	Blind Flange	Weld Neck Flange	Slip On Flange	Socket Weld Flange	Threaded Flange	Lap Joint Flange
½	2	2	1	2	1	1
3	9	11.5	9	9	9	9
2	5	6	5	5	5	5
1	2	3	2	2	2	2
1¼	3	3	3	3	3	3
3½	13	12	11	11	12	11
4	17	16.5	13	13	13	13
¾	2	2	2	2	2	2
1½	4	4	3	3	3	3
5	20	21	15	15	15	15
6	27	26	19	19	19	19
16	180	140	106	98	98	140
2½	7	10	8	8	8	8
8	47	42	30	30	30	30
14	140	114	90	90	90	105
12	123	88	64	64	64	64
24	430	268	220	220	220	275
22	355	225	185	185	185	245
20	285	197	165	165	165	195
10	70	54	43	43	43	43
18	220	165	130	130	130	160

Connection Types of Alloy C276 Flange

The Most Recommendable Inconel 625 Flanges Supplier in India, Manisha Steel Center, offers a wide range of kinds, coatings, and pressure ratings.

Nicrofer 5716 Weld Neck Flanges

UNS N10276 Socket Weld Flanges

Nickel C276 Threaded Flanges

Inconel C-276 Lap Joint Flange

Nickelvac HC-276 Exhaust Flanges

Nickel Alloy C276 Blind Flanges

WNR 2.4819 Header Flanges

UNS N10276 Puddle Flange

ASME SB564 N10276 Slip On Flange

Physical Properties of UNS N10276 Weld Neck Flanges

Property	Value
Young’s Modulus	210 GPa (30.5 × 10⁶ psi)
Density	8.89 g/cm³
Hardness	80–85 HRB
Thermal Conductivity	9.5 W/m·K (at 25°C)
Specific Heat	0.42 J/g·K at 25°C
Electrical Resistivity	0.56 x 10⁻⁶ Ω·m (at 20°C)
Poisson's Ratio	0.31

Chemical Composition WNR 2.4819 Socket Weld Flanges

Ni 50.99%

Fe 39.50%

Mn 1.0%

Cr 16%

Si 0.08%

C 0.01%

Equivalent Grades of Nicrofer 5716 Puddle Flange

STANDARD	UNS	WERKSTOFF NR.	OR	JIS	EN	GOST
Hastelloy C276	N10276	2.4819	ЭП760	NW 0276	NiMo16Cr15W	ХН65МВУ

Mechanical Properties of Nickel Alloy C276 Threaded Flanges

Element	Melting Point	Density	Yield Strength	Tensile Strength	Elongation
Hastelloy C276	1370 °C	8.89 g/cm3	MPa – 355	MPa – 790	40 %

Factors Of Differentiation Between Hastelloy C22 And Hastelloy C276 Flanges

Properties	C22	C276
Corrosion	Better in chlorides	Excellent
Weldability	Superior	Good
Composition	Ni, Mo	Ni, Mo, W
Temp. Range	1300°F (704°C)	1100°F (593°C)
Cost	Lower	Higher

What Is Corrosion test of Alloy C276 Slip On Flange

Material	Corrosion Rate, mpy (mm/a)	Temperature	Test Duration
B564 N10276	0.3 (0.01)	500-600°C	36 Hours

How to Choose The Right Size of Hastelloy C276 Flange for Particular Application?

Pressure Rating
Material Compatibility
Temperature
Gasket Selection

Shipping Time as per Location of Hastelloy C276 Flanges

5 % extra Price variations
Export to	Shipping Time in Days
Yemen	21
Sri lanka	6
Belgium	21
Jordan	21
Algeria	45
Vietnam	10
Kenya	19
Germany	30
Thailand	7
Cambodia	9
Norway	45
Cyprus	45
Japan	7
Angola	45
Netherland	20
