A large selection of kinds, coatings, and pressure ratings are offered by Manisha Steel Centre, a Trusted ASTM A182 F51 Flange Supplier in India.
ASTM A182 F51 Blind Flanges
A182 F51 Slip On Flange
Duplex F51 Weld Neck Flanges
UNS S31803 F51 Socket Weld Flanges

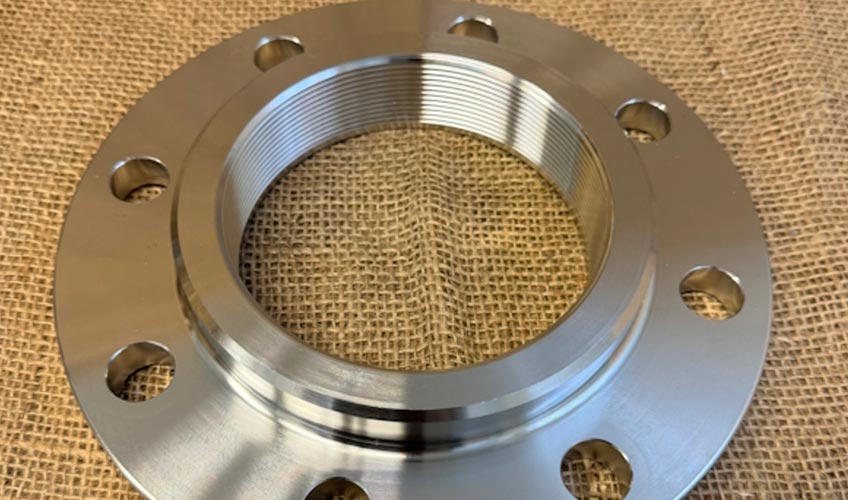

ASME A182 Gr F51 Threaded Flanges
SA 182 F51 Lap Joint Flange
A182 F51 Uns S31803 Header Flanges
ASTM A182 F51 Puddle Flange
Are You Interested in Viewing the Latest ASTM A182 F51 Flange Price List? For a quote, email us right now. kalpesh@manishasteelcentre.com.
| Size (mm) | Approx. Weight/Unit (kg) | Price List Ex China (USD/Pcs) |
|---|---|---|
| 32 | 1.24 | $8.65 |
| 15 | 0.54 | $3.77 |
| 40 | 1.62 | $11.30 |
| 65 | 3.94 | $27.49 |
| 20 | 0.67 | $4.68 |
| 100 | 6.61 | $46.12 |
| 25 | 0.99 | $6.91 |
| 125 | 7.20 | $50.24 |
| 50 | 2.60 | $18.14 |
| 200 | 14.21 | $99.15 |
| 80 | 4.45 | $31.05 |
| 300 | 31.83 | $222.10 |
| 150 | 8.49 | $59.24 |
| 400 | 52.33 | $365.14 |
| 250 | 19.67 | $137.25 |
| 450 | 57.17 | $398.91 |
| 350 | 40.48 | $282.45 |
| 600 | 104.08 | $726.23 |
| 500 | 76.48 | $533.65 |
| Grade | WNR | UNS | SUS |
|---|---|---|---|
| A182 F51 Flange | 1.4462 | UNS 31803 | SUS 329J3L |
| Type | Face Type |
|---|---|
| B | Raised Face |
| C | Tongue Face |
| G | Ring Recess |
| A | Flat Face |
| E | Spigot |
| H | O-Ring Groove |
| D | Grooved Face |
| F | Recess |
ASTM A182 F51 Flange Manufacturer in India offers several thread sizes and surface treatments.
| Nominal Pipe Size (NPS) | No. of Bolts | Hole Diameter (mm) | Outer Diameter (OD) [mm] | Thickness (mm) | Bolt Circle Diameter (BCD) [mm] |
|---|---|---|---|---|---|
| 2″ | 4 | 16 | 165 | 22 | 145 |
| 1/2″ | 4 | 14 | 108 | 16 | 95 |
| 2 1/2″ | 4 | 18 | 180 | 24 | 160 |
| 3/4″ | 4 | 14 | 120 | 16 | 105 |
| 3″ | 4 | 18 | 190 | 26 | 170 |
| 1″ | 4 | 14 | 130 | 18 | 115 |
| 12″ | 12 | 24 | 330 | 38 | 300 |
| 10″ | 8 | 22 | 300 | 36 | 270 |
| 1 1/2″ | 4 | 16 | 150 | 20 | 130 |
| 8″ | 8 | 22 | 280 | 34 | 250 |
| 4″ | 8 | 18 | 210 | 28 | 190 |
| 6″ | 8 | 20 | 250 | 32 | 230 |
| 5″ | 8 | 20 | 230 | 30 | 210 |
| 14″ | 12 | 24 | 360 | 40 | 320 |
| Temp. ℃ | Pressure-temperature rating for ASME B16.47 by class, | |||||
|---|---|---|---|---|---|---|
| 300 | 75 | 400 | 150 | 900 | 600 | |
| 100 | 50.7 | 8.8 | 67.5 | 17.7 | 152.0 | 101.3 |
| 300 | 38.9 | 5.1 | 51.8 | 10.2 | 116.6 | 77.7 |
| -29 to 38 | 51.7 | 10.0 | 68.9 | 20.0 | 155.1 | 103.4 |
| 150 | 45.9 | 7.9 | 61.2 | 15.8 | 137.8 | 91.9 |
| 50 | 51.7 | 9.8 | 68.9 | 19.5 | 155.1 | 103.4 |
| 250 | 40.5 | 6.0 | 53.9 | 12.1 | 121.4 | 80.9 |
| 200 | 42.7 | 6.9 | 56.9 | 13.8 | 128.0 | 85.3 |
| Property | ASTM A182 F51 | SS316 |
|---|---|---|
| Material | Duplex Stainless Steel | Austenitic Stainless Steel |
| Yield Strength | 50-80 ksi | 30-40 ksi |
| Tensile Strength | 70-100 ksi | 70-85 ksi |
| Hardness | 260-300 HV | 170-220 HV |
| Elongation | 25-35% | 40-50% |
| Density | 7.8 g/cm³ | 8.0 g/cm³ |
| Heat Resistance | up to 600°C | up to 870°C |
| Applications | heat exchangers, Pressure vessels | pharmaceuticals , Marine environments, food processing, |
| Melting Point | 1400-1450°C | 1375-1400°C |
| Cost | High | Moderate |
| Heat Treatment Process | Temperature Range |
|---|---|
| Stress Relieving | 600°C to 650°C / 1112°F to 1202°F |
| Solution Annealing | 1040°C to 1100°C |
| Cold Working | Room temperature |
| Quenching | Immediately after solution annealing |
| Density (lb/in 3) | Density (g/cm 3) | Melting Point (°C) | Melting Point (°F) |
|---|---|---|---|
| 0.285 | 7.805 | 1420 – 1465 | 2588 – 2669 |
| Alloy | Proof Strength 0.2% N/mm² | Tensile Strength N/mm² | Hardness Brinell | Elongation (%) |
|---|---|---|---|---|
| F51 | 55 | 105 | 170-255 | 35 |
