Hastelloy Flanges Manufacturer in India | Alloy C22 SORF/WNRF/BLRF

How to get High Quality Hastelloy Flanges in Thailand at lowest Price?

Supplier/Source	Price Range	Lead Time	Explanation
Local Manufacturers	Low to Medium	Short	Customization available
Authorized Dealers	Medium to High	Medium	Genuine products
Import from USA/Europe	High	Long	Premium, but expensive
Wholesale Distributors	Low	Medium	Bulk discounts available
Online Marketplaces	Low	Medium to Long	Wide selection, mixed quality

Table of Content

Hastelloy Flanges Specification
Hastelloy C22 Flanges Face Types
Hastelloy Flanges Price List
ASTM B564 UNS N06022 Forged Flanges Pressure Rating
Hastelloy Flanges Sizes
Nickel Alloy C22 Weld Neck Flange Applications
ASME SB 564 UNS N06022 Blind Flange Testings
What Welding Techniques Are Best Suited for Hastelloy Pipe Flanges?
Hastelloy C276 vs C22 Composition
WNR 2.4602 Slip on Flange Weight Chart?
Connection Types of Hastelloy Alloy Flanges
Hastelloy B Flanges Gasket Dimensions
Difference Between Monel and Hastelloy Flange
Thickness Chart of Hastelloy C22 Flanges
Hastelloy G-2 Flanges Plate Flange Dimensions
Physical Properties of Hastelloy Alloy Threaded Flange
Chemical Composition of ASME SB 564 UNS N06022 Socket Weld Flanges
Equivalent Grades of Hastelloy BLRF Flange
Mechanical Properties of ASTM B564 UNS N06022 Lap Joint Flanges

Hastelloy Flanges Specification

Hastelloy Forged Flange Sizes

NPS: 0.5 to 36 inch
SCH: Sch 5 to XXS
Class / Pressure: 150 to 2500 #

Hastelloy B2 Plate Flange Manufacturing Process

Cutting/ Casting
Forging
Rolling

Hastelloy C22 Flanges Standards

ASME SB564 | ASTM B564
MSS SP44
ASME B16.47 Series A & B
ASME B16.5

ASTM B564 UNS N06022 Slip On Flange Types

Weld Neck
Lap Joint
Socket Weld
Slip On
Blind

Nickel Alloy C22 Spectacle Blind Flanges Face

WNR 2.4602 Blind Flanges Threads

BSPP
NPT
MNPT
BSPT
FNPT

C22 Hastelloy Threaded Flange Finish

Concentric/Spiral
Mirror
Smooth
Serrated

ASME SB 564 UNS N06022 Weld Neck Flange Testing

Tensile
Hardness
PMI
Pressure

Nicrofer® 5621 Pipe Flange Supporting Material

Gaskets
Flange Bolts
Ring Joint

Inconel® 22 Ring Type Joint Flange Grades

C22
C276
B2

Alloy C22 Lap Joint Flanges Connection Type

Welded
Bolted
Threaded

Hastelloy B2 Flanges Origin

Japan
Indian, Korean
European

Hastelloy Socket Weld Flange Meet Requirement

NACE MR0103/MR0175
Sour Service
ISO 15156

Nicrofer 5621 Orifice Flanges Application

Aerospace
Chemical Processing
Pressure Vessels
Food and Beverage Industry

Hastelloy C22 Flanges Face Types

Type	Face Type of ASTM B564 Flanges
G	Ring Recess
A	Flat Face
F	Recess
H	O-Ring Groove
E	Spigot
B	Raised Face
D	Grooved Face
C	Tongue Face

Dedicated Hastelloy C22 Flanges Supplier in Mumbai As Per ASME B16.5 At Factory Price

Hastelloy Flanges Price List

Would You Like to View the Most Recent Hastelloy Flanges Price List? For a quote right now, send an email to kalpesh@manishasteelcentre.com.

Size (in inches)	Price in USD	Price in AED (UAE Dirham)
1/2"	$150	UAE 550
10"	$1,500	UAE 5,500
1"	$200	UAE 735
4"	$600	UAE 2,200
2"	$350	UAE 1,285
6"	$900	UAE 3,300
3"	$450	UAE 1,650
8"	$1,200	UAE 4,400

ASTM B564 UNS N06022 Forged Flanges Pressure Rating

Temperature °C	2500 LBS	300 LBS	900 LBS	150 LBS	600 LBS	400 LBS	1500 LBS
375	323.2	38.9	116.5	7.4	77.6	51.6	194.1
50	430.9	51.7	155.1	19.5	103.4	68.9	258.6
350	335.3	40.3	120.7	8.4	80.4	53.6	201.1
−29~38	430.9	51.7	155.1	20.0	103.4	68.9	258.6
300	357.1	42.9	128.6	10.2	85.7	57.0	214.4
100	429.4	51.5	154.6	17.7	103.0	68.7	257.6
675	96.0	11.5	34.6	-	23.0	15.4	57.6
200	402.8	48.3	145.0	13.8	96.7	64.5	241.7
400	304.9	36.5	109.8	6.5	73.3	48.9	183.1
150	418.2	50.3	150.6	15.8	100.3	66.8	250.8
425	291.6	35.2	105.1	5.5	70.0	46.5	175.1
250	386.2	46.3	139.0	12.1	92.7	61.7	231.8
450	281.8	33.7	101.4	4.6	67.7	45.1	169.0
325	344.3	41.4	124.0	9.3	82.6	55.0	206.6
650	117.3	14.1	42.2	-	28.1	18.8	70.4
550	208.0	25.0	74.8	-	49.8	33.3	124.9
475	263.9	31.7	95.1	3.7	63.4	42.3	158.2
575	199.5	24.0	71.8	-	47.9	31.9	119.7
600	178.5	21.6	64.2	-	42.9	28.6	107.0
500	235.0	28.2	84.7	2.8	56.5	37.6	140.9
625	152.0	18.3	54.9	-	36.6	24.3	91.2
538	208.9	25.2	75.2	1.4	50.0	33.4	125.5

Stock Custom ASTM B564 UNS N06022 Forged Flanges Produced From With Premium Quality Raw Materials

Hastelloy Flanges Sizes

Hastelloy Flanges Manufacturer in India providing a range of diameters with distinctive threads and surface treatments

NPS (Nominal Pipe Size)	SORF (Slip On)	WNRF (Weld Neck)	Loose (Lap Joint)	NPT (Threaded)	BLRF (Blind)	SWRF (Socket Weld)
1	2	3	2	2	2	2
20	165	197	195	165	285	165
2	5	6	5	5	5	5
10	43	54	43	43	70	43
3	9	11.5	9	9	9	9
18	130	165	160	130	220	130
4	13	16.5	13	13	17	13
12	64	88	64	64	123	64
6	19	26	19	19	27	19
16	106	140	140	98	180	98
22	185	225	245	185	355	185
14	90	114	105	90	140	90
5	15	21	15	15	20	15
24	220	268	275	220	430	220
8	30	42	30	30	47	30

Get Source Of WNR 2.4602 Blind and Slip On Flanges Online With Various Pressure and Face Suited For Your Application

Nickel Alloy C22 Weld Neck Flange Applications

Pollution & Waste
Welding Products
Marine
Thermal Processing
Pharmaceutical Equipment
Chemical Processing

Oil & Gas
Power Generation
Petro Processing
Pulp and Paper Industry
Automotive

Buy Quality Nickel Alloy C22 Weld Neck and Socket Weld Flanges for Sale Tested With PMI and Tensile test

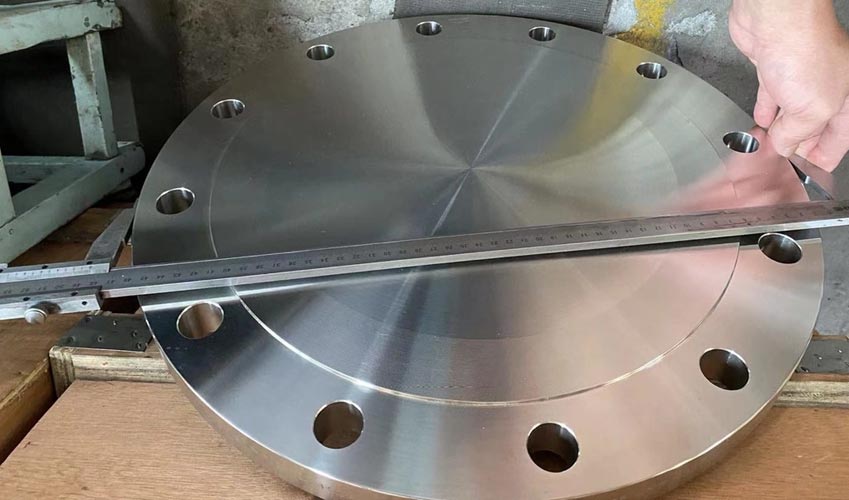

ASME SB 564 UNS N06022 Blind Flange Testings

Hardness Testing
Flaring and Flattening Tests
Ultrasonic Testing (UT)
Hydrostatic or Pneumatic Testing
Impact Testing
Dimensional Testing
Tensile Testing
PMI Test
Visual Inspection
X-Ray Inspection

What Welding Techniques Are Best Suited for Hastelloy Pipe Flanges?

Gas Tungsten Arc Welding (GTAW/TIG)
Laser Beam Welding (LBW)
Electron Beam Welding (EBW)
Plasma Arc Welding (PAW)
Shielded Metal Arc Welding (SMAW)
Gas Metal Arc Welding (GMAW/MIG)

See Comparison Of Monel and Hastelloy Flanges Here

Hastelloy C276 vs C22 Composition

WNR 2.4602 Slip on Flange Weight Chart

Class 1500 Blind Flange
NPS	Weld Neck	Slip On	Socket Weld	Thd	Blind	Lap Joint
1	4.1	3.6	3.6	3.6	4.1	3.6
1/2	3.2	2.7	2.7	2.7	1.8	2.7
1¼	4.5	4.5	4.5	4.5	4.5	4.5
3/4	3.2	2.7	2.7	2.7	2.7	2.7
2	11.3	11.3	11.3	11.3	11.3	11.3
1½	6.3	6.3	6.3	6.3	6.3	6.3
3	21.6	21.6	21.6	21.6	21.6	21.2
2½	16.2	16.2	16.2	16.2	15.8	15.8
6	74.3	74.3	74.3	74.3	72	76.5
4	32.9	32.9	32.9	32.9	32.9	33.8
8	123.8	117	117	117	135.9	128.7
5	59.4	59.4	59.4	59.4	63	63
12	310.5	300.2	300.2	300.2	348.8	337.1
10	204.8	196.2	196.2	196.2	229.5	218.3
16	562.5	562.5	562.5	562.5	585	562.5
14	423	423	423	423	438.8	400.5
16	562.5	562.5	562.5	562.5	585	562.5
18	731.3	731.3	731.3	731.3	787.5	663.8
24	1496	1271	1271	1271	1631	1271
20	922.5	922.5	922.5	922.5	1001	798.8

Connection Types of Hastelloy Alloy Flanges

Most Trusted Manisha Steel Centre Hastelloy Flanges Supplier in India offers various types, finishes, and pressure ratings.

Hastelloy B2 Plate Flange

ASTM B564 UNS N06022 Slip On Flange

Nickel Alloy C22 Spectacle Blind Flanges

WNR 2.4602 Blind Flanges

C22 Hastelloy Threaded Flange

ASME SB 564 UNS N06022 Weld Neck Flange

Alloy C22 Lap Joint Flanges

Hastelloy Socket Weld Flange

Nicrofer 5621 Orifice Flanges

Hastelloy B Flanges Gasket Dimensions

Gasket Inside Daimeter	Normal Pipe Size	Gasket Outside Daimeter
Gasket Inside Daimeter	Normal Pipe Size	900 LB	600 LB	150 LB	400 LB	300 LB
1.66	1 1/4	3.50	3.25	3	3.25	3.25
1.06	3/4	2.75	2.625	2.25	2.625	2.625
1.91	1 1/2	3.875	3.75	3.375	3.75	3.75
0.84	1/2	2.50	2.125	1.875	2.125	2.125
2.88	2 1/2	6.50	5.125	4.875	5.125	5.125
1.31	1	3.125	2.875	2.625	2.875	2.875
3.50	3	6.625	5.875	5.375	5.875	5.875
2.38	2	5.625	4.375	4.125	4.375	4.375
4.50	4	8.125	7.625	6.875	7.00	7.125
5.56	5	9.75	9.50	7.75	8.375	8.50
10.75	10	17.125	15.75	13.375	14.125	14.25
6.62	6	11.375	10.50	8.75	9.75	9.875
12.75	12	19.625	18.00	16.125	16.50	16.625
8.62	8	14.125	12.625	11	12.00	12.125

Difference Between Monel and Hastelloy Flange

Property	Monel Flanges	Hastelloy Flanges
Size Range	1/2" to 24"	1/2" to 36"
Material	67% Nickel, 30% Copper,	Nickel (approx. 50%), Molybdenum (up to 30%), Chromium
Density	8.8 g/cm³	8.89 g/cm³
Weight	0.5 kg to 30 kg	1 kg to 50 kg
Thickness (Thk)	3/4" to 2"	1/4" to 2"
Temperature Resistance	Up to 1000°F (537°C)	Up to 2200°F (1200°C)
Corrosion Resistance	Good	Excellent
Tensile strength	90,000 psi	130,000 psi

Thickness Chart of Hastelloy C22 Flanges

Flanges Wall Thickness
(Outside Daimeter)	Normal Pipe Size (NPS)	STD Wall Outside Daimeter	Sch 10	Sch 40	Sch 30	EXT Hvy Outside Daimeter	Sch 20	Schedule 140	Sch 60	Schedule 80	Schedule 100	XX Hvy	Schedule 120	Schedule 160
1.315	1	0.133	0.109	0.133	...	0.179	...	...	...	0.179	...	0.358	...	0.25
1.05	¾	0.113	0.083	0.113	...	0.154	...	...	...	0.154	...	0.308	...	0.219
1.66	1 ¼	0.14	0.109	0.14	...	0.191	...	...	...	0.191	...	0.382	...	0.25
0.84	½	0.109	0.083	0.109	...	0.147	...	...	...	0.147	...	0.294	...	0.188
2.375	2	0.154	0.109	0.154	...	0.218	...	...	...	0.218	...	0.436	...	0.344
1.9	1 ½	0.145	0.109	0.145	...	0.2	...	...	...	0.2	...	0.4	...	0.281
2.875	2 ½	0.203	0.12	0.203	...	0.276	...	...	...	0.276	...	0.552	...	0.375
3.5	3	0.216	0.12	0.216	...	0.3	...	...	...	0.3	...	0.6	...	0.438
5.563	5	0.258	0.134	0.258	...	0.375	...	...	...	0.375	...	0.75	0.5	0.625
4	3 ½	0.226	0.12	0.226	...	0.318	...	...	...	0.318	...	0.636	...	...
6.625	6	0.28	0.134	0.28	...	0.432	...	...	...	0.432	...	0.864	0.562	0.719
4.5	4	0.237	0.12	0.237	...	0.337	...	...	...	0.337	...	0.674	0.438	0.531
14	14	0.375	0.25	0.438	0.375	0.5	0.312	1.25	0.594	0.75	0.938	...	1.094	1.406
20	20	0.375	0.25	0.594	0.5	0.5	0.375	1.75	0.812	1.031	1.281	...	1.5	1.969
16	16	0.375	0.25	0.5	0.375	0.5	0.312	1.438	0.656	0.844	1.031	...	1.219	1.594
22	22	0.375	0.25	...	...	0.5	...	....	...	...	...	....	....	....
18	18	0.375	0.25	0.562	0.438	0.5	0.312	1.562	0.75	0.938	1.156	...	1.375	1.781
30	30	0.375	0.312	....	0.625	0.5	0.5	....	....	....	....	....	....	....
24	24	0.375	0.25	0.688	0.562	0.5	0.375	2.062	0.969	1.219	1.531	....	1.812	2.344
36	36	0.375	0.312	0.75	0.625	0.5	0.5	....	....	....	....	....	....	....
26	26	0.375	....	....	....	0.5	....	....	....	....	....	....	....	....

Hastelloy G-2 Flanges Plate Flange Dimensions

CLass	600	150	900	300	2500	1500
DIA D	95	90	120	95	135	120
DIA K	66.7	60.3	82.6	66.7	88.9	82.6
B	20.7	11.2	28.7	14.3	36.6	28.7
NO. L	4	4	4	4	4	4
DIA G	35.1	35.1	35.1	35.1	35.1	35.1
DIA L	15.9	15.9	22.2	15.9	22.2	22.2

Physical Properties of Hastelloy Alloy Threaded Flange

Property	Hastelloy B2	Hastelloy C22
Specific Heat (J/g·K)	0.46 J/g·K	0.44 J/g·K
Magnetic Permeability	Non-magnetic	Non-magnetic
Thermal Conductivity (W/m·K)	8.8 W/m·K	9.6 W/m·K
Young’s Modulus (GPa)	160 GPa	180 GPa
Electrical Resistivity (μΩ·cm)	110 μΩ·cm	85 μΩ·cm

Chemical Composition of ASME SB 564 UNS N06022 Socket Weld Flanges

Grade	Ni	Mn	C	S	Si	Cr	Co	Fe	Mo	P
C276	50.99 min*	1.00 max	0.010 max	0.03 max	0.08 max	14.50 – 16.50	2.50 max	4.00 – 7.00	15.00 – 17.00	0.04 max
C22	50.015 min*	0.50 max	0.010 max	0.02 max	0.08 max	20.00 – 22.50	2.50 max	2.00 – 6.00	12.50 – 14.50	0.02 max
B2	Bal	1.0 max	0.02 max	0.03 max	0.1 max	1.0 max	1.0 max	2.0 max	26 – 30	0.04 max

Equivalent Grades of Hastelloy BLRF Flange

STANDARD	UNS	WERKSTOFF NR.	JIS	GOST	BS	OR	EN
Hastelloy C276	N10276	2.4819	NW 0276	ХН65МВУ	-	ЭП760	NiMo16Cr15W
Hastelloy B2	N10665	2.4617	-	-	-	-	-
Hastelloy C22	N06022	2.4602	NW 6022	-	-	-	NiCr21Mo14W

Mechanical Properties of ASTM B564 UNS N06022 Lap Joint Flanges

Element	Yield Strength (0.2%Offset)	Tensile Strength	Density	Elongation	Melting Point
Hastelloy C22	Psi – 45000 , MPa – 310	Psi – 1,00,000 , MPa – 690	8.69 g/cm3	45 %	1399 °C (2550 °F)
Hastelloy C276	Psi – 52,000 , MPa – 355	Psi – 1,15,000 , MPa – 790	8.89 g/cm3	40 %	1370 °C (2500 °F)
Hastelloy B2	Psi – 51000 , MPa – 350	Psi – 1,10,000 , MPa – 760	9.2 g/cm3	40 %	1370 °C (2500 ºF )

Available Stock Of Hastelloy B Flanges

High Quality Hastelloy WNRF Flange

2 Inch Hastelloy Weld Neck Flange

4" Alloy Forged Flange

High Pressure 6 inch pipe flange

1" sch40 sch80 SORF Flange

Delivery Timing and Location of Hastelloy Flanges

Price Changes 5 % extra
Export to	DeliveryTime in Days
France	30
Belgium	30
Indonesia	9
South Africa	25-30
Saudi Arabia	7
Uk	30
Malaysia	10
Germany	5
Singapore	8
Kuwait	10
Qatar	7
Bahrain	9
UAE	5 days
Netherland	14
USA	40-60

Why Us ?

Stockist and Exporter of Small Diameter Tubing in Grades of Austenitic and Ferritic Stainless Steel.
Supply as Per American and European Standards According to Dimensional Standard ASME B36.19M
Distributor and Trader in Mumbai of Renowned Mills Outokumpu, POSCO and Aperam
Associated With Dealers and Stockholders in Kuwait, Nigeria, Iraq, Egypt, Congo and Gabon
