| Grade | A182 F53 flange |
|---|---|
| UNS | S32750 |
| AFNOR | Z3CND25.07Az |
| WNR | 1.4410 |
ASTM A182 F53 Flange Manufacturer in India provides a range of surface finishes and thread diameters.
| Nominal Size (Inches) | Number of Bolt Holes | Outside Diameter (OD) (mm) | Bolt Hole Diameter (mm) | Thickness (mm) | Bolt Circle Diameter (BCD) (mm) | Flange Bore (mm) |
|---|---|---|---|---|---|---|
| 1/2″ | 4 | 105 | 16.5 | 9.5 | 76.2 | 23.8 |
| 10″ | 8 | 320 | 29.0 | 22.0 | 292.1 | 254.0 |
| 1″ | 4 | 125 | 18.5 | 10.5 | 92.1 | 34.9 |
| 12″ | 8 | 355 | 31.5 | 24.0 | 342.9 | 304.8 |
| 2″ | 4 | 155 | 19.5 | 12.7 | 114.3 | 48.3 |
| 8″ | 8 | 280 | 26.5 | 20.0 | 241.3 | 198.5 |
| 3″ | 4 | 180 | 21.0 | 14.2 | 139.7 | 73.0 |
| 18″ | 12 | 450 | 36.0 | 28.0 | 457.2 | 457.2 |
| 4″ | 4 | 200 | 22.5 | 16.0 | 152.4 | 97.6 |
| 20″ | 12 | 495 | 38.0 | 30.0 | 482.6 | 508.0 |
| 6″ | 8 | 230 | 24.0 | 18.0 | 190.5 | 146.1 |
| 24″ | 12 | 545 | 41.0 | 32.0 | 533.4 | 610.0 |
| 16″ | 12 | 405 | 34.0 | 26.0 | 406.4 | 400.1 |
| Nominal Size (Inches) | 600# Rating (psi) | 150# Rating (psi) | 900# Rating (psi) | 300# Rating (psi) | 2500# Rating (psi) | 1500# Rating (psi) |
|---|---|---|---|---|---|---|
| 1/2″ | 2960 | 740 | 4440 | 1480 | 12330 | 7400 |
| 4″ | 2960 | 740 | 4440 | 1480 | 12330 | 7400 |
| 1″ | 2960 | 740 | 4440 | 1480 | 12330 | 7400 |
| 8″ | 2960 | 740 | 4440 | 1480 | 12330 | 7400 |
| 2″ | 2960 | 740 | 4440 | 1480 | 12330 | 7400 |
| 10″ | 2960 | 740 | 4440 | 1480 | 12330 | 7400 |
| 3″ | 2960 | 740 | 4440 | 1480 | 12330 | 7400 |
| 16″ | 2960 | 740 | 4440 | 1480 | 12330 | 7400 |
| 6″ | 2960 | 740 | 4440 | 1480 | 12330 | 7400 |
| 18″ | 2960 | 740 | 4440 | 1480 | 12330 | 7400 |
| 12″ | 2960 | 740 | 4440 | 1480 | 12330 | 7400 |
| 24″ | 2960 | 740 | 4440 | 1480 | 12330 | 7400 |
| 20″ | 2960 | 740 | 4440 | 1480 | 12330 | 7400 |
Manisha Steel Centre, a Reliable ASTM A182 F53 Flange Supplier in India, provides a wide range of types, coatings, and pressure ratings.

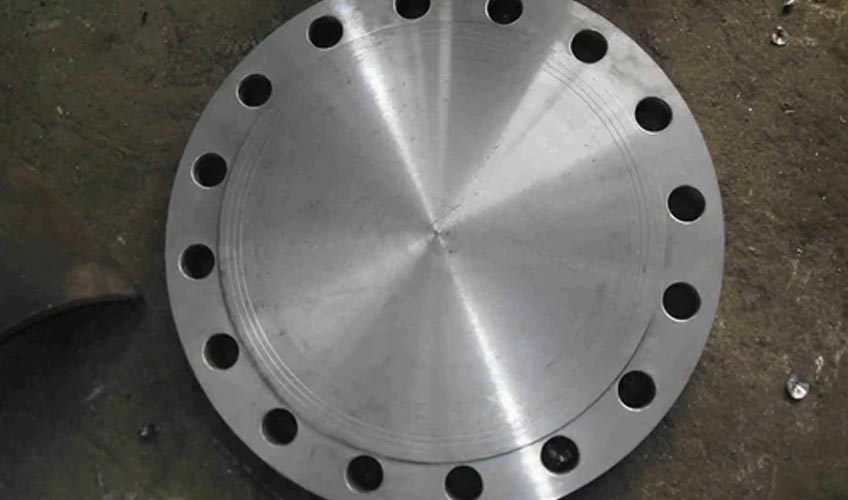

ASTM A182 F53 Blind Flanges
Super Duplex F53 Slip On Flange
A 182 F53 Weld Neck Flanges
SA182 Gr F53 Socket Weld Flanges
ASME A182 Gr F53 Threaded Flanges
ASTM A 182 Gr F53 Lap Joint Flange
A182 F53 UNS S32750 Header Flanges
S32750 F53 Puddle Flange
The most recent ASTM A182 F53 Flange Price List is available for viewing. Get a quote by sending us an email now. kalpesh@manishasteelcentre.com.
| Size In mm | Price In USD $ per unit | Price in UAE Dirham (AED) |
|---|---|---|
| 1-1/2 | $ 30.99 | 113.83 |
| 1/2 | $ 18.90 | 69.42 |
| 1-1/4 | $ 29.90 | 109.82 |
| 3/4 | $ 20.40 | 74.93 |
| 2-1/2 | $ 52.90 | 194.30 |
| 1 | $ 23.15 | 85.03 |
| 4 | $ 77.80 | 285.76 |
| 2 | $ 35.50 | 130.39 |
| 6 | $ 119.92 | 440.47 |
| 3 | $ 56.99 | 209.32 |
| 8 | $ 199.25 | 731.85 |
| 5 | $ 90.35 | 331.86 |
| 12 | $ 477.44 | 1753.64 |
| 10 | $ 445.29 | 1635.55 |
| Value Added Services | |
|---|---|
| Press Straightening | End Conditioning |
| Press Straightening | CNC Machining |
| Pre-Straightening | Custom Packaging |
| Heat Treatment | Saw Cutting |
| Annealing | Centerless Turning |
| Hardening | Rotary Straightening |
| Centerless Grinding | Chrome Plating |
| Property | ASTM A182 F53 | ASTM A182 F55 |
|---|---|---|
| >PREN | 35-38 | ≥40 |
| >Corrosion Resistance | High | Superior |
| >Mo Content | 3% | 3.5% |
| >Applications | Moderate environments | Aggressive environments |
| Tensile Strength (min) | Heat treatment | Temperature |
|---|---|---|
| 785 Mpa | 260°C [500°F] | 100°F - 600°F |
| Yield Strength (min) | Elongation in 2″, (min) | Density |
|---|---|---|
| 76 KSI | 30% | 7.8 g/cm 3 |
| Price variations 5 % extra |
|
|---|---|
