ASTM A182 F9 Flanges

Home|ASTM A182 F9 Flanges

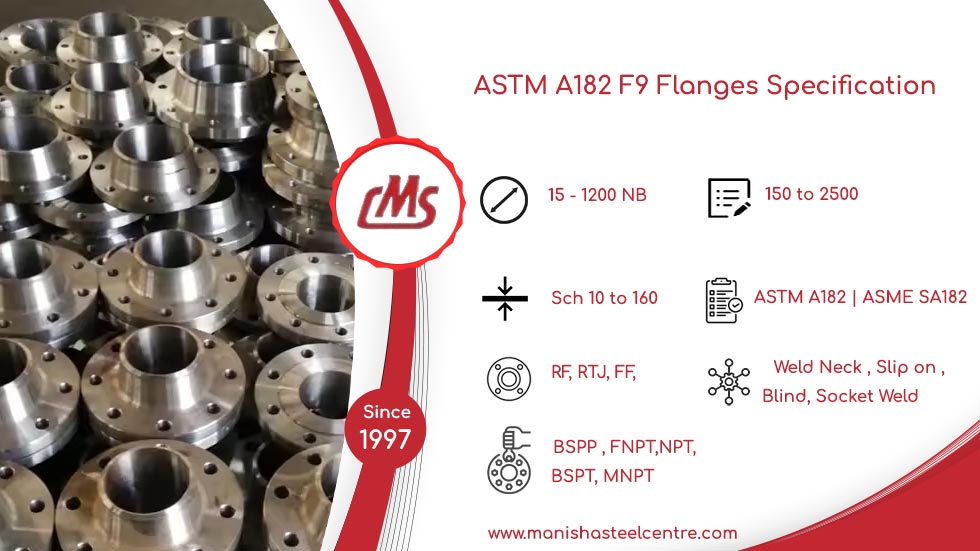

ASTM A182 F9 Flanges Specification
Manisha Steel Centre

Table of Content

High Quality ASME SA 182 Grade F9 Slip On and Blind Flanges Manufacturer in India As Per ANSI B16.5

ASTM A182 F9 Flanges Specification
ASTM A182 Grade F9 Flanges Sizes

ASTM A182 Grade F9 Flanges Sizes

  • NPS: 15 - 1200 NB
  • SCH: 10 to 160
  • Class: Class 150, 300, 600, 900, 1500, 2500 LBS
ASTM A182 Grade F9 Pipe Flanges Manufacturing Process

ASTM A182 Grade F9 Pipe Flanges Manufacturing Process

  • Forging
  • Rolling/Cutting
  • Casting
ASTM A182 Gr F9 Blind Flanges Face

ASTM A182 Gr F9 Blind Flanges Face

  • LJF
  • RF
  • T & G
  • FF
  • RTJ
ASTM A182 F9 Alloy Steel Slip On Flange Threads

ASTM A182 F9 Alloy Steel Slip On Flange Threads

  • NPT
  • FNPT
  • MNPT
  • BSPT
  • BSPP
SA 182 F9 Weld Neck Flanges Standards

SA 182 F9 Weld Neck Flanges Standards

  • MSS SP44
  • ASME SA 182 | ASTM A182
  • ASME B16.47 Series A & B
  • ASME B16.5

UNS K90941 Socket Weld Flanges Types

UNS K90941 Socket Weld Flanges Types

  • Weld Neck
  • Blind
  • Lap Joint
  • Socket Weld
  • Slip On
F9 Alloy Steel Threaded Flanges Finish

F9 Alloy Steel Threaded Flanges Finish

  • Concentric/Spiral
  • Smooth
  • Mirror
  • Serrated

SA 182 Gr F9 Lap Joint Flange Testing

SA 182 Gr F9 Lap Joint Flange Testing

  • Hardness
  • Pressure
  • Tensile
  • PMI
ASTM A182 F9 Steel Exhaust Flanges Supporting Material

ASTM A182 F9 Steel Exhaust Flanges Supporting Material

  • Flange Bolts
  • Ring Joint
  • Gaskets
A182 F9 Header Flanges Grades

A182 F9 Header Flanges Grades

  • F22 , F91
  • F9 , F11
  • F1 , F5

SA182F9 Puddle Flange Connection Type

SA182F9 Puddle Flange Connection Type

  • Threaded
  • Bolted
  • Welded
ASTM A182 Grade F9 Flanges Origin

ASTM A182 Grade F9 Flanges Origin

  • Indian
  • European
  • Japan, Korean
ASTM A182 F9 Flanges Meet Requirement

ASTM A182 F9 Flanges Meet Requirement

  • NACE MR0103/MR0175
  • Sour Service
  • ISO 15156

ASTM A182 Grade F9 Pipe Flanges Application

ASTM A182 Grade F9 Pipe Flanges Application

  • Fertilizer production
  • Chemical processing
  • Automotive exhaust
  • Nuclear power plants

Most Eminent UNS K90941 Pipe Flanges Supplier in Mumbai With Size Ranging From 1/2 to 60″

Size Chart of ASTM A182 F9 Flanges

ASTM A182 F9 Flanges Manufacturer in India in various Sizes with Different Surface Finishes and Threads

Size (in.) Dimension Flange Sizes 1/2 - 2 1/2 in. (Class)
2500 1500 900 600 400 300 125, 150
in mm mm in. mm in. mm in. mm in. mm in. mm in.
2 1/2 A 10 1/2 266.7 244 9 5/8 244 9 5/8 190.5 7 1/2 190.5 7 1/2 190.5 7 1/2 177.8 7
b 2 1/4 57.2 41.3 1 5/8 41.3 1 5/8 28.6 1 1/8 28.6 1 1/8 25.4 1 22.2 7/8
D2 4 1/8 105 105 4 1/8 105 4 1/8 104.8 4 1/8 104.8 4 1/8 104.8 4 1/8 104.8 4 1/8
D1 7 3/4 197 190.5 7 1/2 190.5 7 1/2 149.2 5 7/8 149.2 5 7/8 149.2 5 7/8 139.7 5 1/2
n 8 4
d 1 1/4 31.8 28.6 1 1/8 28.6 1 1/8 22.2 7/8 22.2 7/8 22.2 7/8 19 3/4
2 A 9 1/4 234.9 215.9 8 1/2 215.9 8 1/2 165.1 6 1/2 165.1 6 1/2 165.1 6 1/2 152.4 6
b 2 50.8 38.1 1 1/2 38.1 1 1/2 25.4 1 25.4 1 22.2 7/8 19 3/4
D2 3 5/8 92.1 92.1 3 5/8 92.1 3 5/8 92.1 3 5/8 92.1 3 5/8 92.1 3 5/8 92.1 3 5/8
D1 6 3/4 171 165.1 6 1/2 165.1 6 1/2 127 5 127 5 127 5 121 4 3/4
n 8 4
d 1 1/8 28.6 25.4 1 25.4 1 19 3/4 19 3/4 19 3/4 19 3/4
1 1/2 A 8 203 177.8 7 177.8 7 155.6 6 1/8 155.6 6 1/8 155.6 6 1/8 127 5
b 1 3/4 44.5 31.8 1 1/4 31.8 1 1/4 22.2 7/8 22.2 7/8 20.6 13/16 17.5 11/16
D2 2 7/8 73 73 2 7/8 73 2 7/8 73 2 7/8 73 2 7/8 73 2 7/8 73 98 2 7/8
D1 5 3/4 146 124 4 7/8 124 4 7/8 114 4 1/2 114 4 1/2 114 4 1/2 4 3 7/8
n 4
d 1 1/4 31.8 28.6 1 1/8 28.6 1 1/8 22.2 7/8 22.2 7/8 22.2 7/8 . 15.9 5/8
1 1/4 A 7 1/4 184.2 159 6 1/4 159 6 1/4 133.4 5 1/4 133.4 5 1/4 133.4 5 1/4 117.5 4 5/8
b 1 1/2 38.1 28.6 1 1/8 28.6 1 1/8 20.6 13/16 20.6 13/16 19 3/4 15.9 5/8
D2 2 1/2 63.5 63.5 2 1/2 63.5 2 1/2 63.5 2 1/2 63.5 2 1/2 63.5 2 1/2 63.5 2 1/2
D1 5 1/8 130 111 4 3/8 111 4 3/8 98.4 3 7/8 98.4 3 7/8 98.4 3 7/8 88.9 3 1/2
n 4
d 1 1/8 28.6 25.4 1 25.4 1 19 3/4 19 3/4 19 3/4 15.9 5/8
1 A 6 1/4 159 149.2 5 7/8 149.2 5 7/8 123.8 4 7/8 123.8 4 7/8 123.8 4 7/8 108 4 1/4
b 1 3/8 34.9 28.6 1 1/8 28.6 1 1/8 17.5 11/16 17.5 11/16 17.5 11/16 14.3 9/16
D2 2 50.8 50.8 2 50.8 2 50.8 2 50.8 2 50.8 2 50.8 2
D1 4 1/4 108 102 4 102 4 88.9 3 1/2 88.9 3 1/2 88.9 3 1/2 79.4 3 1/8
n 4
d 1 25.4 25.4 1 25.4 1 19 3/4 19 3/4 19 3/4 15.9 5/8
3/4 A 5 1/2 139.7 130 5 1/8 130 5 1/8 117.5 4 5/8 117.5 4 5/8 117.5 4 5/8 98.4 3 7/8
b 1 1/4 31.8 25.4 1 25.4 1 15.9 5/8 15.9 5/8 15.9 5/8 12.7 1/2
D2 1 11/16 42.9 42.9 1 11/16 42.9 1 11/16 42.9 1 11/16 42.9 1 11/16 42.9 1 11/16 42.9 1 11/16
D1 3 3/4 95.2 88.9 3 1/2 88.9 3 1/2 82.5 3 1/4 82.5 3 1/4 82.5 3 1/4 69.8 2 3/4
n 4 44 - 4
d 7/8 22.2 22.2 7/8 22.2 7/8 19 3/4 19 3/4 19 3/4 15.9 5/8
1/2 A 5 1/4 133.4 121 4 3/4 121 4 3/4 95.2 3 3/4 95.2 3 3/4 95.2 3 3/4 88.9 3 1/2
b 1 3/16 30.2 22.2 7/8 22.2 7/8 14.3 9/16 14.3 9/16 14.3 9/16 11.1 7/16
D2 1 3/8 34.9 34.9 1 3/8 34.9 1 3/8 34.9 1 3/8 34.9 1 3/8 34.9 1 3/8 34.9 1 3/8
D1 3 1/2 88.9 82.6 3 1/4 82.6 3 1/4 66.7 2 5/8 66.7 2 5/8 66.7 2 5/8 60.3 2 3/8
n 4 44 - 4
d 7/8 22.2 22.2 7/8 22.2 7/8 15.9 5/8 15.9 5/8 15.9 5/8 15.9 5/8
ASTM A182 Grade F9 Flanges Dimensions
Size D B3 L3 r B L B2 H L2 Bolt Circle Diameter No. of Holes X R T O
20 2.13 20.25 4.06 0.5 20.2 2.88 19.25 20 5.69 25 20-1.25 22 23 1.69 27.5
18 1.94 18.2 3.81 0.5 18.18 2.69 17.25 18 5.5 22.75 16-1.25 19.88 21 1.56 25
16 1.75 16.19 3.44 0.5 16.16 2.5 15.25 16 5 21.25 16-1.12 18 18.5 1.44 23.5
14 1.63 14.18 3.12 0.5 14.14 2.25 13.25 14 5 18.75 12-1.12 15.75 16.25 1.38 21
12 1.56 12.92 2.19 0.5 12.88 2.19 12 12.75 4.5 17 12-1.00 14.38 15 1.25 19
10 1.31 10.92 1.94 0.5 10.88 1.94 10.02 10.75 4 14.25 12-1.00 12 12.75 1.19 16
8 1.25 8.75 1.75 0.5 8.72 1.75 7.98 8.63 4 11.75 8-0.88 9.69 10.62 1.12 13.5
6 1.06 6.75 1.56 0.5 6.72 1.56 6.07 6.63 3.5 9.5 7.56 8.5 1 11
5 0.94 5.69 1.44 0.44 5.66 1.44 5.05 5.56 3.5 8.5 6.44 7.31 0.94 10
4 0.94 4.6 1.31 0.44 4.57 1.31 4.03 4.5 3 7.5 8-0.75 5.31 6.19 0.94 9
3-1/2 0.88 4.1 1.25 0.38 4.07 1.25 3.55 4 2.81 7 4.81 5.5 0.94 8.5
3 0.81 3.6 1.19 0.38 3.57 1.19 3.07 3.5 2.75 6 4-0.75 4.25 5 0.94 7.5
2-1/2 0.75 2.97 1.12 0.31 2.94 1.12 2.47 2.88 2.75 5.5 3.56 4.12 0.88 7
2 0.69 2.46 1 0.31 2.44 1 2.07 2.38 2.5 4.75 3.06 3.62 0.75 6
1-1/2 0.62 1.97 0.88 0.25 1.95 0.88 1.61 1.9 2.44 3.88 4-0.62 2.56 2.88 0.68 5
1-1/4 0.56 1.72 0.81 0.19 1.7 0.81 1.38 1.66 2.25 3.5 2.31 2.5 0.62 4.62
1 0.5 1.38 0.69 0.12 1.36 0.69 1.05 1.32 2.19 3.12 1.94 2 0.56 4.25
3/4 0.44 1.11 0.62 0.12 1.09 0.62 0.82 1.05 2.06 2.75 1.5 1.69 0.5 3.88
1/2 0.38 0.9 0.62 0.12 0.88 0.62 0.62 0.84 1.88 2.38 1.19 1.38 0.44 3.5
Thickness Chart of SA182F9 Puddle Flange

Do You Want to See the Most Up-to-Date List of Prices for ASTM A182 F9 Flanges? To obtain a quote immediately, send an email to kalpesh@manishasteelcentre.com.

Wall Thickness
Size O.D XX Heavy SCH 160 SCH 140 SCH 120 SCH 100 SCH 80 Ext Hvy OD SCH 60 SCH 40 Std Wall OD SCH 30 SCH 20 SCH 10
20 20 - 1.969 1.75 1.5 1.281 1.031 0.5 0.812 0.594 0.375 0.5 0.375 0.25
18 18 - 1.781 1.562 1.375 1.156 0.938 0.5 0.75 0.562 0.375 0.438 0.312 0.25
16 16 - 1.594 1.438 1.219 1.031 0.844 0.5 0.656 0.5 0.375 0.375 0.312 0.25
14 14 - 1.406 1.25 1.094 0.938 0.75 0.5 0.594 0.438 0.375 0.375 0.312 0.25
12 12.75 1 1.312 1.125 1 0.844 0.688 0.5 0.562 0.406 0.375 0.33 0.25 0.18
10 10.75 1 1.125 1 0.844 0.719 0.594 0.5 0.5 0.365 0.365 0.307 0.25 0.165
8 8.625 0.875 0.906 0.812 0.719 0.594 0.5 0.5 0.406 0.322 0.322 0.277 0.25 0.148
6 6.625 0.864 0.719 - 0.562 - 0.432 0.432 - 0.28 0.28 - - 0.134
5 5.563 0.75 0.625 - 0.5 - 0.375 0.375 - 0.258 0.258 - - 0.134
4 4.5 0.674 0.531 - 0.438 - 0.337 0.337 - 0.237 0.237 - - 0.12
3 ½ 4 0.636 - - - - 0.318 0.318 - 0.226 0.226 - - 0.12
3 3.5 0.6 0.438 - - - 0.3 0.3 - 0.216 0.216 - - 0.12
2 ½ 2.875 0.552 0.375 - - - 0.276 0.276 - 0.203 0.203 - - 0.12
2 2.375 0.436 0.344 - - - 0.218 0.218 - 0.154 0.154 - - 0.109
1 ½ 1.9 0.4 0.281 - - - 0.2 0.2 - 0.145 0.145 - - 0.109
1 ¼ 1.66 0.382 0.25 - - - 0.191 0.191 - 0.14 0.14 - - 0.109
1 1.315 0.358 0.25 - - - 0.179 0.179 - 0.133 0.133 - - 0.109
¾ 1.05 0.308 0.219 - - - 0.154 0.154 - 0.113 0.113 - - 0.083
½ 0.84 0.294 0.188 - - - 0.147 0.147 - 0.109 0.109 - - 0.083

Offer ASTM A182 Gr F9 Weld Neck Flanges In All Pressure Rating for Various Piping Systems At Best Price

A182 F9 Header Flanges Pressure Ratings

Manisha Steel Centre ISO Certified ASTM A182 F9 Flanges Supplier in India Keep featuring Different Pressure Ratings

Gr F9 Pressure Class
Temperature °F 2500 1500 900 600 400 300 150
1000 1370 825 495 330 220 165 20
950 2345 1405 845 560 375 280 35
900 3745 2245 1350 900 600 450 50
850 4060 2435 1460 975 650 485 65
800 4230 2540 1525 1015 675 510 80
750 4430 2660 1595 1065 710 530 95
700 4730 2840 1705 1135 755 570 110
650 4905 2940 1765 1175 785 590 125
600 5040 3025 1815 1210 805 605 140
500 5180 3105 1865 1245 830 620 170
400 5330 3200 1920 1280 855 640 200
300 5435 3260 1955 1305 870 655 230
200 5660 3395 2035 1360 905 680 260
-20 to 100 5785 3470 2085 1390 925 695 265
Price List of ASTM A182 F9 Flanges

For the most recent price list for ASTM A182 F9 flanges. Get in touch with us & Get a Quote Immediately

Buy F9 Alloy Steel Socket Weld and Threaded Flanges Online Tested With NDT, PMI, Ultrasonic Testing
ASTM A182 F9 Steel Exhaust Flanges Testings
  • X-ray test
  • Mechanical examining
  • Prompt test
  • Large scale test
  • Firmness test
  • Chemical analysis
  • Material recognition
  • Hydrostatic analysis
  • Impact analysis
Types of ASTM A182 F9 Flanges
ASTM A182 F9 Blind Flanges

ASTM A182 F9 Blind Flanges

ASTM A182 Gr F9 Slip On Flange

ASTM A182 Gr F9 Slip On Flange

ASTM A182 Grade F9 Header Flanges

ASTM A182 Grade F9 Header Flanges

ASTM A182 F9 steel Puddle Flange

ASTM A182 F9 steel Puddle Flange

A182 F9 Weld Neck Flanges

A182 F9 Weld Neck Flanges

SA 182 F9 Socket Weld Flanges

SA 182 F9 Socket Weld Flanges

A182 Gr F9 Threaded Flanges

A182 Gr F9 Threaded Flanges

SA 182 Gr F9 Exhaust Flanges

SA 182 Gr F9 Exhaust Flanges

SA182 F9 Lap Joint Flange

SA182 F9 Lap Joint Flange

Carries a Wide Range of SA 182 Gr F9 Forged Flanges For Sale With Proof Machined and Forged Black Finish
SA 182 Gr F9 Lap Joint Flange Finishes
  • Machined
  • Small male-female
  • Forged Black
  • Lap joint
  • Raised face
  • Small tongue
  • Large tongue and groove
  • Large male-female
  • Flat face
  • Ring type joint
Equivalent Material of F9 Alloy Steel Threaded Flanges
Grade UNS Trade Name WERKSTOFF NR.
F9 K90941 9Cr-1Mo 1.7386
A182 F9 Chemical Composition
Grade Manganese Carbon Phosphorus Silicon Sulfur Molybdenum Chromium
F9 0.3-0.6 0.15 max 0.03 0.5 - 1 0.03 0.9 - 1.1 8 - 10
Mechanical Properties of ASTM A182 Gr F9 Blind Flanges
Grade Yield Strength (min) Elongation (in 50mm) Tensile Strength (min)
Alloy Steel F9 585 MPa 20 % 380 MPa
ASTM A182 F9 Flanges Shiiping Time as per Country
Export to Shipping Time in Days
Saudi Arabia 7
Malaysia 10
South Africa 25-30
Oman 5
Italy 30
France 30
Indonesia 9
Singapore 8
Manisha Steel Centre



Why Us ?
  • Stockist and Exporter of Small Diameter Tubing in Grades of Austenitic and Ferritic Stainless Steel.
  • Supply as Per American and European Standards According to Dimensional Standard ASME B36.19M
  • Distributor and Trader in Mumbai of Renowned Mills Outokumpu, POSCO and Aperam
  • Associated With Dealers and Stockholders in Kuwait, Nigeria, Iraq, Egypt, Congo and Gabon
