Nickel Alloy Flanges Manufacturer in India

Home|Nickel Alloy Flanges Manufacturer in India

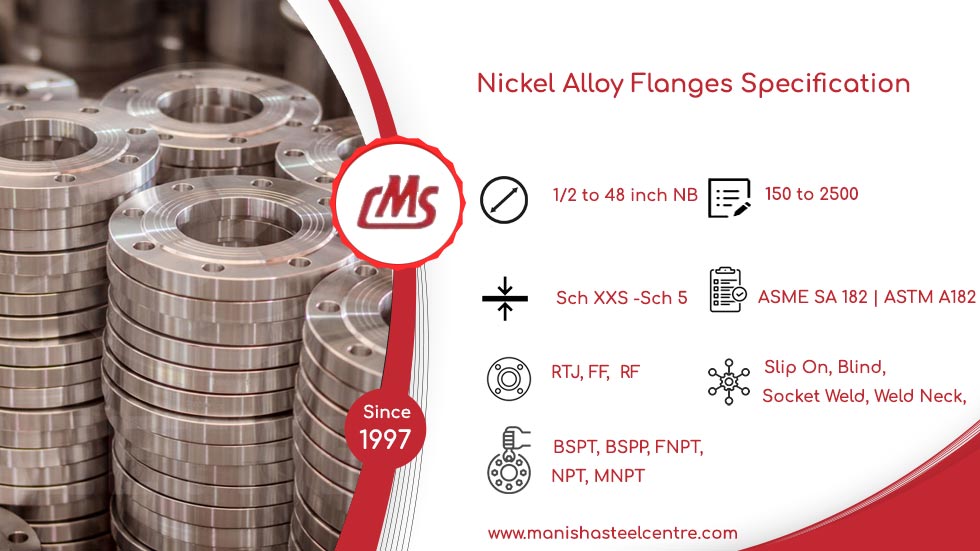

Nickel Alloy Flanges Specification
Why Stockists in Philippines should buy Nickel Alloy Flanges from Manisha Steel Centre?
Benefit Explanation
Durability Long-lasting materials
Stock Availability Consistent supply
Global Reach Worldwide shipping
Fast Delivery Timely shipments
Certified Products Meets global standards
Expertise Industry knowledge
Sustainability Eco-friendly practices
Reputation Trusted supplier
Manisha Steel Centre

Table of Content


Supplier Of Pure Nickel 200 Flanges in Mumbai With Size From 1/2 to 48" As Per ASME B16.5

Nickel Alloy Flanges Specification
Nickel Flanges Sizes

Nickel Flanges Sizes

  • NPS:  1/2 to 18 inch NB
  • Class / Pressure: 150 to 2500 #
  • SCH: Sch 5 to XXS

Nickel 201 Flanges Slip On Flane Manufacturing Process

Nickel 201 Flanges Slip On Flane Manufacturing Process

  • Rolling/Cutting
  • Forging
  • Casting
Pure Nickel Spectacle Blind Flanges Standards

Pure Nickel Spectacle Blind Flanges Standards

  • ASME SA 182 | ASTM A182
  • ASME B16.5
  • ASME B16.47 Series A & B
  • MSS SP44

WNR 2.4066 Ring Type Joint Flange Types

WNR 2.4066 Ring Type Joint Flange Types

  • Socket Weld
  • Lap Joint
  • Slip On
  • Weld Neck
  • Blind
Ni 200 Orifice Flanges Face

Ni 200 Orifice Flanges Face

  • T&G
  • LJF
  • RF
  • RTJ
  • FF

ASTM B564 UNS N02201 Weld Neck Flange Threads

ASTM B564 UNS N02201 Weld Neck Flange Threads

  • NPT
  • BSPT
  • FNPT
  • BSPP
  • MNPT
Alloy 201 Socket Weld Flange Supporting Material

Alloy 201 Socket Weld Flange Supporting Material

  • Flange Bolts
  • Gaskets
  • Ring Joint
WNR 2.4068 Threaded Flange Grade

WNR 2.4068 Threaded Flange Grade

  • Nickel Alloy 200
  • Nickel Alloy 201


Nickel Alloy Lap Joint Flanges Finish

Nickel Alloy Lap Joint Flanges Finish

  • Concentric
  • Smooth
  • Serrated
  • Mirror/Spiral
Ni 200 Orifice Flanges Testing

Ni 200 Orifice Flanges Testing

  • PMI
  • Pressure
  • Tensile
  • Hardness
WNR 2.4066 Pipe Flanges Connection Type

WNR 2.4066 Pipe Flanges Connection Type

  • Threaded
  • Welded
  • Bolted
Pure Nickel Forged Flanges Origin

Pure Nickel Forged Flanges Origin

  • European/Korean
  • Indian
  • Japan
ASME SB564 UNS N02200 Plate Flange Meet Requirement

ASME SB564 UNS N02200 Plate Flange Meet Requirement

  • Sour Service
  • NACE MR0103/ MR0175
  • ISO 15156

Nickel 201 Weld Neck Flange Application

Nickel 201 Weld Neck Flange Application

  • Pressure Vessels
  • Aerospace
  • Food and Beverage Industry
  • Chemical Processing
Ni 200 Pipe Flanges Standards
ASME B16.5 Nickel Alloy Slip on Flanges, Blind Flanges, Weld Neck Flanges, Lap Joint Flanges,Threaded Flanges,Socket weld Flanges
BS 10 Table K
Table F
Table E
Table D
Table J
Table G
Table H
ASME B16.47 NPS 26 to 60 Large Diameter Flange
ASTM B564 Nickel 200 Flanges Table E
Table H
Table C
Table F
Table D
Table J
Table G
ASME B16.36

ASTM B564 Nickel 200 Orifice Flanges
EN 1092-1
DIN
BS 4504 BS4504-16
BS4504-64
BS4504-100
BS4504-25
BS4504-40
BS4504-6
EN 1092-2

Discover Alloy 201 Forged Flanges in Different Types and Finish With Pressure Class 150 to 2500# Here

Nickel 201 Flanges Slip On Flange Pressure Temperature Rating
Temperature in °F 400 150 2500 600 900 1500 300
900 520 50 3240 780 1165 1945 390
1000 430 20 2675 640 965 1605 320
800 540 80 3360 805 1210 2015 405
500 620 170 3880 930 1395 2330 465
600 580 140 3640 875 1310 2185 435
200 800 230 5000 1200 1800 3000 600
1300 115 20 715 170 255 430 85
-20 to 100 960 275 6000 1440 2160 3600 720
750 555 95 3460 830 1245 2075 415
1200 205 20 1285 310 465 770 155
300 720 205 4500 1080 1620 2700 540
1350 80 20 515 125 185 310 60
1150 265 20 1655 400 595 995 200
1100 345 20 2145 515 770 1285 255
650 575 125 3580 860 1290 2150 430
1050 410 20 2570 615 925 1545 310
850 530 65 3300 790 1190 1980 395
1250 150 20 945 225 340 565 115
400 660 190 4140 995 1490 2485 495
1400 65 20 400 95 145 240 50
700 565 110 3540 850 1275 2125 425
1450 45 15 285 70 105 170 35
950 510 35 3180 765 1145 1910 380
1500 35 10 230 55 80 135 25

Buy ASTM B564 UNS N02200 Blind and Slip On Flanges At Lowest Possible Price With Various Value Added Services

Nickel Alloy Flanges Price List

Would You Like to View the Most Recent Nickel Alloy Flange Price List? For a quote right now, send an email to kalpesh@manishasteelcentre.com.

Price List Price in USD
UNS N02200 Nickel Alloy Weld Neck Flange $2.50 to $3.50
Nickel Alloy Slip On Flange Size : 5'' $23.40 to $25.30
3/4" Nickel Alloy Blind Flange $35.00 to $39.00
Nickel Alloys Slip On Flanges $5.00 to $50.00
Alloy 201 Forged Flanges Value Added Services
  • Grooving
  • Drilling holes
  • Polishing
  • Annealed
  • Machining (CNC)
  • Threading
  • Cutting
  • Heat Treatment (Hardening & Tempering)
  • Pickled
Nickel Alloy Flanges Sizes

Nickel Alloy Flanges Manufacturer in India supplies a range of sizes, surface finishes, and threads.

Nickel Flanges
‘DN’ (Nominal Diameter) in mm
INCH DN INCH DN
15 375 1 25
12 300 1/2 15
18 450 1 1/2 40
14 350 3/4 20
20 500 2 50
16 400 1 1/4 32
28 700 3 80
24 600 2 1/2 65
32 800 5 125
30 750 4 100
36 900 8 200
Stock and supply WNR 2.4066 Socket Weld and Weld Neck Flange With NPT, MNPT, BSPP Thread
Connection Types Of Commercially Pure Nickel Flanges

Manisha Steel Centre Leading Super Nickel Alloy Flanges Supplier in India maintains to offer a range of forms and pressure ratings.

ASTM B564 UNS N02201 Socket Weld Flange

ASTM B564 UNS N02201 Socket Weld Flange

Nickel 200 Slip On Flange

Nickel 200 Slip On Flange

Nickel Alloy Plate Flange

Nickel Alloy Plate Flange

WNR 2.4066 Blind Flanges

WNR 2.4066 Blind Flanges

Nickel Alloy 200 Weld Neck Flange

Nickel Alloy 200 Weld Neck Flange

Pure Nickel Orifice Flanges

Pure Nickel Orifice Flanges

WNR 2.4068 Threaded Flange

WNR 2.4068 Threaded Flange

Ni 201 Spectacle Blind Flanges

Ni 201 Spectacle Blind Flanges

ASTM B564 UNS N02200 Lap Joint Flanges

ASTM B564 UNS N02200 Lap Joint Flanges

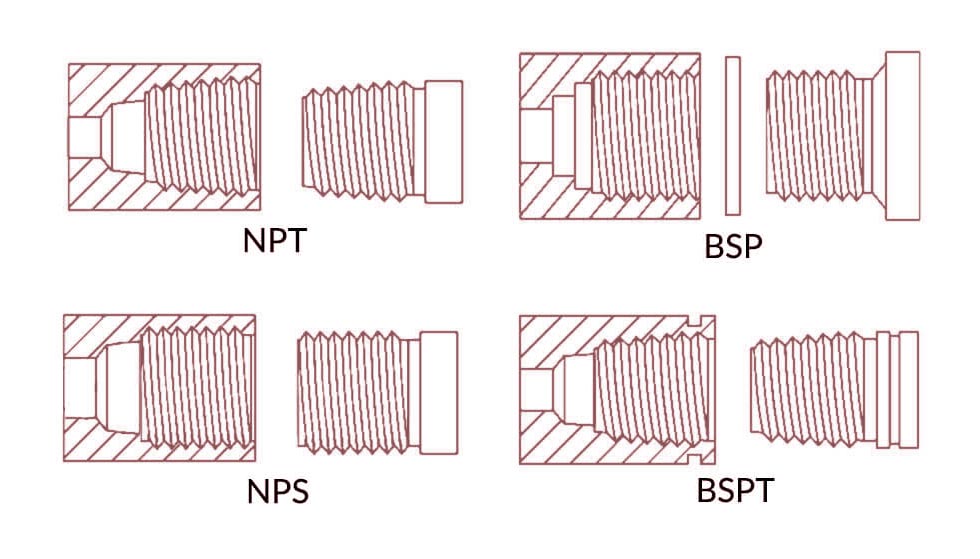

Nickel Alloy 201 Blind Flanges Thread Types
Nickel Alloy 201 Blind Flanges Threads
Get Reliable Source Of Ni 200 Pipe Flanges With FF, RF, RTJ Faces Ideal For Condensers and Heat Exchangers
WNR 2.4066 Socket Weld Flange Face Types
Face Types Marking
Flat Face FF
Ring Type Joint RTJ
Lap Joint Face LJRF
Male Female Face M&F
Tongue Groove Face T & G
Raised Face RF
Alloy 200 Orifice Flanges Weight Chart
Pipe Normal Diam. Thk. Of Flange Min O.D. Flange Diam.
of
Hub		 Length Hub.Y Diameter of Raised Face Thread Length Diam.
of Bolt
Holes		 Diam.
of Bolt
Circle		 Diam. of
Bolts
(inch)		 Number
of Bolts		 LB KG
inch dn C O X Y G T BH BC BD BN
1″ 25 14.20 108.00 49.30 17.50 50.80 17.50 15.80 79.30 1/2″ 4 1.8 0.8
1/2″ 15 11.20 89.00 30.20 15.70 35.10 15.70 15.80 60.50 1/2″ 4 0.9 0.4
2″ 50 19.10 152.50 77.70 25.40 91.90 25.40 19.10 120.70 5/8″ 4 5.1 2.3
3/4″ 20 12.70 98.50 38.10 15.70 42.90 15.70 15.80 69.90 1/2″ 4 1.5 0.7
2-1/2″ 65 22.40 178.00 90.40 28.40 104.60 28.40 19.10 139.70 5/8″ 4 8.1 3.7
24″ 600 47.80 813.00 663.40 82.60 692.20 82.60 35.10 749.30 1 1/4″ 20 214 97
1-1/4″ 32 15.70 117.50 58.70 20.60 63.50 20.60 15.80 88.90 1/2″ 4 2.6 1.2
3-1/2″ 90 23.90 216.00 122.20 31.80 139.70 31.80 19.10 177.80 5/8″ 8 11.2 5.1
5″ 125 23.90 254.00 163.60 36.60 185.70 36.60 22.40 215.90 3/4″ 8 15.4 7
3″ 80 23.90 190.50 108.00 30.20 127.00 30.20 19.10 152.40 5/8″ 4 9 4.1
8″ 200 28.40 343.00 246.10 44.50 269.70 44.50 22.40 298.50 3/4″ 8 28.6 13
1-1/2″ 40 17.50 127.00 65.00 22.40 73.20 22.40 15.80 98.60 1/2″ 4 3.3 1.5
10″ 250 30.20 406.50 304.80 49.30 323.90 49.30 25.40 362.00 7/8″ 12 39.5 18
4″ 100 23.90 228.50 134.90 33.30 157.20 33.30 19.10 190.50 5/8″ 8 13 5.9
12″ 300 31.80 482.50 365.30 55.60 381.00 55.60 25.40 431.80 7/8″ 12 64 29
6″ 150 25.40 279.50 192.00 39.60 215.90 39.60 22.40 241.30 3/4″ 8 18.5 8.4
16″ 400 36.60 597.00 457.20 63.50 469.90 63.50 28.50 539.80 1″ 16 103 47
14″ 350 35.10 533.50 400.10 57.20 412.80 57.20 28.50 476.30 1″ 12 86 39
20″ 500 42.90 698.50 558.80 73.20 584.20 73.20 31.80 635.00 1 1/8″ 20 167 76
18″ 450 39.60 635.00 505.00 68.30 533.40 68.30 31.80 577.90 1 1/8″ 16 126 57

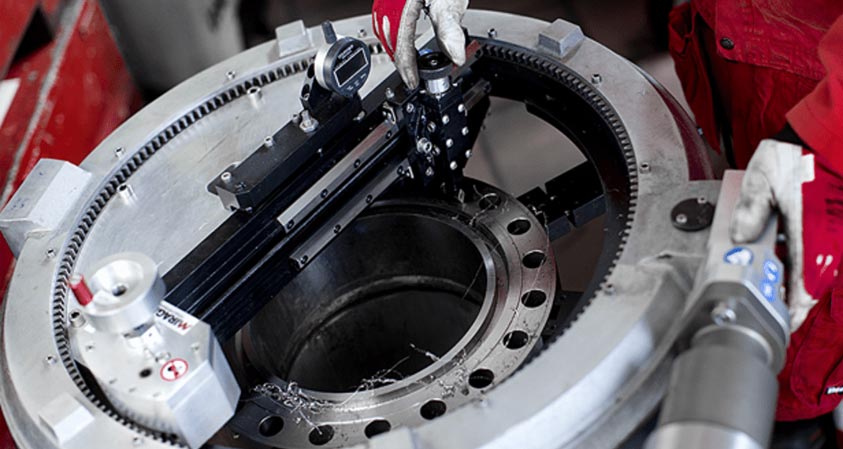

Ni 201 Ring Type Joint Flange Applications
Ni 201 Ring Type Joint Flange Applications
  • Pharmaceuticals Industry
  • Aerospace Industry
  • Pulp & Paper Indusry
  • Food Processing Industry
  • Refining Industry
  • Power Plant Industry
  • Chemical Industry
  • Energy Industry
  • Petrochemical Industry
  • Oil and Gas Industry
WNR 2.4068 Threaded Flange Dimensions
Normal Pipe Size (NPS) Of Flanges (I.D.) Inside Diameter Outside Daimeter (O.D.) Thickness Of Raised Face (RF)
(T)		 RF
(Raised Face)		 Raised Face
(R)		 Holes Of Bolts
(B)		 T1 H Thickness Of Flat Face (FF)
(T2)		 BC (Circle Of Bolt) Bolts Holes
Numbers
1-1/4 1.70 5.25 1.06 .063 2.50 0.75 0.69 2.50 1.00 3.88 4
1/2 0.88 3.75 0.88 .063 1.38 0.62 0.50 1.50 0.82 2.62 4
2 2.44 6.50 1.31 .063 3.62 0.75 0.82 3.31 1.25 5.00 8
1 1.36 4.88 1.06 .063 2.00 0.75 0.63 2.12 1.00 3.50 4
2-1/2 2.94 7.50 1.50 .063 4.12 0.88 0.94 3.94 1.44 5.88 8
3/4 1.09 4.62 1.00 .063 1.69 0.75 .056 1.88 0.94 3.25 4
3-1/2 4.07 9.00 1.75 .063 5.50 0.88 1.13 5.25 1.69 7.25 8
1-1/2 1.95 6.12 1.19 .063 2.88 0.88 0.75 2.75 1.13 4.50 4
5 5.66 11.00 2.00 .063 7.31 0.88 1.32 7.00 1.94 9.25 8
18 18.18 28.00 3.50 .063 21.00 1.38 2.32 21.00 3.44 24.75 24
3 3.57 8.25 1.69 .063 5.00 0.88 1.06 4.62 1.63 6.62 8
8 8.72 15.00 2.44 .063 10.62 1.00 1.56 10.25 2.38 13.00 12
4 4.57 10.00 1.88 .063 6.19 0.88 1.19 5.75 1.82 7.88 8
10 10.88 17.50 2.62 .063 12.75 1.12 1.82 12.62 2.56 15.25 16
6 6.72 12.50 2.06 .063 8.50 0.88 1.38 8.12 2.00 10.62 12
14 14.14 23.00 3.00 .063 16.25 1.25 2.06 16.75 2.94 20.25 20
12 12.88 20.50 2.88 .063 15.00 1.25 1.94 14.75 2.82 17.75 16
16 16.16 25.50 3.25 .063 18.50 1.38 2.19 19.00 3.19 22.50 20
20 20.20 30.50 3.75 .063 23.00 1.38 2.44 23.12 3.69 27.00 24
24 24.25 36.00 4.19 .063 27.25 1.62 2.69 27.62 4.13 32.00 24
22 22.22 33.00 4.00 .063 25.25 1.63 2.57 25.25 3.94 29.25 24
How to Weld ASTM B564 UNS N02201 Flange ?
ASTM B564 UNS N02201 Flange Welding
How Do You Properly Maintain and Install Nickel Alloy Flanges to Ensure Longevity?
  • Inspect flanges for defects
  • Ensure proper alignment
  • Use correct gaskets
  • Tighten bolts in a cross-pattern
  • Avoid over-tightening
  • Clean flanges and surfaces
  • Use corrosion inhibitors
  • Monitor flange connections
  • Store flanges properly
  • Follow manufacturer guidelines
  • Regularly re-tighten bolts
Pure Nickel Lap Joint Flanges Equivalent
STANDARD UNS WERKSTOFF NR. GOST JIS BS AFNOR EN
North America Russia Russia Japan United Kingdom France Europe
Nickel 200 N02200 2.4066 НП-2 NW 2200 NA 11 N-100M Ni 99.2
Nickel 201 N02201 2.4068 НП-2 NW 2201 NA 12 - LC-Ni 99
Chemical Composition of Nickel Alloy Spectacle Blind Flanges
Grade C Mn Ti Ni Mg Fe S Si Cu
Nickel 201 0.02 Max 0.35 Max 0.1 Max 99.0 Min 0.15 Max 0.4 Max 0.01 Max 0.2 Max 0.25 Max
Nickel 200 0.15 Max 0.35 Max - 99.0 Min - 0.4 Max 0.01 Max 0.1 Max 0.25 Max
Mechanical Properties of Ni Forged Flanges
Grades Yield Strength (psi) Reduction of Area (%) Tensile Strength (psi) Brinell Hardness (BHN) Elongation in (%)
Nickel 201 Psi to 21500 , MPa to 148 8.9 G/Cm3 Psi to 67000 , MPa to 462 45 % 1446 °C (2635 °F)
Nickel 200 Psi to 21500 , MPa to 148 8.9 G/Cm3 Psi to 67000 , MPa to 462 45 % 1446 °C (2635 °F)
Physical Properties of ASTM B564 UNS N02201 Plate Flange

Physical Properties English Metric
Poissons Ratio  0.31 0.31
Shear Modulus  11000 ksi 76.0 GPa
Modulus of Elasticity  30000 ksi 207 GPa
Density  0.321 lb/in³ 8.88 g/cc
Available Stock of Nickel Alloy Flanges
ANSI B16.5 1/2

ANSI B16.5 1/2" Nickel Alloy Threaded Flanges

High Quality Nickel Forging Flange

High Quality Nickel Forging Flange

1/2-60 nickel-base Flanges

1/2-60 nickel-base Flanges

3

3" Nickel Alloy Plate Flange

200mm Nickel Alloy Lap Joint Flange

200mm Nickel Alloy Lap Joint Flange

Pure Nickel Flanges Locationwise Time as per Location
Price Changes
5 % extra
Export to DeliveryTime in Days
Malaysia 10
Uk 30
Bahrain 9
Belgium 5
Singapore 8
Saudi Arabia 7
Qatar 7
Netherland 10
UAE 5 days
Philippines 14
Italy 30
USA 40-60
Indonesia 9
South Africa 25-30
Germany 30
Manisha Steel Centre



Why Us ?
  • Stockist and Exporter of Small Diameter Tubing in Grades of Austenitic and Ferritic Stainless Steel.
  • Supply as Per American and European Standards According to Dimensional Standard ASME B36.19M
  • Distributor and Trader in Mumbai of Renowned Mills Outokumpu, POSCO and Aperam
  • Associated With Dealers and Stockholders in Kuwait, Nigeria, Iraq, Egypt, Congo and Gabon
©2025 Manisha Steel Centre. All Rights Reserved
Website Designed And SEO by Mesotek
Manufacturer and Supplier of Seamless Steel Tubes in India as per ASME SA 269.
