ASTM A182 F22 Flanges | SA 182 Grade F22 Cl 3 Equivalent/Composition

Table of Content

ASTM A182 F22 Flanges Specification
ASTM A182 F22 Flanges Price List
Equivalent Grade Of ASTM A182 Gr F22 Blind Flanges
Mechanical Properties Of SA 182 F22 Weld Neck Flanges
Physical Properties SA 182 Gr F22 Lap Joint Flange
Chemical Composition Of UNS K21590 Socket Weld Flanges
Connection Types of ASTM A182 F22 Flanges
ASTM A182 F22 Alloy Steel Flanges Faces Types
ASTM A182 F22 Flanges Sizes Chart
Pressure Rating Chart Of F22 Alloy Steel Threaded Flanges
Applications Of ASTM A182 Gr F22 CL3 Pipe Flanges
SA 182 F22 Weld Neck Flanges Weight Chart

Genuine Manufacturer Of ASME SA 182 Grade F22 Class 3 Slip On Flange in India Since 1997

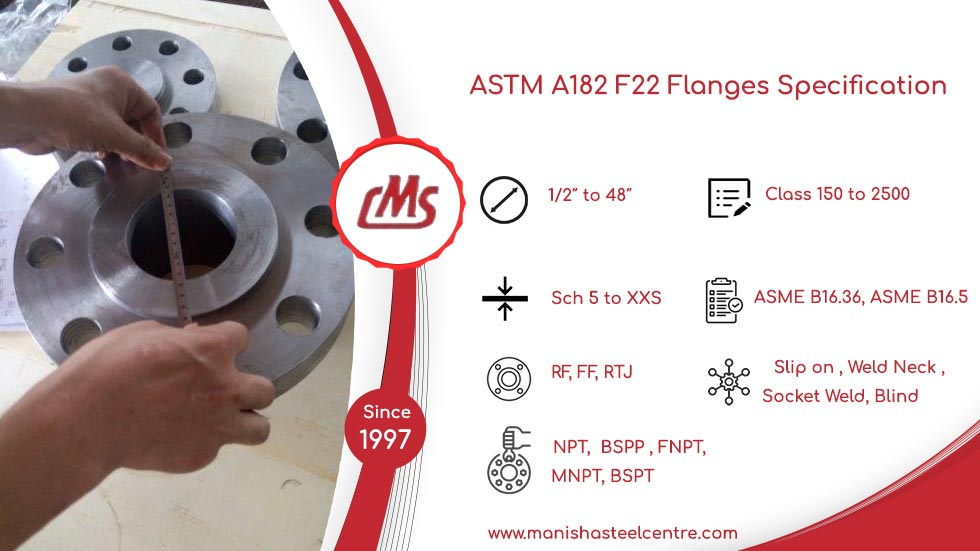

ASTM A182 F22 Flanges Specification

F22 Alloy Steel Flanges Sizes

NPS: 1/2 to 48"
Class : 150 to2500
SCH: Sch 5 - Sch XXS

ASTM A182 Gr F22 CL3 Pipe Flanges Manufacturing Process

Rolling
Cutting/ Casting
Forging

ASTM A182 Gr F22 Blind Flanges Face

ASTM A182 F22 Alloy Steel Slip On Flange Threads

BSPP
FNPT
NPT
MNPT
BSPT

SA 182 F22 Weld Neck Flanges Connection Type

Threaded
Bolted
Welded

ASTM A182 F22 Class 1 Flanges Origin

European
Indian, Korean
Japan

UNS K21590 Socket Weld Flanges Standards

ASME B16.5
MSS SP44
ASME B16.47 Series A & B

F22 Alloy Steel Threaded Flanges Types

Slip On
Lap Joint
Weld Neck
Blind
Socket Weld

SA 182 Gr F22 Lap Joint Flange Meet Requirement

ISO 15156
Sour Service
NACE MR0103/MR0175

ASTM A182 F22 Class 3 Exhaust Flanges Application

Chemical Processing
Aerospace
Pressure Vessels
Food and Beverage Industry

ASTM A182 F22 CL3 Header Flanges Material

Gaskets
Flange Bolts
Ring Joint

SA 182 Gr F22 CL 3 Puddle Flange Features

corrosion-resistant
excellent strength
Toughness

ASTM A182 Grade F22 Flanges Finish

Smooth
Mirror
Concentric
Serrated/Spiral

ASTM A182 F22 Weld Neck Flanges Testing

Pressure
Tensile
PMI
Hardness

High Quality UNS K21590 Blind and Weld Neck Flange Supplier in Mumbai At Lowest Possible Price, Refer Equivalent/Composition

ASTM A182 F22 Flanges Price List

For the Most recent ASTM A182 F22 Flanges Price list , Directly Contact Us and Get Quote Immediately

Equivalent Grade Of ASTM A182 Gr F22 Blind Flanges

Grade	UNS	JIS	EN
A182 F22	K21590	G3461	10216-2

Mechanical Properties Of SA 182 F22 Weld Neck Flanges

Property	Value
Yield Strength	345 – 550 MPa
Tensile Strength	620 – 900 MPa
Hardness	Rockwell B: 85
Elongation	15% min
Poisson’s Ratio	0.3
Modulus of Elasticity	117 GPa

Physical SA 182 Gr F22 Lap Joint Flange

Property	Value
Melting Point	2597 – 2750°F
Density	7.85 g/cm³
Coefficient of Thermal Expansion	11.7 x 10⁻⁶ /°C
Thermal Conductivity	35.9 W/m·K at 100°C
Electrical Resistivity	0.00093 ohm·cm
Specific Heat	0.49 J/g·°C

Chemical Composition Of UNS K21590 Socket Weld Flanges

Mo 0.87-1.20%

P 0.025%

Mn 0.30-0.60%

Cr 1.50-2.50%

Si 0.15-0.40%

C 0.01%

Stock and Supply Diffrent Face ASTM A182 Gr F22 CL3 Pipe Flanges With Size Range From 1/2 to 60"

Connection Types of ASTM A182 F22 Flanges

Manisha Steel Centre, the Best ASTM A182 F22 Flanges Supplier in India, offers a extensive selection of types, coatings, and pressure ratings.

ASTM A182 F22 Blind Flanges

SA 182 F22 Slip On Flange

ASTM A182 F22 CL3 Weld Neck Flanges

ASTM A182 F22 Alloy Steel Socket Weld Flanges

UNS K21590 Threaded Flanges

F22 alloy steel Lap Joint Flange

A182 F22 class 3 Exhaust Flanges

SA182F22 Header Flanges

ASTM A182 Grade F22 Puddle Flange

ASTM A182 F22 Alloy Steel Flanges Faces Types

Faces Type
Raised Face (RF)
Lap Joint
Male and Female (M&F)
Flat Face (FF)
Tongue-and-Groove (T&G)
Ring Joint (RTJ)

ASTM A182 F22 Flanges Sizes Chart

ASTM A182 F22 Flanges Manufacturer in India offers distinctive surface finishes and a range of thread diameters..

NPS	OD (inches)	ID (inches)	Thick(inches)	No. of Bolts	Bolt Circle Dia (inches)	Bolt Hole Dia (inches)
1-1/2	5.00	1.88	0.62	4	4.50	0.44
1	4.50	1.38	0.56	4	3.75	0.38
3	6.50	3.50	0.75	4	7.00	0.56
2	5.50	2.38	0.62	4	5.50	0.50
2-1/2	6.00	2.88	0.75	4	6.00	0.50
5	8.50	5.50	1.00	8	9.00	0.62
4	7.50	4.50	0.87	4	8.00	0.62
8	11.00	8.50	1.25	8	12.00	0.75
6	9.50	6.50	1.12	8	10.00	0.75
12	15.00	12.50	1.50	12	16.00	0.88
10	13.00	10.50	1.38	8	14.00	0.88

Offer Customized F22 Alloy Steel Socket Weld and Threaded Flanges With Pressure Class 150 to 2500 LBS

Pressure Rating Chart Of F22 Alloy Steel Threaded Flanges

NPS (inches)	Cl 2500	Cl 300	Cl 900	Cl 1500	Cl 600	Cl 150
1/2	6000	720	2160	3600	1440	300
1	6000	720	2160	3600	1440	300
1-1/2	6000	720	2160	3600	1440	300
3/4	6000	720	2160	3600	1440	300
2-1/2	6000	720	2160	3600	1440	300
3	6000	720	2160	3600	1440	300
2	6000	720	2160	3600	1440	300
5	6000	720	2160	3600	1440	300
6	6000	720	2160	3600	1440	300
4	6000	720	2160	3600	1440	300
10	6000	720	2160	3600	1440	300
12	6000	720	2160	3600	1440	300
8	6000	720	2160	3600	1440	300

Buy High Quality SA 182 F22 Material Online Suitable for High Temperature and High Pressure Environments

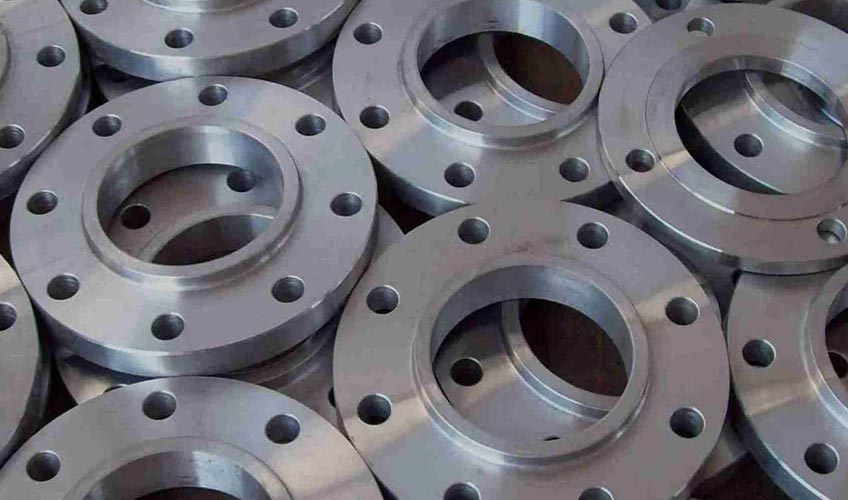

Applications Of ASTM A182 Gr F22 CL3 Pipe Flanges

Pharmaceuticals
Power generation
Petrochemicals
Bevearage & food Industry
Chemical Processing
Automotive

SA 182 F22 Weld Neck Flanges Weight Chart

NPS	OD (inches)	Weight (lbs)	Face to Face (inches)
2	5.50	6.20	1.19
1-1/2	5.00	4.40	1.06
1	4.50	2.80	0.94
2-1/2	6.00	8.10	1.38
4	7.50	14.00	1.88
3	6.50	10.50	1.56
6	9.50	23.40	2.38
5	8.50	18.20	2.12
10	13.00	49.00	3.12
8	11.00	34.60	2.75
12	15.00	68.30	3.38
