Inconel 625 Flanges

Home|Inconel 625 Flanges
Inconel 625 Flanges Specification
Which 3 Test Reports Saudi Arabian Buyers Should Ask Before Finalising the Inconel 625 Flanges From India?
  • Mill Test Certificate (MTC)
  • Third-Party Inspection Report
  • Chemical Composition Analysis Report
Manisha Steel Centre

Table of Content


Inconel 625 Flanges Specification
ASTM B564 UNS N06625 Flange Sizes

ASTM B564 UNS N06625 Flange Sizes

  • NPS: 1/2 to 48 inches
  • Class : 150 to2500
  • SCH: Sch 5 - Sch XXS

Inconel 625 Blind Flanges Manufacturing Proces

Inconel 625 Blind Flanges Manufacturing Process

  • Cutting/ Casting
  • Forging
  • Rolling
Alloy 625 Slip On Flange Face

Alloy 625 Slip On Flange Face

  • T&G
  • RF
  • RTJ
  • LJF
  • FF

UNS N06625 Weld Neck Flanges Threads

UNS N06625 Weld Neck Flanges Threads

  • FNPT
  • BSPP
  • BSPT
  • MNPT
  • NPT
WNR 2.4856 Socket Weld Flanges Standards

WNR 2.4856 Socket Weld Flanges Standards

  • ASTM B564 | ASME SB564
  • MSS SP44
  • ASME B16.47 Series A & B
  • ASME B16.5
Altemp 625 Threaded Flanges Types

Altemp 625 Threaded Flanges Types

  • Weld Neck
  • Lap Joint
  • Slip On
  • Socket Weld
  • Blind
Chornin 625 Lap Joint Flange Connection Type

Chornin 625 Lap Joint Flange Connection Type

  • Welded
  • Bolted
  • Threaded
Nickel 625 Exhaust Flanges Origin

Nickel 625 Exhaust Flanges Origin

  • Japan
  • Indian, Korean
  • European

Haynes 625 Puddle Flange Supporting Material

Haynes 625 Puddle Flange Supporting Material

  • Ring Joint
  • Flange Bolts
  • Gaskets
ASTM B564 UNS N06625 Header Flanges Features

ASTM B564 UNS N06625 Header Flanges Features

  • Toughness
  • corrosion-resistant
  • excellent strength
SB564 N06625 Pipe Flange Finishh

SB564 N06625 Pipe Flange Finish

  • Concentric
  • Mirror
  • Smooth
  • Serrated/Spiral
Nickelvac 625 Puddle Flange Testing

Nickelvac 625 Puddle Flange Testing

  • Pressure
  • Hardness
  • PMI
  • Tensile
UNS N06625 Weld Neck Flanges Meet Requirement

UNS N06625 Weld Neck Flanges Meet Requirement

  • NACE MR0103/MR0175
  • Sour Service
  • ISO 15156
Alloy 625 Slip On Flange Application

Alloy 625 Slip On Flange Application

  • Aerospace
  • Chemical Processing
  • Pressure Vessels
  • Food and Beverage Industry

What Are the Key Properties of WNR 2.4856 Slip on Flange That Make It Suitable for Marine Applications?
  • Resists cracking and pitting
  • High strength at all temperatures
  • Resists oxidation up to 980°C
  • Withstands aggressive environments
  • Easy to weld
  • Corrosion resistance in seawater
  • Excellent fatigue resistance

Top Notch Alloy 625 Flange Manufacturer in India At Affordable Price

Inconel 625 Flanges Price List

Get the Most Up-to-Date Inconel 625 Flanges Price List Here. Sending an email will get you a quote immediately. kalpesh@manishasteelcentre.com.

Pipe Flanges Pressure Price in USD
3" 150 psi $184
1-1/2" 150 psi $92.2
3" 275 psi $205
1/2" 720 psi $83.8
4" 150 psi $314
Nicrofer® 6020 Socket Weld Flange HS Code
Grade HS Code
625 Inconel Flanges 75072000

Supplier Of High Strength ASTM B564 UNS N06625 Blind Flanges in Mumbai With Size 1/2" to 48"

Inconel 625 Flanges Sizes

Inconel 625 Flanges Manufacturer in India offers a range of sizes of threads and distinctive surface finishes.

Nominal Pipe Size O.D. O.D. e P.C.D. Dia of bolt No. of bolt Thickness
1/2" 95.3 21.3 66.7 12.7 4 4.8
2 1/2" 165.1 73.0 127.0 15.9 4 7.9
3/4" 101.6 26.7 73.0 12.7 4 4.8
1 1/2" 133.4 48.3 98.4 12.7 4 6.4
1" 114.3 33.4 82.6 12.7 4 4.8
3" 184.2 88.9 146.1 15.9 4 9.5
1 1/4" 120.7 42.2 87.3 12.7 4 6.4
4" 215.9 114.3 177.8 15.9 4 9.5
2" 152.4 60.3 114.3 15.9 4 7.9
7" 304.8 190.5 260.4 15.9 8 12.7
3 1/2" 203.2 101.6 165.1 15.9 4 9.5
10" 406.4 273.0 355.6 19.1 8 15.9
5" 254.0 141.3 209.6 15.9 8 12.7
12" 457.2 323.9 406.4 19.1 12 15.9
6" 279.4 168.3 228.6 15.9 8 12.7
16" 577.9 406.4 520.7 22.2 12 19.1
8" 336.6 219.1 292.1 15.9 8 12.7
18" 641.4 457.2 584.2 22.2 12 22.2
9" 368.3 244.5 323.9 15.9 8 15.9
20" 704.9 508.0 641.4 22.5 16 25.4
14" 527.1 355.6 469.9 22.2 12 19.1
24" 825.5 609.6 755.7 25.4 16 28.6
UNS N06625 Weld Neck Flanges Gasket Size Chart
Normal Pipe Size Gasket I.D. (Inside Daimeter)
 Gasket O.D. (Outside Daimeter)
600 LB 150 LB 400 LB 300 LB 900 LB
1 1/4 1.66 3.25 3 3.25 3.25 3.50
1/2 0.84 2.125 1.875 2.125 2.125 2.50
1 1/2 1.91 3.75 3.375 3.75 3.75 3.875
3/4 1.06 2.625 2.25 2.625 2.625 2.75
2 2.38 4.375 4.125 4.375 4.375 5.625
1 1.31 2.875 2.625 2.875 2.875 3.125
3 3.50 5.875 5.375 5.875 5.875 6.625
2 1/2 2.88 5.125 4.875 5.125 5.125 6.50
5 5.56 9.50 7.75 8.375 8.50 9.75
8 8.62 12.625 11 12.00 12.125 14.125
4 4.50 7.625 6.875 7.00 7.125 8.125
10 10.75 15.75 13.375 14.125 14.25 17.125
6 6.62 10.50 8.75 9.75 9.875 11.375
12 12.75 18.00 16.125 16.50 16.625 19.625

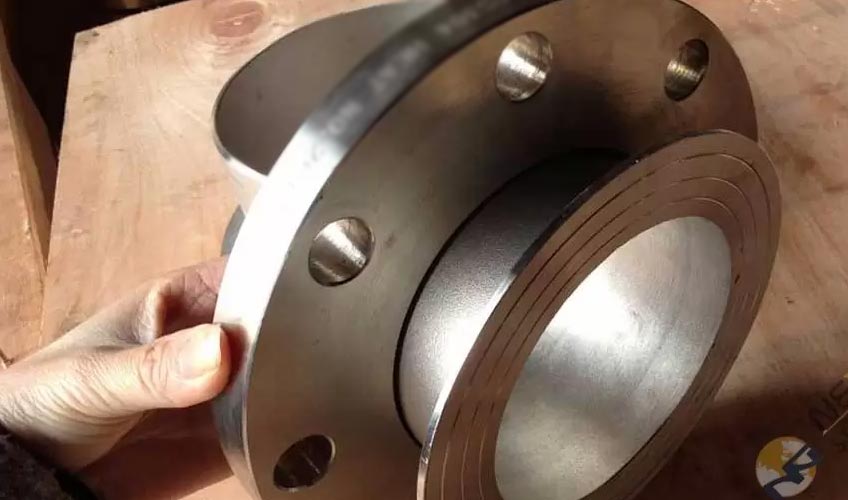

Altemp 625 Lap Joint Flange Testings
Altemp 625 Lap Joint Flange Testings
  • Flaring Test
  • Radiography Test
  • Hydrostatic Test
  • Eddy Current Testing
  • Ultra Sonic Test (UT)
  • Impact Test
  • PMI Testing
  • Bend Test
  • Pitting Resistance Test
  • Pressure Test

Purchase WNR 2.4856 Slip On and Weld Neck Flanges Online With Different Face and Pressure Class 150 to 2500#

Inconel 625 Flanges Pressure Rating
Temp., °C Inconel 625 Flanges Working Pressures by Classes, bar
50 68.9 19.5 103.4 51.7 258.6 155.1 430.9
400 150 600 300 1500 900 2500
100 68.7 17.7 103.0 51.5 257.6 154.6 429.4
-29 ~ 38 68.9 20.0 103.4 51.7 258.6 155.1 430.9
350 53.6 8.4 80.4 40.3 201.1 120.7 335.3
150 66.8 15.8 100.3 50.3 250.8 150.6 418.2
375 51.6 7.4 77.6 38.9 194.1 116.5 323.2
200 64.8 13.8 97.2 48.6 243.4 145.8 405.4
250 61.7 12.1 92.7 46.30 231.8 139.0 386.2
400 48.9 6.5 73.3 36.5 183.1 109.8 304.9
538 22.1 1.4 33.1 16.5 82.7 49.6 137.9
450 45.1 4.6 67.7 33.7 169.0 101.4 281.8
475 42.3 3.7 63.4 31.7 158.2 95.1 263.9
300 57.0 10.2 85.7 42.9 214.4 128.6 357.1
500 37.6 2.8 56.5 28.2 140.9 84.7 235.0
325 55.0 9.3 82.6 41.4 206.6 124.0 344.3
575 12.6 - 18.9 9.4 47.2 28.3 78.6
425 46.5 5.5 70.0 35.2 175.1 105.1 291.6
600 8.9 - 13.3 6.6 33.2 19.9 55.3
550 18.6 - 27.9 13.9 69.7 41.8 116.2
650 6.3 - 9.5 4.7 23.6 14.2 39.4
625 6.8 - 10.3 5.1 25.7 15.4 42.8
Chornin 625 Exhaust Flanges Dimensions
NPS
(in.)		 Inconel 625 Flange Dimensions
No.
of
Bolts		 Dia. of
Flange
(in.)		 Bolt
Circle
(in.)		 Dia. of
Bolts
(in.)		 Dia. of
Bolt Holes
(in.)
3/4 4 3-7/8 2-3/4 1/2 0.62
1/4 4 3-3/8 2-1/4 1/2 0.62
1 4 4-1/4 3-1/8 1/2 0.62
4 8 9 7-1/2 5/8 0.75
2 4 6 4-3/4 5/8 0.75
1/2 4 3-1/2 2-3/8 1/2 0.62
10 12 16 14-1/4 7/8 1
3 4 7-1/2 6 5/8 0.75
12 12 19 17 7/8 1
5 8 10 8-1/2 3/4 0.88
8 8 13-1/2 11-3/4 3/4 0.88
6 8 11 9-1/2 3/4 0.88
14 12 21 18-3/4 1 1.12
16 16 23-1/2 21-1/4 1 1.12
18 16 25 22-3/4 1-1/8 1.25
20 20 27-1/2 25 1-1/8 1.25
24 20 32 29-1/2 1-1/4 1.38
Offer Nicrofer® 6020 Socket Weld and Threaded Flanges With Proof Machined and Forged Black
Inconel 625 Blind Flanges Finish
  • Oil Black Paint
  • Serrated Surface Finish
  • Yellow Transparent
  • Anti-rust Paint
  • Forged Black
  • Zinc Plated
  • Cold and Hot Dip Galvanized
  • Mirror Finish
  • Proof Machined Finish
Get High Resistance Nickel 625 Forged Flanges Well Suited For Aerospace Industry and Chemical Processing
ASTM B564 UNS N06625 Blind Flange Applications
ASTM B564 UNS N06625 Blind Flange Applications
Haynes 625 Header Flanges Face Types
American Series European Series
Groove (G) Type D (Groove)
Tongue (T) Type C(Tongue)
Raised Face (RF) Type B (Raised Face)
Flat Face (FF) Type A (Flat Face)
Female (F) Type E (Spigot)
Male (M) Type F (Recess)
Ring Joints Face (RJ) Type G (O-Ring Spigot)
Nickelvac 625 Puddle Flange Thickness Chart
Normal Pipe Size (NPS) STD Wall OD O.D. Sch 60 Sch 10 Sch 40 Sch 20 Schedule 100 Sch 30 Schedule 120 Schedule 80 Schedule 160 Schedule 140 XX Hvy
16 0.375 16 0.656 0.25 0.5 0.312 1.031 0.375 1.219 0.844 1.594 1.438 ...
1 0.133 1.315 ... 0.109 0.133 ... ... ... ... 0.179 0.25 ... 0.358
48 0.375 48 …….. …….. …….. …….. …….. …….. …….. …….. …….. …….. ……..
2 0.154 2.375 ... 0.109 0.154 ... ... ... ... 0.218 0.344 ... 0.436
42 0.375 42 …….. …….. …….. …….. …….. …….. …….. …….. …….. …….. ……..
3 0.216 3.5 ... 0.12 0.216 ... ... ... ... 0.3 0.438 ... 0.6
40 0.375 40 .... .... .... .... .... .... .... .... .... .... ....
4 0.237 4.5 ... 0.12 0.237 ... ... ... 0.438 0.337 0.531 ... 0.674
36 0.375 36 .... 0.312 0.75 0.5 .... 0.625 .... .... .... .... ....
5 0.258 5.563 ... 0.134 0.258 ... ... ... 0.5 0.375 0.625 ... 0.75
26 0.375 26 .... .... .... .... .... .... .... .... .... .... ....
30 0.375 30 .... 0.312 .... 0.5 .... 0.625 .... .... .... .... ....
6 0.28 6.625 ... 0.134 0.28 ... ... ... 0.562 0.432 0.719 ... 0.864
24 0.375 24 0.969 0.25 0.688 0.375 1.531 0.562 1.812 1.219 2.344 2.062 ....
8 0.322 8.625 0.406 0.148 0.322 0.25 0.594 0.277 0.719 0.5 0.906 0.812 0.875
22 0.375 22 ... 0.25 ... ... ... ... .... ... .... .... ....
10 0.365 10.75 0.5 0.165 0.365 0.25 0.719 0.307 0.844 0.594 1.125 1 1
20 0.375 20 0.812 0.25 0.594 0.375 1.281 0.5 1.5 1.031 1.969 1.75 ...
12 0.375 12.75 0.562 0.18 0.406 0.25 0.844 0.33 1 0.688 1.312 1.125 1
18 0.375 18 0.75 0.25 0.562 0.312 1.156 0.438 1.375 0.938 1.781 1.562 ...
14 0.375 14 0.594 0.25 0.438 0.312 0.938 0.375 1.094 0.75 1.406 1.25 ...

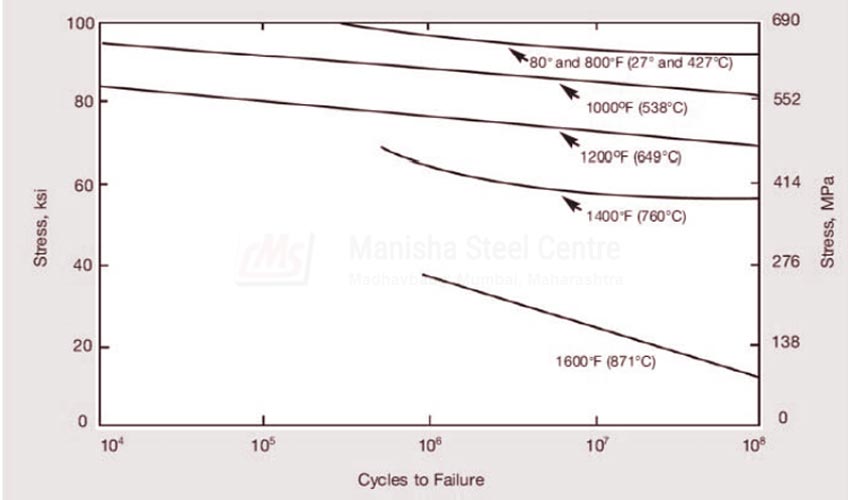

How Does Alloy 625 Flanges Perform in Terms of Fatigue Resistance?
Alloy 625 Flanges Fatigue Resistance
Nickel 625 Pipe Flanges Weight Chart
Standard Class Bolt Size Number of Bolts Diameter of Bolt Hole Diameter Bolt Circle Diameter
AS 2129 Flange Table J 16 4 17 114 83
Table E 13 4 14 95 67
Table C 13 4 14 95 67
Table H 16 4 17 114 83
Table F 13 4 14 95 67
Table D 13 4 14 95 67
ISO 7005 (DIN) Flange PN20 M14 4 16 90 60.5
PN10 M12 4 14 95 65
PN25 M12 4 14 95 65
PN6 M10 4 11 80 55
PN16 M12 4 14 95 65
PN40 M12 4 14 95 65
AS4087 PN14 M12 4 14 95 67
ASTM B16.5 ASTM 150 13 4 16 89 60
ASTM 300 13 4 16 95 67
ASTM 600 13 4 16 95 67
ASTM 900 19 4 22 121 83
ASTM 1500 19 4 22 121 83
Connection Types of Alloy 625 Flange

Manisha Steel Centre Most Recommended Inconel 625 Flanges Supplier in India makes a variety of coatings, types, and pressure ratings available.

Inconel 625 Blind Flanges

Inconel 625 Blind Flanges

Alloy 625 Slip On Flange

Alloy 625 Slip On Flange

UNS N06625 Weld Neck Flanges

UNS N06625 Weld Neck Flanges

WNR 2.4856 Socket Weld Flanges

WNR 2.4856 Socket Weld Flanges

Altemp 625 Threaded Flanges

Altemp 625 Threaded Flanges

Chornin 625 Lap Joint Flange

Chornin 625 Lap Joint Flange

Nickel 625 Exhaust Flanges

Nickel 625 Exhaust Flanges

Haynes 625 Puddle Flange

Haynes 625 Puddle Flange

Physical Properties of B564 UNS N06625 Forged Flange
Permeability at 200 Oersted Specific Heat Curie Temperature
15.9 kA/m Btu/lb°F (J/kg°C)
70°F(21°C)		 °F °C
1.0006 0.098(410) <-320 -196
Chemical Composition of Alloy 625 Lap Joint Flange
Ni 58%
Fe 5%
Mn 0.50%
Cr 20.0 – 23.0%
Si 0.50%
C 0.10%
Equivalent Grades of ASTM B564 N06625 Slip On Flange
STANDARD JIS WERKSTOFF NR. BS UNS AFNOR EN GOST
Inconel 625 NCF 625 2.4856 NA 21 N06625 NC22DNB4MNiCr22Mo9Nb NiCr23Fe ХН75МБТЮ
Mechanical Properties of Inconel 625 Exhaust Flanges
Element Tensile Strength Density Yield Strength (0.2%Offset) Melting Point Elongation
Inconel 625 Psi – 1,35,000 , MPa – 930 8.4 g/cm3 Psi – 75,000 , MPa – 517 1350 °C (2460 °F) 42.5 %
Shipping Time as per Location of Inconel 625 Flanges
Changes in Price
Extra 5 %
Export to Shipping Time in Days
Australia 21
Egypt 18
Poland 45
Germany 20
Sweden 45
Belgium 21
Finland 45
Libya 45-60
Vietnam 10
Kazakhstan 45-60
Netherland 30
Russia 20
Norway 45
Thailand 7
Cambodia 9
Manisha Steel Centre



Why Us ?
  • Stockist and Exporter of Small Diameter Tubing in Grades of Austenitic and Ferritic Stainless Steel.
  • Supply as Per American and European Standards According to Dimensional Standard ASME B36.19M
  • Distributor and Trader in Mumbai of Renowned Mills Outokumpu, POSCO and Aperam
  • Associated With Dealers and Stockholders in Kuwait, Nigeria, Iraq, Egypt, Congo and Gabon
©2025 Manisha Steel Centre. All Rights Reserved
Website Designed And SEO by Mesotek
Manufacturer and Supplier of Seamless Steel Tubes in India as per ASME SA 269.
