ASTM A350 LF2 Flanges Manufacturer in India offers distinctive surface finishes and a range of thread diameters.
| NPS | Size (Inch) | OD (inches) | Face to Face (inch) | Thickness (inch) |
|---|---|---|---|---|
| 3/4″ | 3/4″ | 3.25 | 1.00 | 0.38 |
| 1/2″ | 1/2″ | 2.88 | 0.88 | 0.38 |
| 4″ | 4″ | 7.00 | 1.75 | 0.75 |
| 10″ | 10″ | 12.00 | 2.38 | 1.25 |
| 8″ | 8″ | 10.00 | 2.12 | 1.06 |
| 1 1/2″ | 1 1/2″ | 4.00 | 1.25 | 0.50 |
| 1″ | 1″ | 3.62 | 1.12 | 0.44 |
| 3″ | 3″ | 6.00 | 1.62 | 0.69 |
| 2″ | 2″ | 5.00 | 1.38 | 0.56 |
| 6″ | 6″ | 8.62 | 2.00 | 0.94 |
For Renewed ASTM A350 LF2 Price List. Directly Contact Us and get a Quote Right Away
| TEMP °C | 150 | 400 | 300 | 900 | 600 | 2500 | 1500 |
| 100 | 17.7 | 62.1 | 46.6 | 139.8 | 93.2 | 388.3 | 233 |
| -29 - 38 | 19.6 | 68.1 | 51.1 | 153.2 | 102.1 | 425.5 | 255.3 |
| 150 | 15.8 | 60.1 | 45.1 | 135.2 | 90.2 | 375.6 | 225.4 |
| 325 | 9.3 | 51.6 | 38.7 | 116.1 | 77.4 | 322.6 | 193.6 |
| 200 | 13.8 | 58.4 | 43.8 | 131.4 | 87.6 | 365 | 219 |
| 350 | 8.4 | 50.1 | 37.6 | 112.7 | 75.1 | 313 | 187.8 |
| 300 | 10.2 | 53.1 | 39.8 | 119.5 | 79.6 | 331.8 | 199.1 |
| 250 | 12.1 | 55.9 | 41.9 | 125.8 | 83.9 | 349.5 | 209.7 |
| 425 | 5.5 | 38.4 | 28.8 | 86.3 | 57.5 | 239.7 | 143.8 |
| 500 | 2.8 | 15.7 | 11.8 | 35.3 | 23.5 | 97.9 | 58.8 |
| 450 | 4.6 | 30.7 | 23 | 69 | 46 | 191.7 | 115 |
| 538 | 1.4 | 7.9 | 5.9 | 17.7 | 11.8 | 49.2 | 29.5 |
| 375 | 7.4 | 48.5 | 36.4 | 109.1 | 72.7 | 303.1 | 181.8 |
| 475 | 3.7 | 23.2 | 17.4 | 52.3 | 34.9 | 145.3 | 87.2 |
| 50 | 19.2 | 66.8 | 50.1 | 150.4 | 100.2 | 417.7 | 250.6 |
| 400 | 6.5 | 46.3 | 34.7 | 104.2 | 69.4 | 289.3 | 173.6 |
| Impact Toughness Requirement | Temp Range |
|---|---|
| Charpy V-notch value of 10 ft-lbs min | -101°C to -129°C |
| Charpy V-notch value of 20 ft-lbs min | -45°C to -73°C |
| Charpy V-notch value of 15 ft-lbsmin | -73°C to -101°C |
| Faces Type |
|---|
| Lap Joint |
| Raised Face (RF) |
| Flat Face (FF) |
| Male and Female (M&F) |
| Ring Joint (RTJ) |
| Tongue-and-Groove (T&G) |
Manisha Steel Centre, ASTM A350 LF2 Flanges Supplier in India,Gives a large selection of types, coatings, and pressure ratings./p>
ASME SA 350 GR LF2 Blind Flanges
LTCS A350 LF2 Slip On Flanges
Sa 350 Lf2 Weld Neck Flanges
A350 LF2 Class 1 Socket Weld Flanges
ASTM A350 Lf2 Class 1 Threaded Flanges
A350 Lap Joint Flange
Lf2 Header Flanges

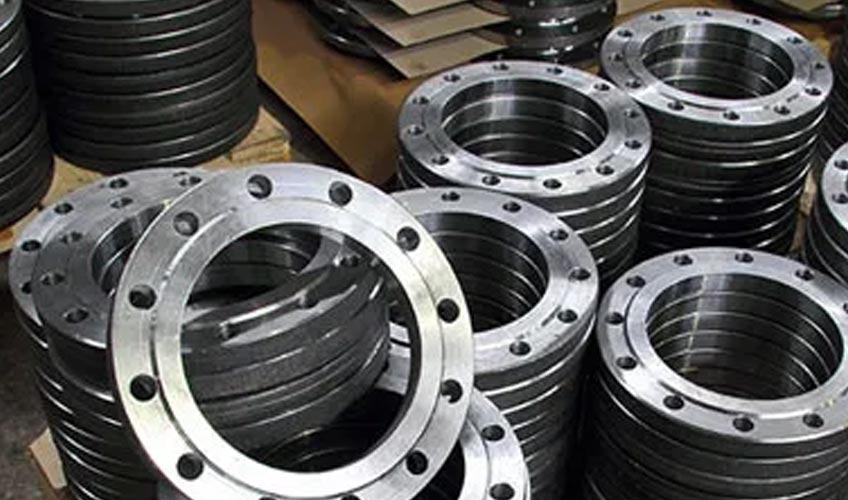

A350 Lf2 Cl 1 Exhaust Flanges
ASTM A350 Gr Lf2 Cl 1 Puddle Flange
| Tensile Strength | 485 – 620 MPa |
| Elongation | 20% min |
| Yield Strength | 205 MPa |
| Hardness | Rockwell B 95 max |
| Poisson’s Ratio | 0.29 |
| Modulus of Elasticity | 29,000 ksi |
| Grade | ASME | ASTM | JIS | EN |
|---|---|---|---|---|
| Lf2 | SA350 | A350 | JIS G3101 | EN 10213-2 |
| Density | 7.85 g/cm³ |
| Thermal Conductivity | 50 W/m·K |
| Melting Point | 1425°C |
| Electrical Resistivity | 0.00075 Ω·cm |
| Specific Heat | 0.46 J/g·°C |
| Heat Treatment | Temperature Range |
|---|---|
| Annealing | 1202°F - 1292°F |
| Normalizing | 1652°F - 1742°F |
| Tempering | 1112°F - 1202°F |
