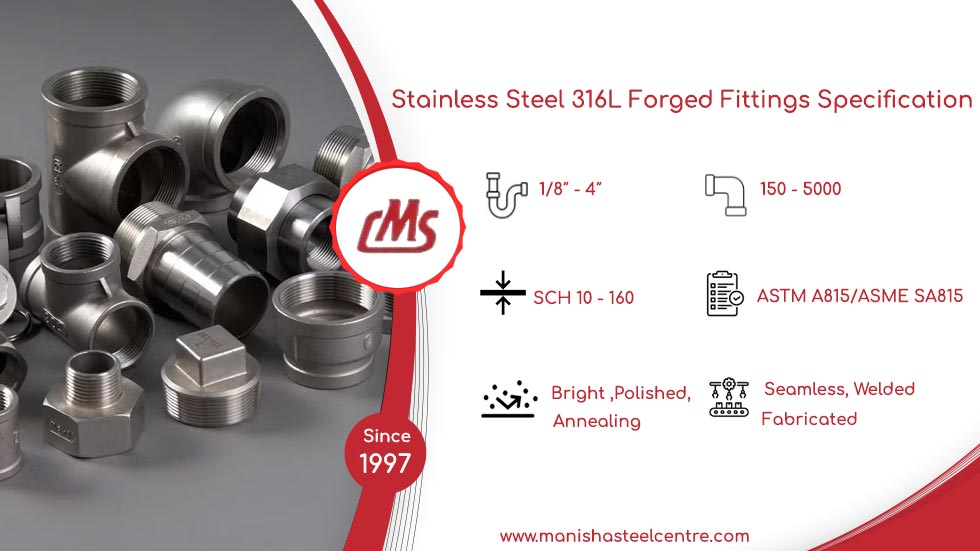

Stainless Steel 316L Forged Fittings Manufacturer in India in various Sizes with Different Surface Finishes and Threads
| Size | WT min | Depth of Sock, Min | Bottom Socket Centre | Sock, Bore Dia. B | Laying Lengths | Bore Dia. of Fitting D | Tolerances, ± | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6000# | 3000# | 90º Ells, Tee & Crosses | 45º Ell | Couplings | Half Couplings | - | |||||||||||
| - | - | - | - | A | A | E | F | A | E | F | |||||||
| Body G | Sock C | Body G | Sock, C | 6000# | 3000# | 6000# | 3000# | - | 3000# | 6000# | - | ||||||
| 3/8 | .158 | .172 | .126 | .138 | 3/8 | 5/8 | 17/32 | 7/16 | 5/16 | .690 .700 | 1/4 | 11/16 | .478 .508 | .344 | .06 | .12 | .06 |
| 1/4 | .145 | .158 | .119 | .130 | 3/8 | 17/32 | 7/16 | 5/16 | 5/16 | .555 .565 | 1/4 | 5/8 | .349 .379 | .235 | .03 | .06 | .03 |
| 1/2 | .188 | .204 | .147 | .161 | 3/8 | 3/4 | 5/8 | 1/2 | 7/16 | .855 .865 | 3/8 | 7/8 | .607 .637 | .451 | .06 | .12 | .06 |
| 1/8" | .124 | .135 | .095 | .125 | 3/8 | 7/16 | 7/16 | 5/16 | 5/16 | .420 .430 | 1/4 | 5/8 | .254 .284 | .141 | .03 | .06 | .03 |
| 1 | .250 | .273 | .179 | .196 | 1/2 | 1-1/16 | 7/8 | 11/16 | 9/16 | 1.330 1.340 | 1/2 | 1-1/8 | 1.034 1.064 | .800 | .08 | .16 | .08 |
| 3/4 | .219 | .238 | .154 | .168 | 1/2 | 7/8 | 3/4 | 9/16 | 1/2 | 1.065 1.075 | 3/8 | 15/16 | .809 .839 | .599 | .06 | .12 | .06 |
| 1-1/4 | .250 | .273 | .191 | .208 | 1/2 | 1-1/4 | 1-1/16 | 13/16 | 11/16 | 1.675 1.685 | 1/2 | 1-3/16 | 1.365 1.395 | 1.145 | .08 | .16 | .08 |
| 2 | .344 | .374 | .218 | .238 | 5/8 | 1-5/8 | 1-1/2 | 1-1/8 | 1 | 2.406 2.416 | 3/4 | 1-5/8 | 2.052 2.082 | 1.674 | .08 | .16 | .08 |
| 1-1/2 | .281 | .307 | .200 | .218 | 1/2 | 1-1/2 | 1-1/4 | 1 | 13/16 | 1.915 1.925 | 1/2 | 1-1/4 | 1.595 1.625 | 1.323 | .08 | .16 | .08 |
| 2-1/2 | .375 | - | .276 | .301 | 5/8 | - | 1-5/8 | 1-1/8 | 2.906 2.921 | 3/4 | 1-11/16 | 2.439 2.499 | - | .10 | .20 | .10 | |
| 4 | .531 | - | .337 | .368 | 3/4 | - | 2-5/8 | 1-5/8 | 4.545 4.560 | 3/4 | - | 3.996 4.055 | - | .10 | .20 | .10 | |
| 3 | .438 | - | .300 | .327 | 5/8 | - | 2-1/4 | 1-1/4 | 3.535 3.550 | 3/4 | 1-3/4 | 3.038 3.098 | - | .10 | .20 | .10 | |
| ASTM A182 SS 316L Products | Size | |
|---|---|---|
| Unions | Forged Tees | Sizes 1/8"– 4" Pressure Ratings – 2000, 3000, 6000, 9000 LBS |
| Couplings | Forged Caps | |
| Inserts | Forged Cross | |
| 45° Elbows | 90° Elbows | |
| Pipe Nipple | Bushings | |
| Street Elbows | Forged Plug | |
| Name | Pressure | 3/8" | 1/4" | 1/2" | 1" | 3/4" | 1-1/4" | 2" | 1-1/2" |
|---|---|---|---|---|---|---|---|---|---|
| 90 degree Ells Screw | 3000# | 53 | 29 | 86 | 198 | 139 | 286 | 1452 | 400 |
| 90 degree Ells SW | 29 | 22 | 53 | 139 | 86 | 198 | 400 | 286 | |
| 45 degree Ells SW | 38 | 22 | 53 | 139 | 86 | 198 | 396 | 374 | |
| Tees SW | 40 | 31 | 73 | 158 | 106 | 220 | 572 | 317 | |
| 45 degree Ells Screw | 53 | 29 | 86 | 198 | 139 | 374 | 800 | 600 | |
| Tees Screw | 73 | 40 | 106 | 220 | 158 | 317 | 2090 | 512 | |
| Coupling Screw | 18 | 9 | 26 | 92 | 40 | 152 | 462 | 229 | |
| Coupling SW | 18 | 9 | 26 | 92 | 40 | 152 | 462 | 229 | |
| Caps SW | 13 | 11 | 24 | 62 | 37 | 114 | 297 | 147 | |
| Hex Head Plugs | 7 | 4 | 18 | 48 | 26 | 86 | 198 | 99 | |
| Caps Screw | 13 | 11 | 24 | 62 | 37 | 114 | 297 | 147 | |
| Square Head Plugs | 4 | 2 | 9 | 33 | 18 | 57 | 136 | 73 | |
| Flush Bushing | 4 | 4 | 7 | 15 | 9 | 33 | 132 | 37 | |
| Hex Bushing | 7 | 7 | 9 | 18 | 13 | 42 | 136 | 44 |
Do You Want to See the Most Up-to-Date List of Prices for Stainless Steel 316L Forged Fittings? To obtain a quote immediately, send an email to kalpesh@manishasteelcentre.com.
| Size | Quantity | Weight (kg) |
|---|---|---|
| ½ | 100 | 0.57 |
| 1 | 40 | 1.08 |
| ¾ | 75 | 0.71 |
| 1 ¼ | 25 | 1.68 |
| 2 | 10 | 3.55 |
| 1 ½ | 18 | 2.38 |
| 2 ½ | 4 | 6.22 |
| 4 | 1 | 23.91 |
| ¼ | 160 | 0.20 |
| 3 | 2 | 10.36 |
Manisha Steel Centre ISO Certified Stainless Steel 316L Forged Fittings Supplier in India Keep featuring Different Finishes and Pressure Ratings
| Temperature | Pressure Class | ||||
|---|---|---|---|---|---|
| 150 | 300 | ||||
| 1/4 - 1 in | 1 1/4 - 2 in | 2 1/2 - 3 in | |||
| (°C) | (°F) | ||||
| 260 | 500 | - | 510 | 450 | 385 |
| 288 | 550 | - | 300 | 300 | 300 |
| 232 | 450 | - | 725 | 600 | 475 |
| 177 | 350 | 150 | 1150 | 900 | 650 |
| 204 | 400 | - | 935 | 750 | 560 |
| 149 | 300 | 185 | 1360 | 1050 | 735 |
| 93 | 200 | 265 | 1785 | 1350 | 910 |
| 121 | 250 | 225 | 1575 | 1200 | 825 |
For Updated Stainless Steel 316L Forged Fittings Price List. Directly Contact Us and Obtain a Quote Right Away
SS 316L Threaded Elbow
AISI 316L Socket Weld Tee
Stainless Steel 316L Olets
SUS 316L Forged Elbow
316L Stainless Steel Forged Tee
INOX 316L Pipe Coupling
UNS S316L00 Forged Reducer
ASTM A182 F316L Weld Outlets
WNR 1.4401 Socket Weld Inserts
ASME SA 182 F316L Forged Union
AISI 316L Forged Plug
| Grade | UNS | Werkstoff NR. | JIS | GOST | BS | EN | AFNOR |
|---|---|---|---|---|---|---|---|
| SS 316L | S31603 | 1.4404 / 1.4435 | SUS 316L | 03Ch17N14M3 / 03Ch17N14M2 | 316S11 / 316S13 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 | Z3CND17‐11‐02 / Z3CND18‐14‐03 |
| Grade | Silicon | Manganese | Carbon | Sulfur | Phosphorus | Molybdenum | Chromium | Iron | Nickel |
|---|---|---|---|---|---|---|---|---|---|
| SS 316L | 1.0 max | 2.0 max | 0.035 max | 0.030 max | 0.045 max | 2.00 - 3.00 | 16.00 - 18.00 | 68.89 min | 10.00 - 14.00 |
| Melting Point | Density | Tensile Strength | Elongation | Yield Strength |
|---|---|---|---|---|
| 1399 °C | 8.0 g/cm3 | Psi - 75000 , MPa - 515 | 35 % | Psi - 30000 , MPa - 205 |
